Fiber Delay Line
1500PS 3000PS Manual Fiber Delay Line 1064nm Multimode Optical Delay Line
Product ID: 1725
$3,868.00 – $4,942.00

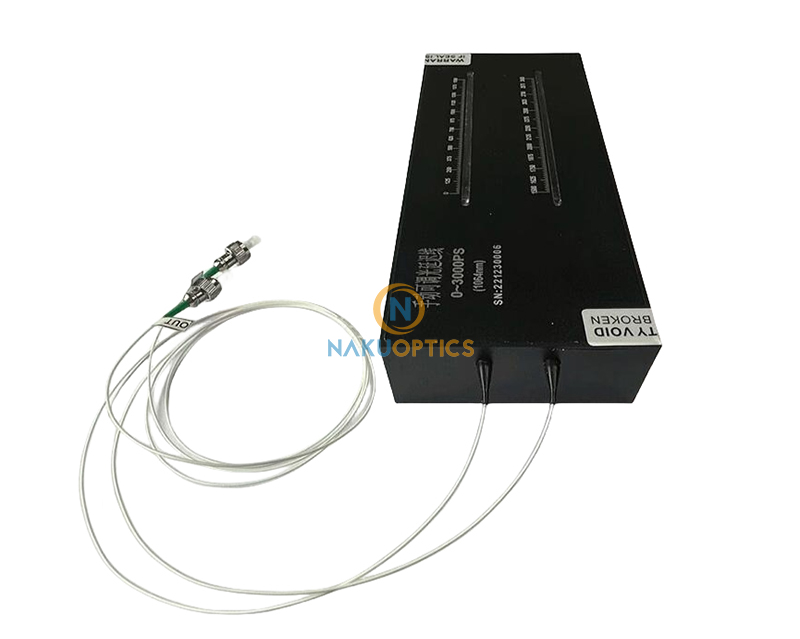

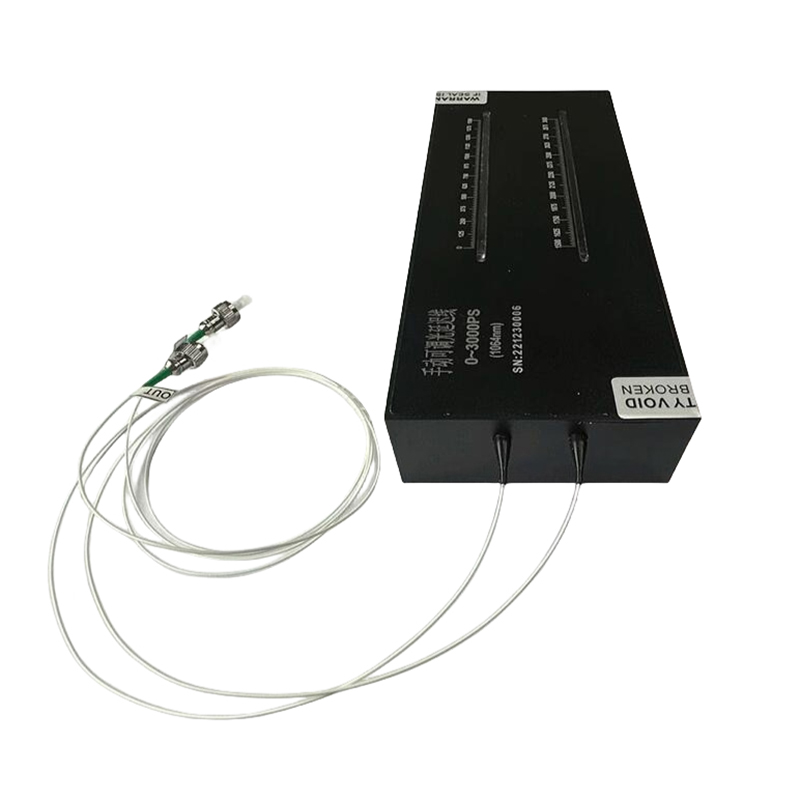

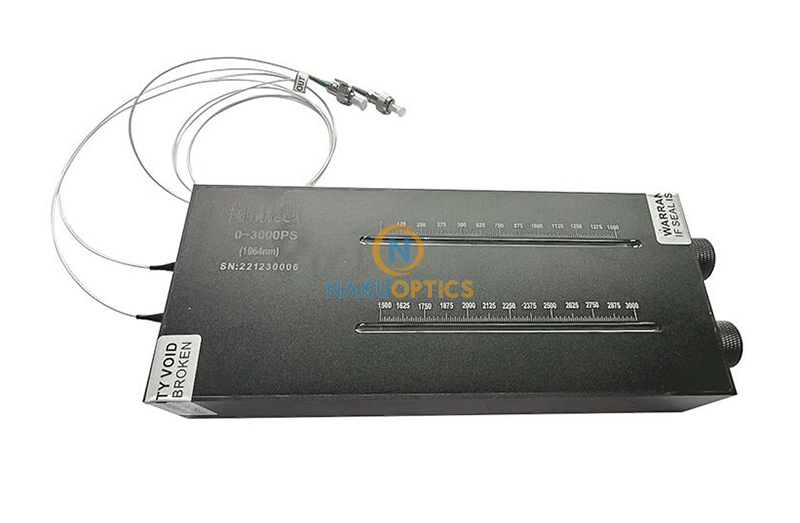

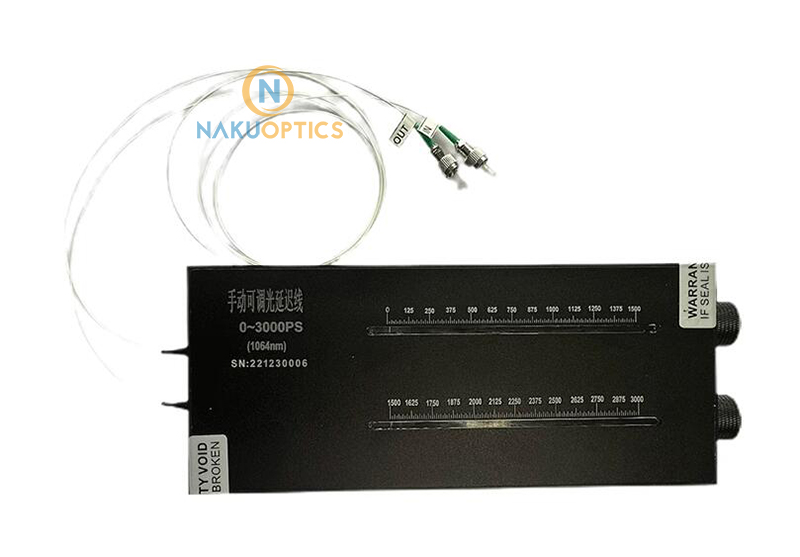

1500PS 3000PS Manual Fiber Delay Line 1064nm Multimode Optical Delay Line
The manual fiber optic delay line is a unique delay mechanical device with high precision and low insertion loss. It has the characteristics of continuous reliable operation and wide delay range. The accuracy of its delay line can reach the order of PS, and the product has high reliability, meets the operating temperature, and has low polarization-related loss and low insertion loss variation.
[Features]
Wide latency range
High delay accuracy
Compact structure
[Applications]
radar test
Optical Interference Measurement
Fiber Optic Sensor
[Specifications]
| Prameter | Unit | Value |
| Working Wavelength | nm | 1064nm, C-Band, L-band, C+L band, … |
| Delay Range | ps | 0~1500ps, 1500~3000ps (Choose) |

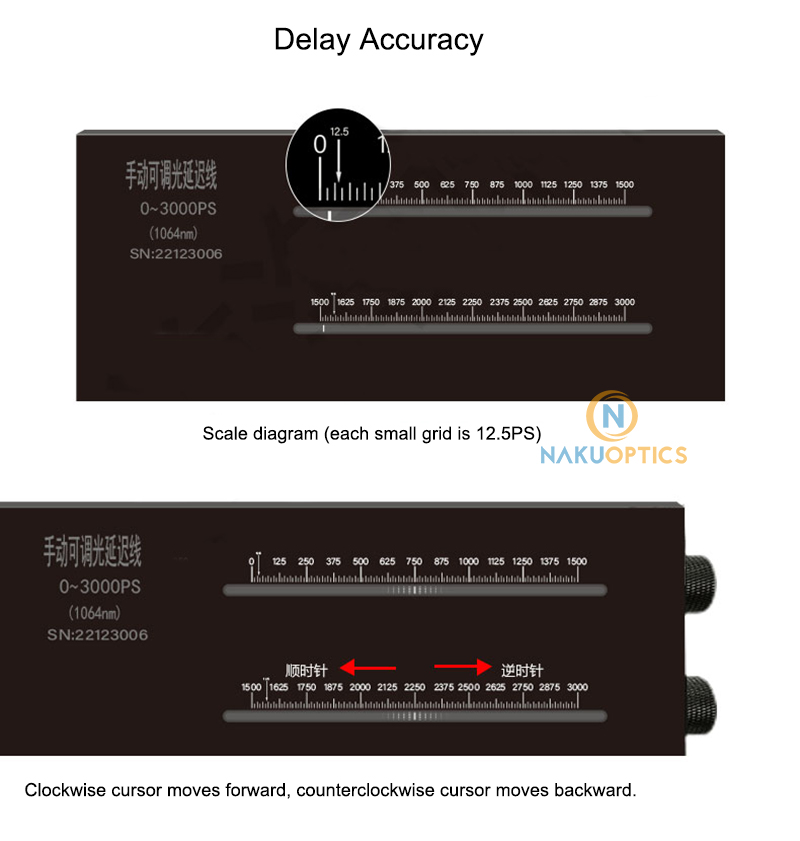

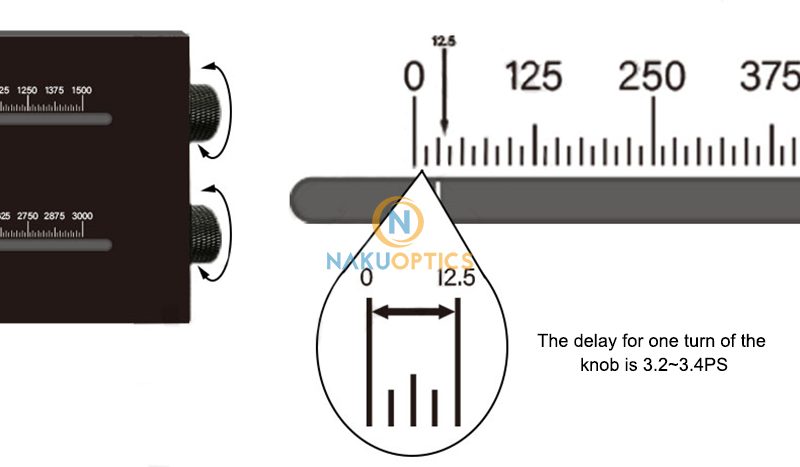

| Resolution | ps | 0.05 |
| Typical Insertion Loss | dB | 0.8 |
| Max Insertion Loss | dB | 1.4 |

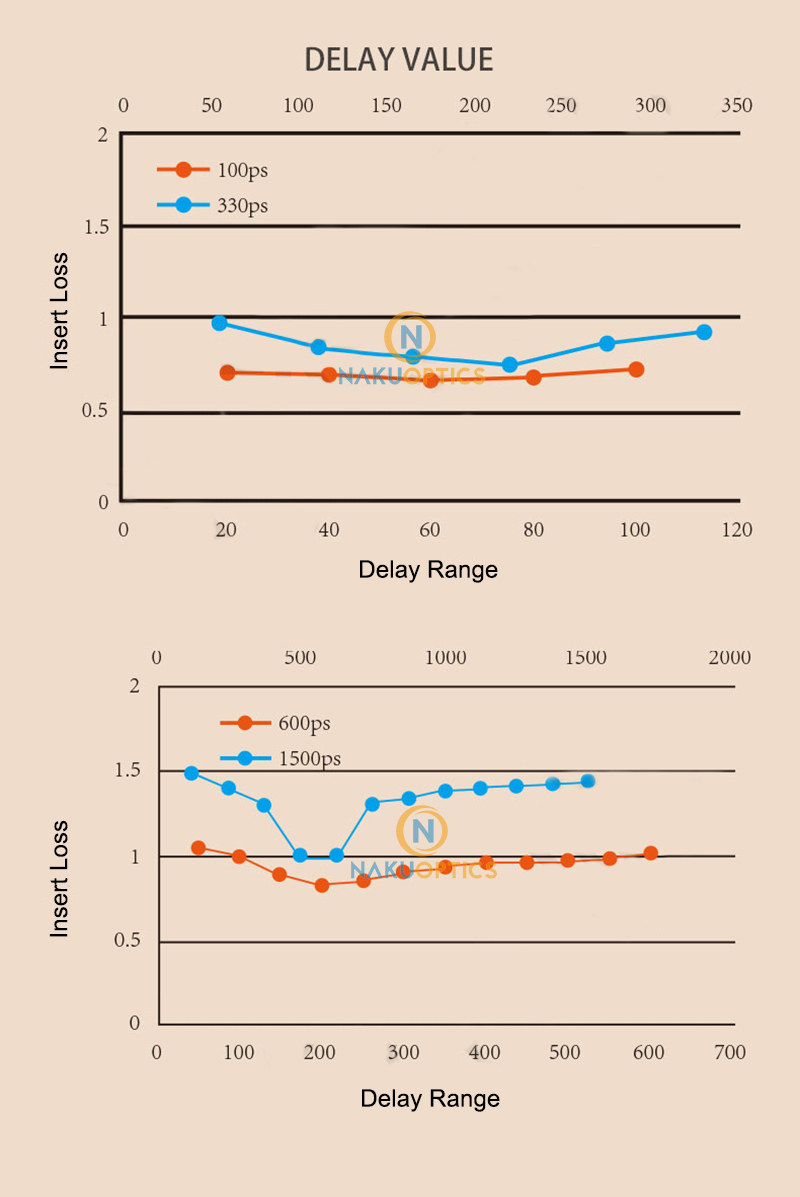

| Insertion Loss Variation | dB | ±1.5(0~1500ps) |
| Return Loss | dB | >55 |
| Extinction Ratio | dB | >18 |
| Transmitted Optical Power | mW | Typical 500 (Customizable) |
| Operating Temperature | ℃ | 0 ~ +50 |
| Storage Temperature | ℃ | -40 ~ +65 |
| Fiber Type | Corning SMF-28, MM, or PM Panda fiber (Customizable) | |
| Fiber Length | m | 1 (Customizable) |
| Fiber Connector | FC/APC (Customizable) | |
| Size (L*W*H) | mm | 1500ps model: 169*46*35.5 |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 1.49 kg |
|---|---|
| Delay Range | 0~1500ps, 1500~3000ps |
