17dBm 50mW C-Band Erbium-doped Booster PM Optical Fiber Amplifier
Product ID: 716
$1,990.00 $2,220.00
17dBm 50mW C-Band Erbium-doped Booster PM Optical Fiber Amplifier
The EDFA-PM is a family of fiber amplifier products dedicated to polarization-maintaining fiber systems. It has high gain, low noise, and polarization retention advantages. It supports host computer software control. The product accepts parameter customization.
[Features]
High polarization extinction ratio
High gain factor
High output power
[Applications]
Optical fiber communication
Optical fiber sensing
Fiber laser
[Specification]
|
Parameters |
Unit |
Typical Value |
Remarks |
| Model |
— |
EDFA-BA-PM |
EDFA-C-BA-17-PM |
| Wavelength Range |
nm |
1530~1565nm |
C-band |
| Input power |
dBm |
-6~+3 |
|
| Saturated Output Power |
dBm |
17 |
@-3dBm input power |
| Small Signal Gain Factor |
dB |
25 |
|
| Noise Figure |
dB |
5 |
|
| Polarization Extinction Ratio |
dB |
23(Type)，20(Min) |
|
| Input/Output Isolation |
dB |
>35 |
|
| Pigtail Fiber Type |
— |
PM1550 polarization maintaining fiber |
|
| Fiber Interface Type |
— |
FC/APC |
Slow axis alignment |
| Work Mode |
— |
Automatic current control (ACC) / Automatic Power Control (APC) |
|
|
Electrical and environmental parameters |

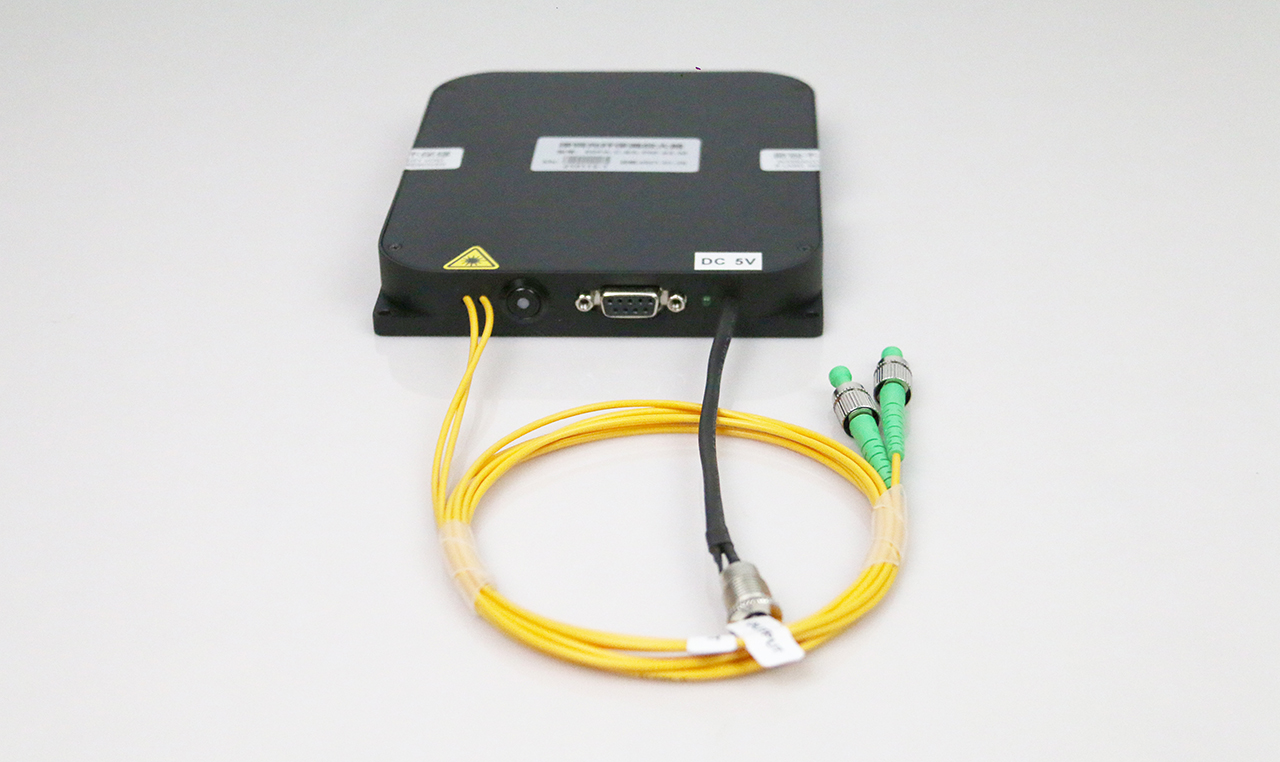

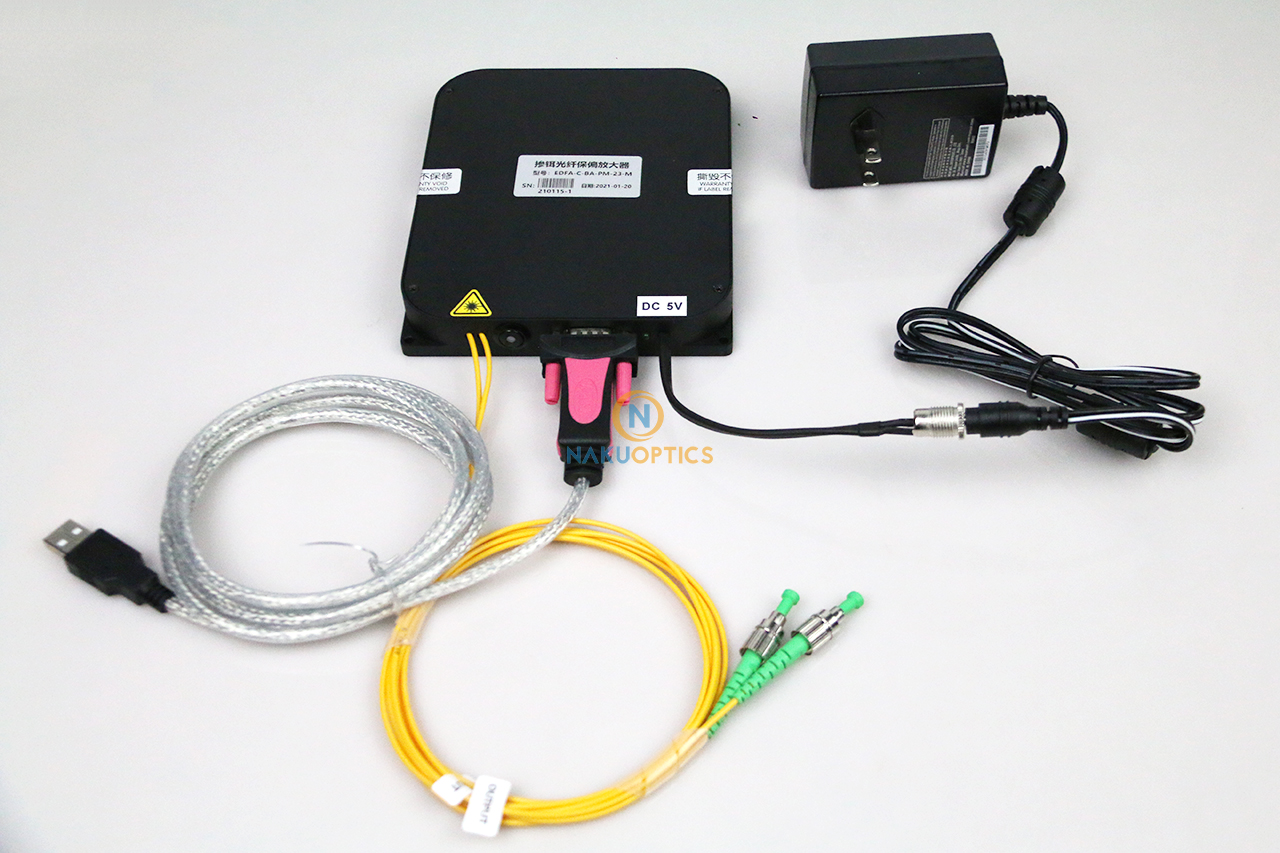

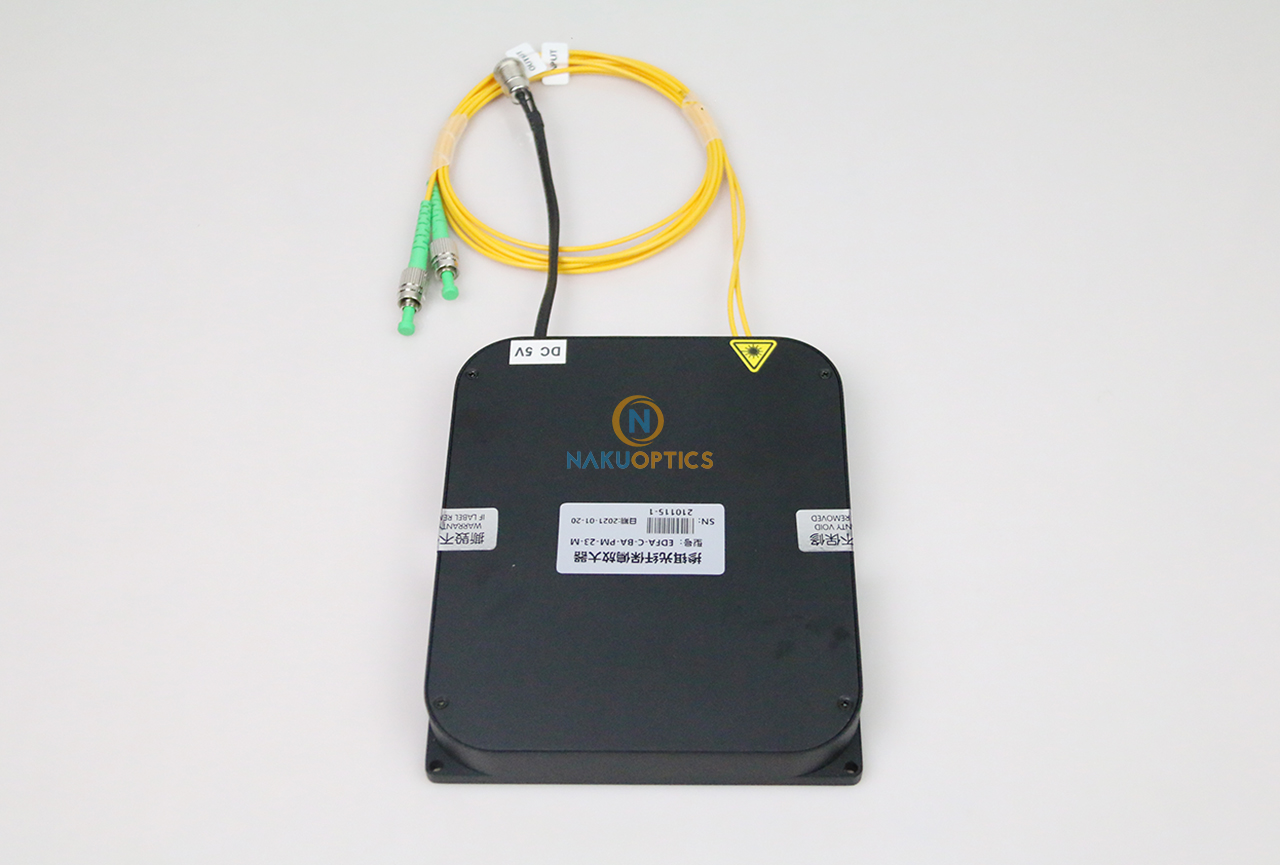

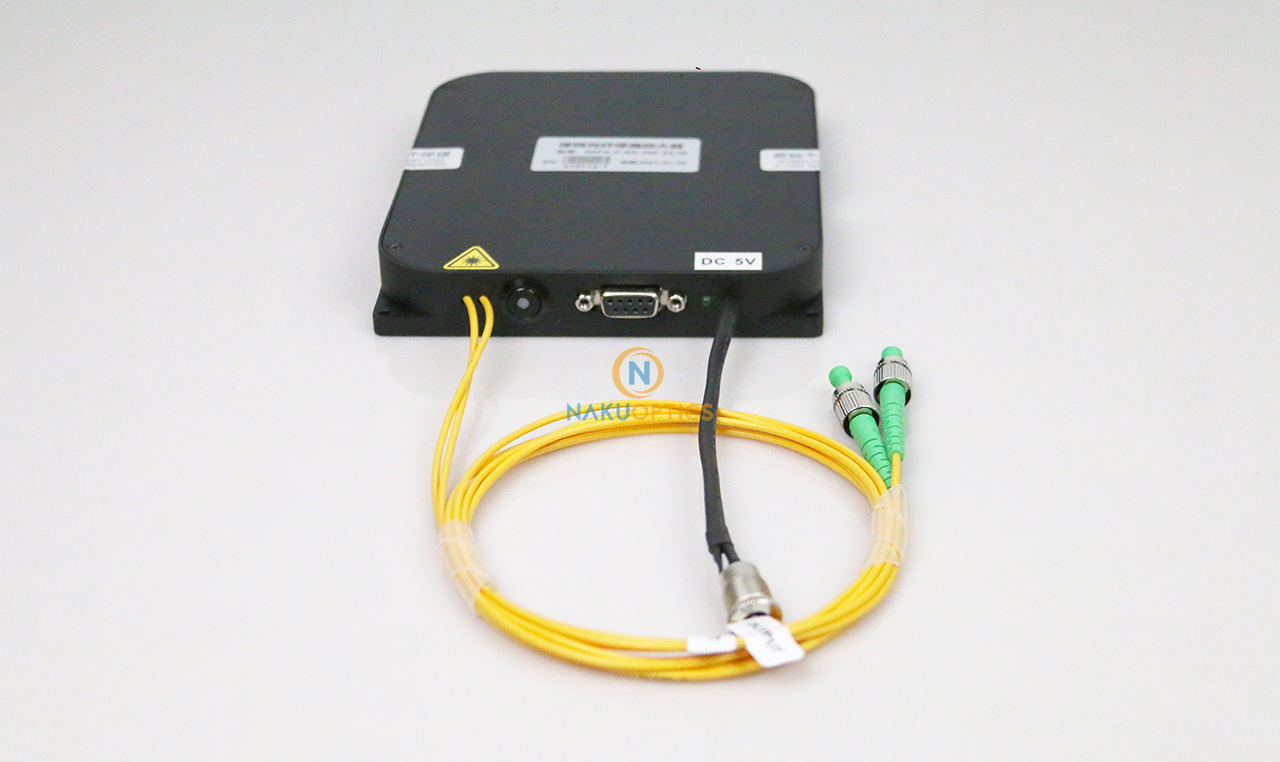

Module Type |
| Control method |
RS232 Serial communication |
| Communication interface |
DB9 Female |
| Power supply |
5V DC, <15W |
| Size |
125(W)×150(D)×20(H)mm |
| Operating temperature range |
-5~+35°C |
| Operating humidity range |
0~70% |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 5.55 kg |
|---|
