L-Band 10mW ASE Broadband Light Source SM Fiber Output

Product ID: 658


$1,140.00$1,360.00

L-Band 10mW ASE Broadband Light Source SM Fiber Output

The fiber ASE broadband light source is an incoherent light source that generates spontaneous radiation by pumping erbium-doped silica fiber with a semiconductor laser. Spectral flattening technology is introduced to achieve a broadband flat spectrum. The wavelength of the light source covers the L-band, and the spectral flatness is better than 3dB. It is output through single-mode fiber and is suitable for applications such as fiber sensing.

[Features]
Spectrally flat
Adjustable power
High stability output power

[Applications]
Optical fiber sensing
Medical Imaging
Optical fiber device testing

[Specifications]

Parameters

Unit

Typical value

Remarks

Model

ASE-L-10-SM

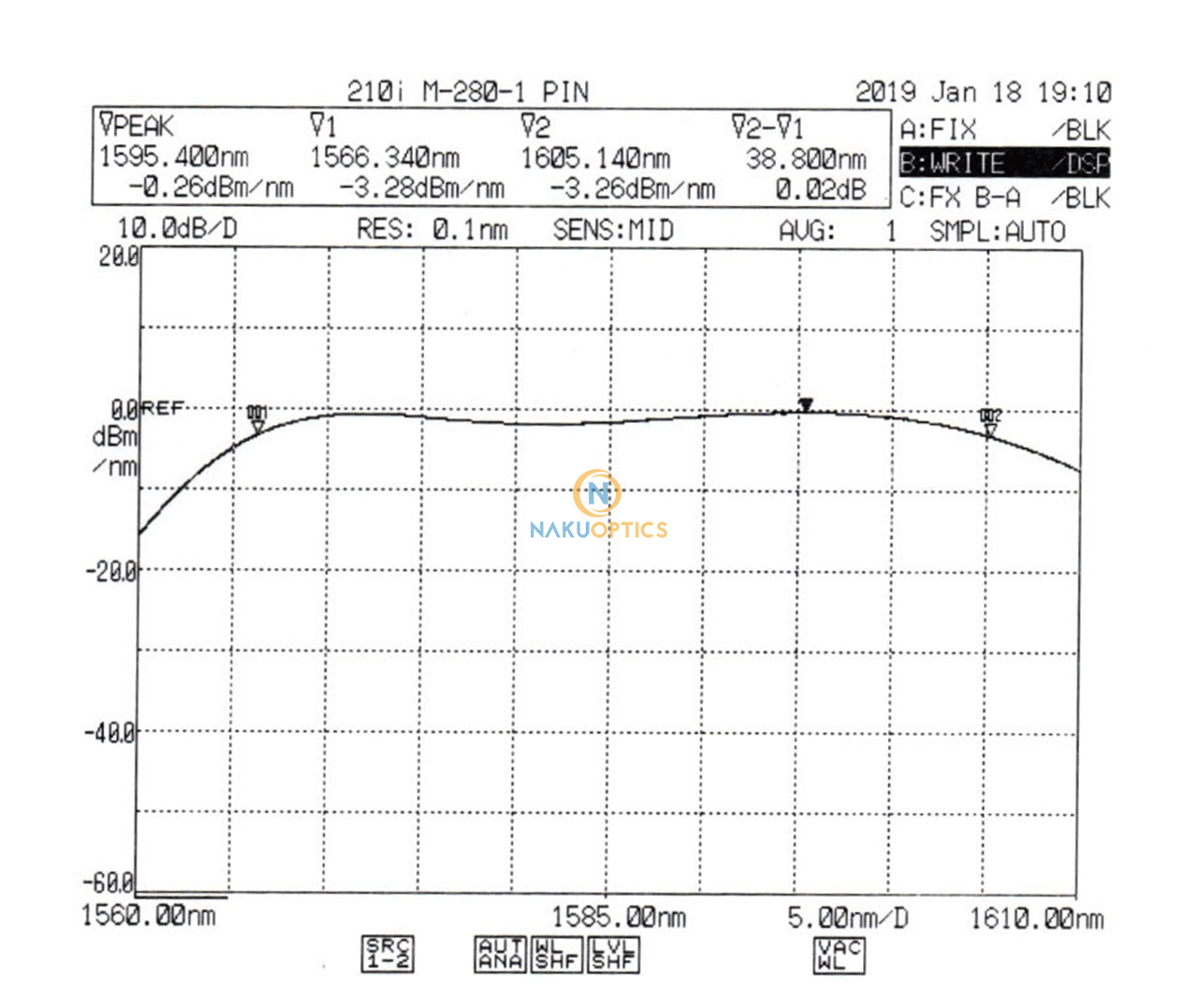

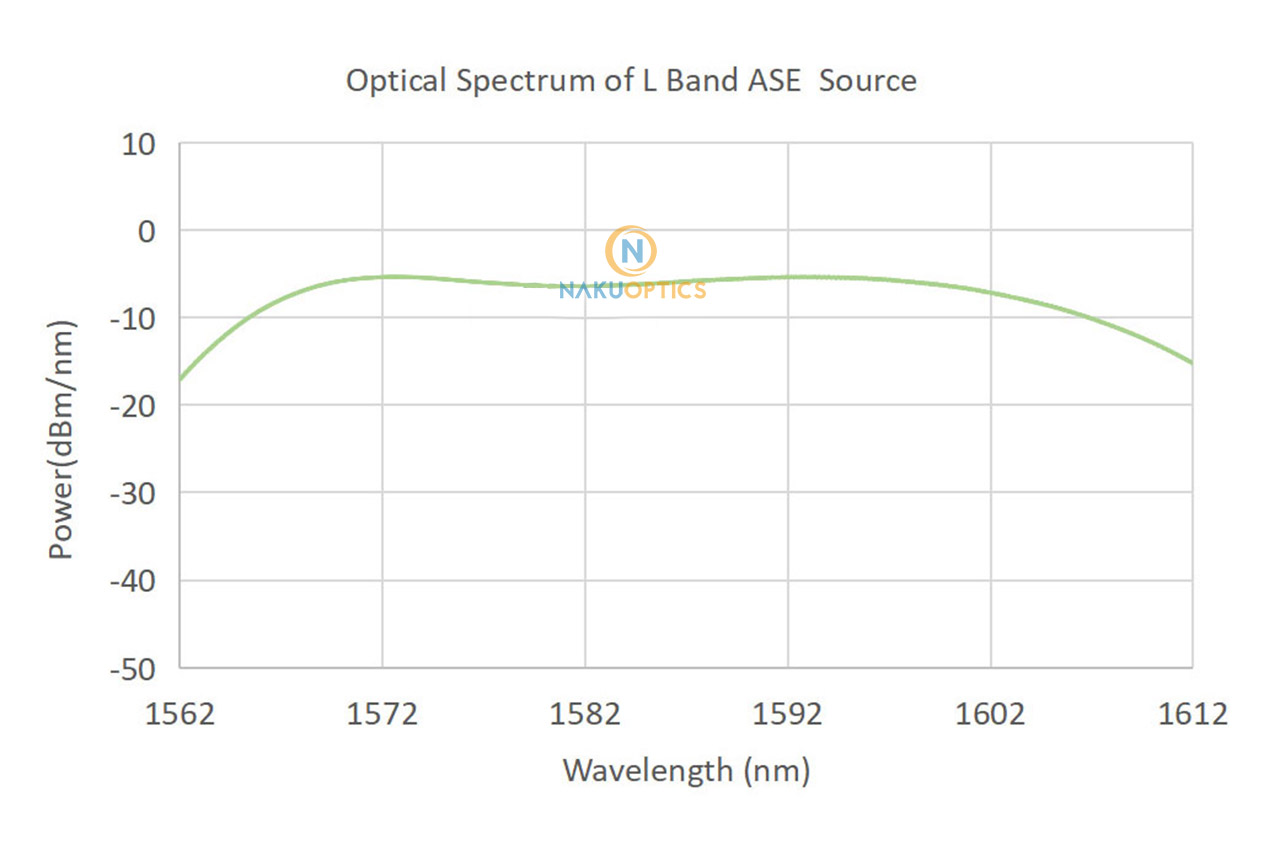

Spectral Range

nm

1567~1603@2dB

1565~1610nm@10dB

Ouput Power

mW

10

Power Adjustable Range

10%~100%

(Optional function)
Note: Spectral flatness does not change.

Spectral Flatness

dB

2 (Type), 3(Max)

Output Isolation

dB

>35

Short-term Stability (15 minutes)

dB

≤ ±0.02

Equivalent≤±0.5%

Long-term Stability (8 hours)

dB

≤ ±0.05

Equivalent≤±1.2%

Degree of polarization DOP

dB

≤ 0.2

Pigtail Type

SMF-28 Single mode fiber

Pigtail Connector Type

FC/APC



Electrical and Environmental Parameters

Module Type

Control Method

RS232 Serial communication
(Only for power Tunable )

Communication Interface

DB9 Female
(Only for power Tunable )

Power Supply

5V DC, <15W

Size

125(W)×150(D)×20(H)mm

Operating Temperature Range

-5~+35°C

Operating Humidity Range

0~70%


Weight 1.35 kg
Power Adjustable

,
