1570~1603nm L-Band 17dBm 50mW EDFA PM Optical Fiber Amplifier
Product ID: 722
$2,422.00 – $2,532.00
1570~1603nm L-Band 17dBm 50mW EDFA PM Optical Fiber Amplifier
The L-band erbium-doped fiber amplifier is a series of optical power amplifiers designed for fiber laser or fiber communication systems. It operates at wavelengths between 1570 and 1603 nm and offers high gain and low noise.
[Features]
Covering the L-band
High gain factor
High output power
[Applications]
Fiber communication
Fiber sensing
Fiber laser
[Specification]
|
Parameters |
Unit |
Typical Value |
Remarks |
| Model |
— |
EDFA-L-BA-17-PM |
|
| Wavelength Range |
nm |
1570~1603 |
L-band |
| Input Power |
dBm |
-6~+3 |
|
| Saturated Output Power |
dBm |
17 |
@0dBm input power |
| Noise Figure |
dB |
5.0 |
@0dBm input power |
| Polarization Extinction Ratio |
dB |
23(Type)，20(Min) |
|
| Input/Output Isolation |
dB |
>35 |
|
| Pigtail Fiber Type |
— |
PM1550 polarization maintaining fiber |
|
| Fiber Interface Type |
— |
FC/APC |
|
| Work Mode |
— |
Automatic current control (ACC) / Automatic Power Control (APC) |
|
|
Electrical and environmental parameters |
Deskcenter Type |
| Control Method |
Button |
| Communication Interface |
DB9 Female (Default not include) |
| Power Supply |
100~240V AC, <30W |
| Size | 260(W)×280(D)×120(H)mm |
| Operating Temperature Range |
-5~+35°C |
| Operating Humidity Range |
0~70% |

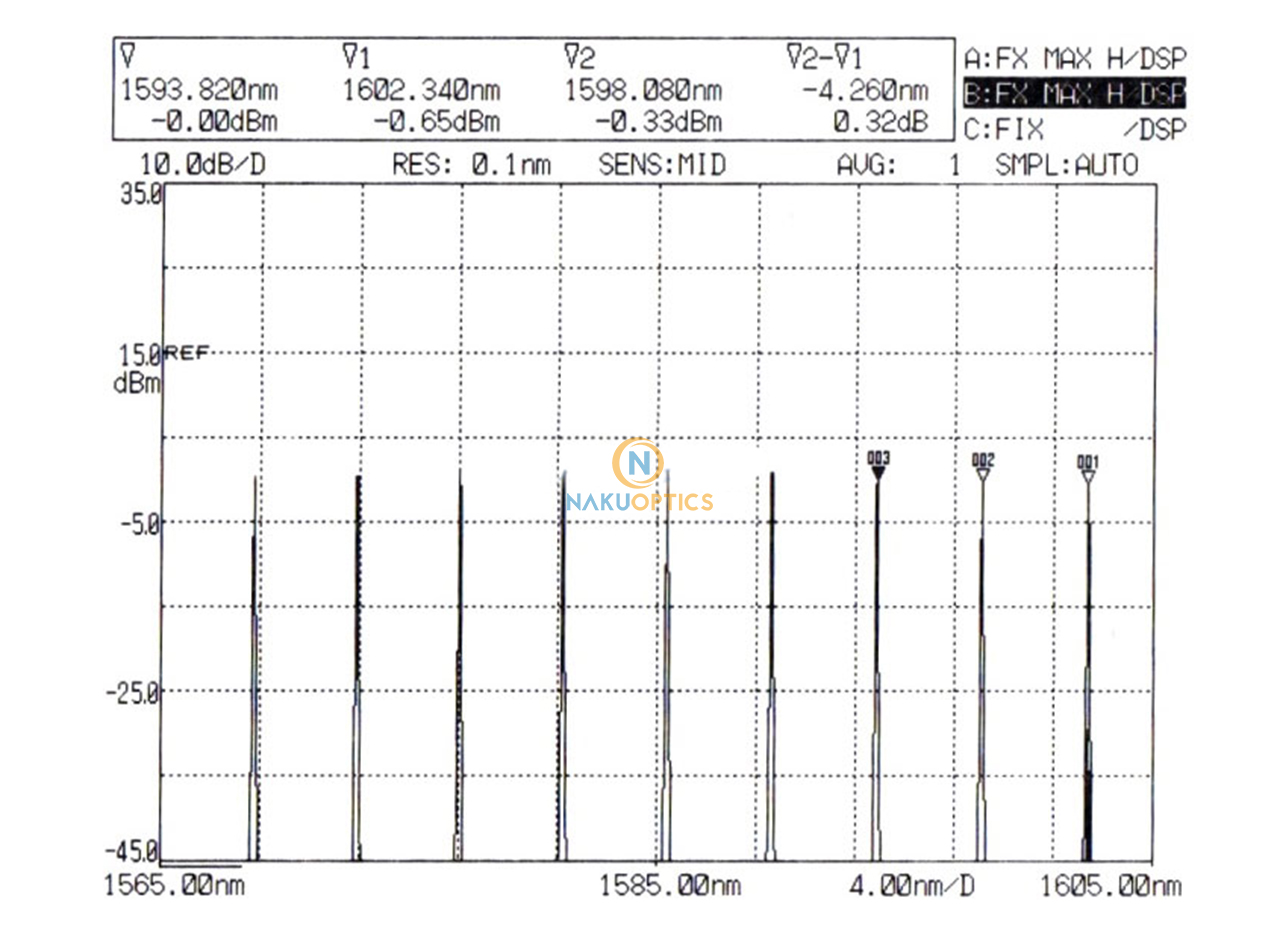

Input signal spectrum：
.jpg)

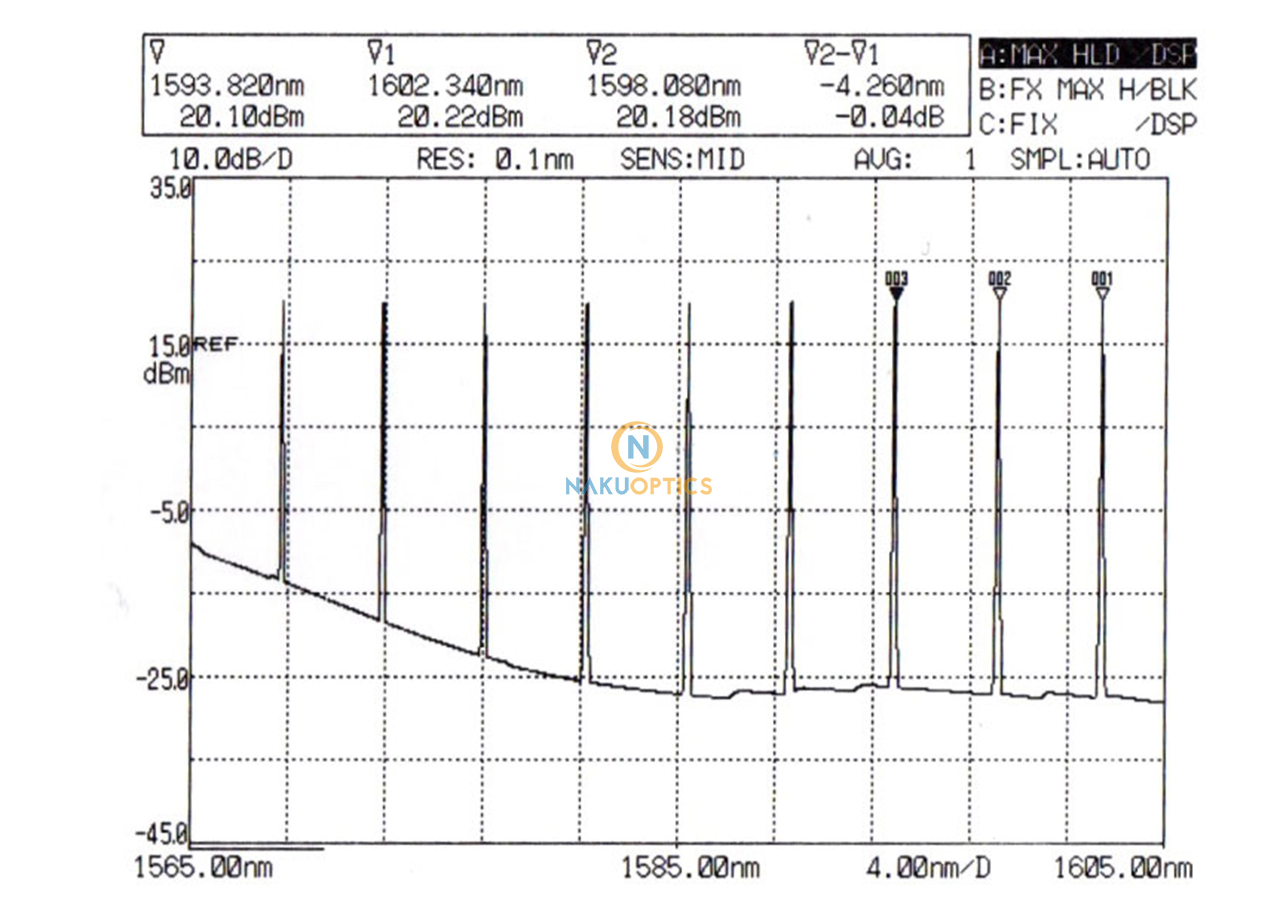

Output signal spectrum (*Max hold mode test):
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 2.85 kg |
|---|---|
| Control Mode | Button, Button+Software |
