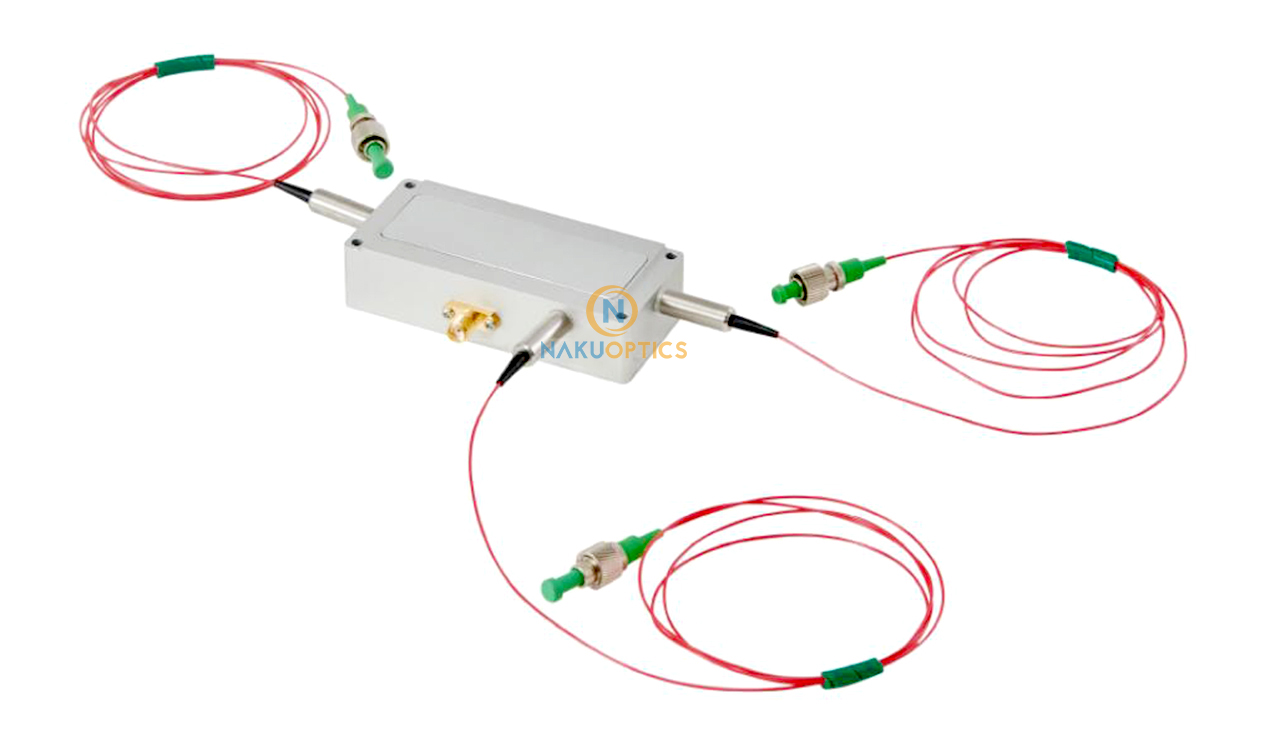

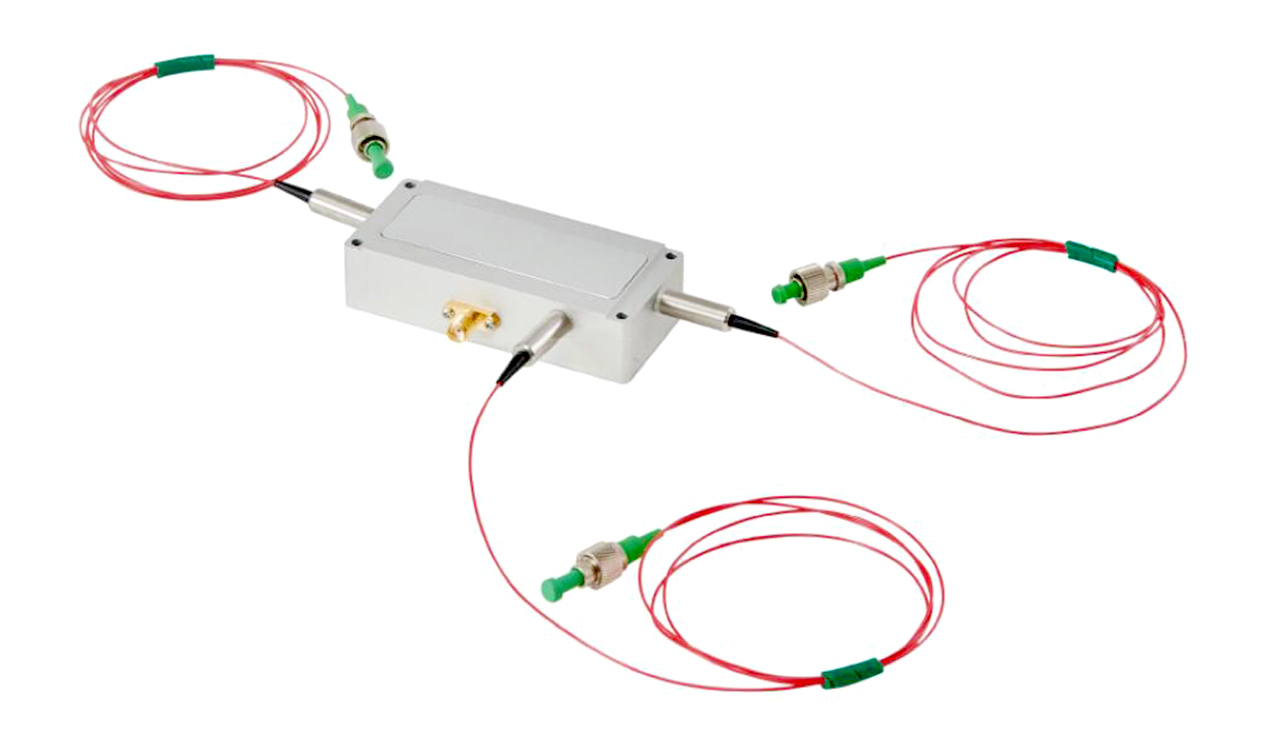

1550nm 80MHz SM/PM Dual Output Fiber Coupled Acousto-Optic Modulator

1550nm 80MHz SM/PM Dual Output Fiber Coupled Acousto-Optic Modulator

[Features]
Optical fiber output of class 0 light and class 1 light.
Polarization-maintaining or single-mode fiber input and output.
High extinction ratio.
Can be customized according to different wavelengths and frequencies.

[Applications]
Optical switch
Laser wavelength shift

[Note]
Lead Time: 5~6 weeks

[Specifications]

Parameter	Unit	Min	Max	Typical Value	Remarks
Material				TeO²
Wavelength	nm	1520	1580	1550
Average Optical Power Handling	W		0.5
Peak(pulse) Optical Power Handling	kW		0.5
Ultrasonic Velocity	m/s			4200
Insertion Loss	dB	Class 1 light <2, Class 0 light <1.5
Extinction Ratio(ER)	dB	Class 1 light >45, Class 0 light >10
Return Loss (RF ON)	dB	40
Rise/Fall-Time	ns	60	70	65
Center Frequency	MHz			80
Frequency Shift	MHz			+80	-80MHz can be customized
Radio Frequency Power	W		2.5	2.5
Voltage Standing Wave Ratio (VSWR)				1.2:1
Input Resistance	Ω			50
Device Interface				SMA
Fiber Type		SMF-28e/PM1550			Choose
Fiber Length	m			1
Fiber Termination				FC/APC
Operating Temperature	℃			-20~+60
Storage Temperature	℃			-30~+70
