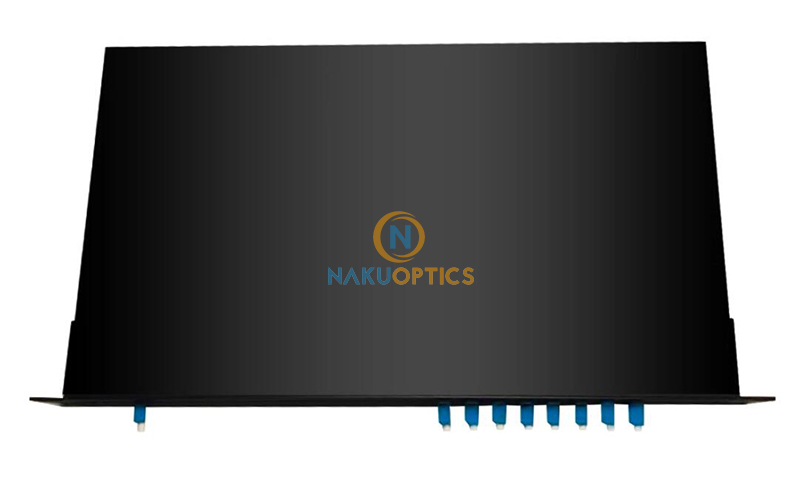

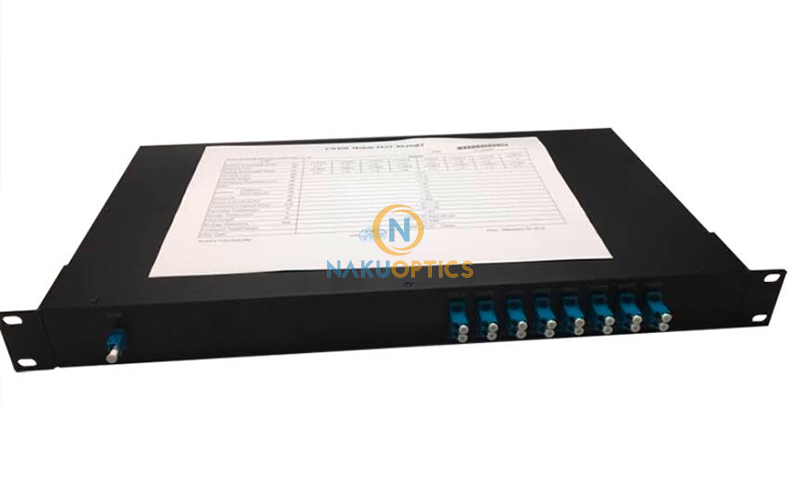

16CH CWDM Mux+Demux BiDi 1270-1610nm 1U Aluminum Chassis 16 Channels Multiplexer with LC/UPC

Product ID: 1816

$322.00

16CH CWDM Mux+Demux BiDi 1270-1610nm 1U Aluminum Chassis 16 Channels Multiplexer with LC/UPC

[Specifications]

Type Unit Demux

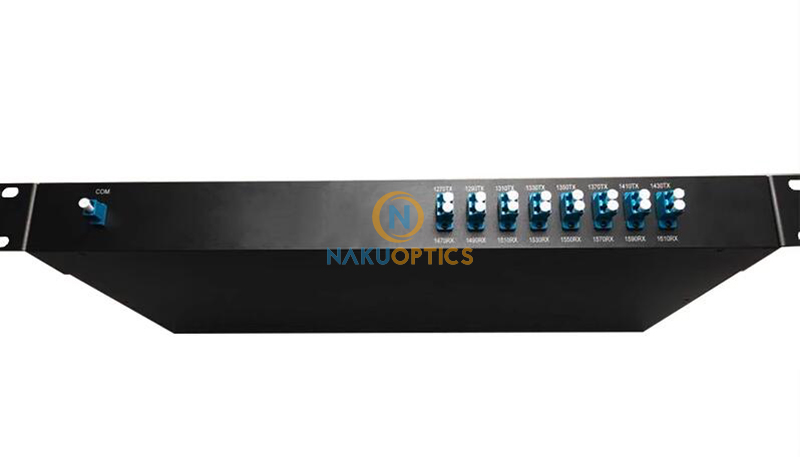

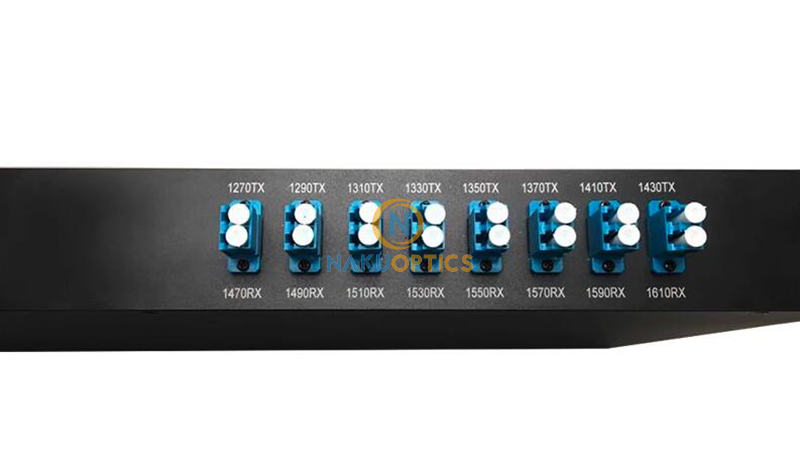

Testing Wavelength Range nm 1270TX 1290TX 1310TX 1330TX 1350TX 1370TX 1410TX 1430TX
Insertion Loss dB 3.27 2.95 2.66 2.34 2.07 1.78 1.45 1.13
Testing Wavelength Range nm 1470RX 1490RX 1510RX 1530RX 1550RX 1570RX 1590RX 1610RX
Insertion Loss dB 2.91 2.64 2.36 2.06 1.73 1.17 1.12 0.85
Channel Ripple dB <0.3
Polarization Dependent Loss dB <0.1
Polarization Mode Dispersion ps <0.1
Isolation (Adjaccent) dB >30
Isolation (Non-Adjaccent) dB >45
Dierctivity dB >50
Return Loss dB >50
Transmission Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Fiber Length m >0.7
Package Dimension mm 19inch IU Rck Mount
Connector Type LC/UPC
Fiber Type SM, 9/125um,2.0mm



16CH CWDM

16CH CWDM

16CH CWDM

16CH CWDM

16CH CWDM

SKU: P1816 Category: Tag:
Weight 5.42 kg
