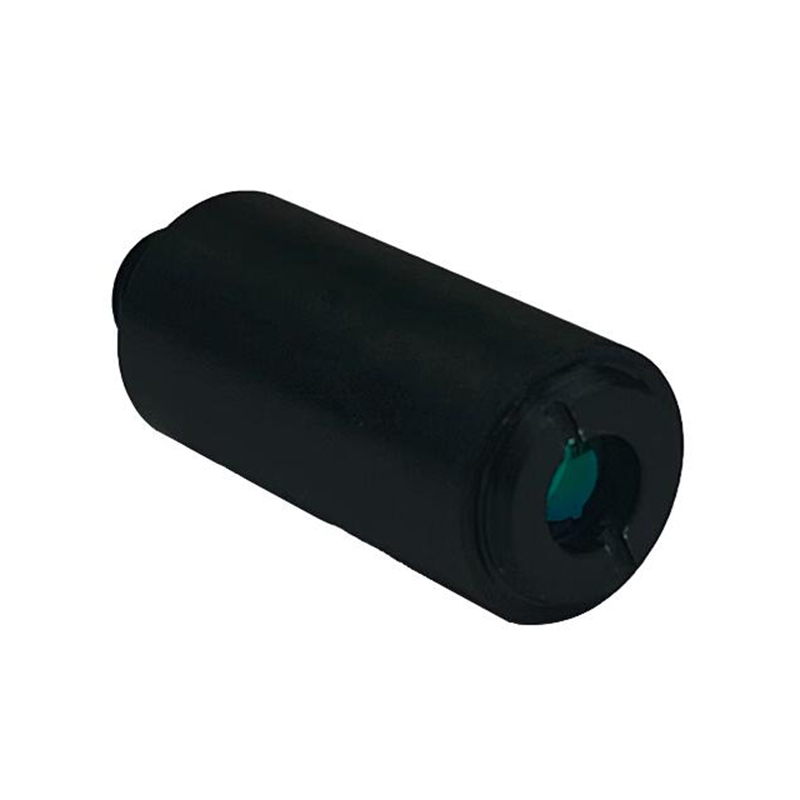

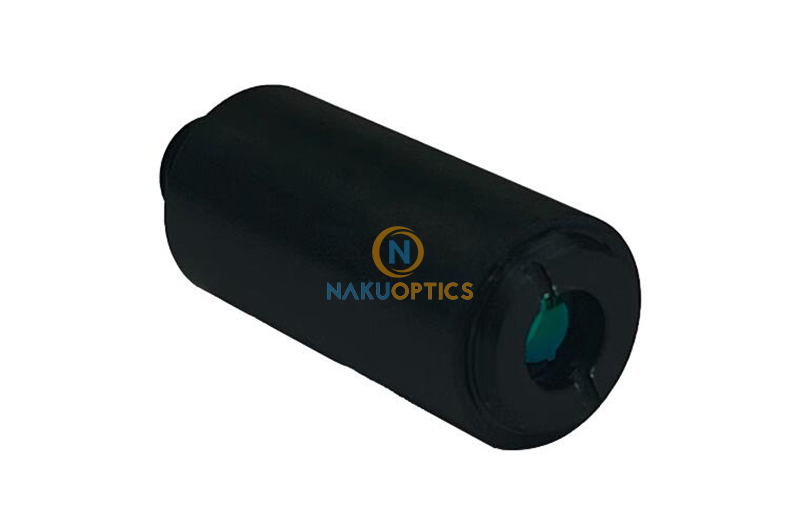

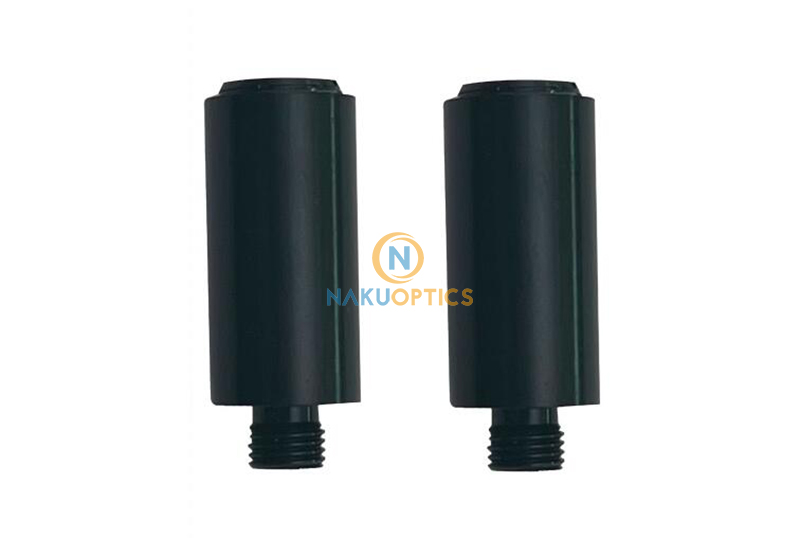

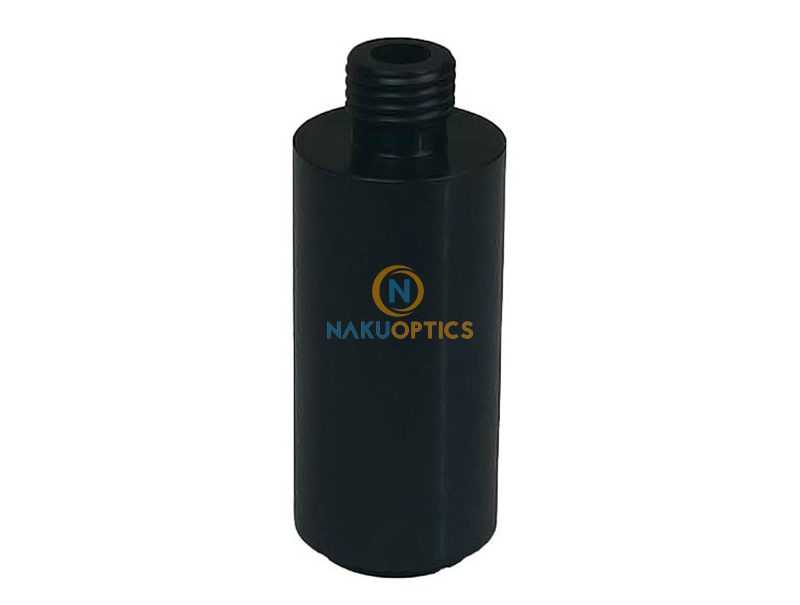

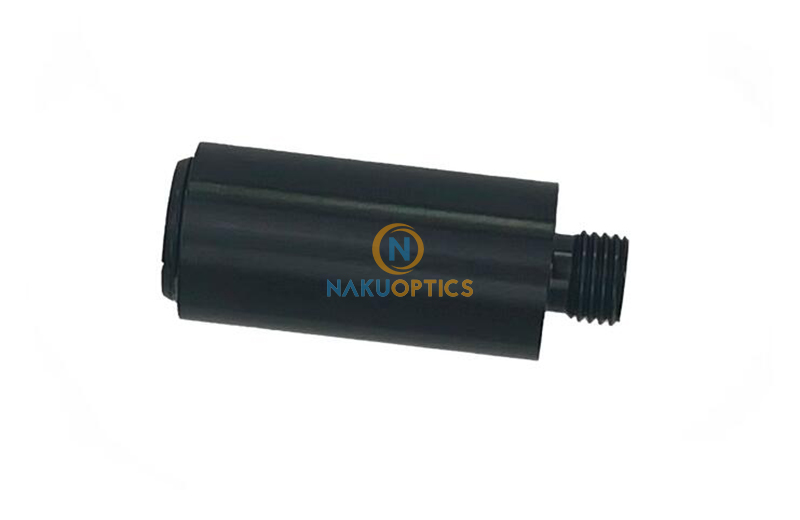

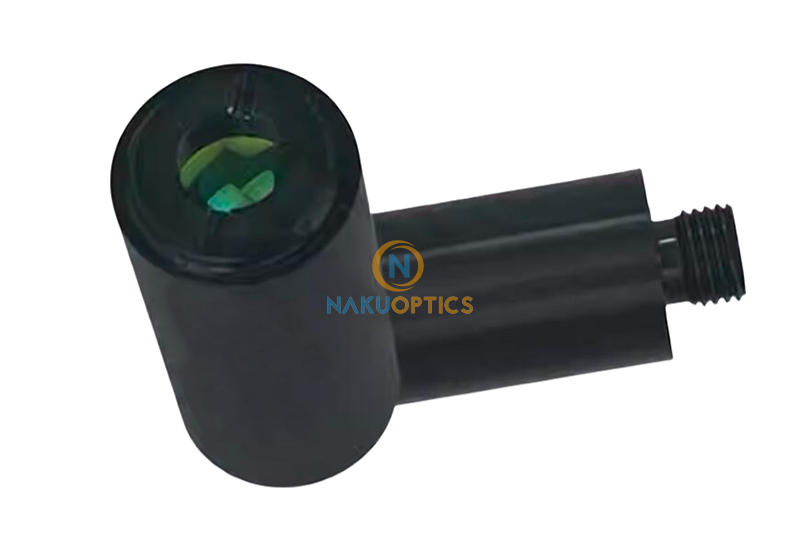

400-1600nm 808-980nm 800-1100nm SMA905/PC Aspherical Fiber Laser Collimator

400-1600nm 808-980nm 800-1100nm SMA905/PC Aspherical Fiber Laser Collimator

[Features]
Good optical imaging effect
High imaging efficiency
Adjustable spot size
Wide range of applications

[Specifications]
Product Name: Aspheric Fiber Collimator

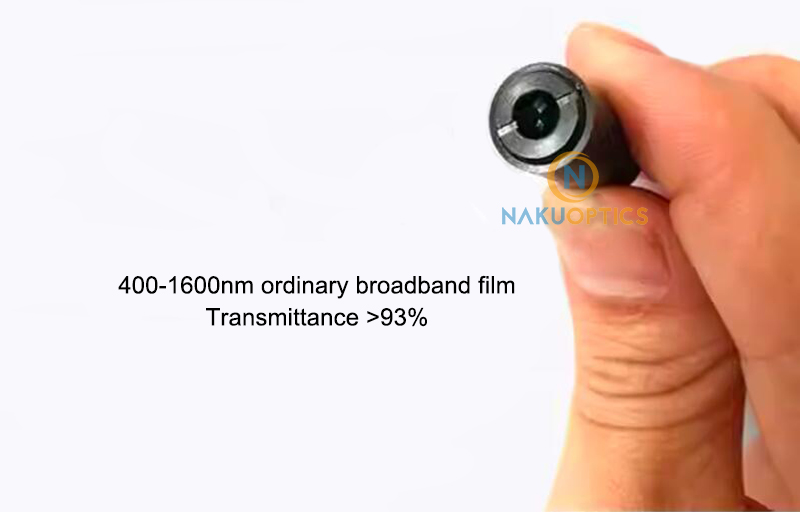

Wavelength Range: Broadband film: 400-1600nm, AR coating: 808-980nm, 800-1100nm (Choose)
Output Power: 1-3000mW
Fiber Connector: SMA905/PC
Effective Focal Length: 10mm
Light Aperture: 5mm
Transmittance: >93%
Divergence Angle: 0.5mrad
Spot Mode: Dot
Spot Size: Adjustable
Size: Φ12*30mm
Shell Material: Aviation aluminum + anodizing

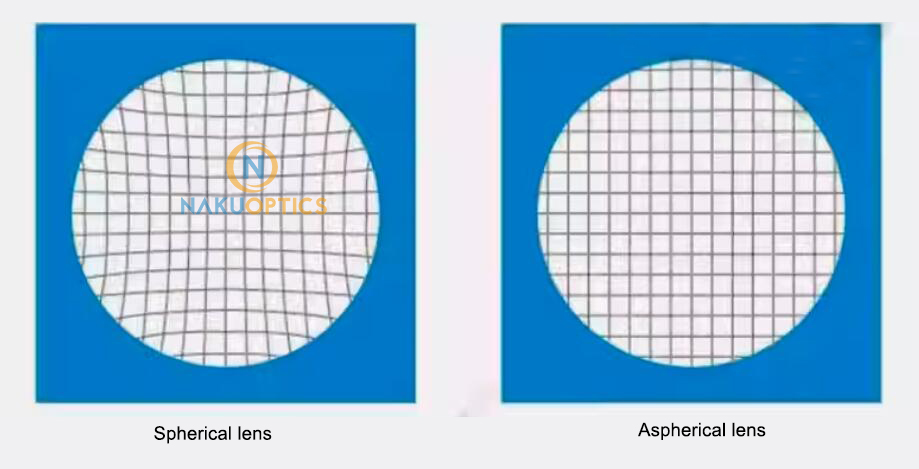

Optical Lens: Optically coated aspherical lenses
Fiber Core Diameter: 4-600um (Universal)
