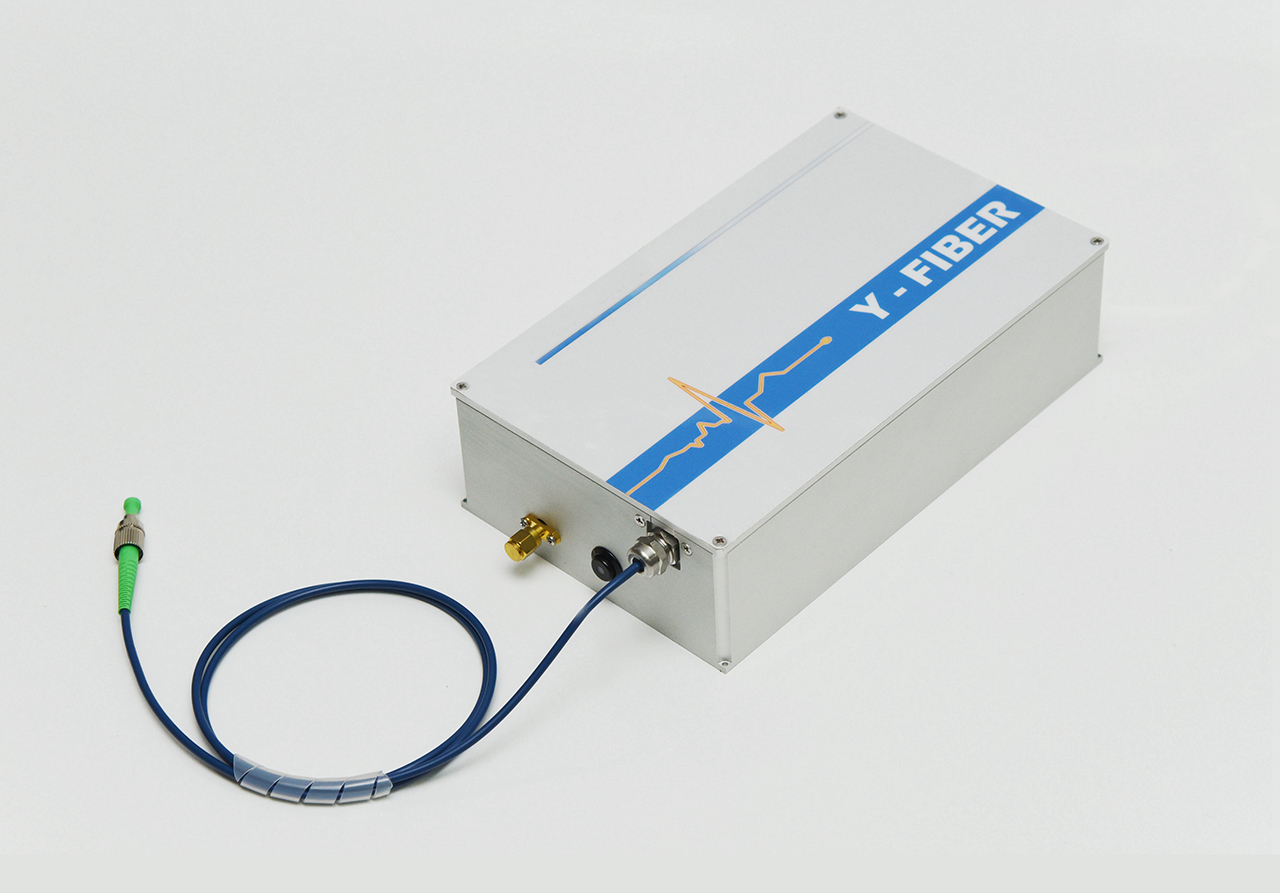

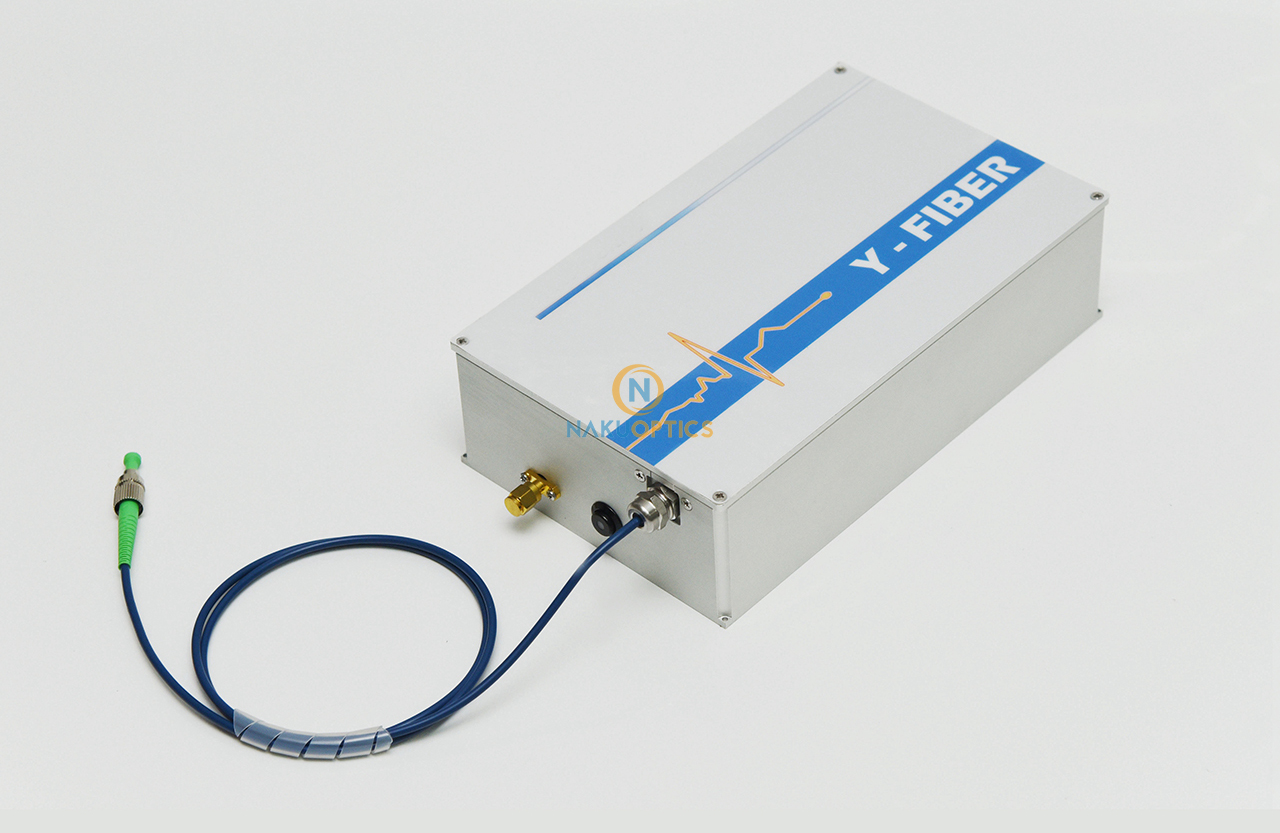

PS Ultra-fast 1064nm 100mW Picosecond Pulse Laser PM Fiber Output

Product ID: 460

$19,678.00 $21,294.00

PS Ultra-fast 1064nm 100mW Picosecond Pulse Laser PM Fiber Output

The ultrafast laser uses high-performance rare earth fiber as the working medium, combined with full polarization-maintaining mode-locking technology and active servo control system to achieve stable output of picosecond pulsed laser in the 1064nm band. It can be fully self-started and work stably for a long time. It has the characteristics of narrow laser pulse and high pulse peak optical power. This light source can be used for scientific research in high-power laser, supercontinuum, laser ranging and other fields.
Parameters such as pulse width, power, and repetition rate can be customized.

Ultrashort pulse.
Self-starting and maintenance-free.
Fully Polarization maintaining, high stability.

Fiber laser pumping
Supercontinuum generation
Seed laser pulse


Parameter Unit Default Value Remarks
Wavelength nm 1064 1030/1064nm customizable

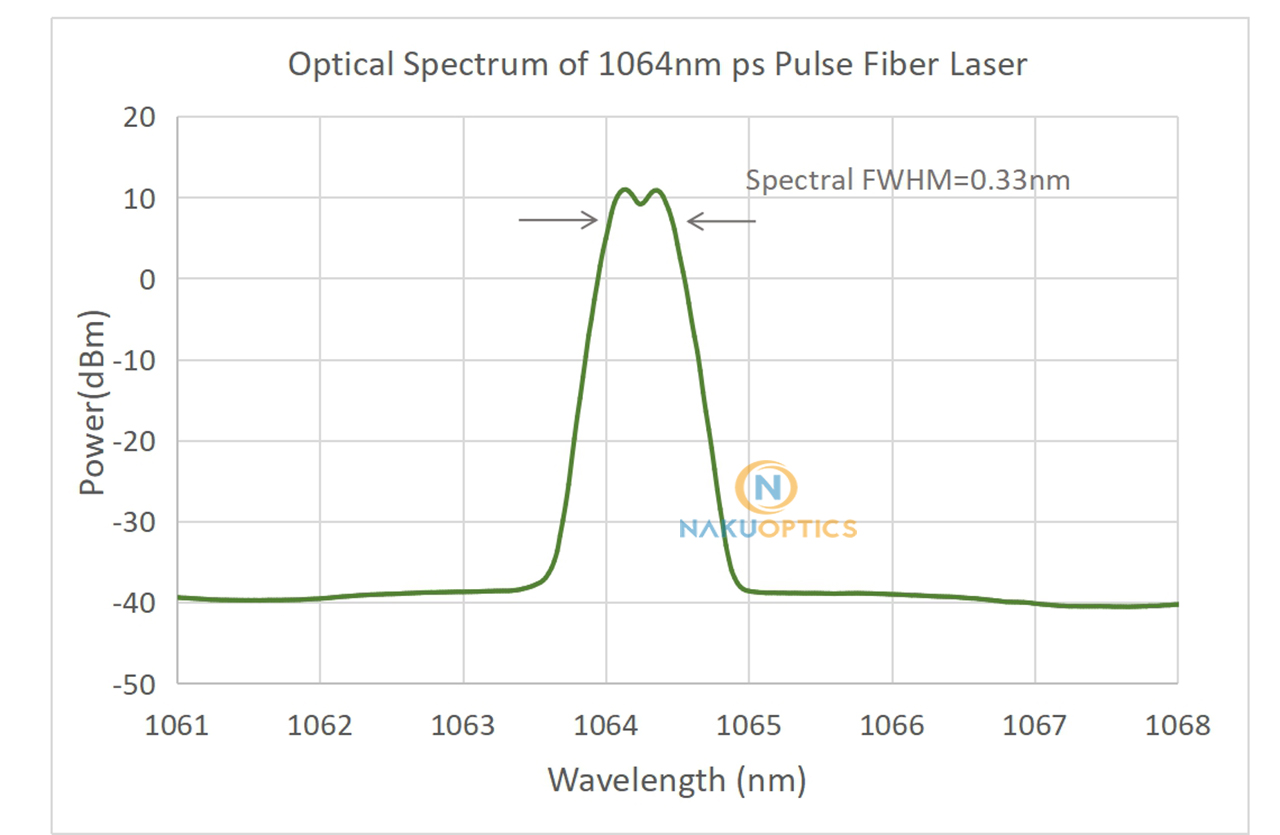

Band Width nm Near 0.3nm@3dB

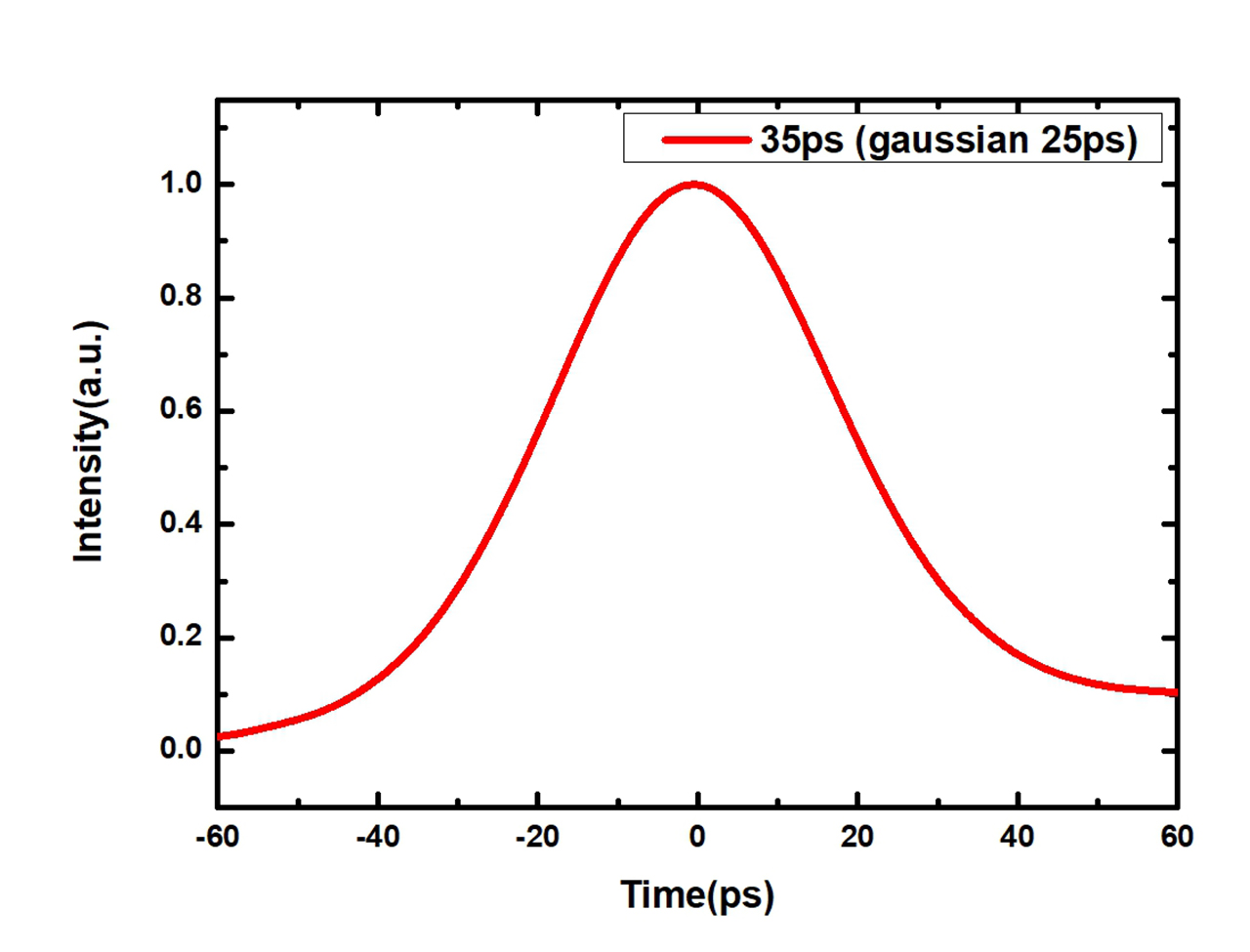

Pulse Width ps 25 10/20/50/100ps customizable
Average Power mW 100 10~2000mW customizable

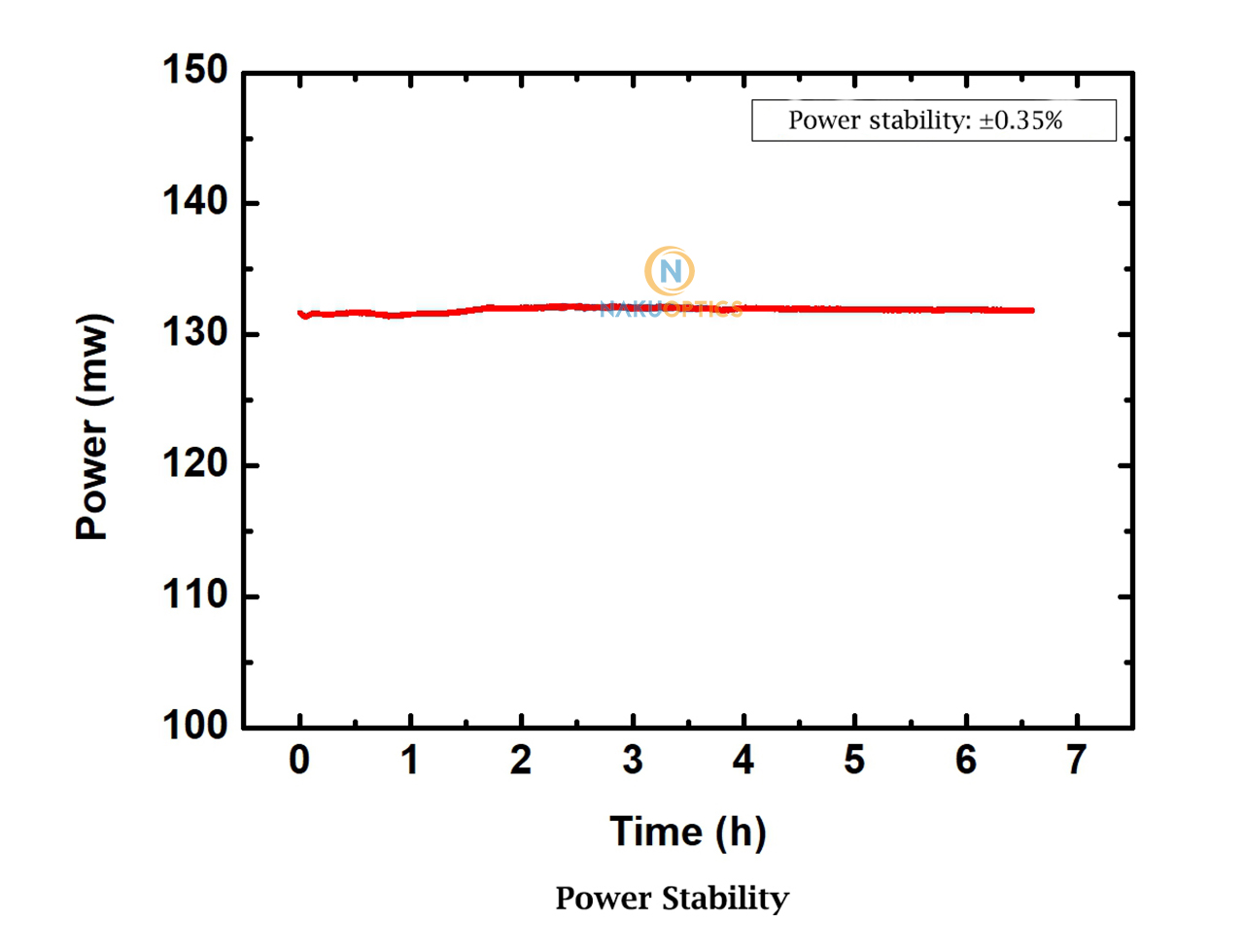

Power Instability < ±1% 25℃, 5 minutes after starting

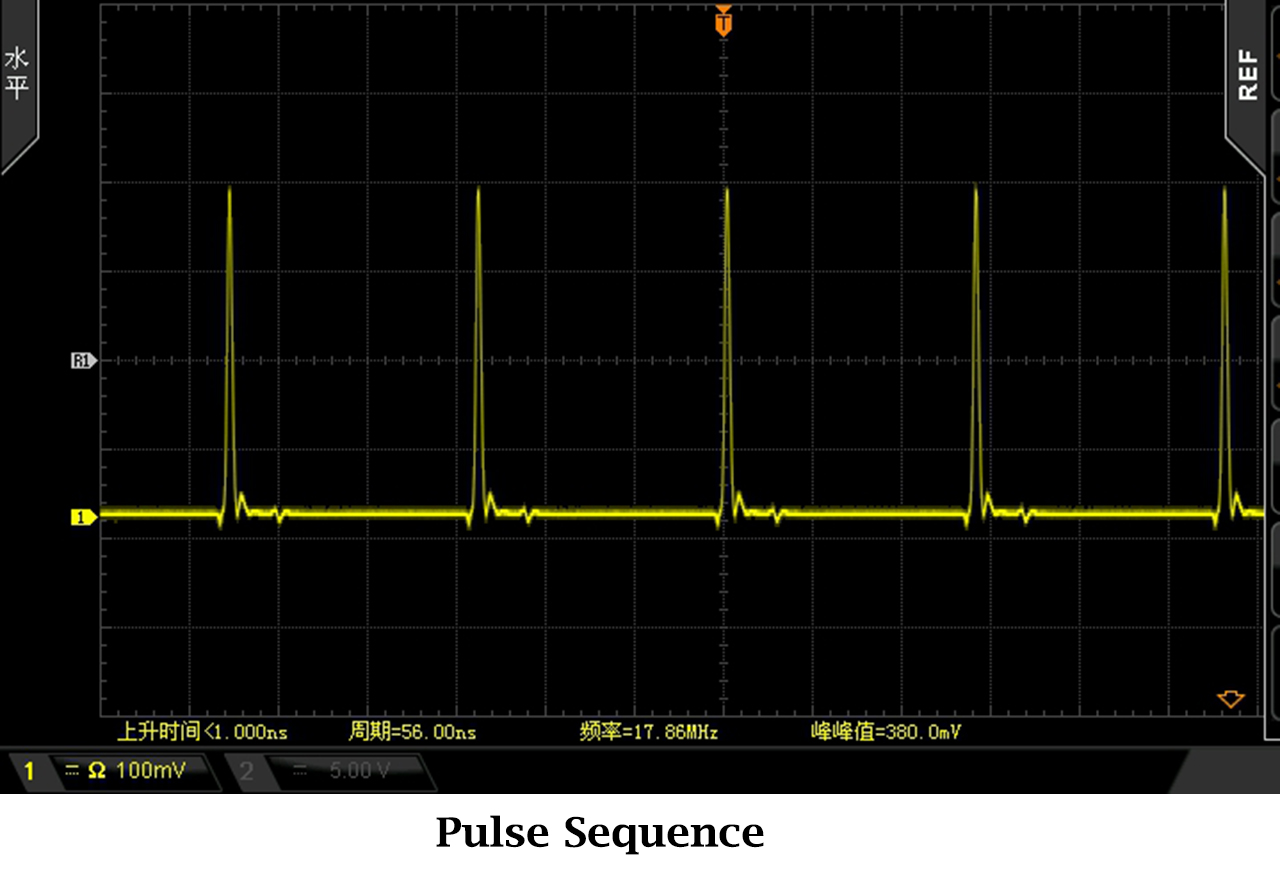

Repeat Frequency MHz 15 15~100MHz customizable
Single Pulse Energy nJ >1
Stable Time of Mode Locking After Startup s <20
Laser polarization state Linear polarization
Laser Output Method PM polarization-maintaining fiber
Fiber Interface FC/APC
Preheat Time min <1

Electrical and environmental parameters

Parameter Module Type
Control Mode Button
Synchronous Electrical Signal Interface SMA
Power Supply 5V DC, <20W
Size 200(W)×121(D)×55(H)mm
Operating Temperature 5 ~ 45°C
Operating Humidity 0~70%


Weight 1.29 kg
