1260~1650nm Rack-mounted Single-mode Fiber Optical Switch 1X8 SM Switch Desktop

Product ID: 1613


$756.00$1,334.00

1260~1650nm Rack-mounted Single-mode Fiber Optical Switch 1X8 SM Switch Desktop

Rack-mounted optical switches are mainly used in optical switching equipment and systems to implement all-optical routing selection, wavelength selection and self-healing protection functions.

It can be configured as 1X2, 1X4, 1X8, 1X16 channels and other customized channel numbers according to customer needs.

[Features]
Wide wavelength range
Fast switching speed
High return loss
Low insertion loss
Optical path without glue
Can be customized

[Specifications]

Prameter Unit Value
Operation Wavelength nm 1260~1650
Test Wavelength nm 1310/1550
Typical Insertion Loss dB ≤0.8
Max Insertion Loss dB <1.2
Return Loss dB ≥50
Isolation dB ≥55
Repeatability dB ≤±0.05
Wavelength Dependent Loss dB ≤0.25
Polarization Dependent Loss dB ≤0.05
Switch Time ms ≤10
Fiber Type 9*125um SM fiber
Connector Type FC/PC
Monitoring Port RS-232
Opertating Current mA 50~100
Opertating Voltage V AC 90~260(50Hz)
Life Span time ≥10^7
Max Withstand Power mW 500
Operating Temperature 0 ~ +60
Dimension mm 483*200*44

*Multimode fiber can also be customized. Please contact us.

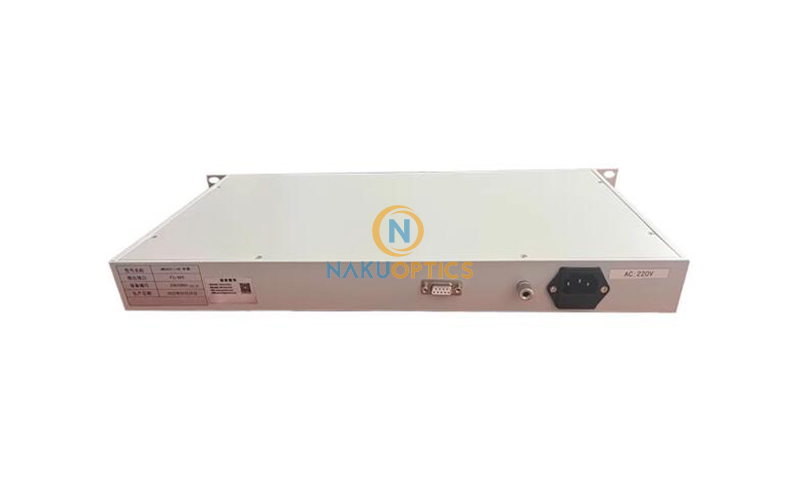

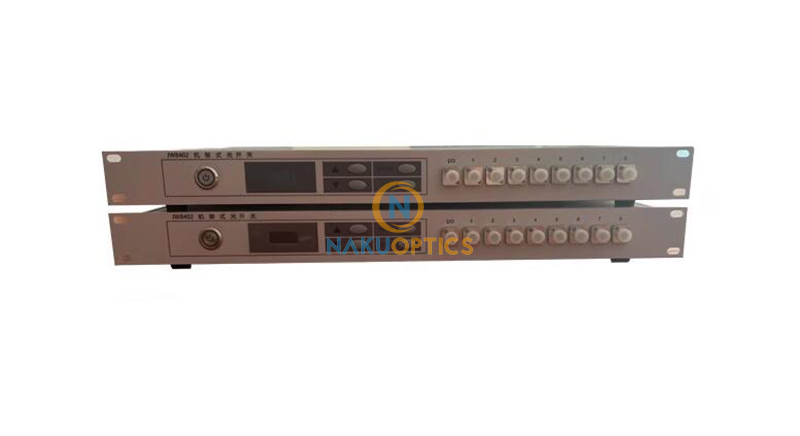

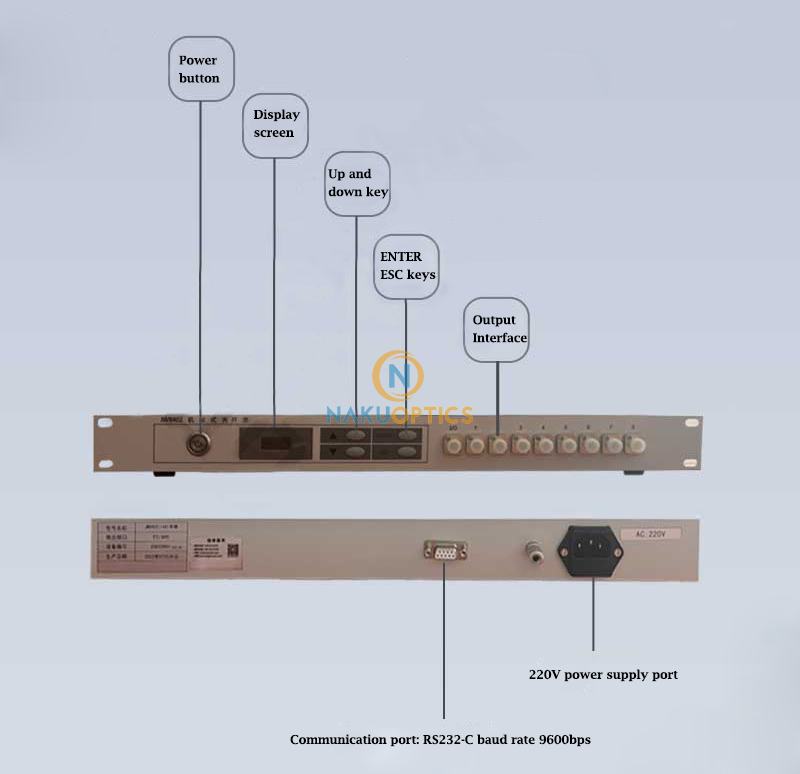

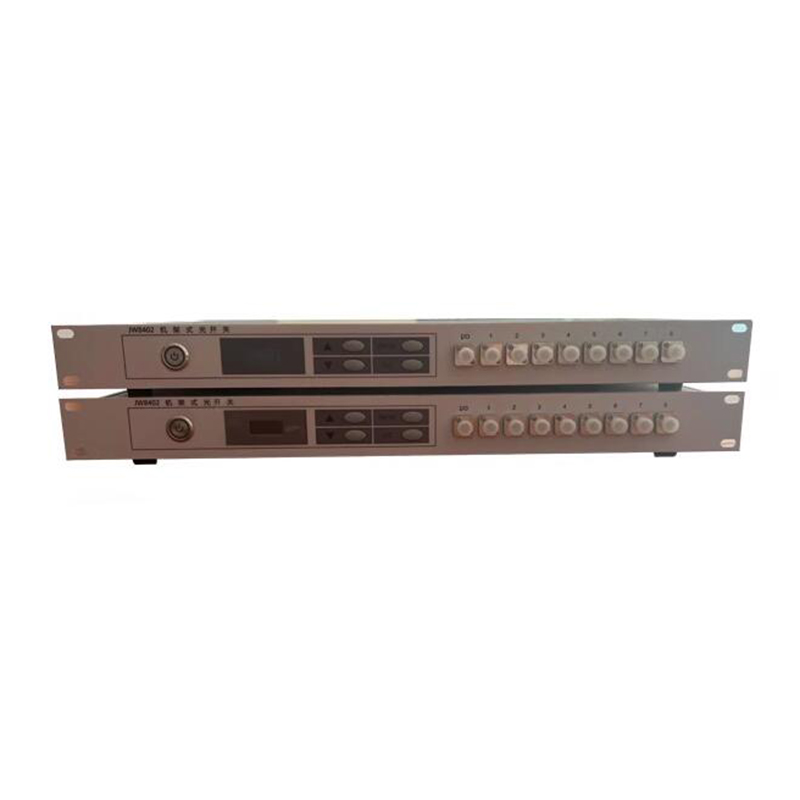

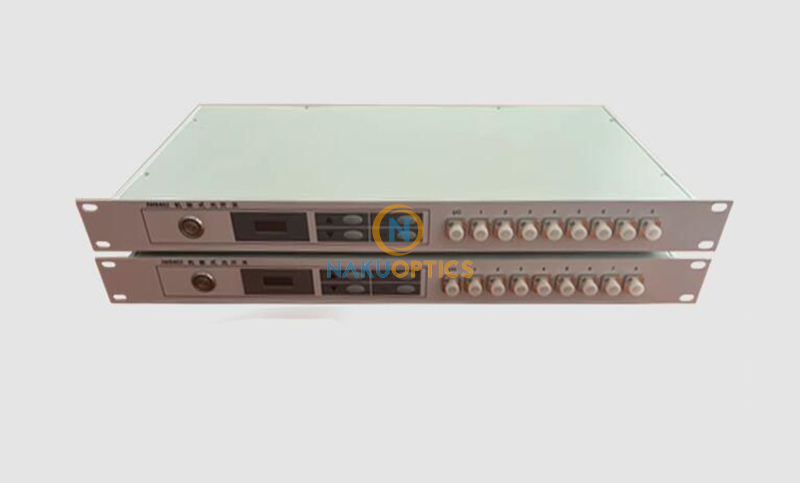

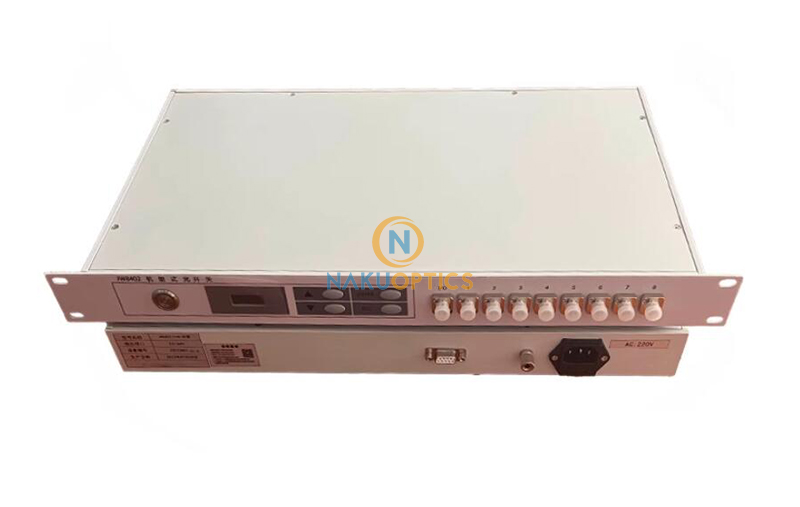

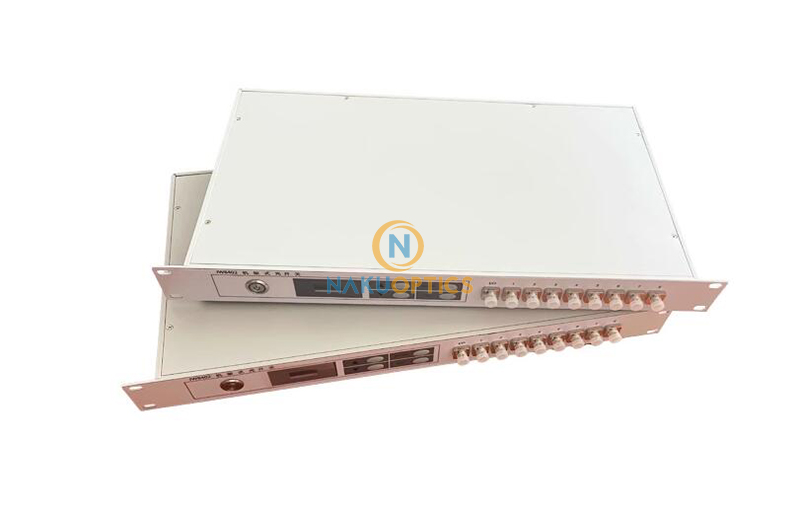

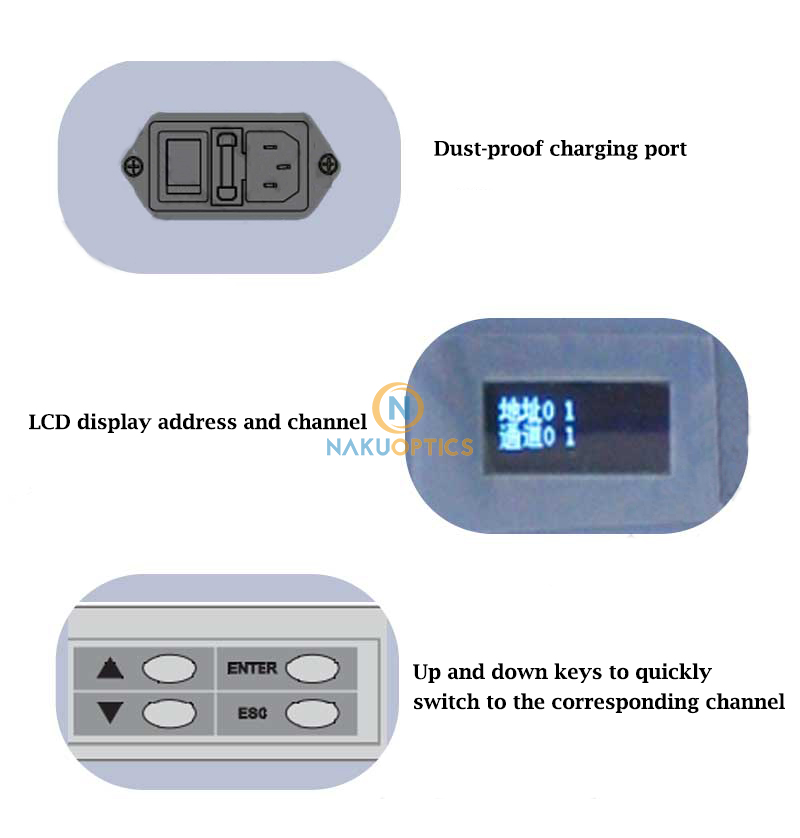

SM optical switch

SM optical switch

SM optical switch

SM optical switch

SM optical switch

SM optical switch

SM optical switch

SKU: P1613 Category: Tag:
Weight 1.58 kg
Port Type

1X4, 1X8, 1X16
