Name: 1310nm 10mW Single-mode Fiber Laser with Software Control IR DFB Laser
SKU: P438
Price: 1333.00 USD
Availability: InStock

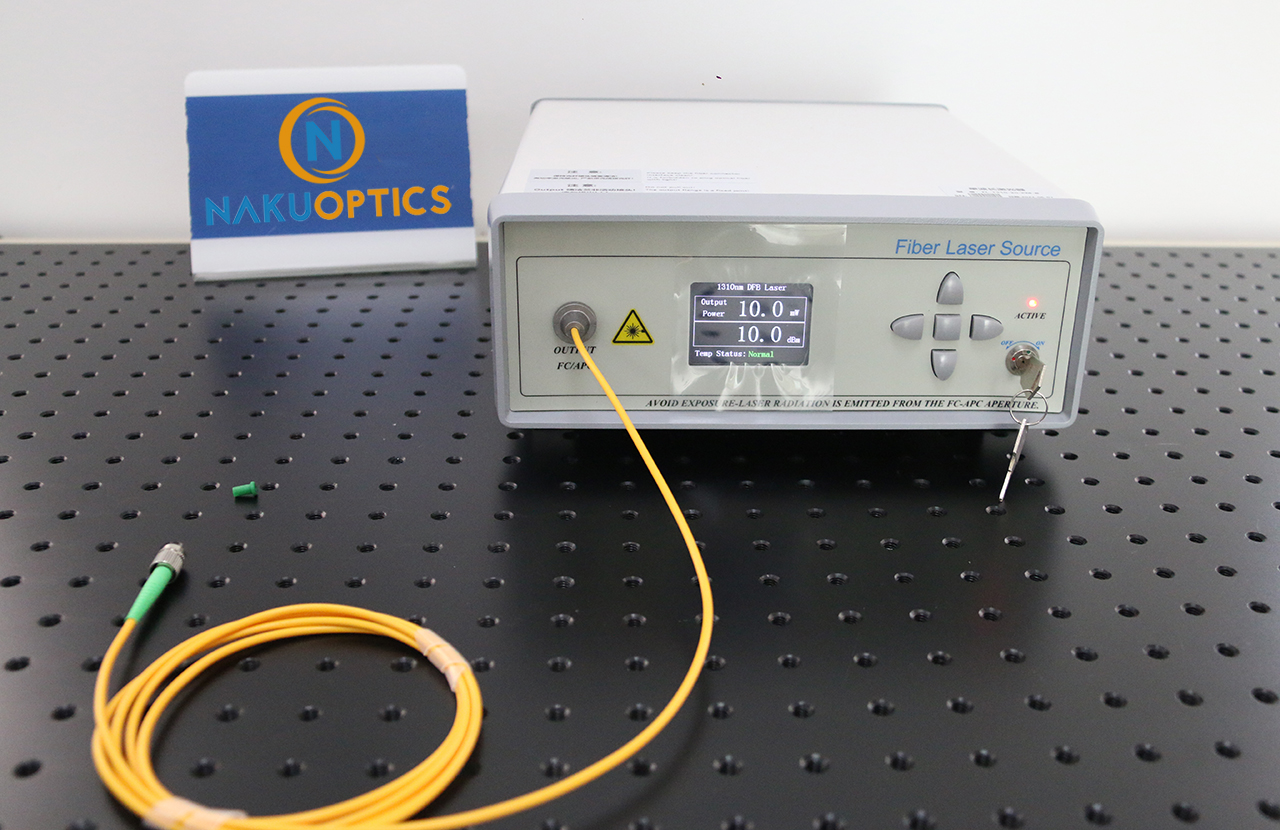

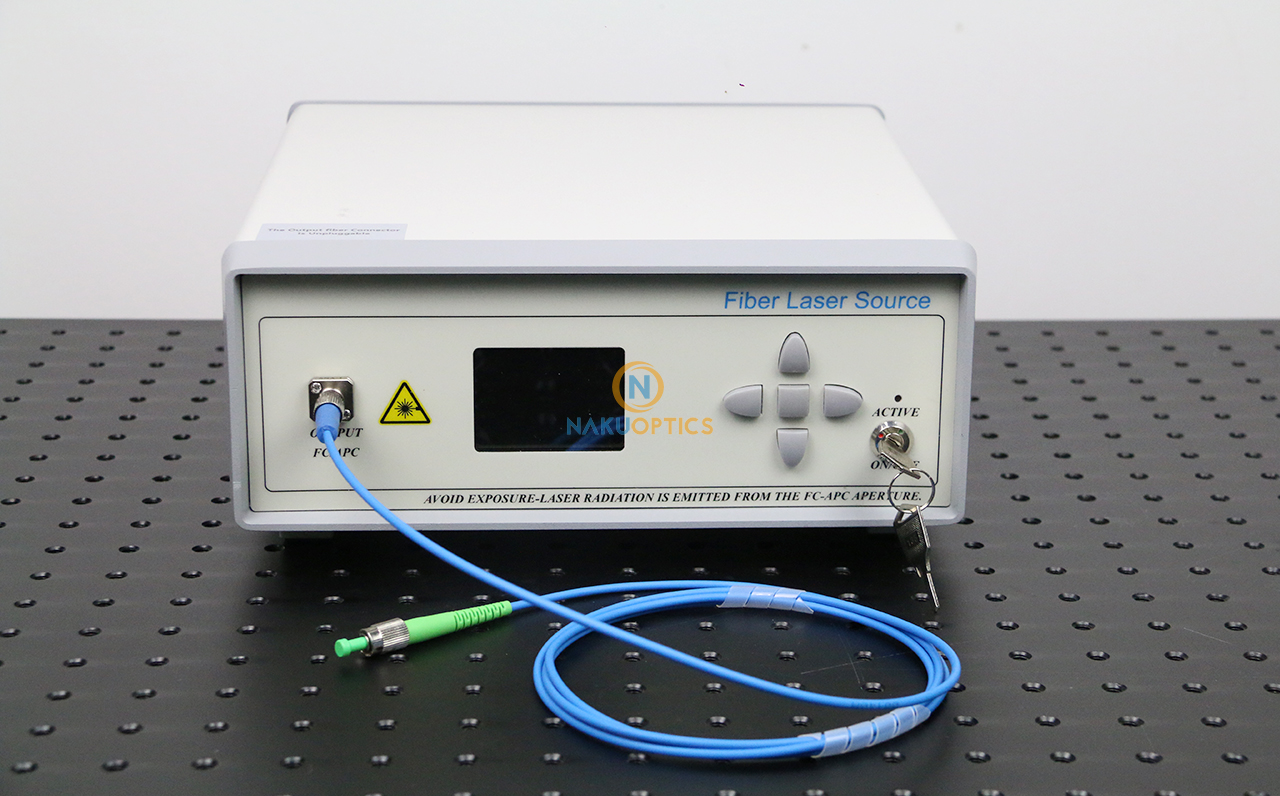

1310nm 10mW Single-mode Fiber Laser with Software Control IR DFB Laser Source Benchtop

This 1310nm laser is equipped with software control functions. The 1310nm single-wavelength laser source adopts DFB semiconductor laser chip and has a single-mode fiber output. It also has a professionally designed drive circuit and TEC control to ensure safe and stable operation of the laser.

[Features]
Power and spectral stability
Narrow spectral line width
Single mode or PM output fiber optional

[Applications]
Optical fiber sensing
Fiber laser
Optical device testing

[Specification]

Parameters	Unit	Typical Value	Remarks
Working Wavelength	nm	1310±2	Customizable
Spectral Linewidth	MHz	≤ 3
Sideband Suppression Ratio	dB	>50
Output Power	mW	10
Short-term Stability (15 minutes)	dB	≤ ±0.02
Long-term Stability (8 hours)	dB	≤ ±0.05
Pigtail Fiber Type	—	SMF-28e	Single-mode fiber
Fiber Interface Type	—	FC/APC

Electrical and environmental parameters	DeskTop Type
Control method	Button
Communication interface	DB9 Female
Power supply	100~240V AC, <30W
Size	260(W)×280(D)×120(H)mm
Operating temperature range	-5~+55°C
Operating humidity range	0~70%
