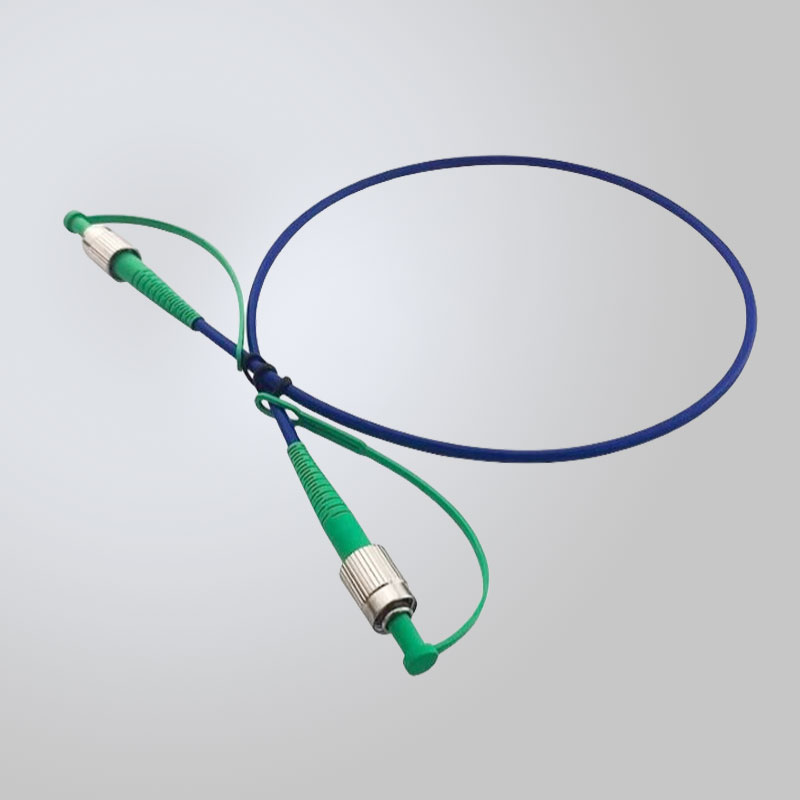

Fujikura Panda PM Fiber 2.0 Armored Sleeve FC Connector 1m Fiber Pigatil
Product ID: 1186
$48.00 – $70.00
Fujikura Panda PM Fiber 2.0 Armored Sleeve FC Connector 1m Fiber Pigatil
The polarization-maintaining fiber is manufactured using PCVD (plasma chemical vapor deposition) process and has the characteristics of precise refractive index distribution, good cross-sectional geometric symmetry, good longitudinal uniformity, and excellent optical performance. The polarization-maintaining fiber uses a UV-cured double coating structure. The optical fiber has stable environmental performance and can work in the temperature range of -50°C to +80°C. It is widely used in optical fiber communication, optical fiber sensing, optical devices and other fields.
Note:
The length can be customized, please contact us if you need other lengths.
[Features]
Low attenuation
Good polarization maintaining performance
Good interchangeability
Good isolation effect
Good repeatability
High stability
[Specifications]
| Fiber Type | PM980 125-25/250 | PM1310 125-13/250 | PM14XX 125-13/250 | PM1550 125-13/250 | PMF980 125-12/250_C | PMF1310 125-13/250_C | PMF1550 125-13/250_C |
| Fiber model | PM1015-A | PM1016-C | PM1018-A | PM1017-C | PM1015-A+ | PM1016-C+ | PM1017-C+ |
| Working wavelength (nm) | 980 | 1310 | 1400-1490 | 1550 | 980 | 1310 | 1550 |
| Mode field diameter(μm) | 6.5±1.0 | 9.5±1.0 | 9.8±1.0 | 10.5±1.0 | 6.5±1.0 | 9.0±1.0 | 10.5±1.0 |
| Attenuation (dB/km) | ≤2.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤2.5 | ≤0.5 | ≤0.5 |
| Beat length (mm) | ≤3.0 | ≤4.0 | ≤4.5 | ≤5.0 | 3.0~5.0 | 3.0~6.0 | 4.5~8.0 |
| Crosstalk (dB/4m) | ≤-40 | ≤-40 | ≤-40 | ≤-40 | ≤-30 | ≤-30 | ≤-30 |
| Crosstalk (dB/100m) | ≤-30 | ≤-30 | ≤-30 | ≤-30 | ≤-20 | ≤-25 | ≤-25 |
| Cladding diameter (μm) | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 |
| Coating diameter (μm) | 245.0±7.0 | 245.0±7.0 | 245.0±7.0 | 245.0±7.0 | 245.0±7.0 | 245.0±7.0 | 245.0±7.0 |
| Operating Temperature (℃) | -50 ~ +80 | ||||||
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
