1550nm Fujikura Polarization-maintaining Pigtail 0.9 casing FC PM Pigtail Fiber

Product ID: 1173


$46.00$94.00

1550nm Fujikura Polarization-maintaining Pigtail 0.9 casing FC PM Pigtail Fiber

[Features]
Precise refractive index distribution
Good load-carrying symmetry
Good vertical and horizontal uniformity
Excellent optical performance

[Specifications]
Product Name: PM fiber pigtail
Wavelength:1550nm
Wire Diameter: 0.9mm
Length: 1m, 2m, 3m, 5m (Choose)

Note:
The length can be customized, please contact us if you need other lengths.

Parameters Unit Value
Design Working Wavelength nm 1550 1300 980 850 633 488
Working Wavelength Range nm 1460-1625 1290-1550 980-1300 810-980 620-820 480-630
Cutoff Wavelength nm <1450 <1280 <970 <800 <610 <470
Core Diameter/Clad Diameter μm 8/125 7/125 6/125 5/125 4/125 3/125
Max. Insertion Loss dB 0.5 0.5 0.7 1.0 1.5 2.0
Typical Insertion Loss dB <0.2 <0.3 <0.4 <0.5 <1.0 <1.5
Return Loss dB PC: >40dB
UPC: >50dB
APC: >60dB
Min. Extinction Ratio dB 20; 25; 30 20; 25; 30 20; 25 20; 25 20 18
Deviation of Polarization Angle degree Standard product: +/-3 degree
P grade products: +/-1.5 degree
Operating Temperature -20~70
Storage Temperature -40~85
Optical Cable Length Error cm +/10 (Can be customied.)
Optical Cable Outer Diameter 0.9mm loose tube/0.9mm tight fiber optic
3.0mm loose tube/3.0mm optical cable/3.0mm stainless steel reinforced sheath
5.0mm optical cable/5.0mm stainless steel reinforced sheath
Connector Type FC, SC, ST, LC, MU

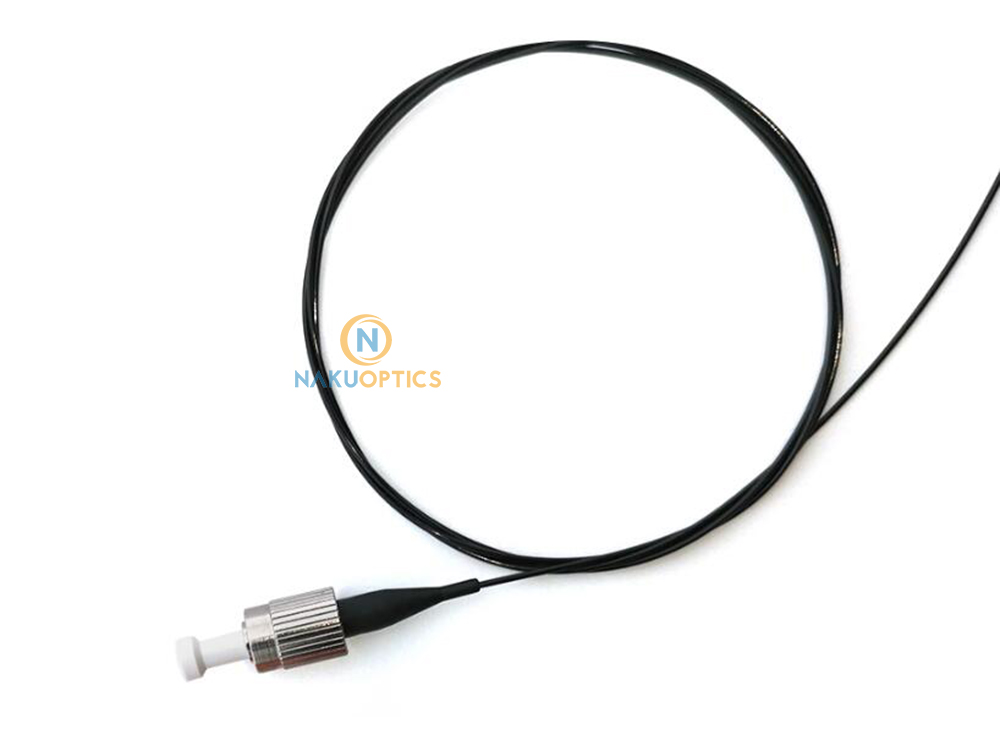

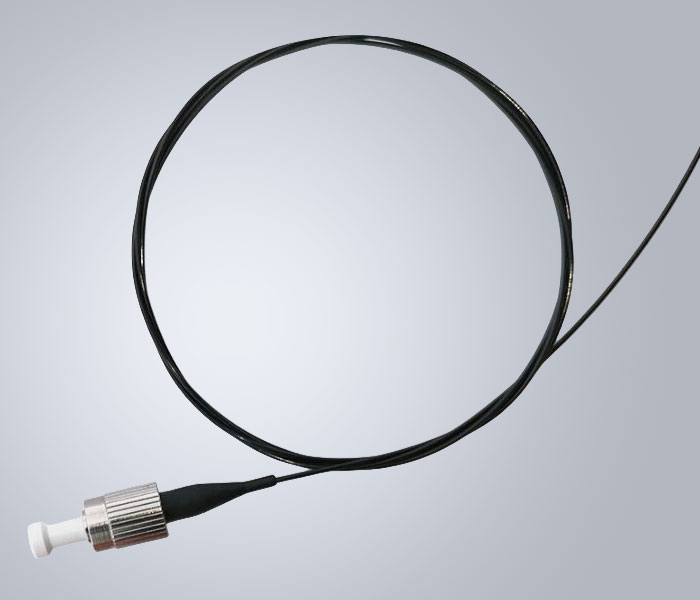

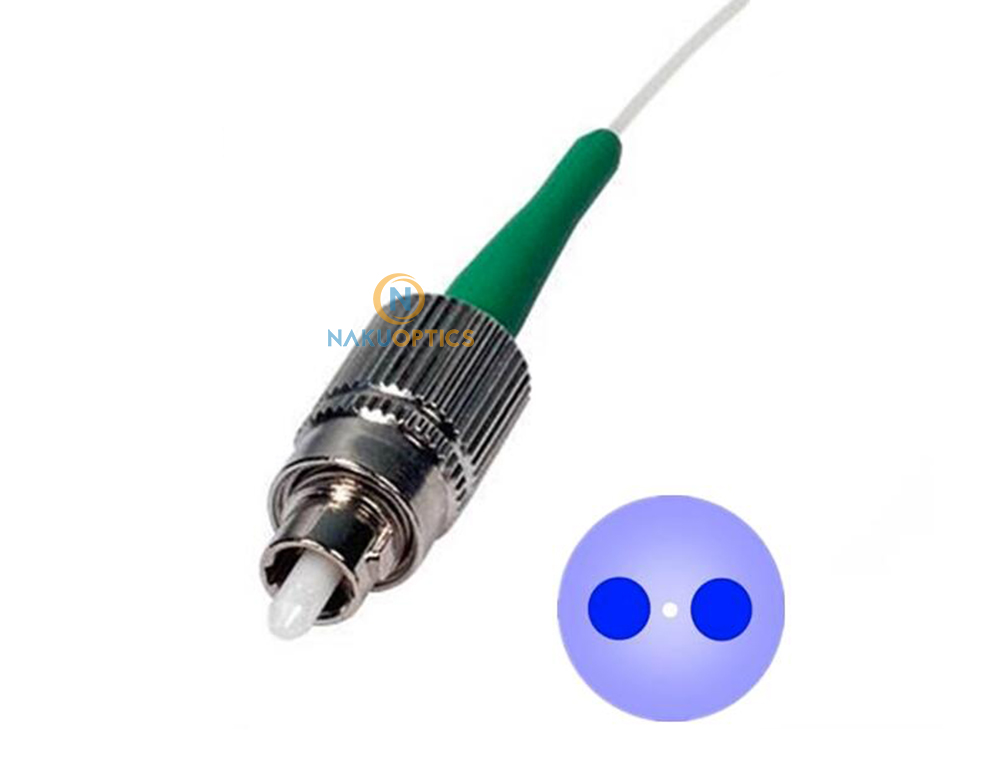

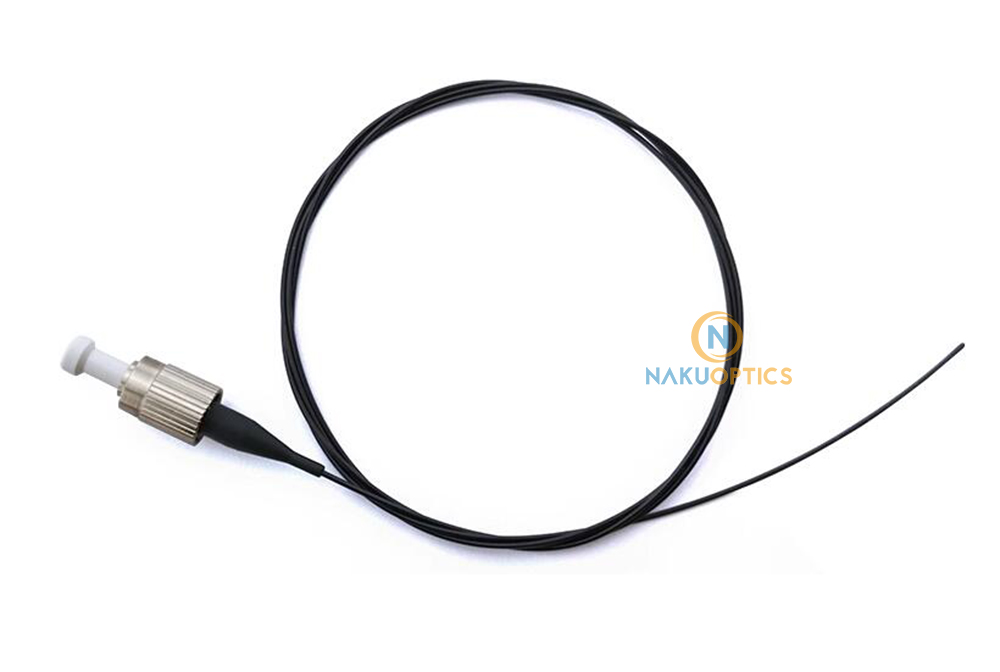

PM pigtail fiberPM pigtail fiber

PM pigtail fiber

SKU: P1173 Category: Tag:
Weight 5.59 kg
Fiber Length

, , ,
