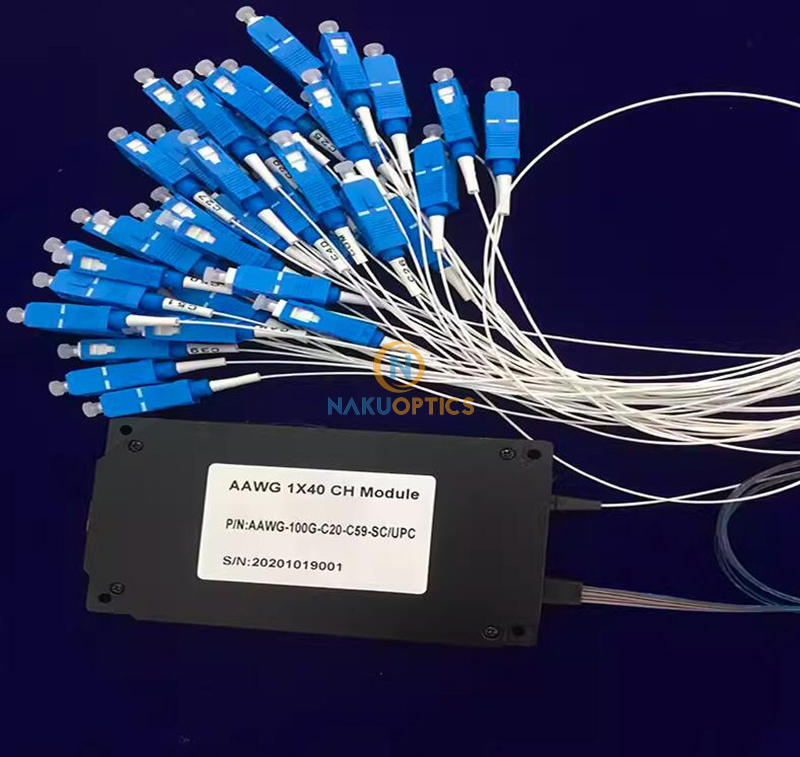

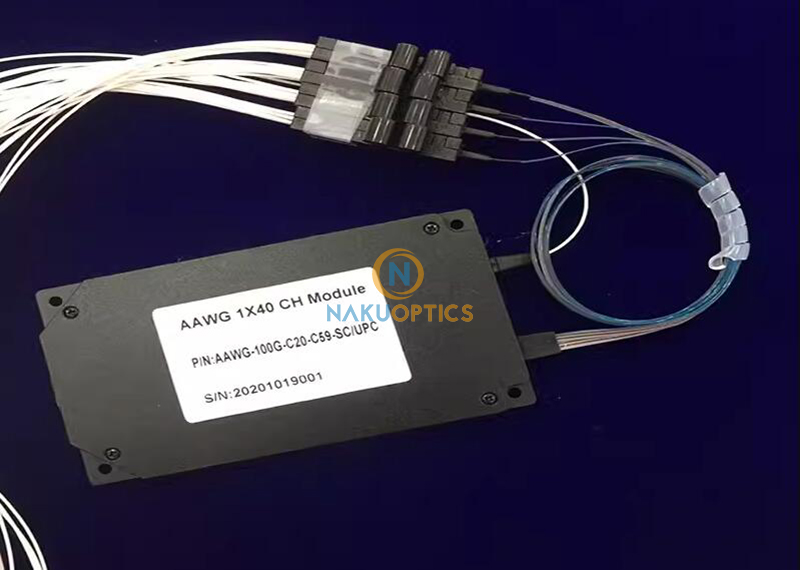

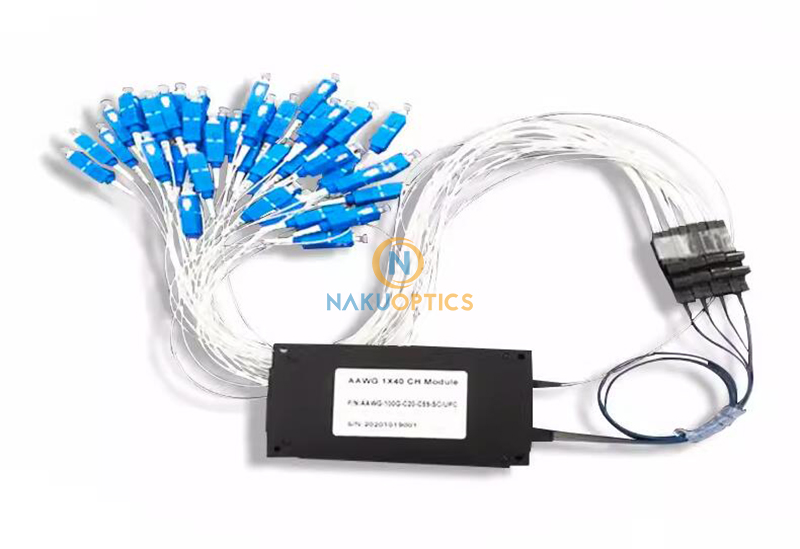

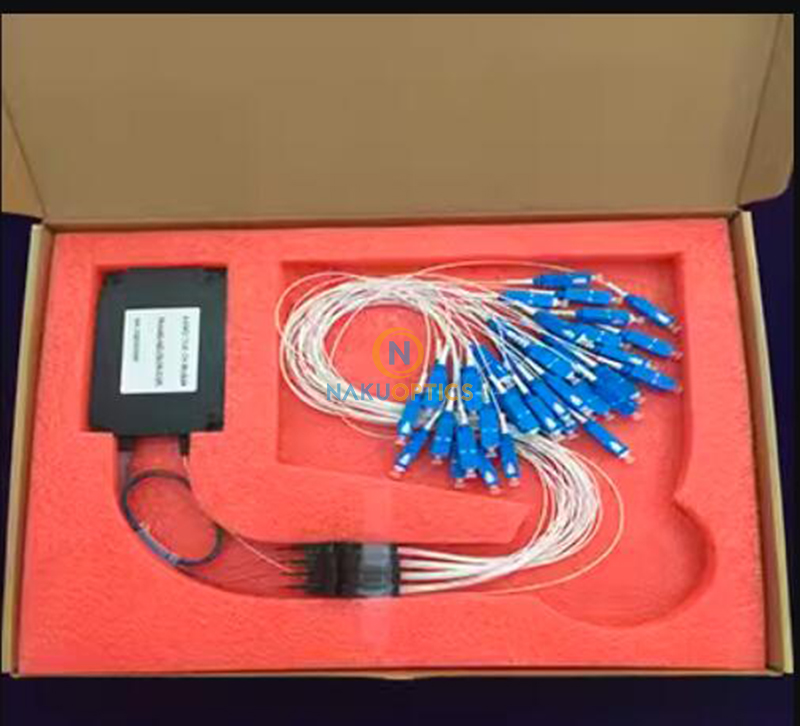

AAWG Box-Type 100GHz C20-C59 DWDM 40-channel Dense Wavelength Division Multiplexer

Product ID: 1835

$622.00

AAWG Box-Type 100GHz C20-C59 DWDM 40-channel Dense Wavelength Division Multiplexer

[Features]
100GHz ITU channel spacing
Low insertion loss
Wide pass band
High channel isolation
High stability and reliability

[Applications]
Channel add / drop
DWDM network
Wavelength routing
Fiber optical amplifier
CATV Fiber Optic System

[Specifications]

Parameters Unit Value
Operating Wavelength nm C20 C21 C22 C23 C24 C25 C26 C27
Insertion Loss dB <3.5 2.51 2.64 2.62 2.58 2.62 2.70 2.51 2.53
Operating Wavelength nm C28 C29 C30 C31 C32 C33 C34 C35
Insertion Loss dB <3.5 2.62 2.63 2.66 2.50 2.51 2.55 2.57 2.53
Operating Wavelength nm C36 C37 C38 C39 C40 C41 C42 C43
Insertion Loss dB <3.5 2.63 2.61 2.55 2.54 2.66 2.53 2.63 2.62
Operating Wavelength nm C44 C45 C46 C47 C48 C49 C50 C51
Insertion Loss dB <3.5 2.60 2.69 2.61 2.60 2.52 2.61 2.62 2.64
Operating Wavelength nm C52 C53 C54 C55 C56 C57 C58 C59
Insertion Loss dB <3.5 2.56 2.66 2.52 2.54 2.59 2.63 2.61 2.66
Channel Ripple dB Max 0.7
Polarization Dependent Loss dB Max 0.5
Polarization Mode Dispersion ps Max 0.1
Adjacent Isolation dB Min 25
Non-Adjacent Isolation dB Min 30
Dierctivity dB Min 50
Return Loss (All ports) dB Min 45
Total Crosstalk dB Max 22
Uniformity dB Max 1.5
Power Handling mW Max 300
Fiber Length m 1m (Ribbon-0.5m, 900um-0.5m)
Fiber Type SMF-28e
Connector COM: SC/UPC OTH: SC/UPC
Operating Temperature ℃ -5 ~ +70
Storage Temperature ℃ -40 ~ +85
Package Dimension mm 120*70*12
