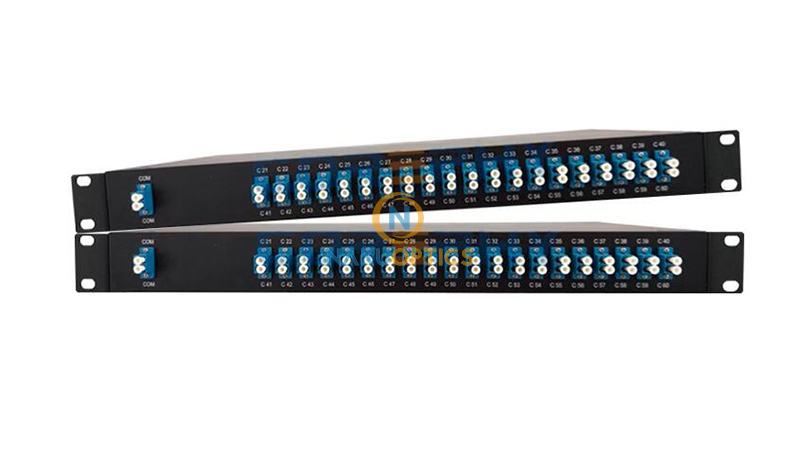

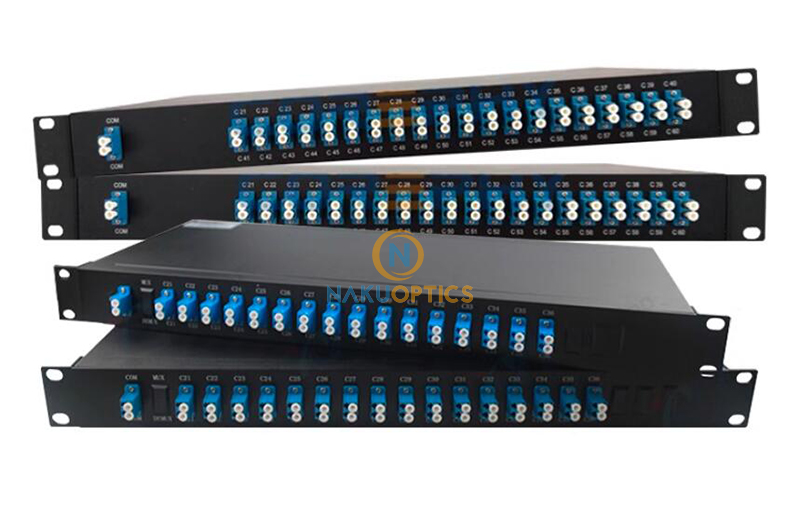

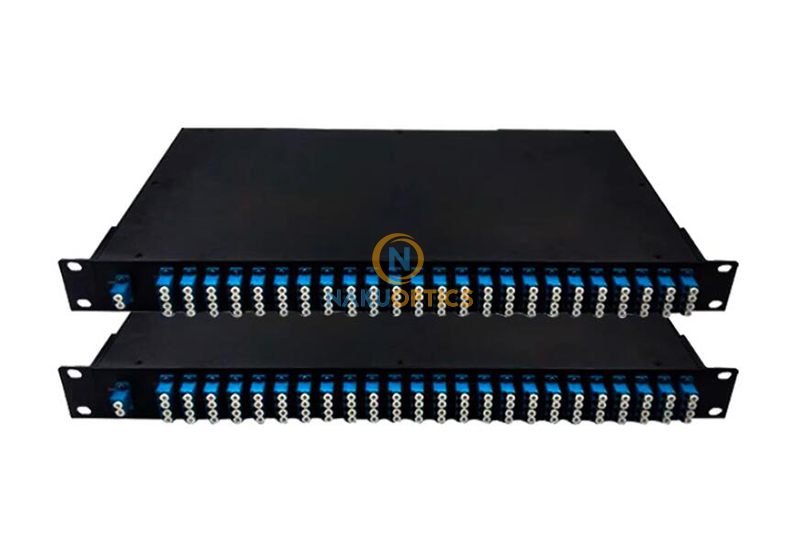

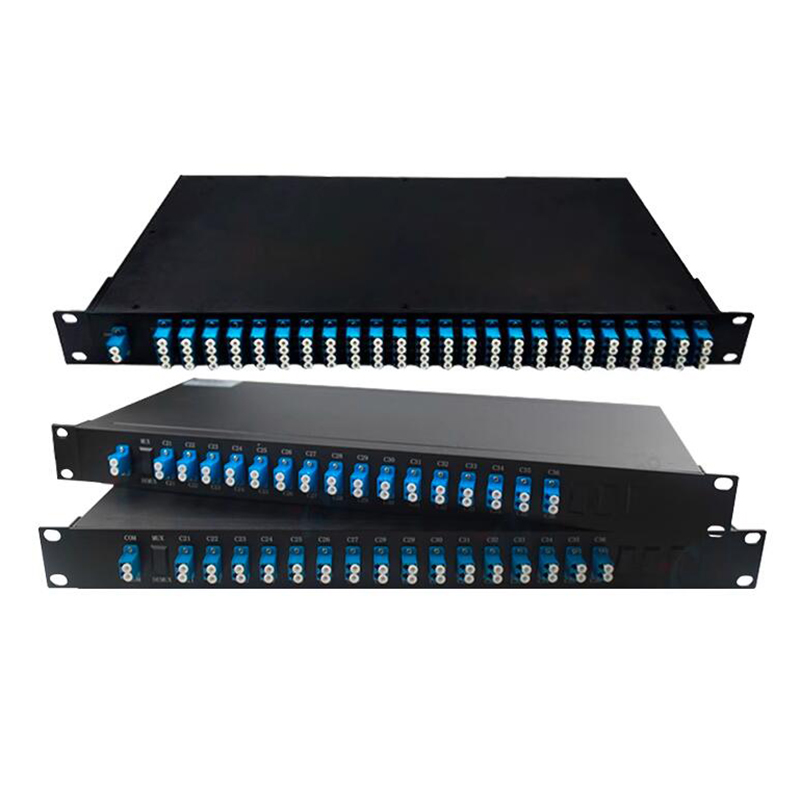

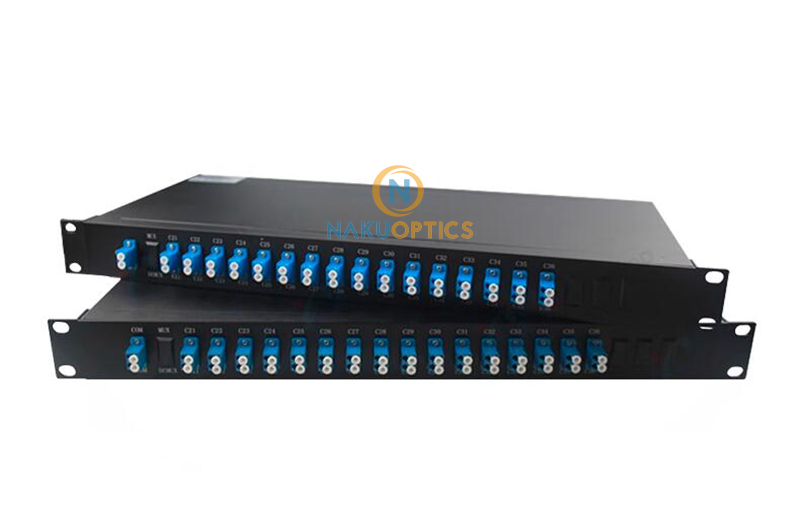

1U Rack-mounted AAWG DWDM 40CH/48CH/96CH passive DWDM 5G Optical Fiber Communication
Product ID: 1839
$956.00 – $2,192.00
1U Rack-mounted AAWG DWDM 40CH/48CH/96CH passive DWDM 5G Optical Fiber Communication
DWDMAWG module is based on plc (planar waveguide) technology. Compared with traditional tff thin film filters, AWG has the advantages of high integration, good uniformity, low pmd, and small insertion loss. Due to the multi-channel characteristics of DWDMAWG, it is widely used in long-distance signal transmission such as human backbone networks and data centers.
[Features]
Low insertion loss
High channel isolation
High stability and reliability
Wide transmission wavelength
[Specifications]
| Parameters | Unit | Min Value | Max Value | Remark |
| Input Port | 1 | |||
| Output Port | 40/48/96 | Choose | ||
| Channel Spacing | GHz | 100 | ||
| Reference Transmission Band | GHz | -12.5 | 12.5 | |
| Wavelength Accuracy | PM | -50 | 50 | Reference ITU GRID |
| 1dB Bandwidth | nm | 0.2(G) | Gaussian | |
| 3dB Bandwidth | nm | 0.4(G) | Gaussian | |
| Insertion Loss | dB | 3.5 | Maximum value within the ITU transmission bandwidth | |
| Insertion Loss Uniformity | dB | 1 | ||
| Flatness | dB | 0.7 | Non-polarizing loss variation within transmission bandwidth. | |
| Polarization Dependent Loss | dB | 0.5 | Maximum value within the ITU transmission bandwidth | |
| Adjacent Channel Crosstalk | dB | 25 | The transmission bandwidth includes the worst case PDL | |
| Non-Adjacent Channel Crosstalk | dB | 30 | The transmission bandwidth includes the worst case PDL | |
| Total Crosstalk | dB | 22 | Cumulative crosstalk for all other channels | |
| Power Handling | mW | 300 | ||
| Color Dispersion CD | ps/ms | -20 | 20 | |

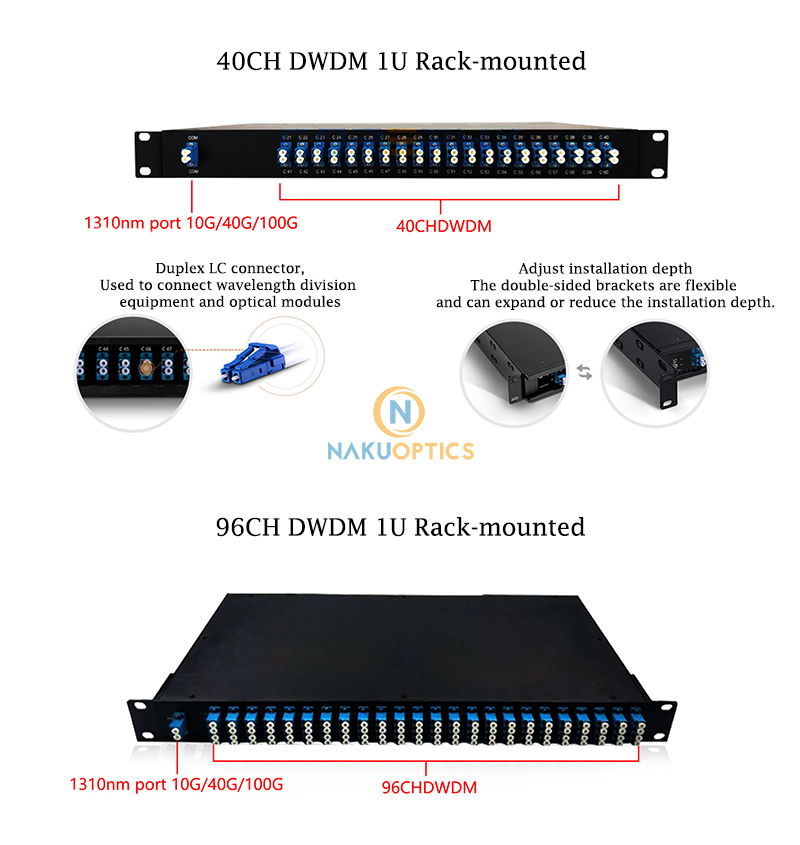

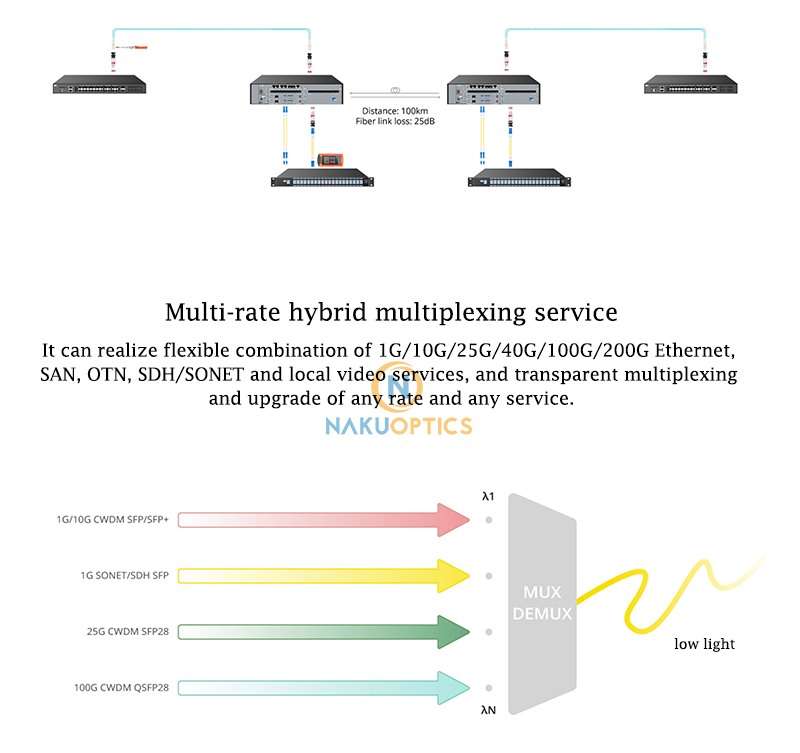

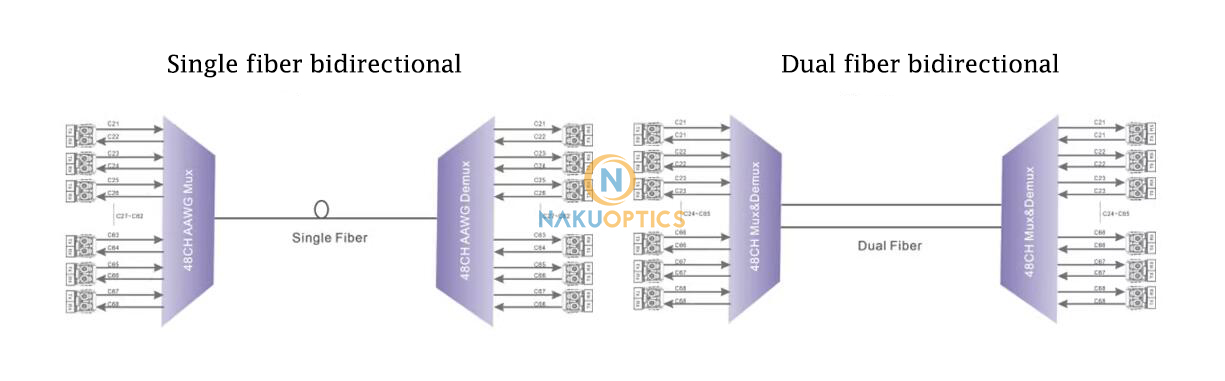

Our AAWG DWDM module provides multiple channel options such as 40CH, 48CH and 96CH. In addition, C-band, L-band and C&L-band as well as flat top and Gaussian can be produced according to requirements. Monitoring terminals, expansion ports, etc. can also be added according to customer requirements.
.jpg)
Ordering Information
| AWG | Channel Spacing | Channel Number | 1st Channel | Package Mode | Input Port Connector | Output Port Connector |
| AWG | 1=100GHz 2=200GHz 5=500GHz |
32=32 Channel 40=40 Channel 44=44 Channel 48=48 Channel 80=80 Channel 88=88 Channel 96=96 Channel |
C21 H21 C22 H22 C23 H23 … |
M=120*75*12.7mm L=LGX box R=19*1U Rack |
0=None LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify |
0=None LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 3.8 kg |
|---|---|
| Channel Number | 40 Channel, 48 Channel, 96 Channel |
