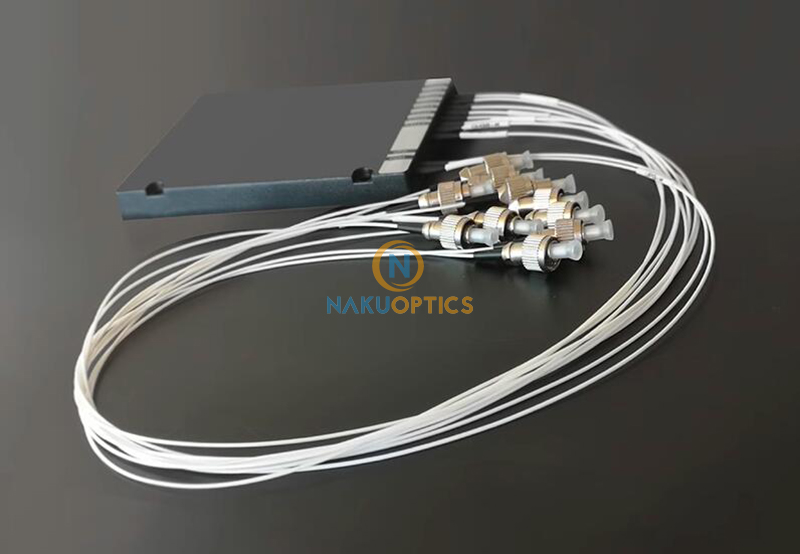

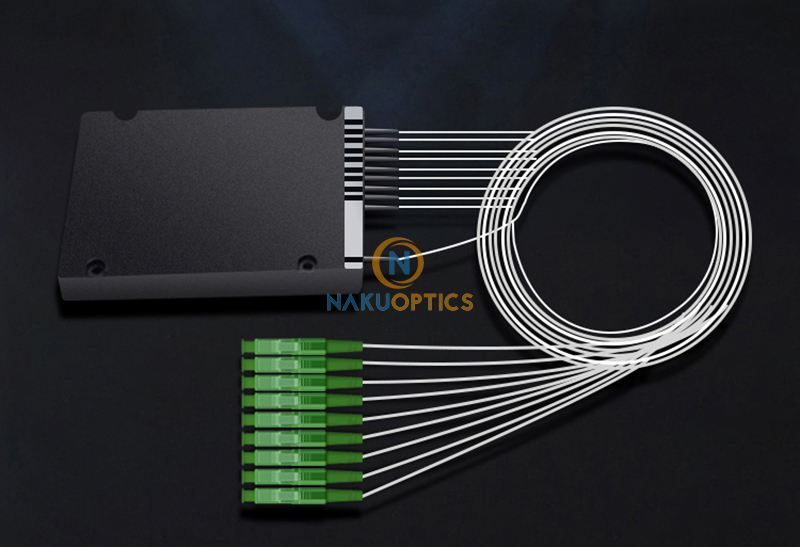

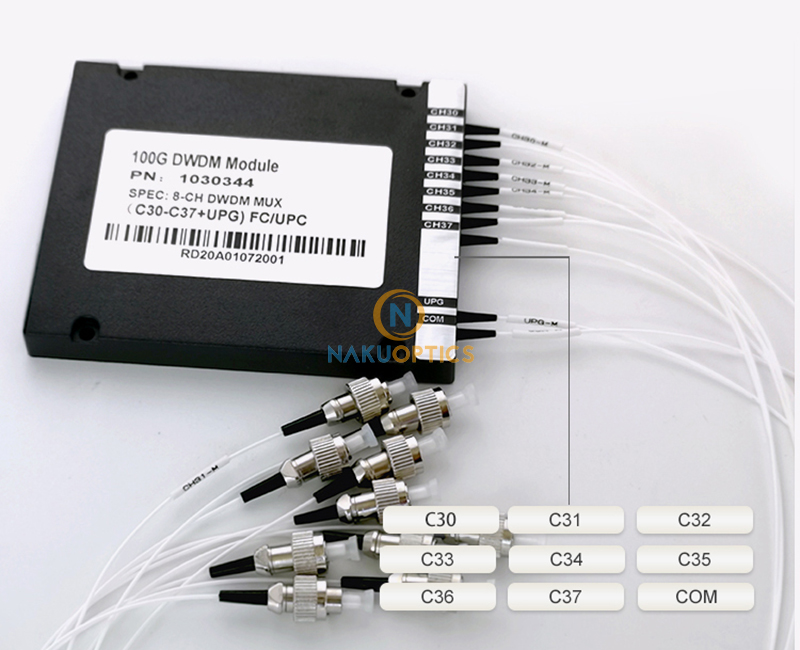

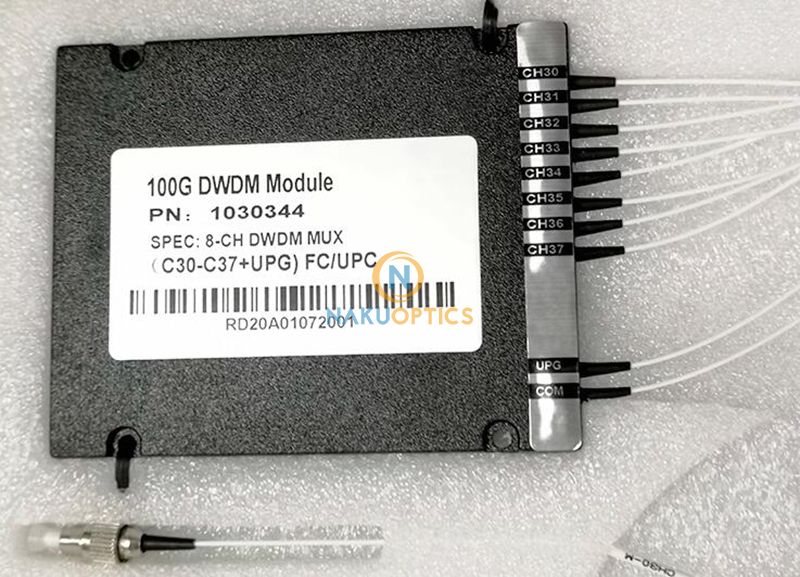

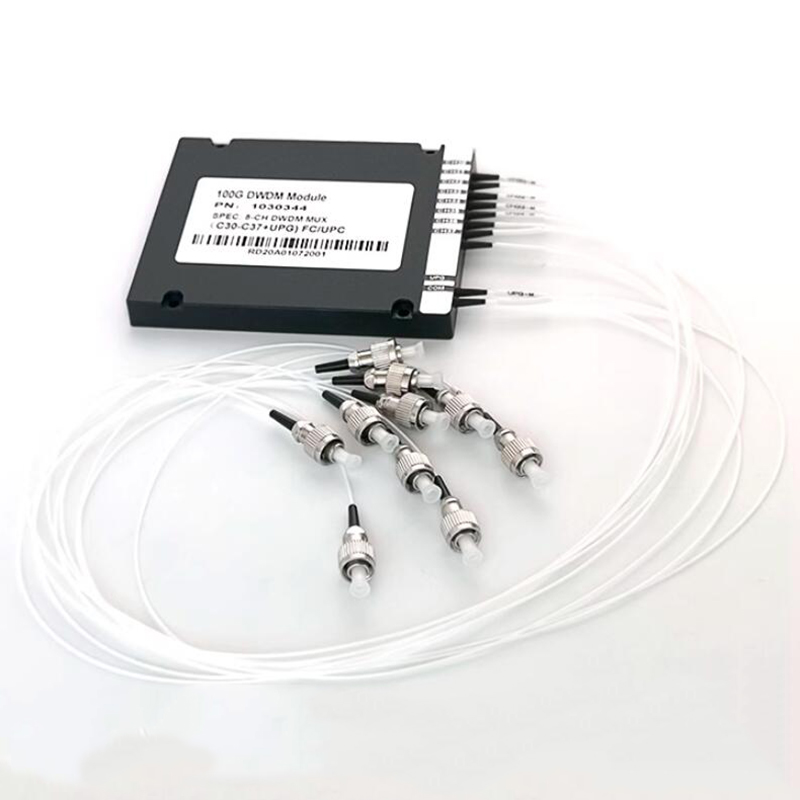

100GHz 8 Channels Fiber Optic Dense Wavelength Division Multiplexer DWDM Module
Product ID: 1830
$219.00
100GHz 8 Channels Fiber Optic Dense Wavelength Division Multiplexer DWDM Module
[Features]
100GHz ITU channel spacing
Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
[Applications]
Channel add / drop
DWDM network
Wavelength routing
Fiber optical amplifier
CATV Fiber Optic System
[Specifications]
| Parameters | Unit | Mux | Demux |
| Channel Wavelength | nm | ITU 100 GHz Grid | |
| Center Wavelength Accuracy | nm | ±0.1 | |
| Channel Spacing | GHz | 100 (0.8nm) | |
| Insertion Loss | dB | ≤3.0 | |
| Channel Uniformity | dB | ≤1.0 | |
| Adjacent Isolation | dB | N/A | >30 |
| Non-Adjacent Isolation | dB | N/A | >40 |
| Insertion Loss Temperature Sensitivity | dB/°C | <0.005 | |
| Wavelength Temperature Shifting | nm/°C | <0.002 | |
| Polarization Dependent Loss | dB | <0.2 | |
| Polarization Mode Dispersion | ps | <0.2 | |
| Dierctivity | dB | ≥50 | |
| Return Loss | dB | ≥45 | |
| Max Power Handling | mW | 300 | |
| Package Dimension | mm | L141 x W115 x H18 | |
| Operating Temperature | ℃ | 0 ~ +60 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 3.44 kg |
|---|
