Power Adapter for NakuOptics Laser Module DC 3V/5V/12V Power Supply

Power Adapter for NakuOptics Laser Module DC 3V/5V/12V Power Supply

A laser module power supply is a device that provides power to a laser module. It is usually a DC power supply that provides a constant voltage or current to the laser module.

[Input Characteristics]
1, Voltage: operating voltage range of 100V ~ 240V AC voltage.
2, Frequency: AC input voltage range of 47 ~ 63 Hz frequency.
3, Current: maximum input current ≤ 20mA.
4, The impact of current: Inrush current ≤ 50A.
5, Protection: over voltage, over current, over temperature protection.

[Output Characteristics]
1, The maximum output current: ≤ 2A ,Different voltage and current are different.
2, Power: Output Power Rating 4W.
3, Ripple and noise: Ripple and noise: 30mV MAX.
4, Boot delay time: boot delay time ≤ 3S
5, Efficiency: ≥ 68% Power Efficiency.

[Reliability]
At nominal input voltage, full load, ambient temperature of 40 degrees under the conditions of the supply MTBF is not less than 50,000 hours.

[Input and Output Wiring]
AC input line: flat head two plug input wire, cable length ≥ 1m;
DC output cable: 5.5mm DC plug wire, cable length ≥ 1m.

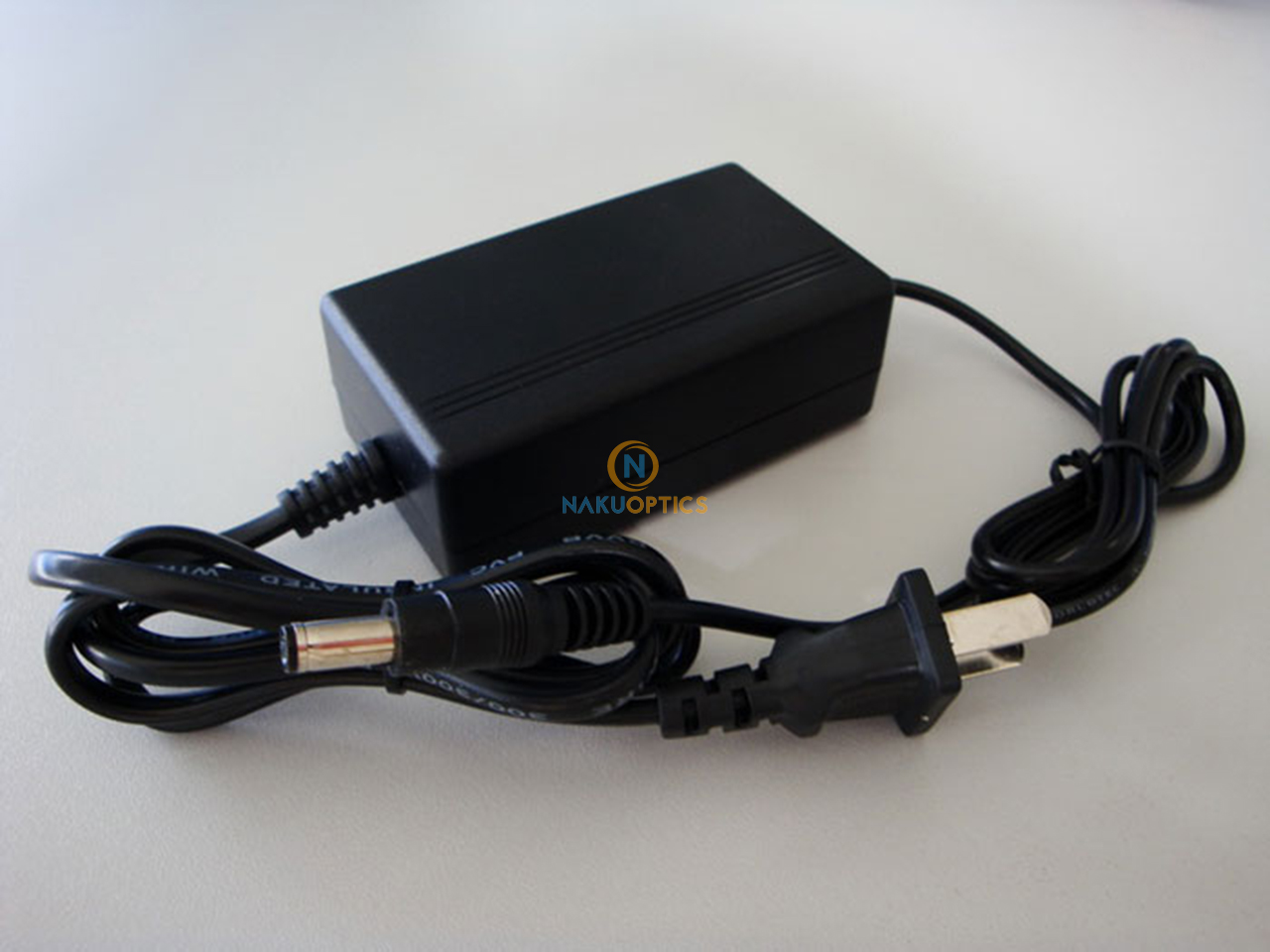

5V, 6V Transformer Style:

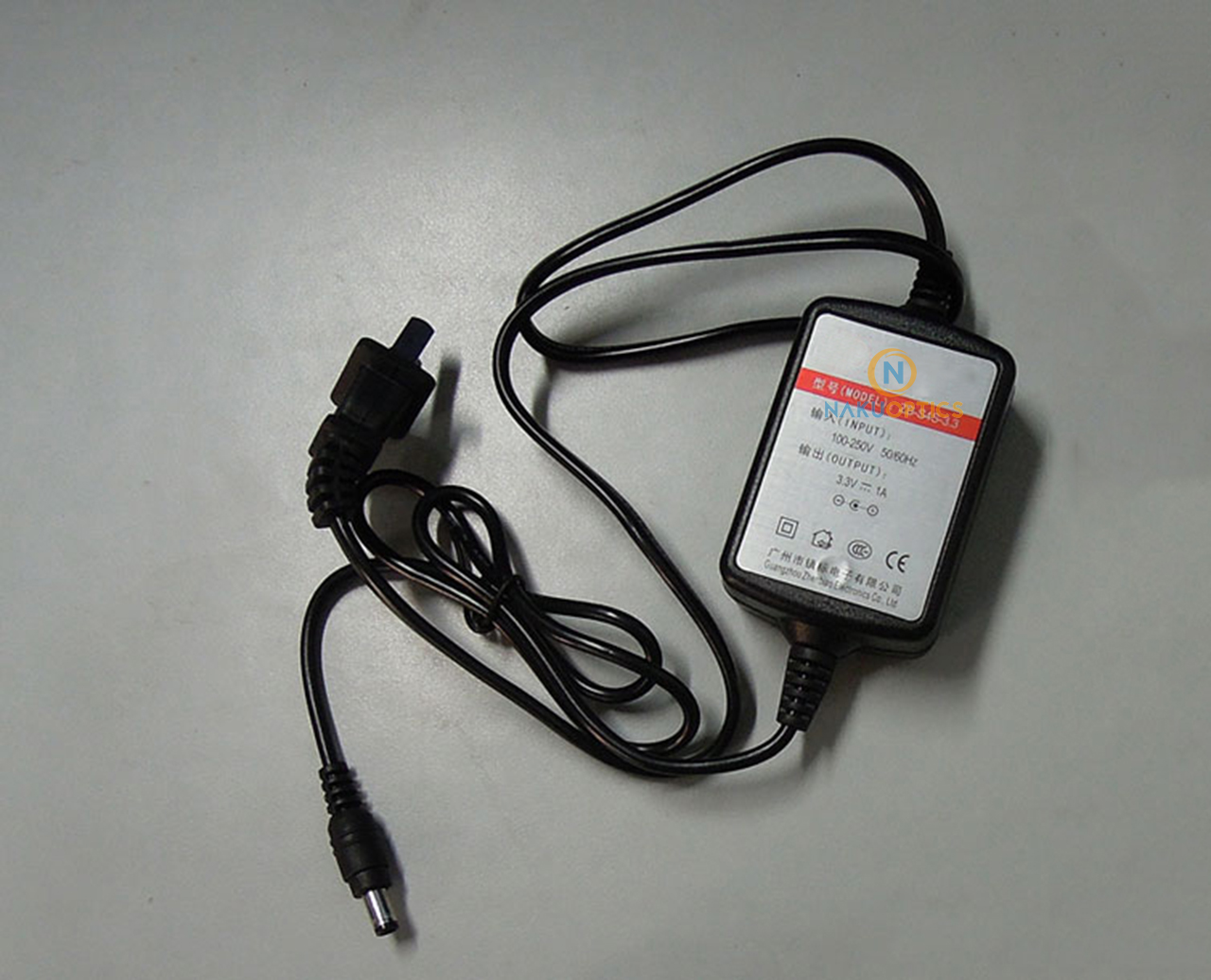

3.3V Transformer Style:
