Narrrow Linewidth 0.1nm Raman Laser System 532nm 100~200mW DPSS Laser

Name: Narrrow Linewidth 0.1nm Raman Laser System 532nm 100~200mW DPSS Laser
SKU: P412
Availability: InStock

Product ID: 412

$912.00 – $1,423.00

Narrrow Linewidth 0.1nm Raman Laser System 532nm 100mW/200mW DPSS Laser

532nm narrow linewidth laser system is our featured product. The system is characterized by its compact structure, portability, and convenient use. It incorporates several core technologies such as the short cavity method, VBG wavelength locking, directional optical feedback, and built-in semiconductor refrigeration to achieve stable spectral output and power, as well as a narrow linewidth.

[Lead Time]
532nm 100mW Raman Laser: 3~4 weeks
532nm 200mW Raman Laser: About 4 weeks

[Features]
1. Spectral linewidth <0.1nm
2. High power stability: <3%

[Application]
2. Raman Spectroscopy Analysis
2. Sensing

[Specifications]
Product Name: 532nm Narrow Linewidth Laser
Wavelength: 532nm±0.5nm
Output Power: 100mW / 200mW (Choose)
Spectral Linewidth：<0.1nm

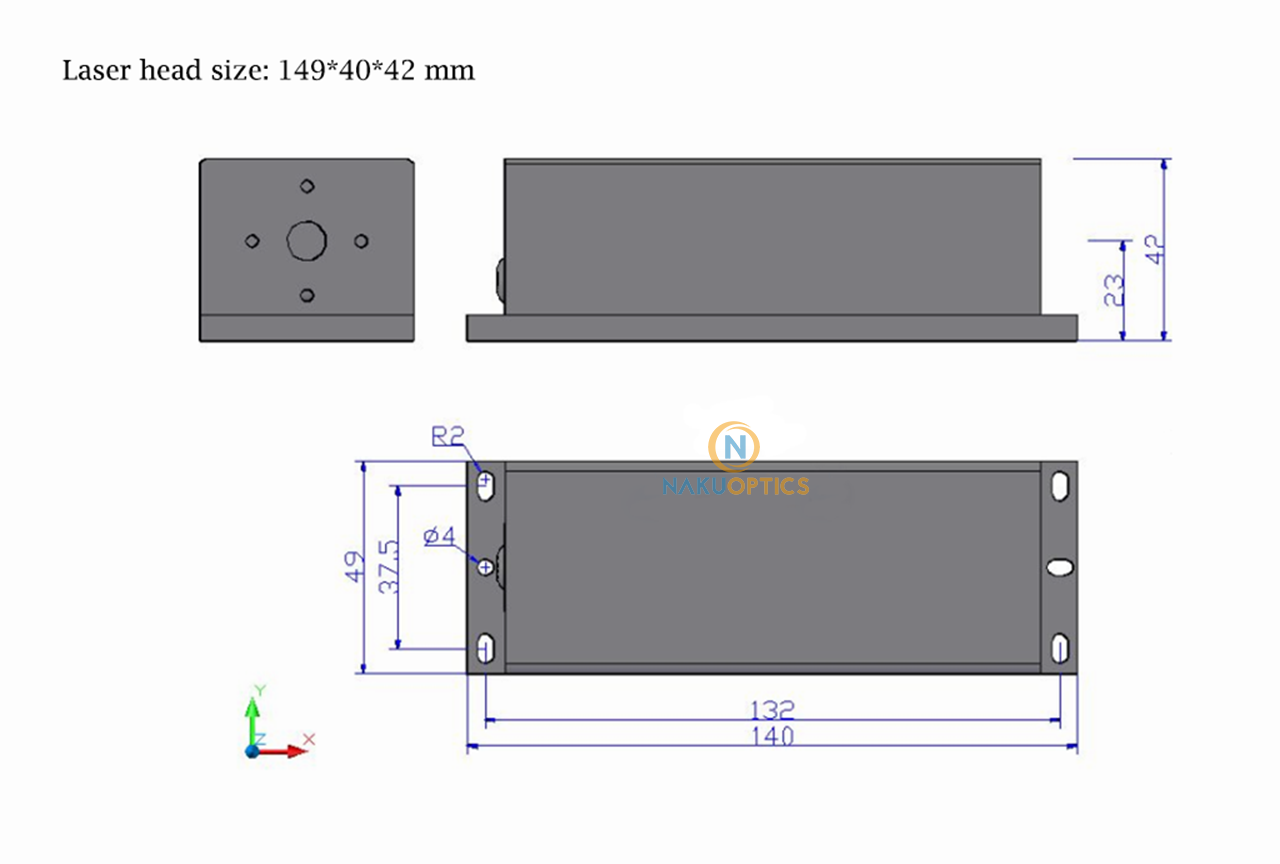

Beam Size: Near 2 mm
Beam Divergence Angle: Near 0.5 mrad
Operating Temperature: 0°C-40°C
Storage Temperature: -20°C-65°C

Parameter	Work condition	Symbol	Min.	Typical Value	Max.	Unit
Output Power	APC mode	PO			100/200	mW
Spot Mode				TEM00
Beam Diameter	Po , 1/e²			2.0		mm
Beam Divergence Angle	Po , 1/e²			0.5		mrad
Spot Roundness			90			%
Power Stability	2hrs	Ps		3	5	%

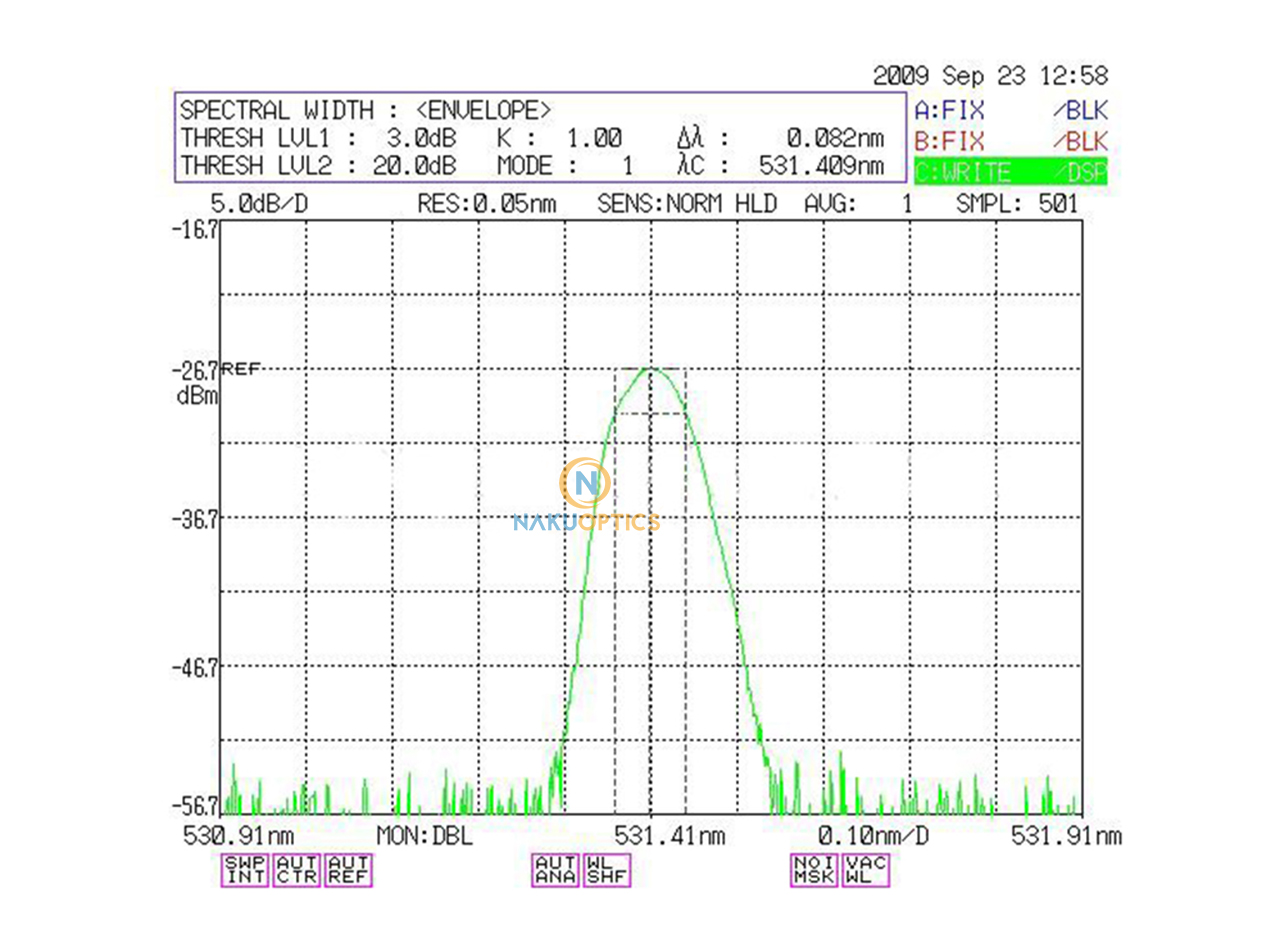

Spectral Linewidth	FWHM	PO			0.1	nm
Spectral Stability	λs	PO			0.1	nm
Central Wavelength	@PO	λc	531.5	532	532.5	nm
Service Life	@PO	MTBF	5,000			Hrs
