1310nm 1×2 Polarization Maintaining Fiber Coupler PM Beam Splitter Slow Axis Alignment K Key

Product ID: 1234


$235.00

1310nm 1×2 Polarization Maintaining Fiber Coupler PM Beam Splitter Slow Axis Alignment K Key

[Features]
Low excess loss
Low insertion loss
High extinction ratio
High stability and reliability

[Application]
Optical amplifier
Power monitoring
Coherent communications
Fiber gyroscope
Fiber sensor

[Specifications]
Product Name: PM coupler
Wavelength: 1310nm
Port Type: 1×2
Attenuation: 3dB
Connector Type: Default FC, can be customized.

Parameters P Grade A Grade P Grade A Grade P Grade A Grade
Central Wavelength (nm) 1310, 1550 980, 1064 780, 850
Bandwidth(nm) ±20
Typical Excess Loss(dB) 0.2 0.3 0.6 0.8 0.6 0.8
Max. Excess Loss(dB) ≤0.4 ≤0.6 ≤0.8 ≤1.0 ≤0.8 ≤1.0
Extinction Ratio(dB) ≥20 ≥17 ≥18 ≥16 ≥18 ≥16
Directivity(dB) ≥55
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85

For device connector , IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.

[Package Information]

Configuration 1×2
Fiber Length 0.8m, others on request.
Fiber Type Panda fiber
Pigtail Type 250μm bare fiber 900μm loose fiber 900μm/2mm/3mm loose tube
Dimensions(mm) ψ3.0×54 ψ3.0×70 90x16x9

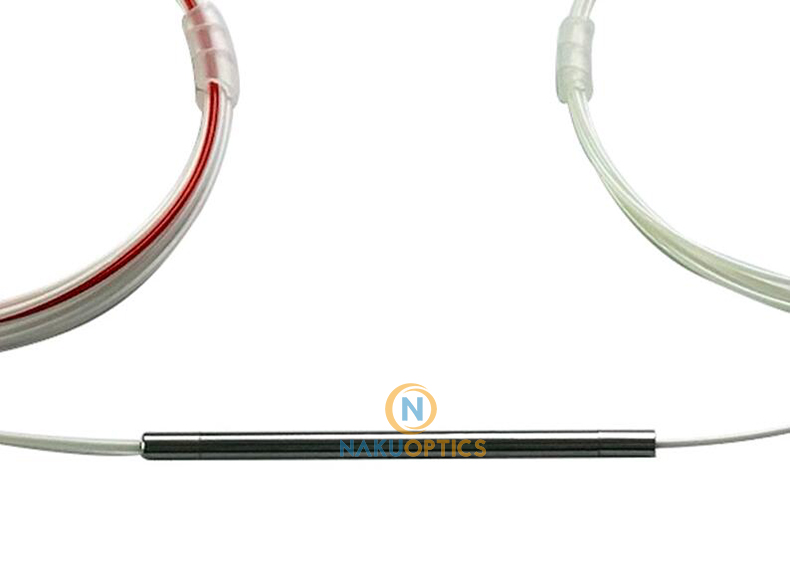

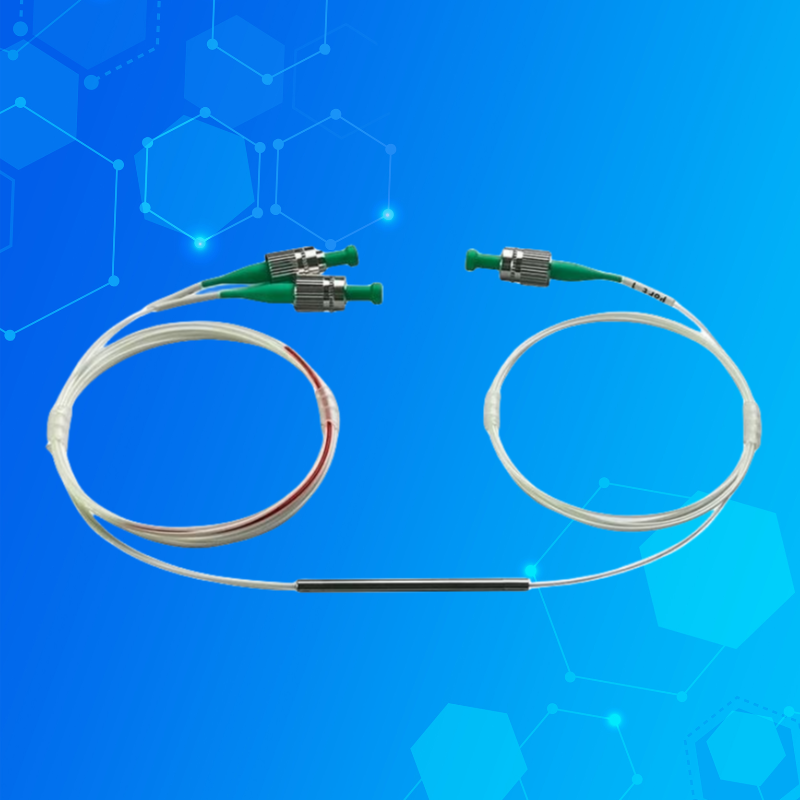

PM fiber couplerPM fiber coupler

PM fiber coupler

PM fiber coupler

PM fiber coupler

PM fiber coupler

PM fiber coupler

PM fiber coupler

PM fiber coupler

PM fiber coupler

PM fiber coupler
