Fiber Coupler, PM Fiber Coupler

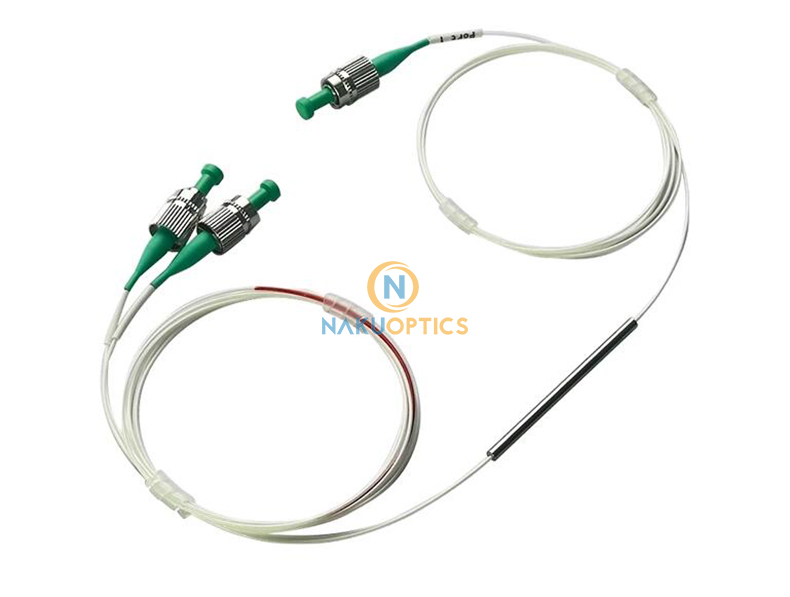

1×2 Polarization-maintaining 1064nm Fiber Coupler PM1060 Fiber Beam Splitter
Product ID: 1228
$282.00
1×2 Polarization-maintaining 1064nm Fiber Coupler PM1060 Fiber Beam Splitter
[Specifications]
Product Name: PM coupler
Wavelength: 1064nm
Port Type: 1×2
Attenuation: 3dB

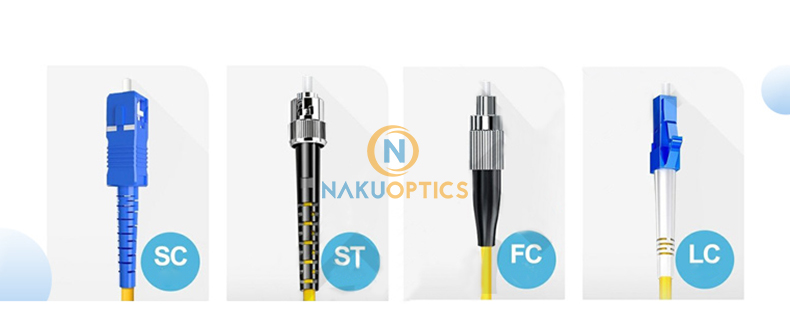

Connector Type: Default FC, can be customized.
| Parameters | Unit | Value 1X2 |
| Working Wavelength | nm | 1064 |
| Bandwidth | nm | ±15 |
| Split Ratio | 1/99 ~ 50/50 (Reference data 50/50) | |
| Max. Insertion Loss | dB | 3.5 |
| Max. Excess Loss | dB | 0.4 |
| Min. Extinction Ratio | dB | 20 |
| Max. Uniformity | dB | 0.5 |
| Return Loss | dB | 55 |
| Fiber Type | PM980 | |
| Power | mW | 0.5~10 optional |
| Fiber Connector | FC/APC or others | |
| Fiber Length | m | 1 |

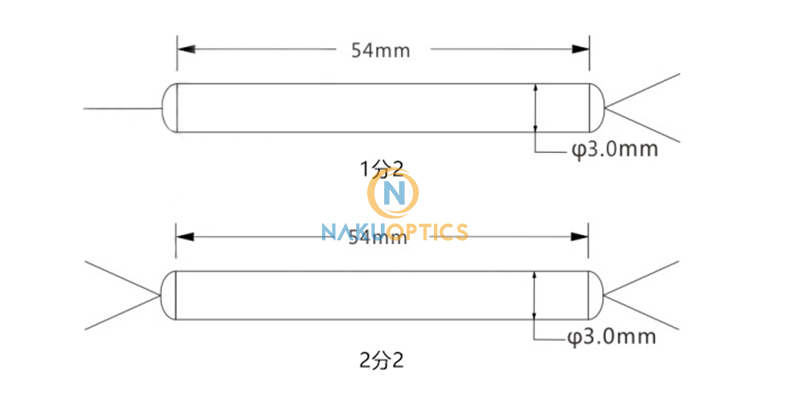

| Package Dimensions | mm | Φ3.5×54 (bare fiber) or Φ3.0×60 (loose tube) |
| Operating Temperature | ℃ | -10~+70 |
| Storage Temperature | ℃ | -40~+85 |

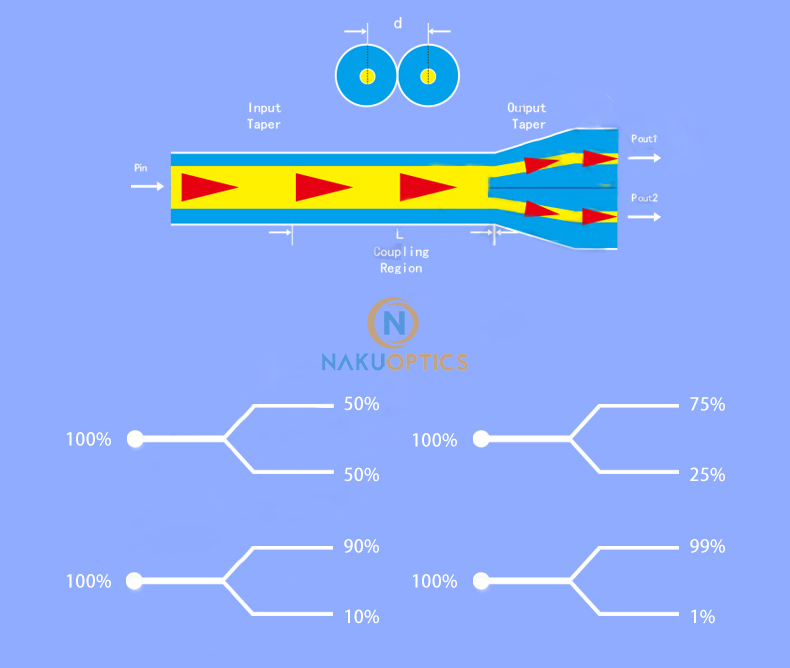

Split Ratio/Insertion Loss Reference
| Split Ratio | Insertion Loss | |
| Port | output 1 | output 2 |
| 50/50±6.0% | 3.5 | 3.5 |
| 10/90±3.0% | 0.9 | 11.8 |
| 1/99±6.0% | 0.3 | 24.2 |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 1.8 kg |
|---|
