Name: 10pcs 1250nm~1650nm ST Fixed Flange Type Fiber Attenuator
SKU: P764
Price: 80.00 USD
Availability: InStock

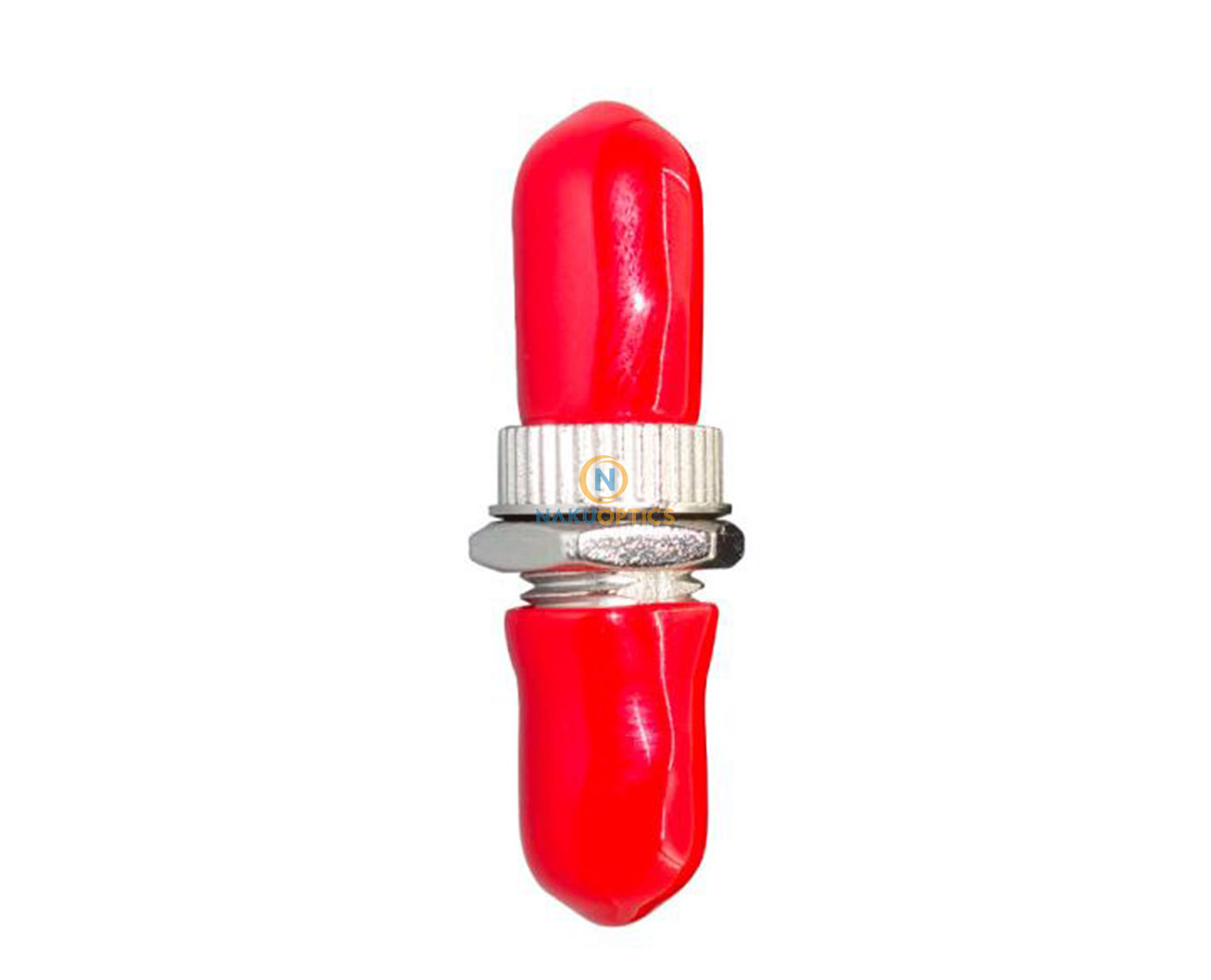

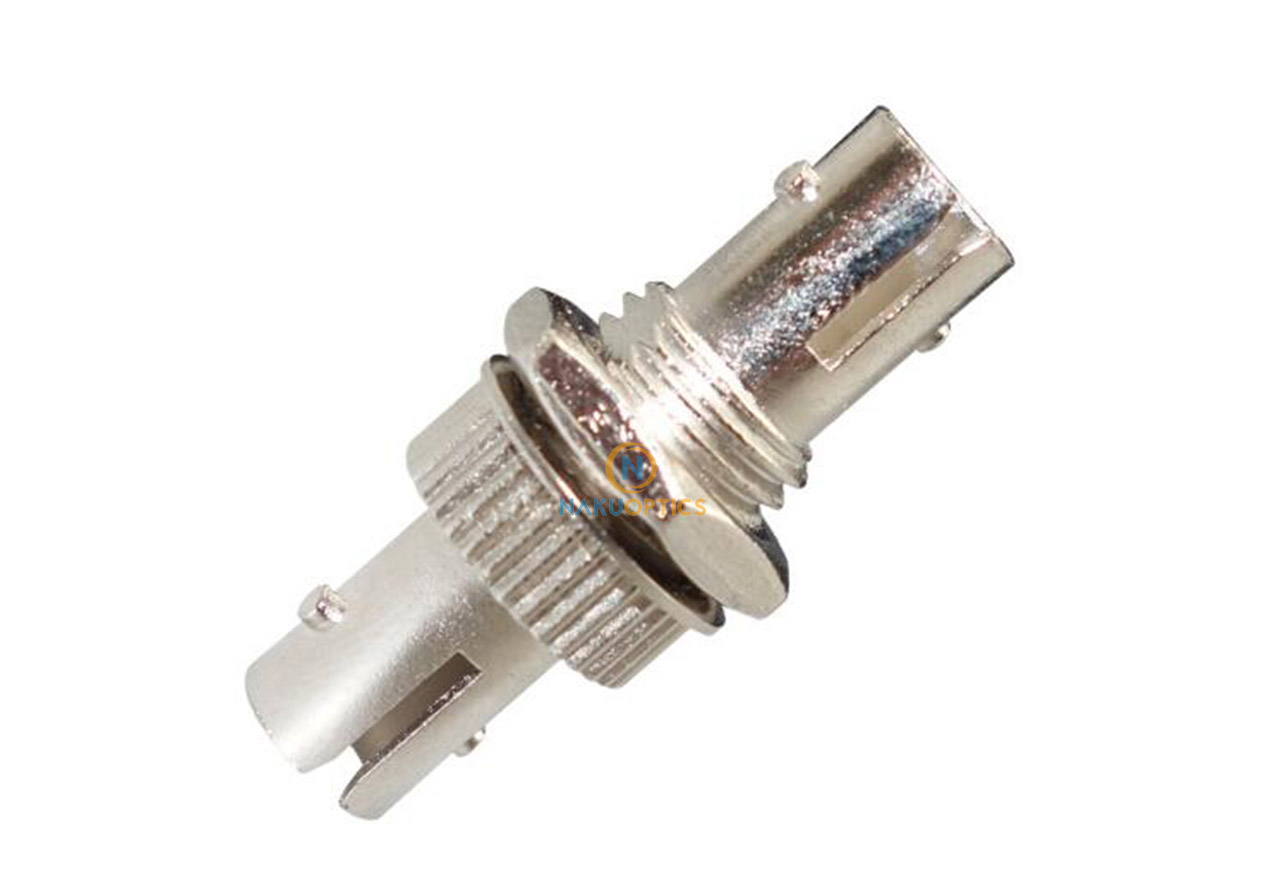

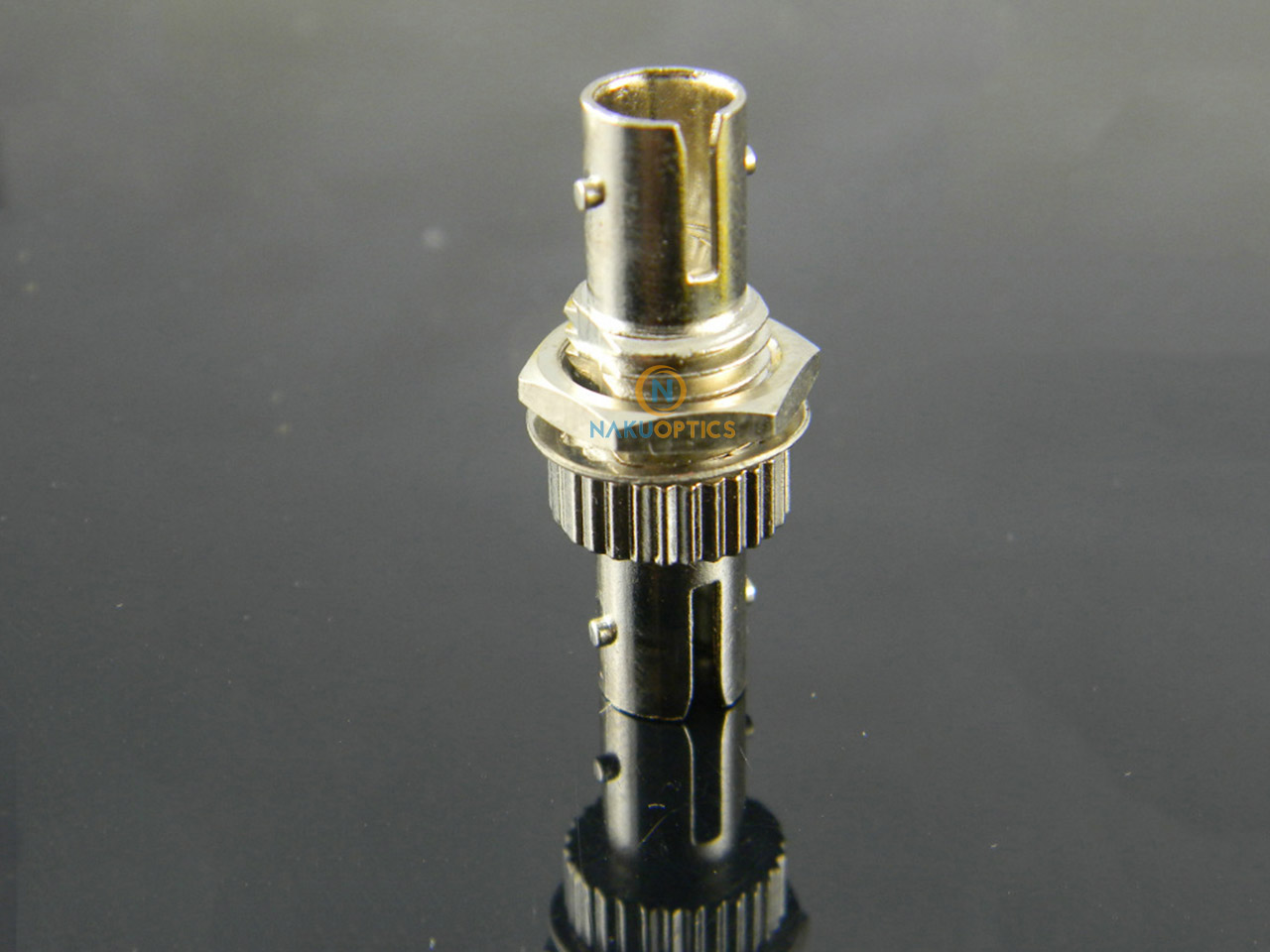

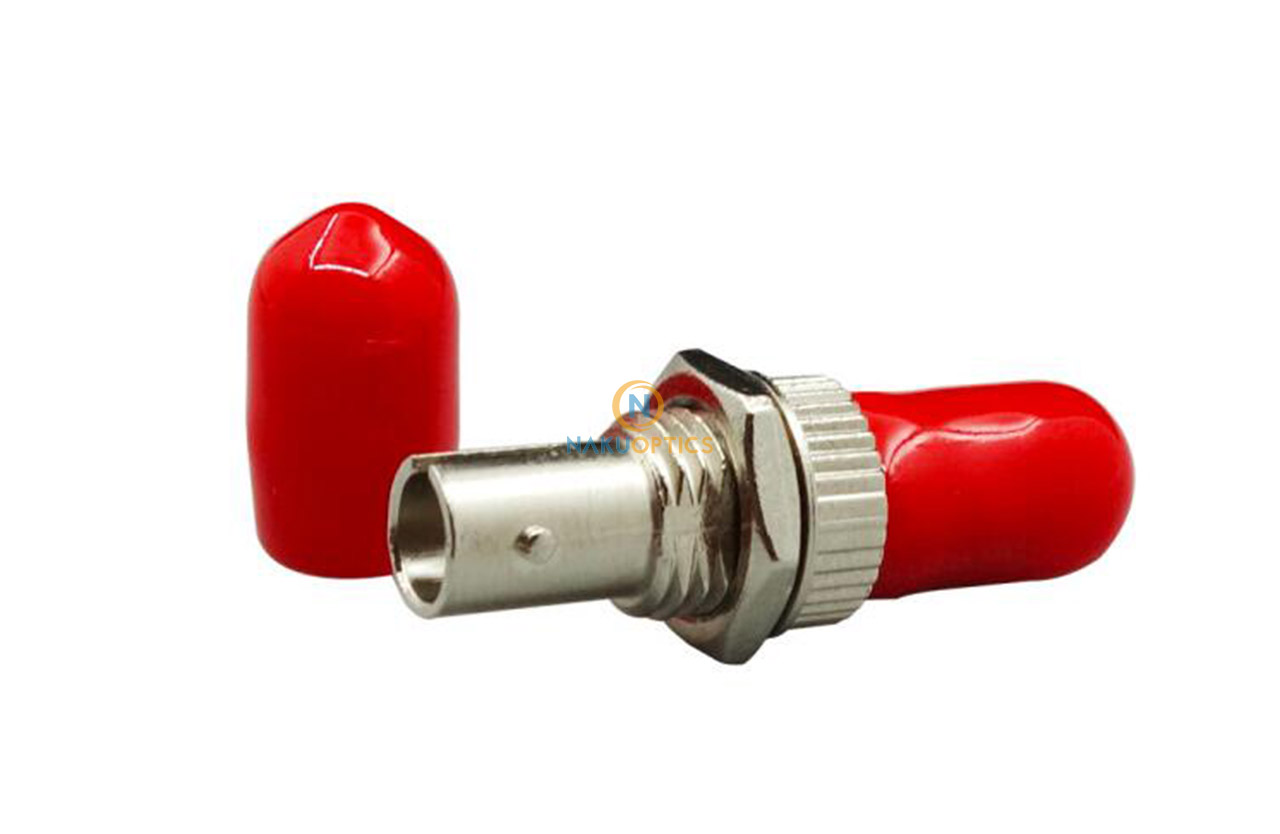

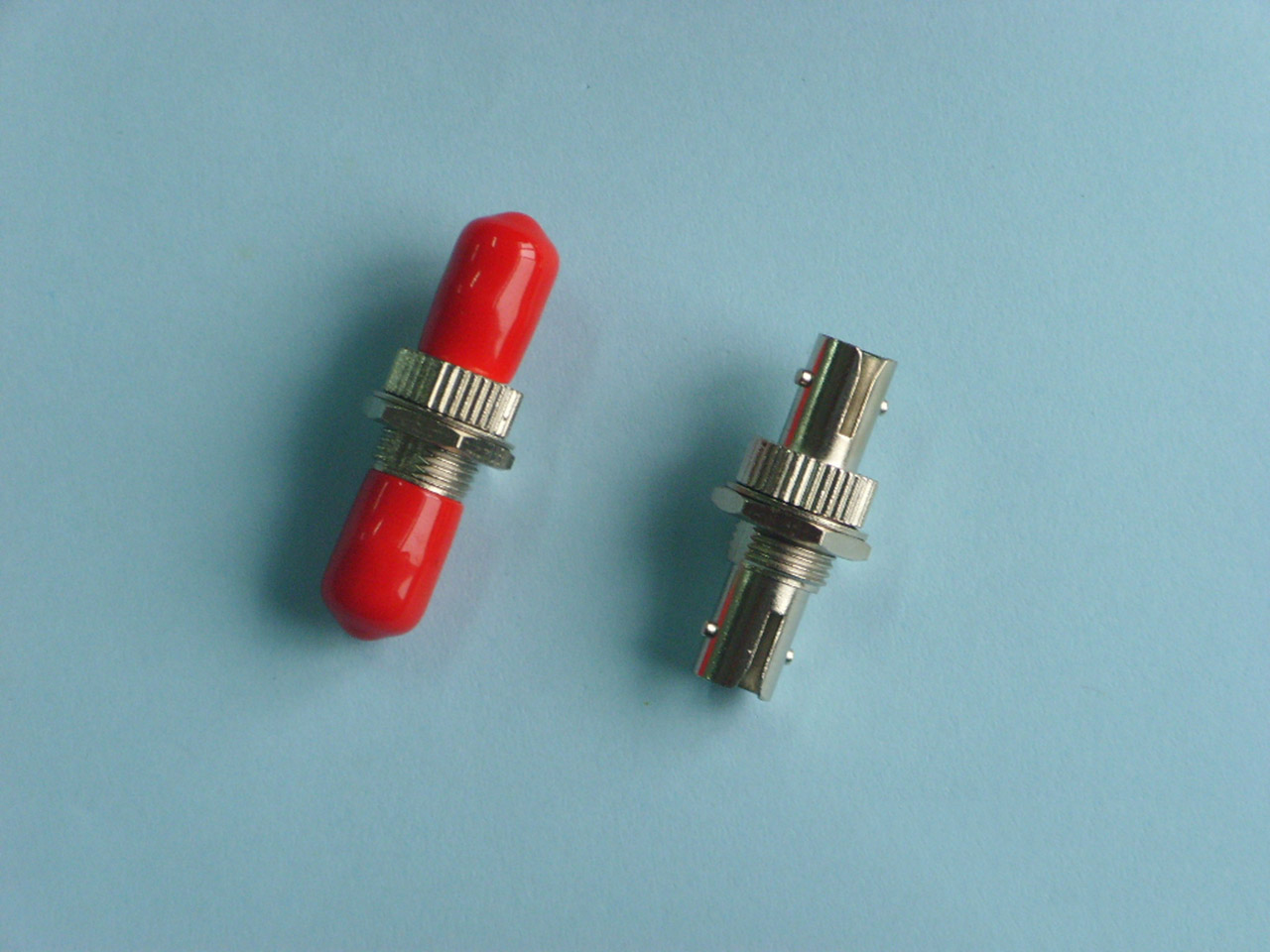

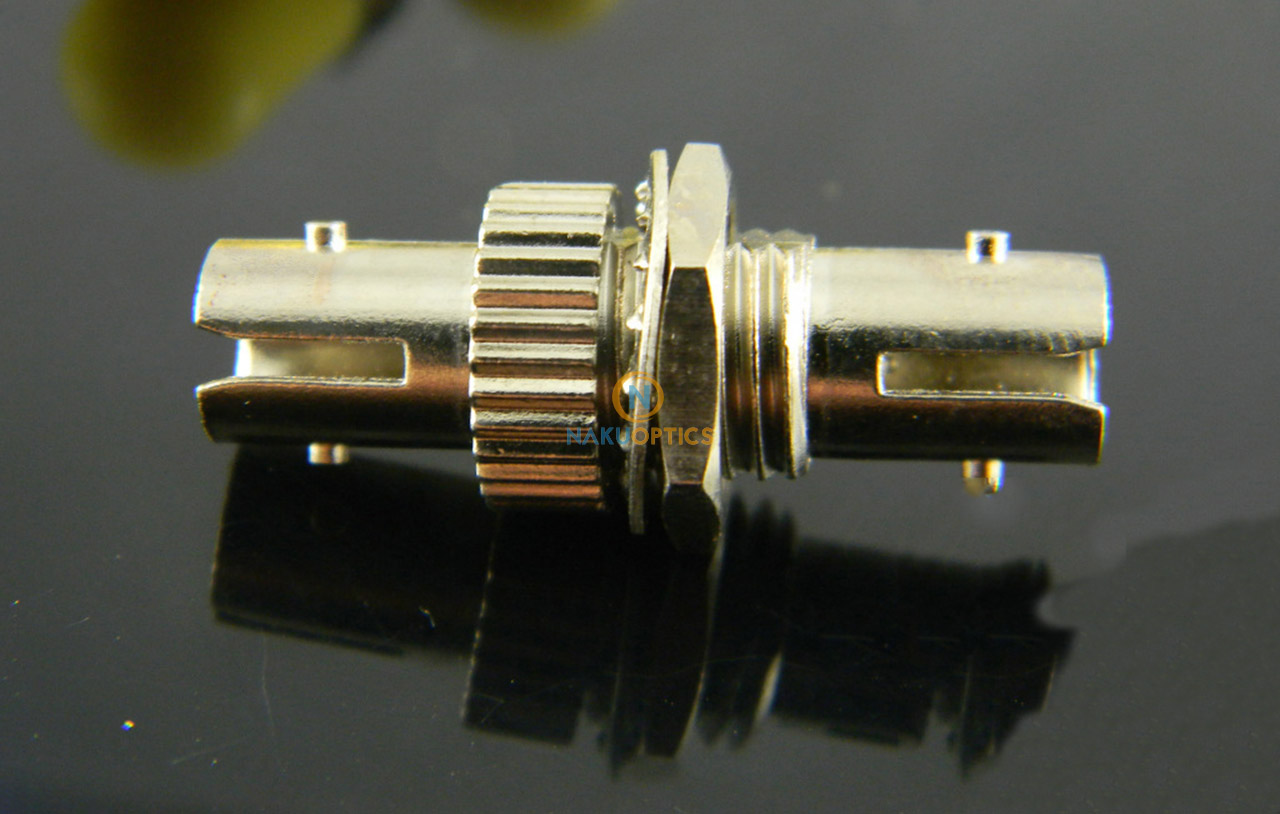

10pcs 1250nm~1650nm ST Fixed Flange Type Fiber Attenuator

The Flange Type Fixed Attenuator is also called an adapter type attenuator. Its shape is similar to the common adapter. The principle is to install the attenuator inside the adapter so that the connector is not connected with each other to achieve the purpose of attenuation. It is used in applications where a pre-determined amount of light loss is specified.

[Features]
1. Good interchangeability and repeatability
2. Accurate attenuation
3. High reliability
4. Compliant with the IEC and RoHS standards
5. Conforming to Telcordia-GR-910-CORE

[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

[Specification]

Parameter	Typical Value	Unit
Flange Type Optical Attenuator	ST (Suitable for PC connector)	/
Testing Wavelength	1310,1550	nm
Operating Bandwidth Range	1,250~1,650	nm
Typical attenuation	3,5,7,10,15,20	dB
Attenuation Tolerance	±10%	/
Repeatability	≤0.10	dB
Exchangeability	≤0.20	dB
Durability	1,000 Mating, loss≤0.20	dB
Operating Temperature	-2 0 to + 70	℃
Storage Temperature	-40 to + 85	℃
