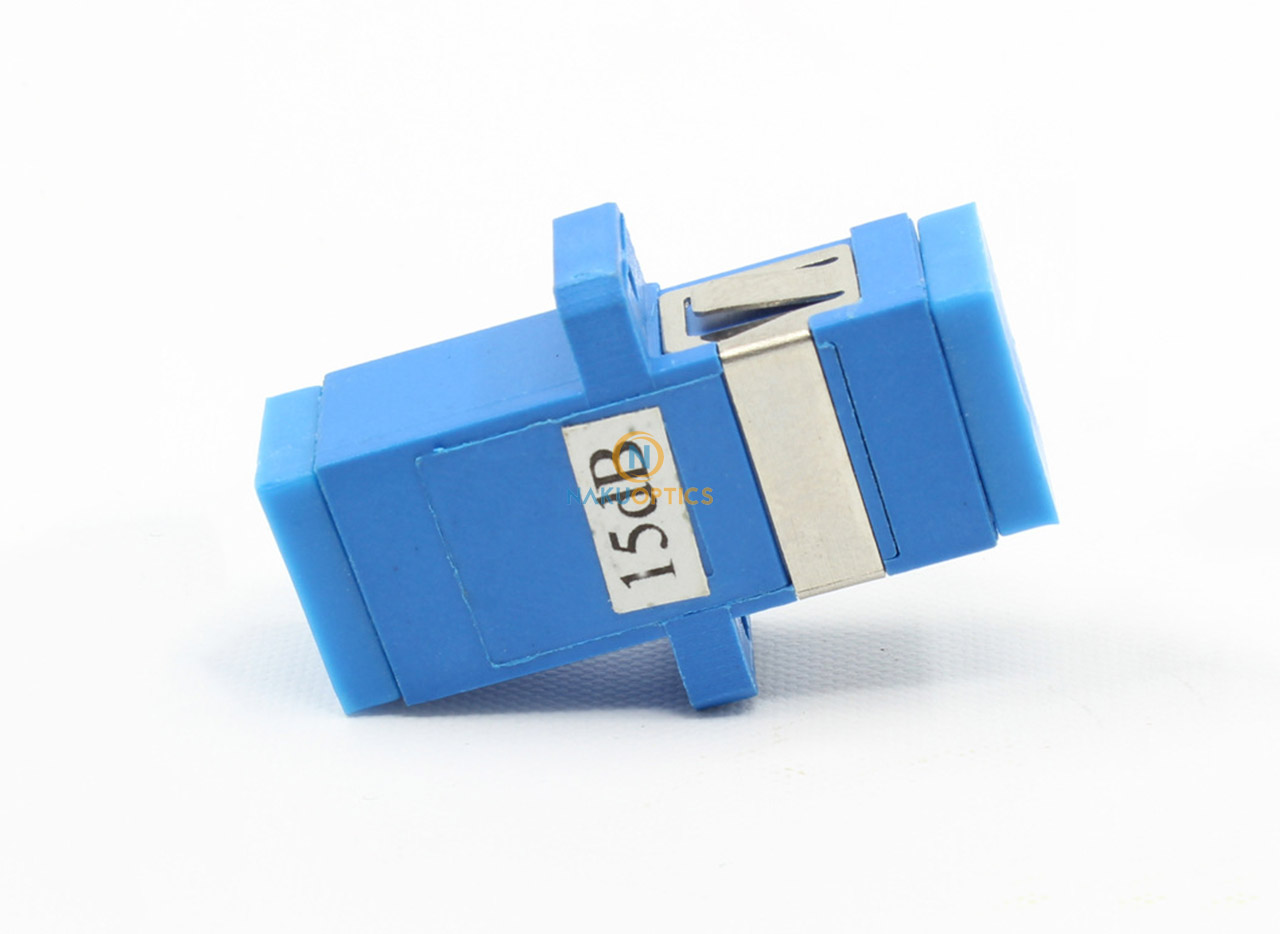

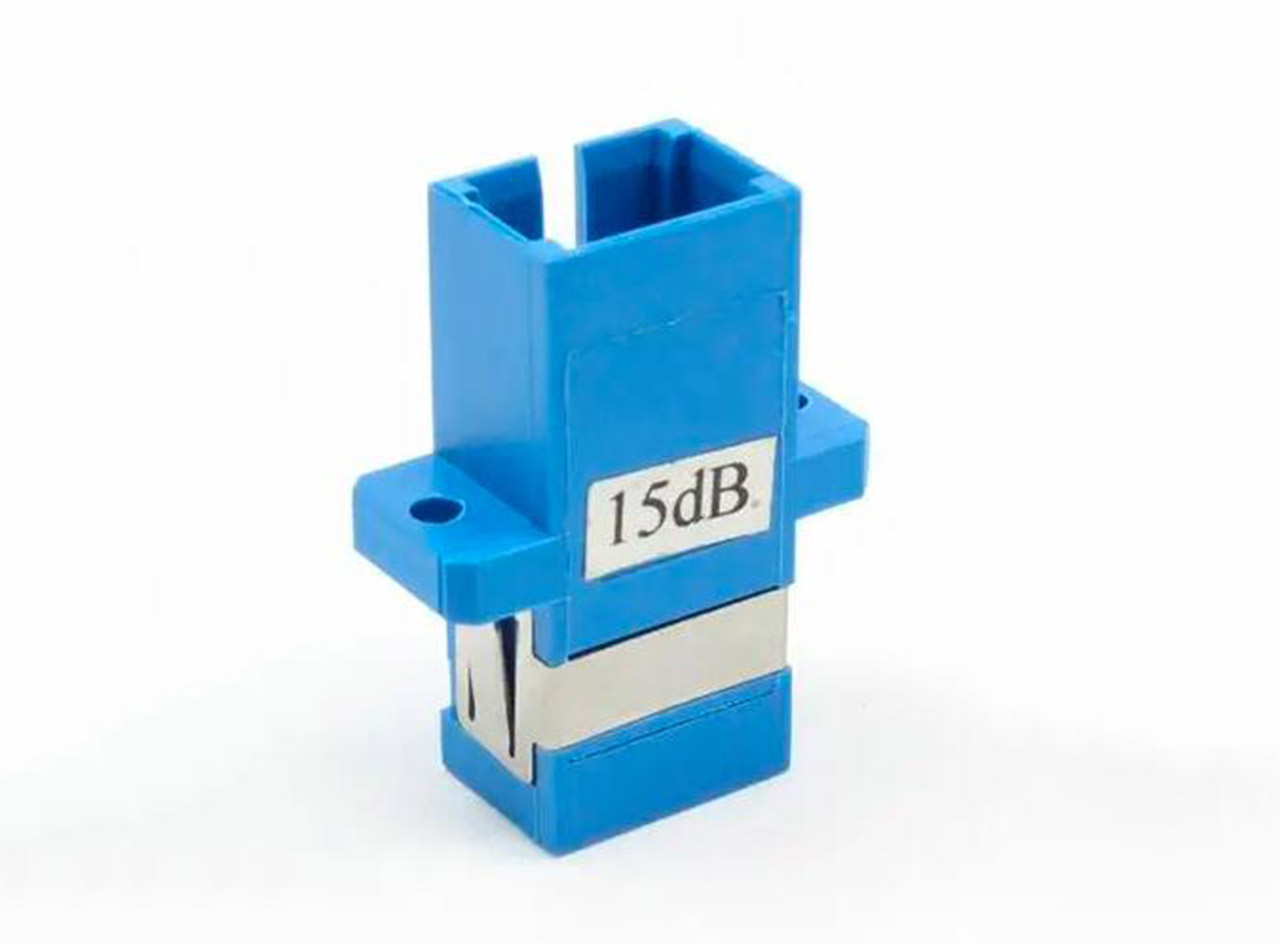

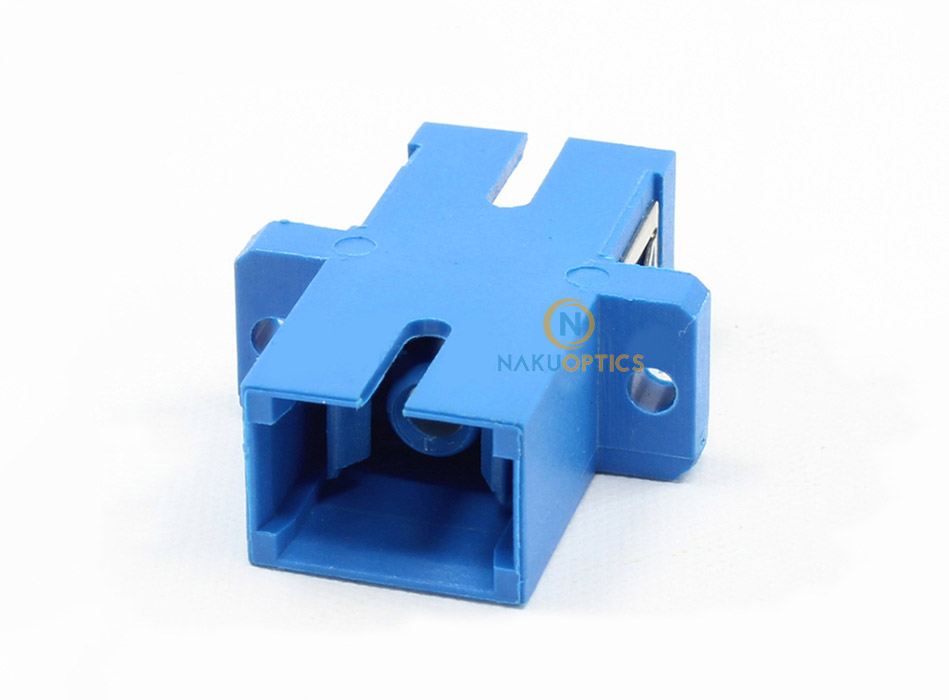

10pcs 15dBm SC Flange Type Optical Attenuator
The fixed fiber optic attenuator is made of standard high-precision dust blue. Used in various optical fiber transmission lines, the attenuation precision is high, and the performance is stable and reliable. The performance characteristics are independent of the wavelength change, and can realize the double function of adapter and attenuator. Attenuation accuracy, high additional loss, low optical distribution
Wire frame fiber optic network system, low speed fiber optic transmission system. Fixed fiber optic attenuators can be flanged or male-female by type, and can be divided into SC, ST, FC, LC, etc. by model.
[Features]
1. Good interchangeability and repeatability
2. Accurate attenuation
3. High reliability
4. Compliant with the IEC and RoHS standards
5. Conforming to Telcordia-GR-910-CORE
[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx
[Specification]
| Parameter | Typical Value | Unit |
| Flange Type Optical Attenuator | SC(Suitable for PC connector) | / |
| Testing Wavelength | 1310,1550 | nm |
| Operating Bandwidth Range | 1,250~1,650 | nm |
| Typical attenuation | 3,5,7,10,15,20 | dB |
| Attenuation Tolerance | ±10% | / |
| Repeatability | ≤0.10 | dB |
| Exchangeability | ≤0.20 | dB |
| Durability | 1,000 Mating, loss≤0.20 | dB |
| Operating Temperature | -2 0 to + 70 | ℃ |
| Storage Temperature | -40 to + 85 | ℃ |
[Package Include]
10pcs ST flange optical attenuator
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 4.04 kg |
|---|
