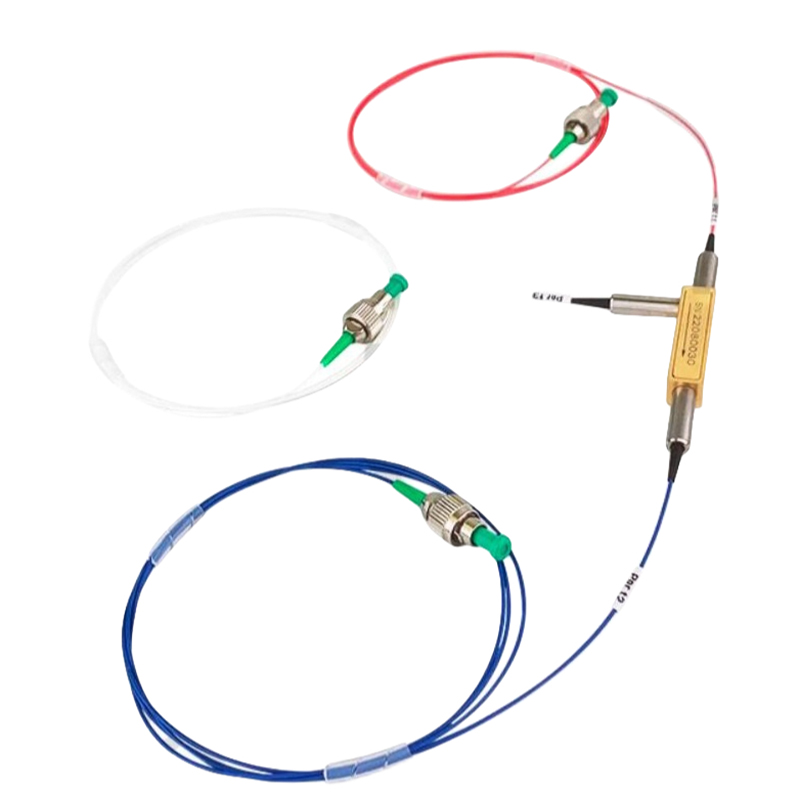

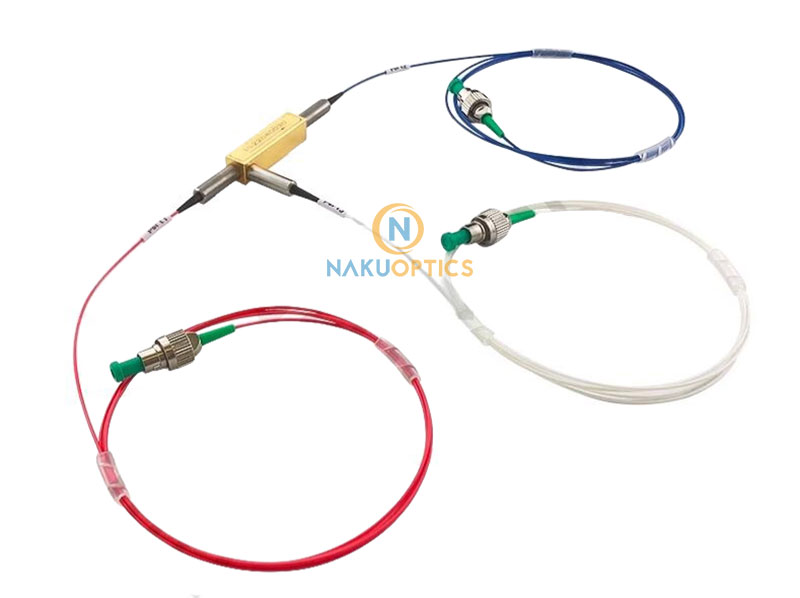

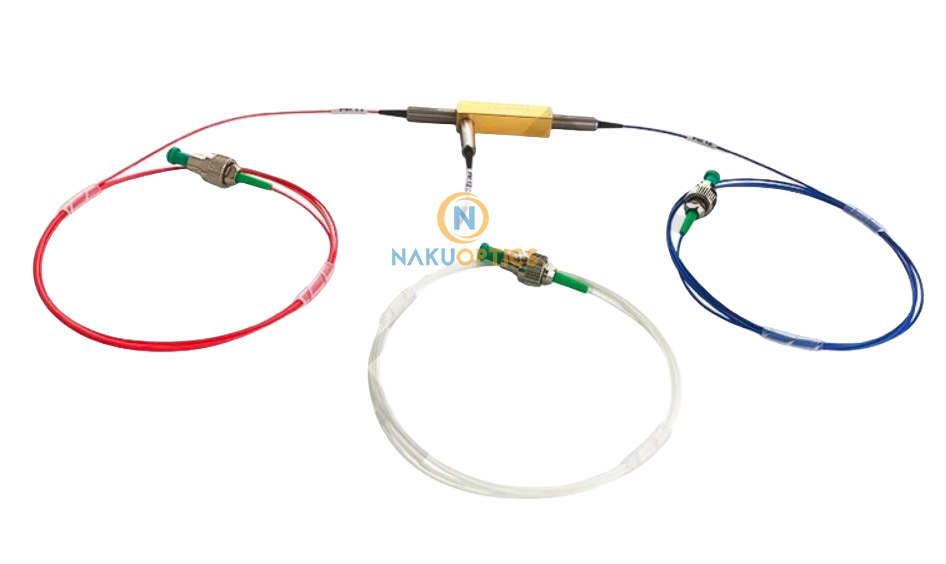

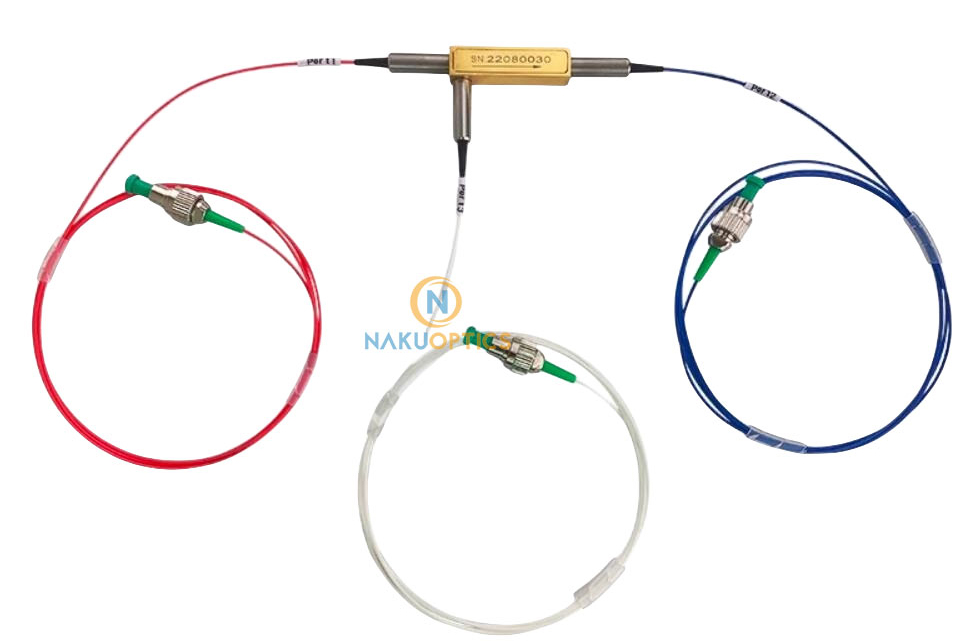

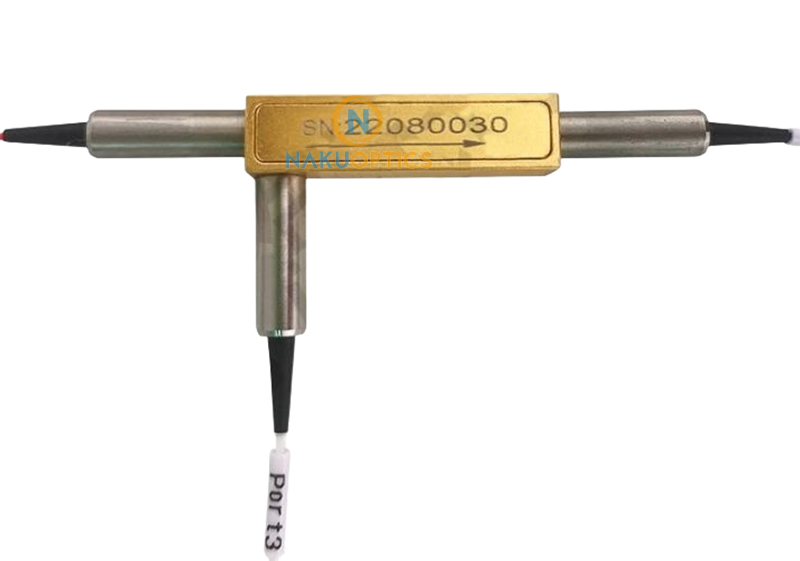

1064nm 3-Ports Fiber Optic Circulator With Hi1060 SM Fiber FC/APC Customizable

1064nm 3-Ports Fiber Optic Circulator With Hi1060 SM Fiber FC/APC Customizable

The 1064nm three-port fiber optic circulator is a multi-port non-reciprocal optical device, and light can only propagate in one direction. If the signal is input from port 1, it will be output from port 2; if the signal is input from port 2, it will be output from port 3, and its output loss is very small; when the light is input from port 2, the loss when output from port 1 is very large. Similarly, when light is input from port 3, the loss when output from ports 1 and 2 is also very large.
NakuOptics can produce three-port, four-port fiber circulators with different powers and different wavelengths. The products are widely used in fiber lasers, add-drop multiplexers, bidirectional pump systems, dispersion compensation devices, fiber sensing, scientific research and other fields.

[Features]
Low insertion loss
High isolation
Low PDL

[Specifications]

*The temperature measurement environment is 25℃;
*The above data does not include connectors. If connectors are added, the insertion loss will increase by 0.3dB and the return loss will decrease by 5dB.
