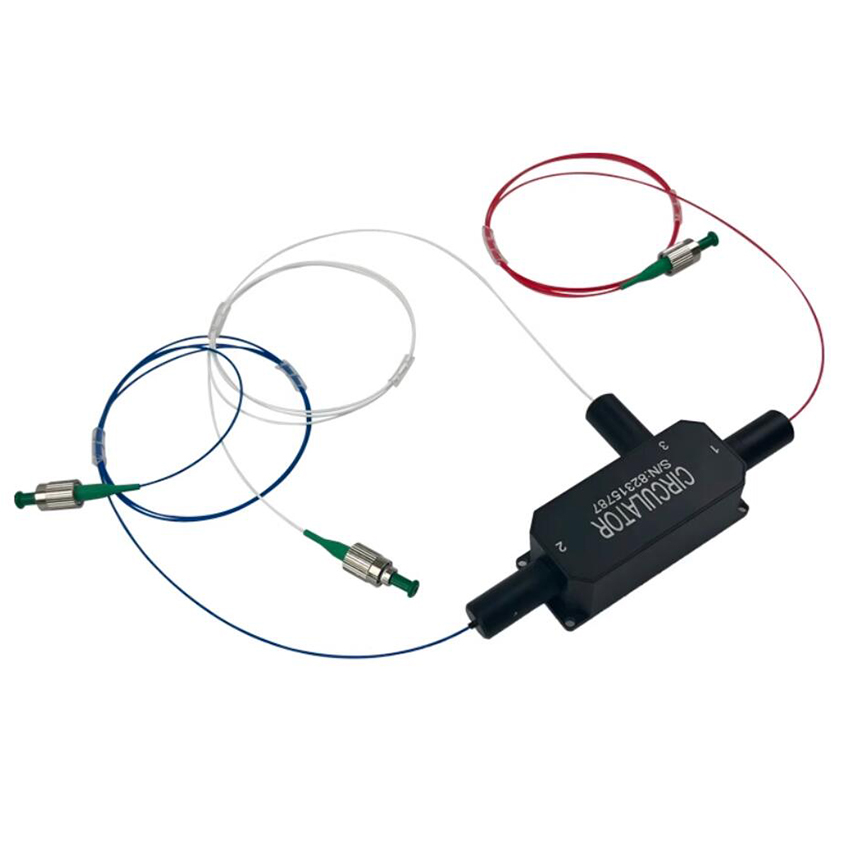

850nm Three-Ports SM/MM Fiber Optic Circulator For Experimental Research

Product ID: 1469


$1,778.00

850nm Three-Ports SM/MM Fiber Optic Circulator For Experimental Research

[Features]
Low insertion loss
High isolation
High stability and repeatability

[Applications]
Fiber optic sensing
Optical Fiber Communication
Laboratory research

[Specifications]

Paramter Unit Value
Central Wavelength nm 850
Operating Wavelength Range nm ±10

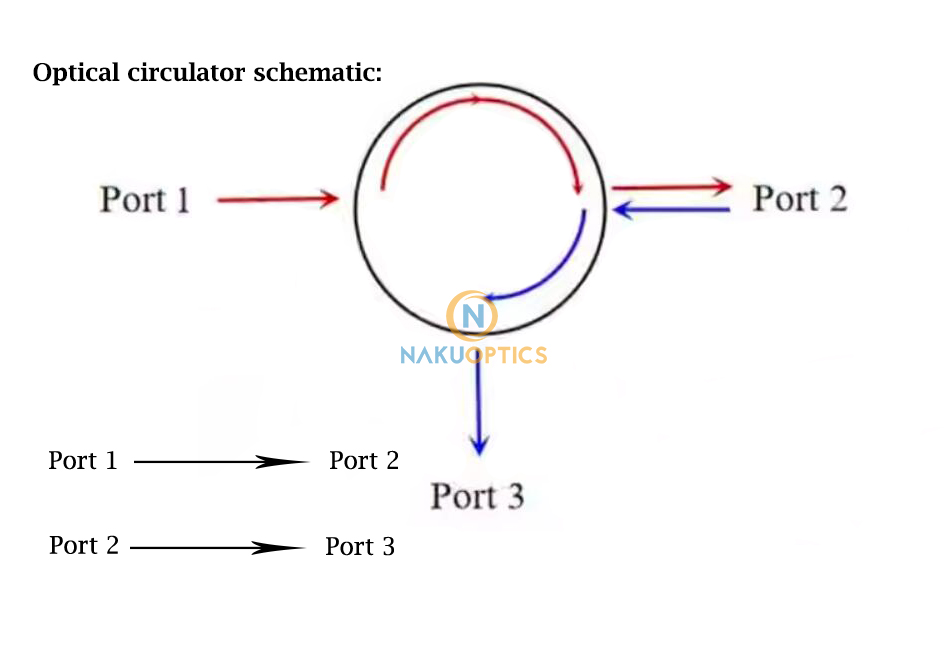

Ports and Working Methods 3 ports, (Port 1 to Port 2 to Port 3)
Typical Insertion Loss dB 1.2
Max. Insertion Loss dB 1.8
Typical Peak Isolation @23℃ dB 25
Min Isolation @23℃ dB 20
Max. Polarization Dependent Loss dB 0.2
Min Cross Talk dB 45
Min Directionality dB 50
Min. Return Loss dB 50
Power Handling mW 300 (higher power is available upon request.)
Max Tension Load N 5
Fiber Type Hi780 fiber (Customizable)
Operating Temperature -5 ~ +50
Storage Temperature -20 ~ +85

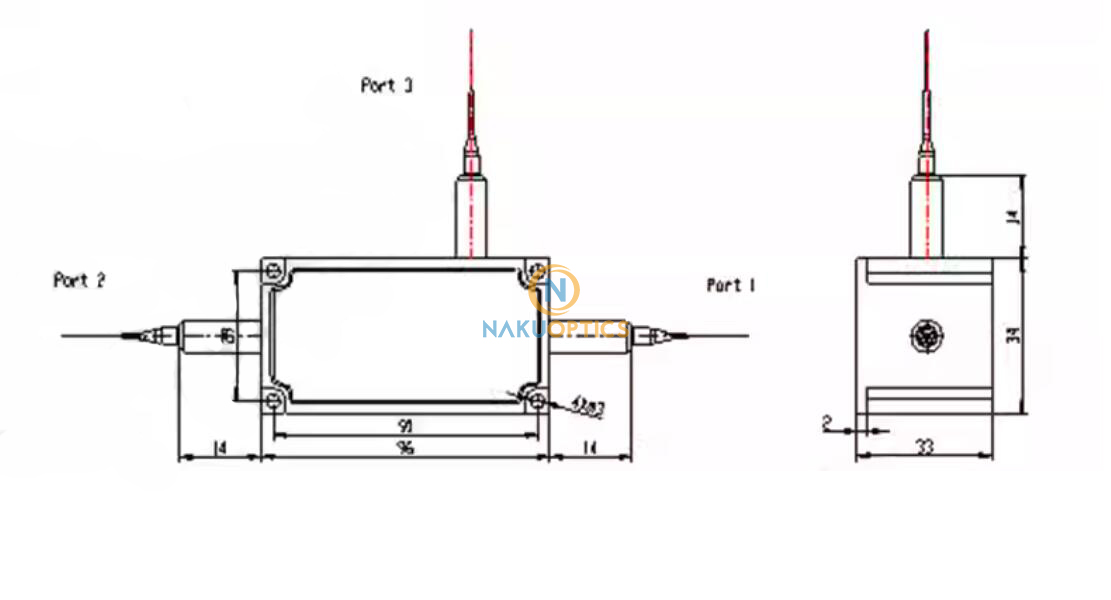

Package Dimension mm L96 X W34 X H33

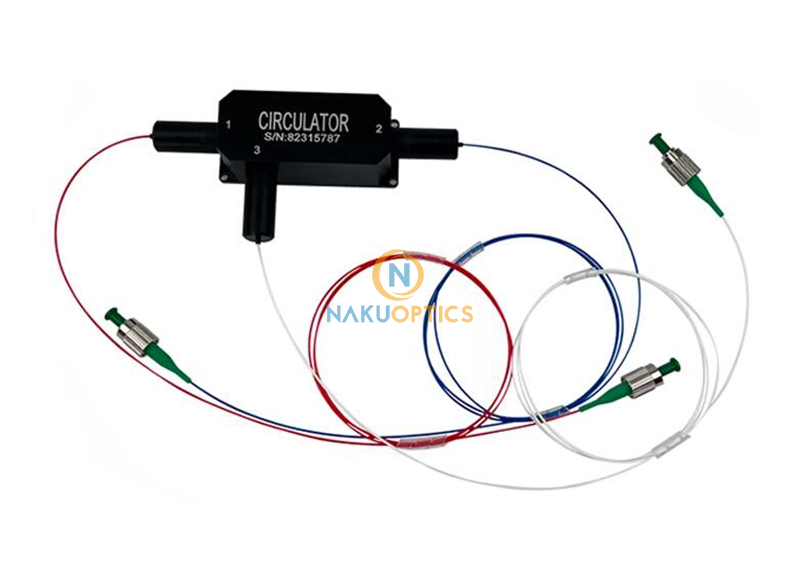

850nm fiber circulator

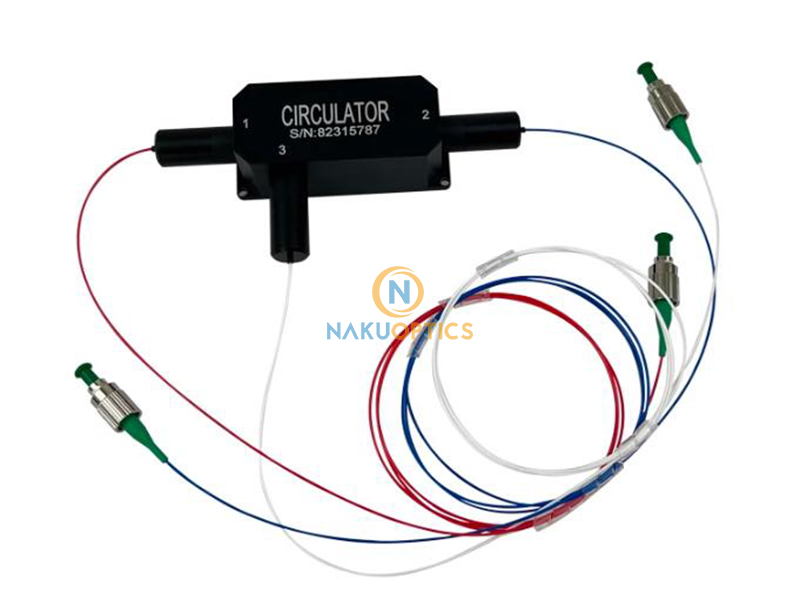

850nm fiber circulator

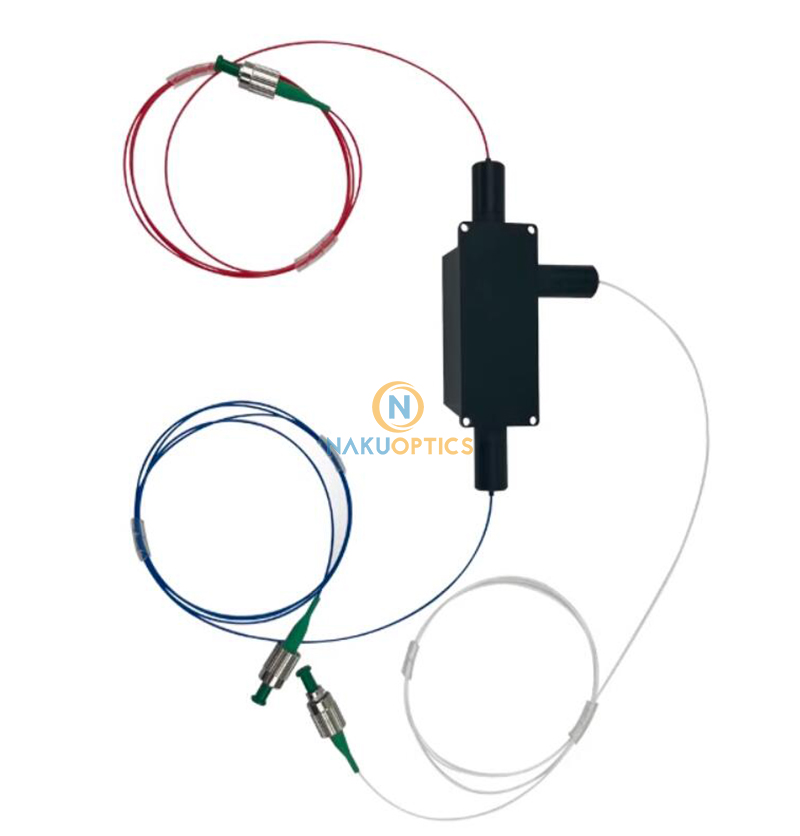

850nm fiber circulator

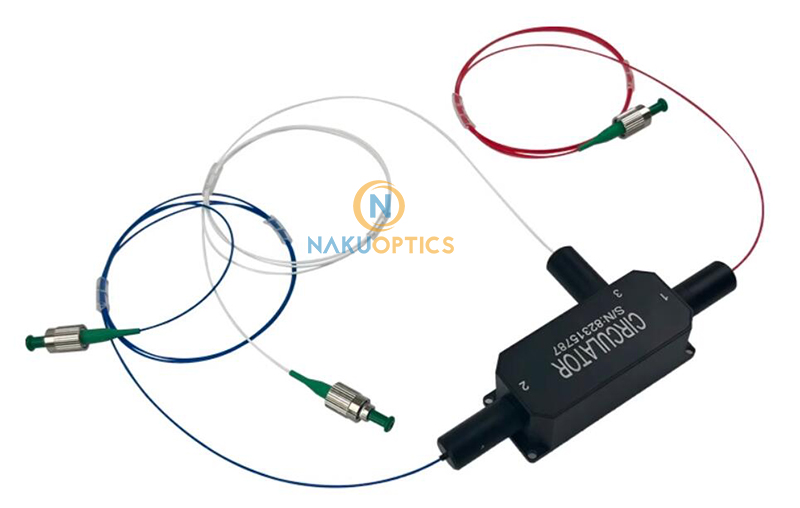

850nm fiber circulator

850nm fiber circulator

850nm fiber circulator

850nm fiber circulator

850nm fiber circulator

850nm fiber circulator

SKU: P1469 Category: Tag:
Weight 4.53 kg
