1310nm 1550nm 2X2 4Port SM Fiber Optic Circulator High Isolation Circulator
Product ID: 1445
$233.00
1310nm 1550nm 2X2 4Port SM Fiber Optic Circulator High Isolation Circulator
The 1550nm 4-port fiber optic circulator is a multi-port non-reciprocal optical device, and light can only propagate in one direction. If the signal is input from port 1, it will be output from port 2; if the signal is input from port 2, it will be output from port 3, and its output loss is very small; when the light is input from port 2, the loss when output from port 1 is very large. Similarly, when light is input from port 3, the loss when output from ports 1 and 2 is also very large. It can produce three-port, four-port fiber optic circulators with different powers and different wavelengths. The products are widely used in fiber lasers, add-drop multiplexers, bidirectional pump systems, dispersion compensation devices, fiber optic sensing, scientific research and other fields.
[Features]
Low insertion loss
Good interchangeability
High stability
Good isolation effect
[Applications]
Fiber laser
Fiber amplifier
DWDM system
Fiber sensing
Optical communication field
[Specifications]
| Paramter | Unit | P Grade | A Grade |
| Directionality | Port 1 to Port 2 to Port 3 to Port 4 | ||
| Central Wavelength | nm | 1310, 1550 | |
| Operating Bandwidthe | nm | ±20 | ±20 |
| Typical Peak Isolation | dB | >50 | >50 |
| Min Isolation @23℃, Full Wavelength | dB | >38 | >38 |
| Typical Insertion Loss @23℃ | dB | 0.7 | 0.9 |
| Max. Insertion Loss | dB | 0.9 | 1.1 |
| Min Cross Talk | dB | 50 | 50 |
| Return Loss | dB | 50 | 50 |
| Polarization Mode Dispersion | ps | 0.1 | 0.1 |
| Polarization Dependent Loss | dB | 0.2 | |
| Power Handling | mW | 500 (Customizable) | |
| Connector Type | FC/APC (Customizable) | ||
| Fiber Type | SMF-28e (Customizable) | ||
| Fiber Length | m | 1 (Customizable) | |
| Max Tension Load | N | 5 | |

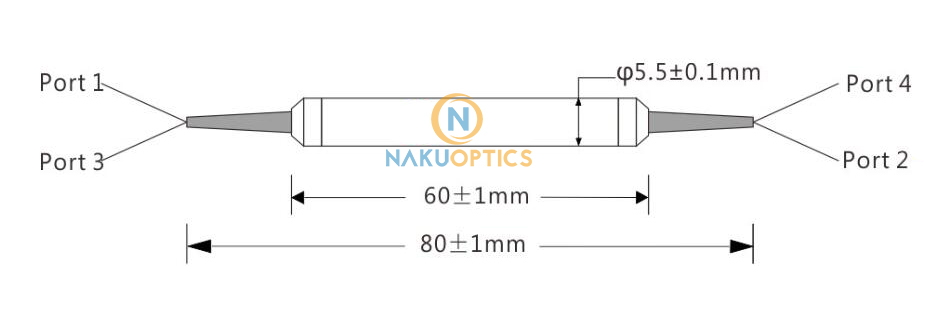

| Package Dimension | mm | Φ5.5XL60 | |
| Operating Temperature | ℃ | 0 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |

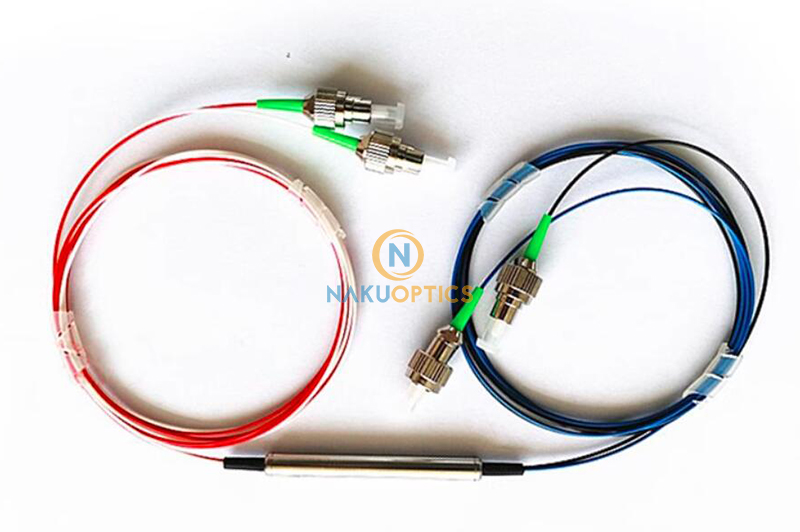

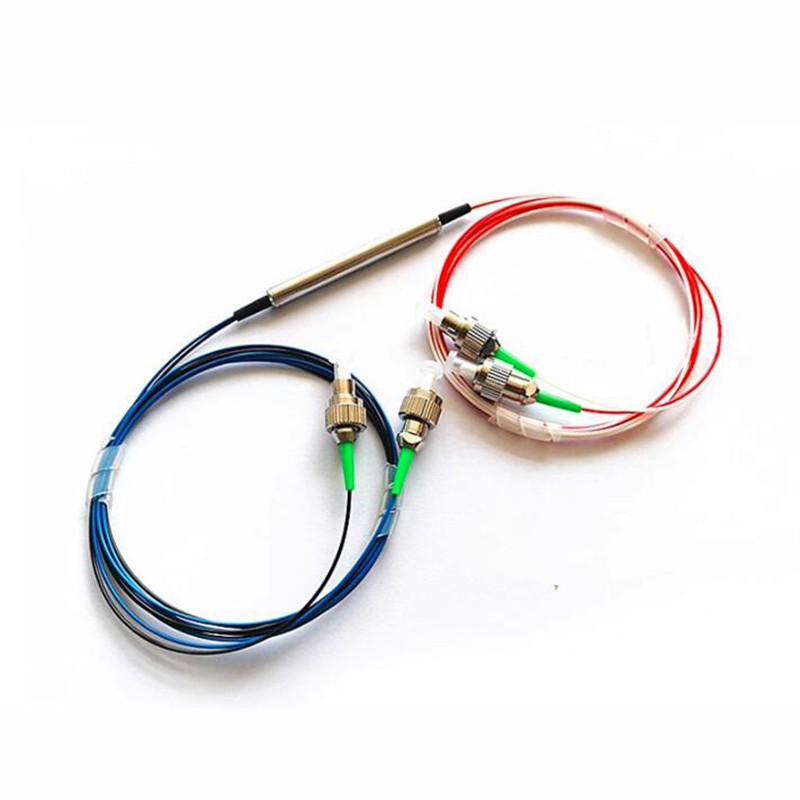

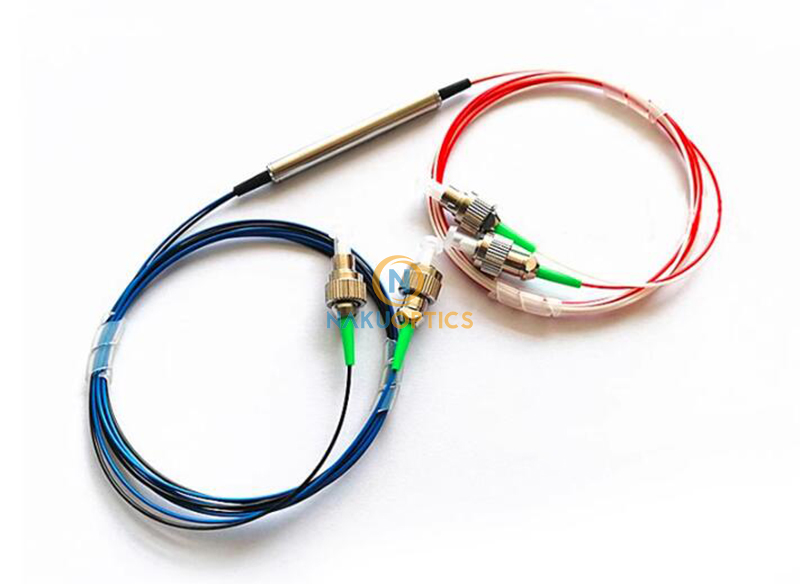

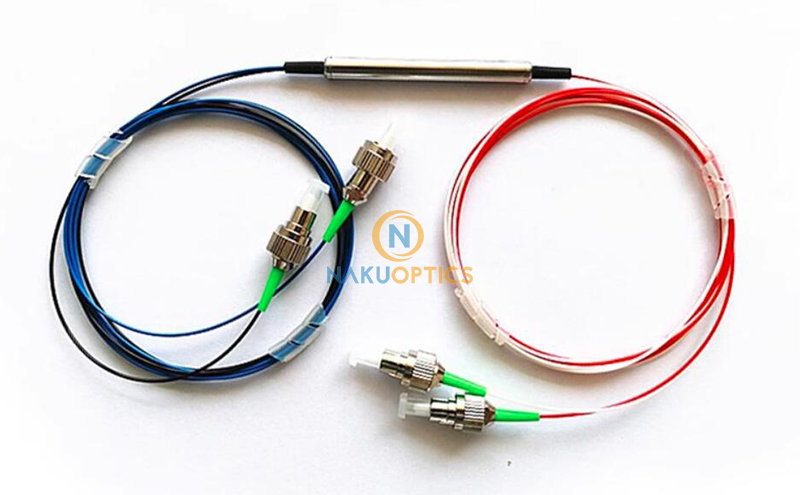

.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 3.22 kg |
|---|---|
| Wavelength | 1310nm, 1550nm |
