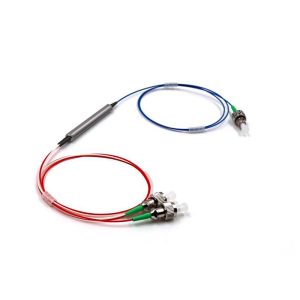

980nm 3-Ports SM Fiber Optic Circulator Low Insertion Loss Circulator

Product ID: 1464


$1,156.00

980nm 3-Ports SM Fiber Optic Circulator Low Insertion Loss Circulator

[Features]
Low insertion loss
High return loss
High isolation
High stability and repeatability

[Specifications]

Paramter Unit Value
Central Wavelength nm 980
Operating Wavelength Range nm ±10
Typical Peak Isolation dB 25
Min Isolation dB 22
Typical Insertion Loss dB 1.0
Max. Insertion Loss dB 1.5
Polarization Dependent Loss dB ≤0.15
Power Handling mW 300 (Customizable)
Peak Power kW <10@ns pulse
Min. Return Loss dB 45
Fiber Type Hi1060 (Customizable)

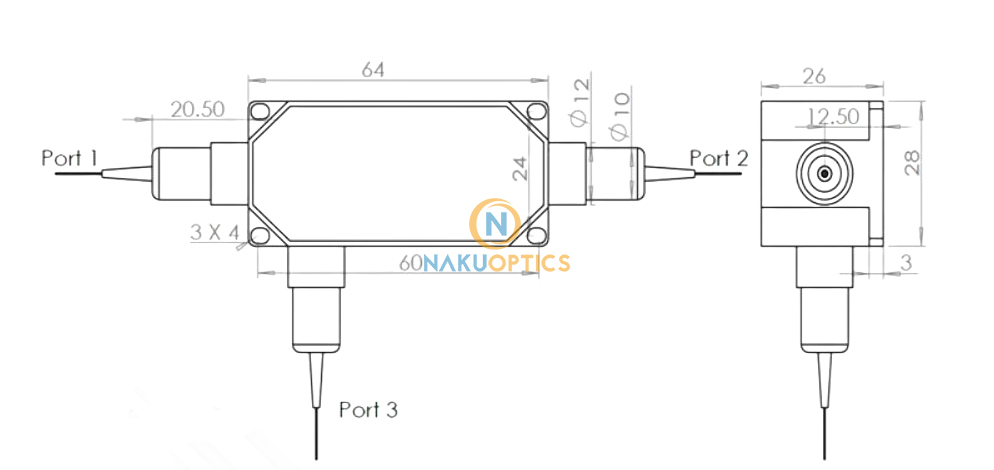

Package Dimension mm 64*28*26
Operating Temperature 0 ~ +60
Storage Temperature -10 ~ +75

*The temperature measurement environment is 25℃;
*The above data does not include connectors. If connectors are added, the insertion loss will increase by 0.3dB and the return loss will decrease by 5dB.

Ordering Information

Working Wavelength Power Power Type Fiber Type Pigtail Length Tail Sleeve Type Connector Type
980=980nm 00=300mW
01=1W
05=5W
10=10W
P=Pulse
C=CW
H1=Hi1060 08=0.8m
10=1.0m
15=1.5m
S=Specify
B=250um bare fiber
L=900um loose tube
S=Specify
N=None
FP=FC/PC
FA=FC/APC
FU=FC/UPC
S=Specify

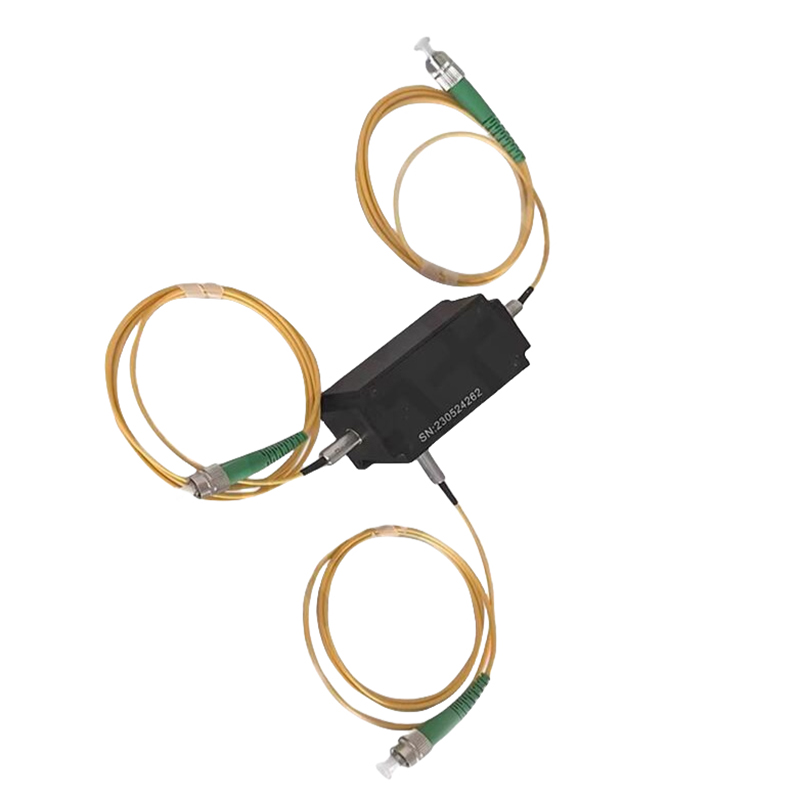

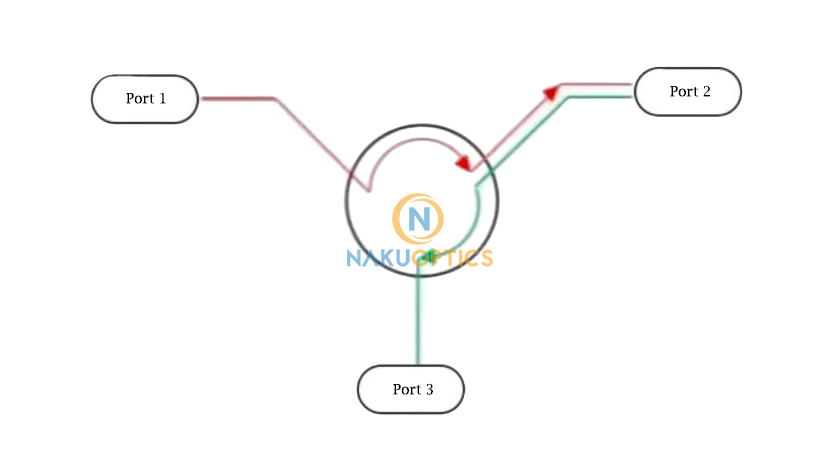

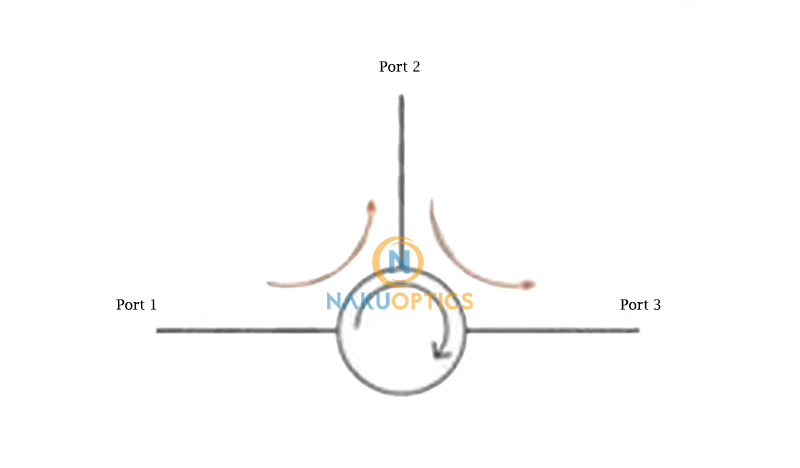

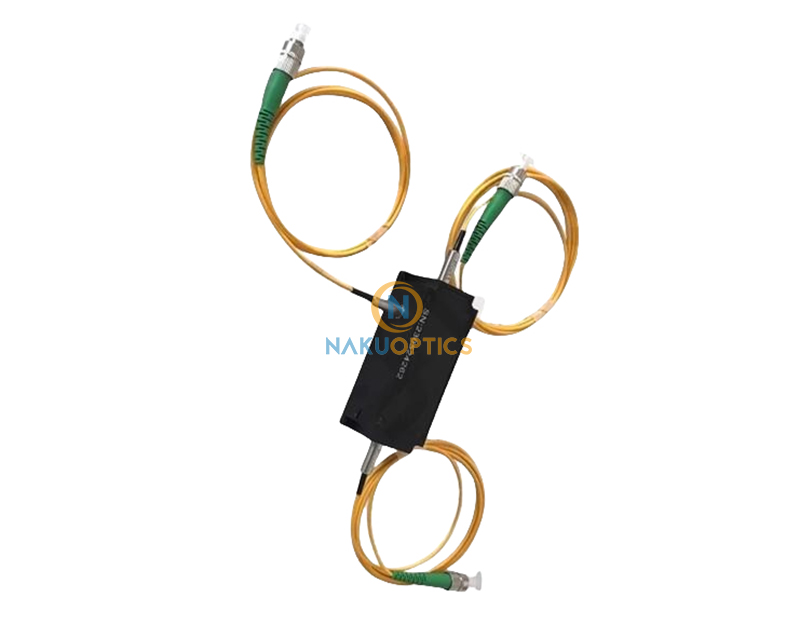

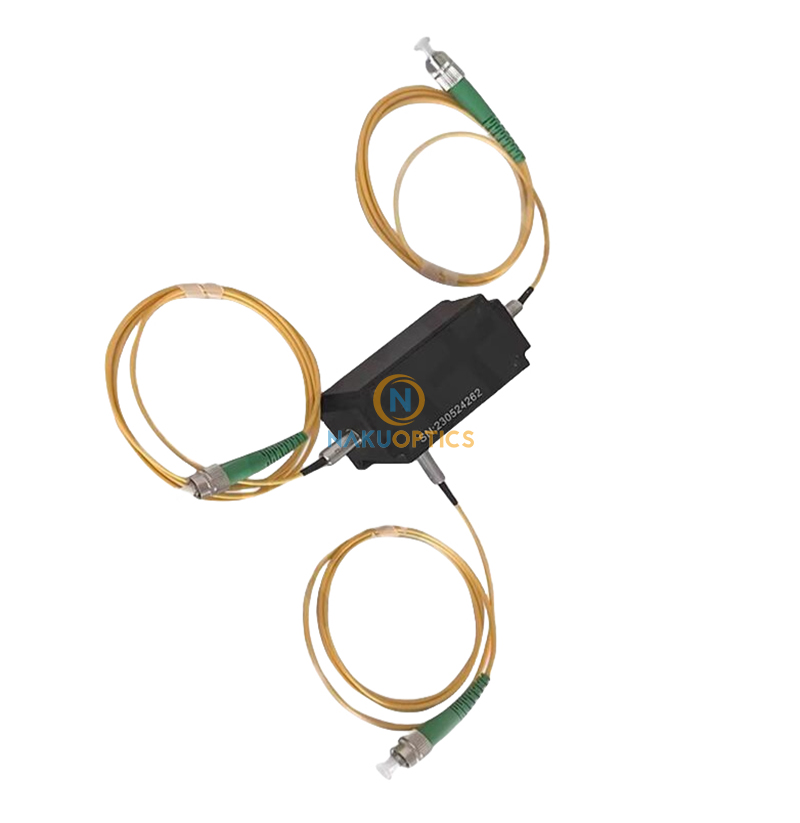

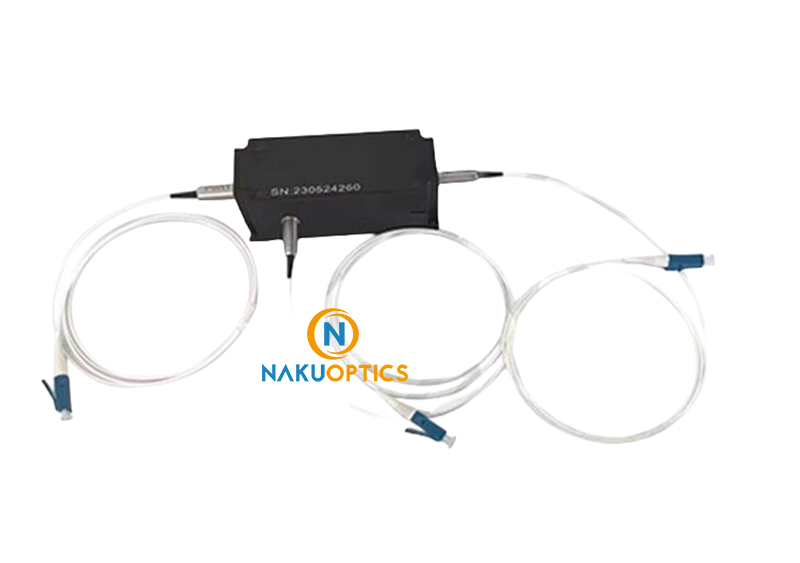

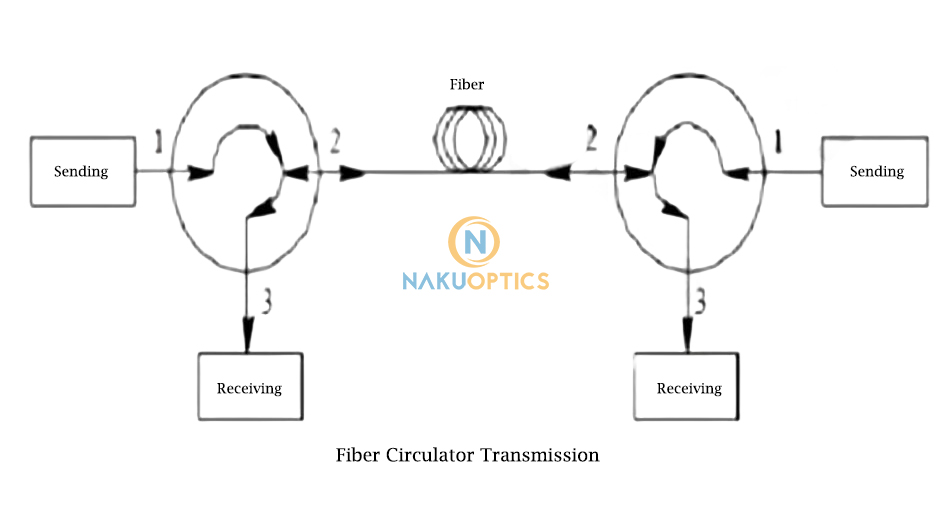

980nm fiber circulator




980nm fiber circulator


980nm fiber circulator


980nm fiber circulator

980nm fiber circulator

980nm fiber circulator

980nm fiber circulator
