Fiber Circulator

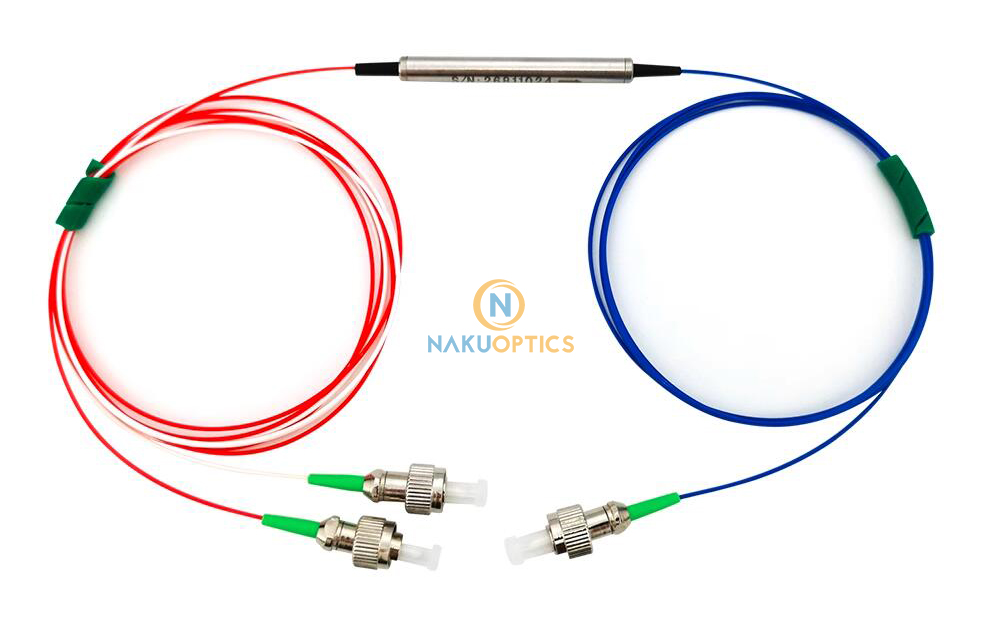

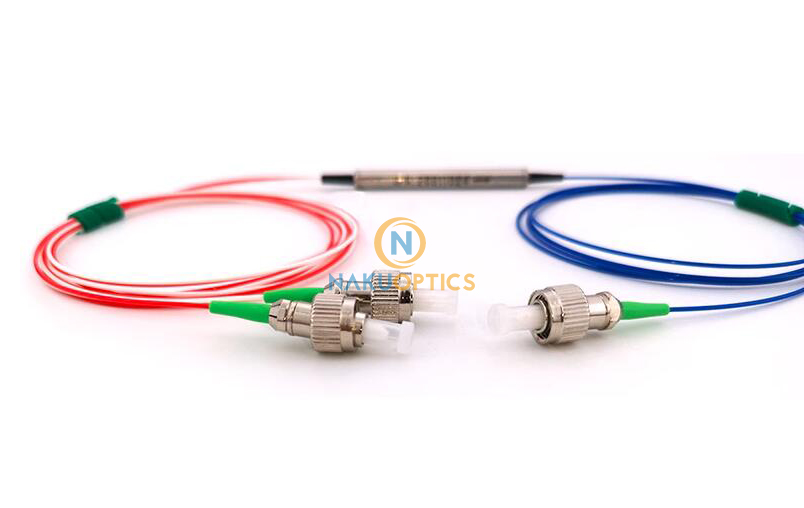

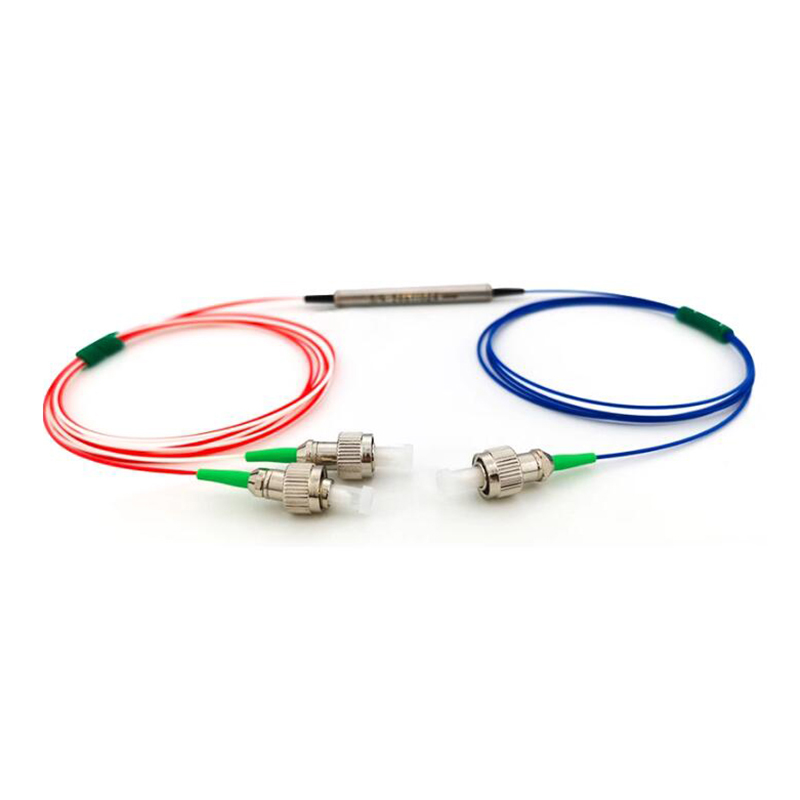

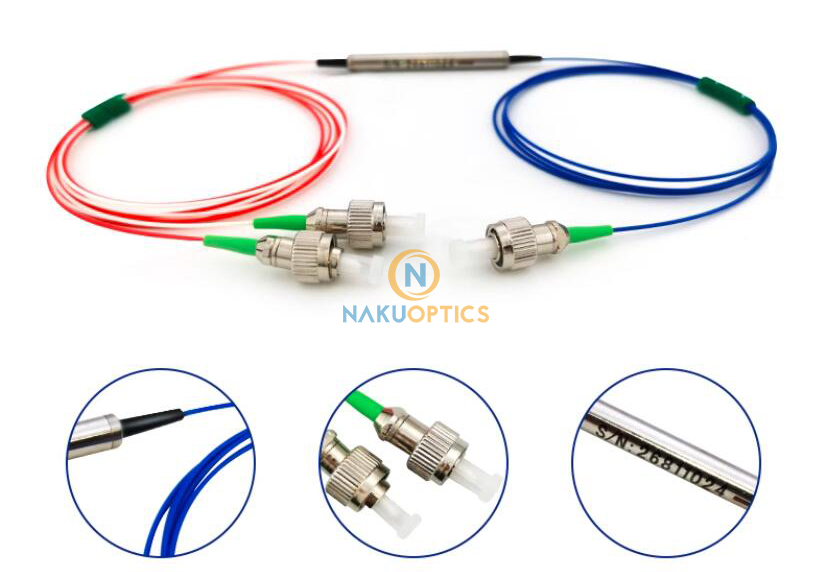

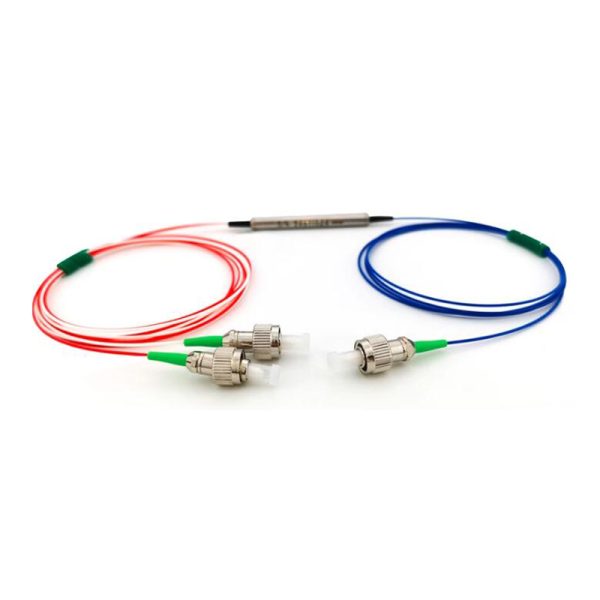

1310nm 1550nm 1X2 SM Fiber Circulator 3ports Polarization Insensitive Optical Circulator
Product ID: 1431
$96.00
1310nm 1550nm 1X2 SM Fiber Circulator 3ports Polarization Insensitive Optical Circulator
Polarization insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application.
[Features]
Low insertion loss
Broad band high isolation
Low PDL
High stability
[Specifications]
| Paramter | Unit | P Grade | A Grade |

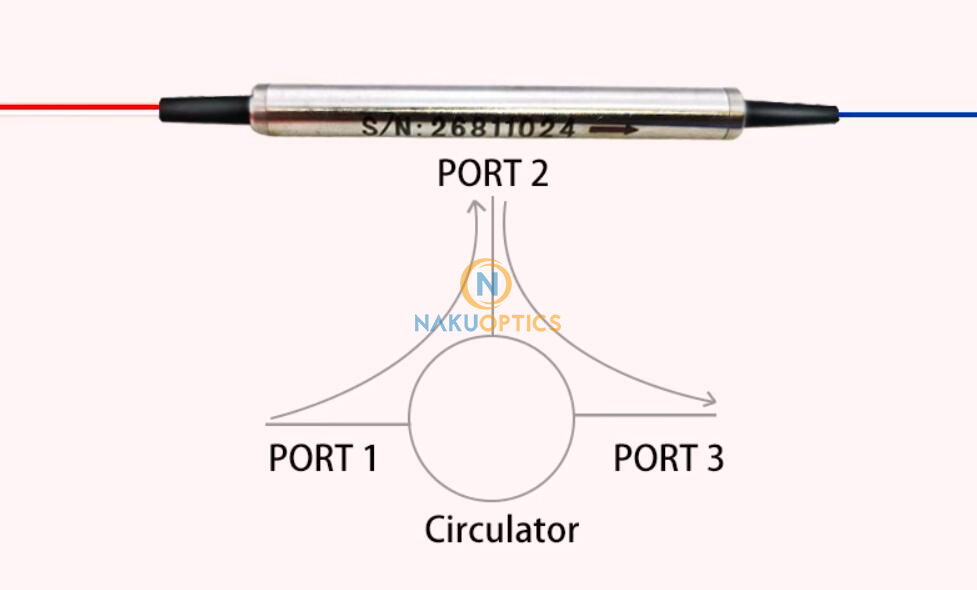

| Configuration | Port 1 to Port 2 to Port 3 | ||
| Operation Wavelength | nm | 1310, 1550 | |
| Typical Insertion Loss | dB | 0.6 | 0.8 |
| Max. Insertion Loss | dB | 0.8 | 1.0 |
| Channel Peak Isolation | dB | 50 | |
| Channel Min. Isolation | dB | 40 | |
| Channel Cross Talk | dB | >50 | |
| Polarization Dependent Loss | dB | <0.10 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Retrun Loss | dB | >50 | |
| Max. Power Handling | mW | 300 | |
| Operating Temperature | ℃ | 0 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |

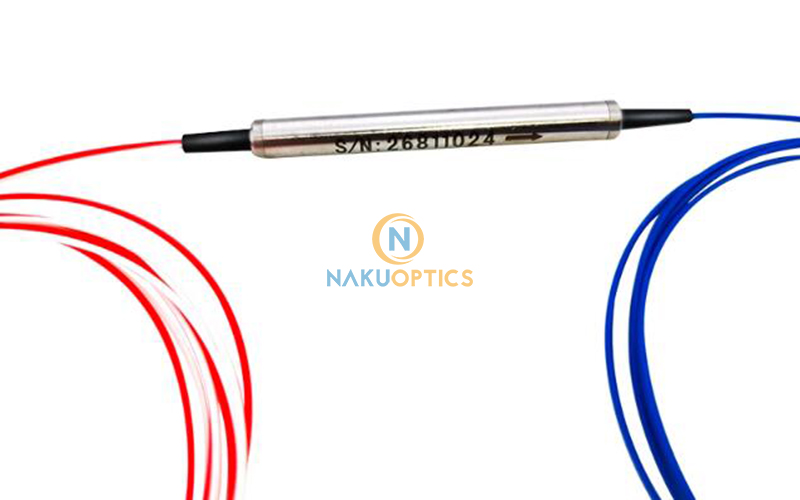

| Package Dimension | mm | OD5.5 X L60 or L63 | |
Ordering Information
| Working Wavelength | Grade | Fiber Type | Pigtail Length | Connector Type |
| 1310=1310nm 155=1550nm |
P=P Grade A=A Grade |
1=250um bare fiber 2=900um loose tube |
1=1 meter S=Specify |
N=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 1.65 kg |
|---|---|
| Wavelength | 1310nm, 1550nm |
