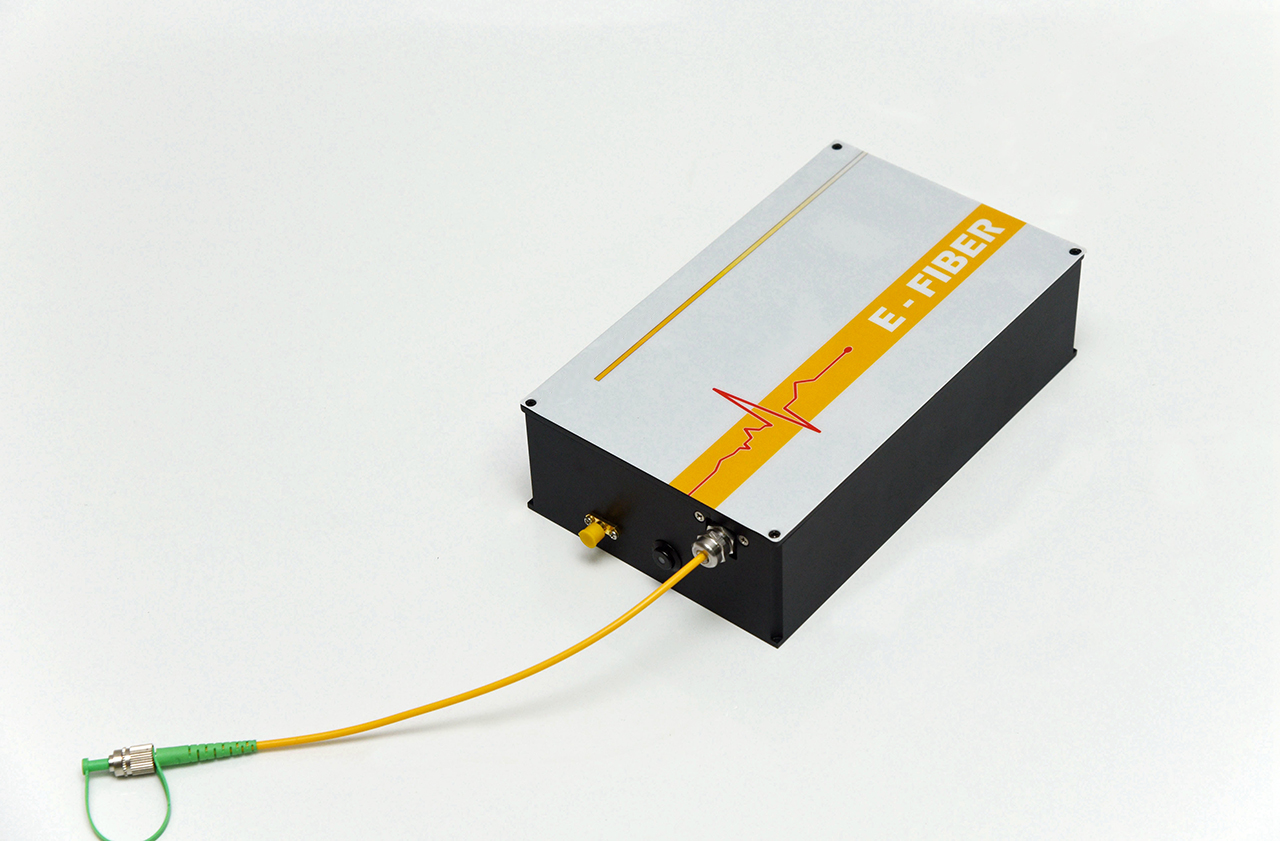

Name: 1560nm 100mW 1.5μm Femtosecond Pulse PM Fiber Laser Module
SKU: P462
Price: 22359.00 USD
Availability: InStock

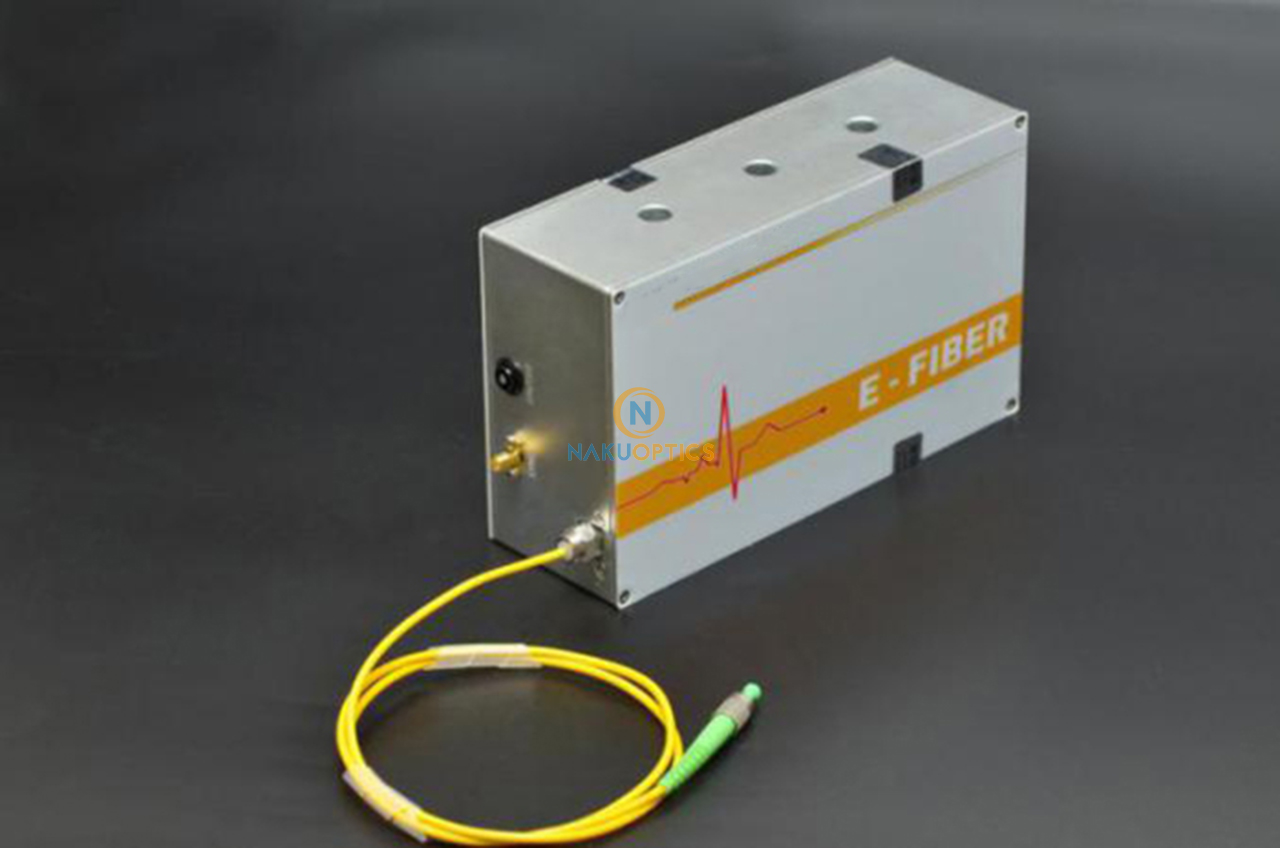

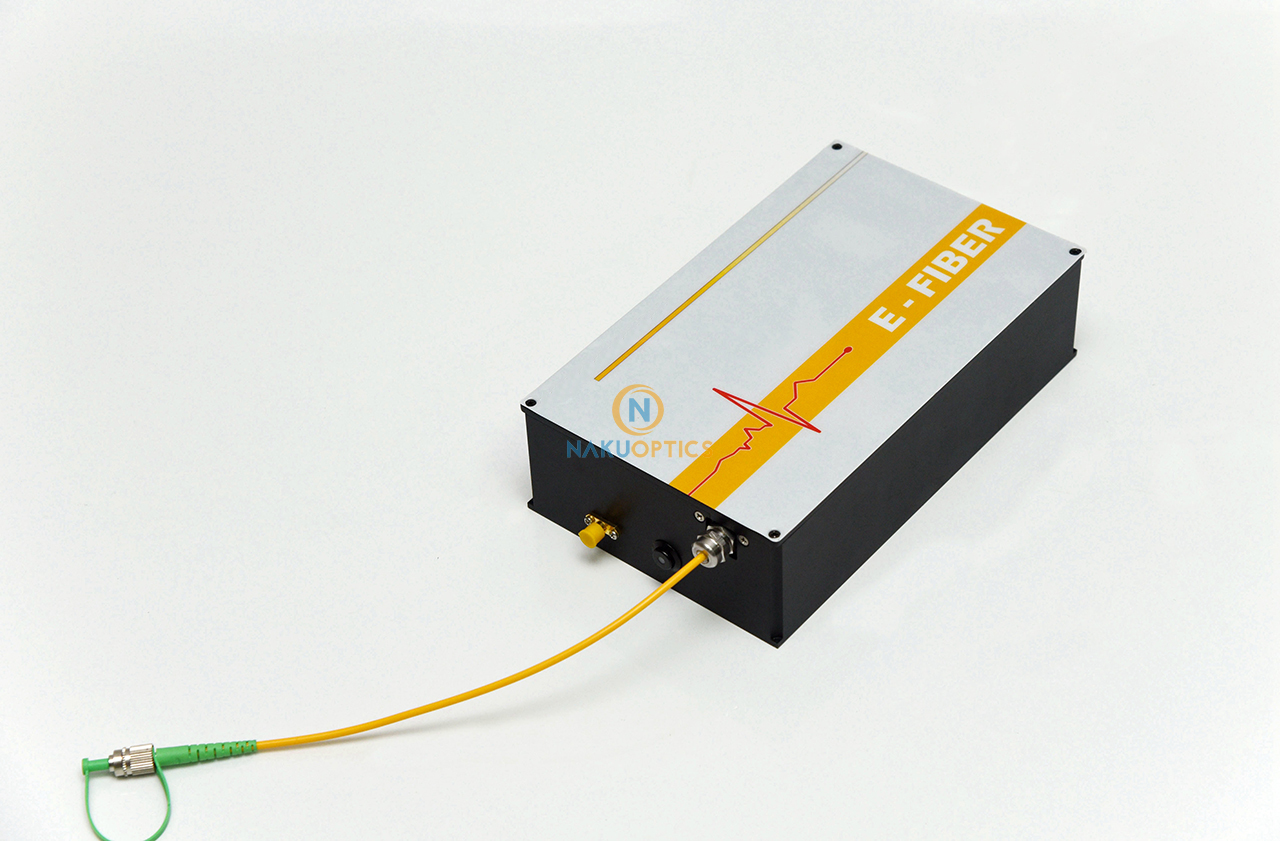

1560nm 1.5μm Femtosecond Pulse Polarization Maintaining Fiber Laser Module

The ultra-fast laser integrates the latest femtosecond laser technology, using high-performance rare earth fiber as the working medium, combined with high-precision dispersion compensation technology and active servo control system to achieve stable output of 1.5um band femtosecond pulse laser. It has a wide range of applications, such as optical frequency comb, super continuum spectrum, terahertz THz, etc., with its self-starting and long-term stable operation. It has the characteristics of extremely narrow laser pulse and high pulse peak optical power.
Parameters such as pulse width, power, and repetition rate can be customized.

[Features]
Pulse width minimum 50 fs
Wavelength 1560 nm
Full polarization structure
High stability

[Application]
Optical frequency comb
Supercontinuum generation
Seed laser
Ultrafast laser phenomenon

[Specifications]

Parameter	Unit	Default Value	Remarks
Wavelength	nm	1560±10

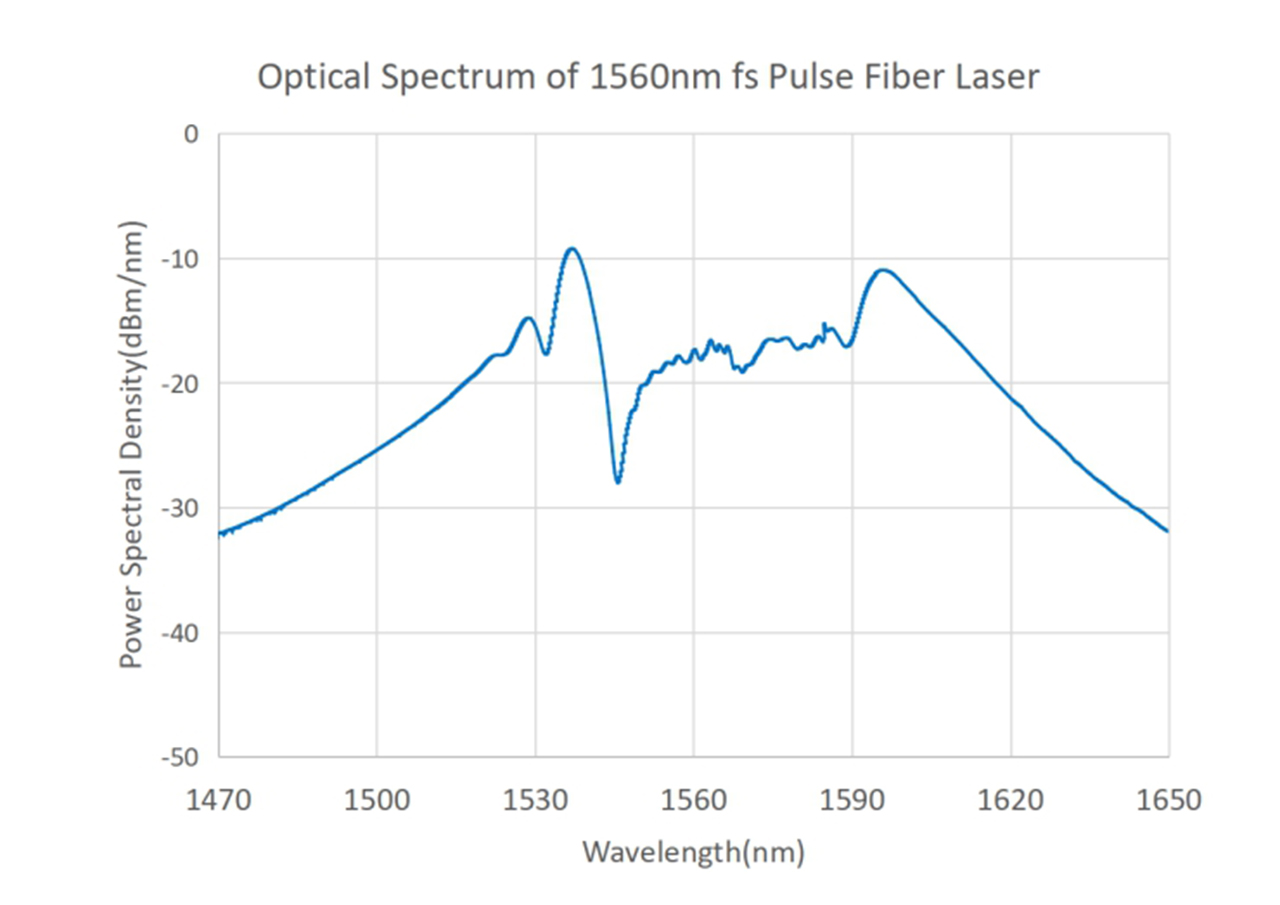

Band Width	nm	Near 20nm@3dB	20/60 customizable

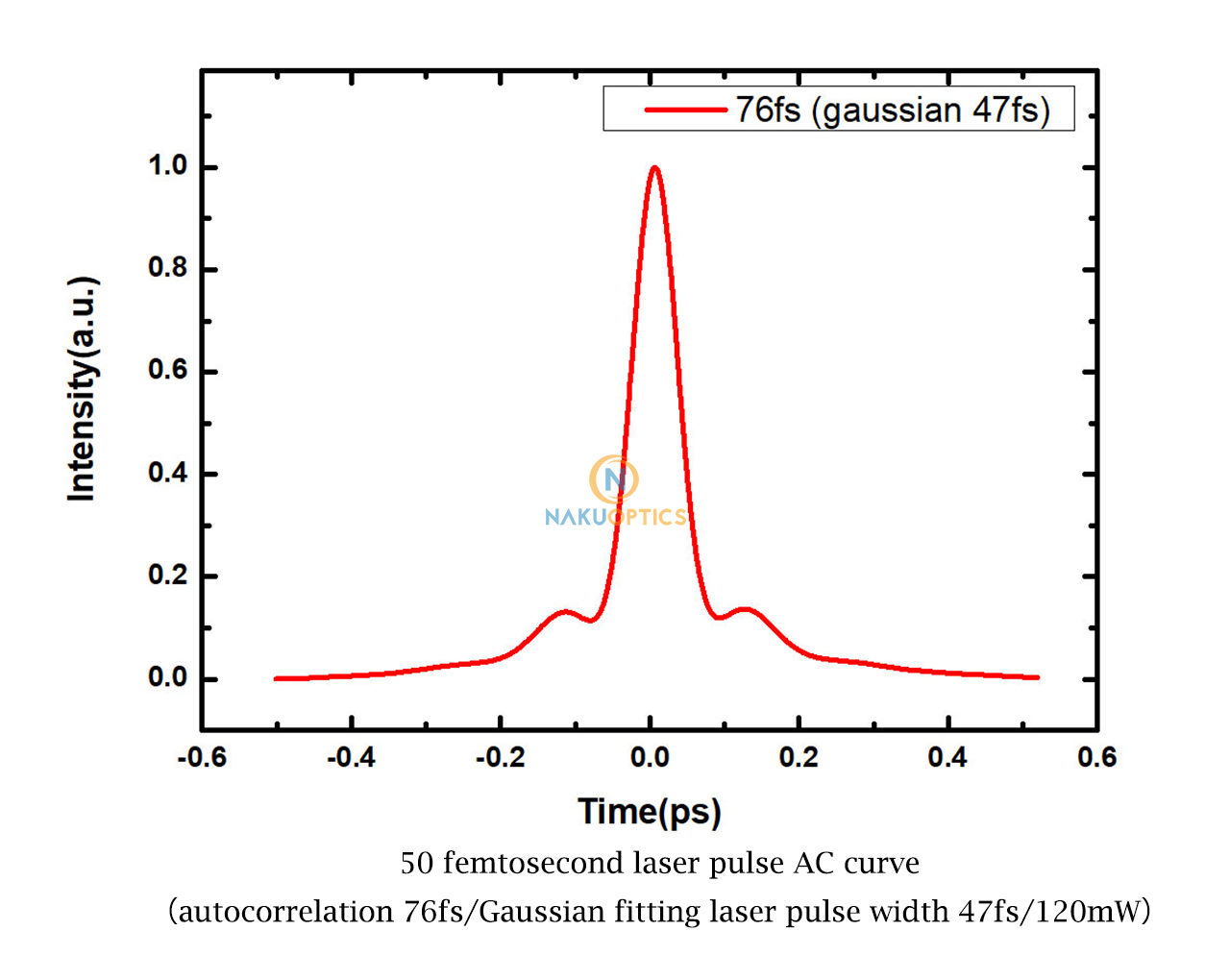

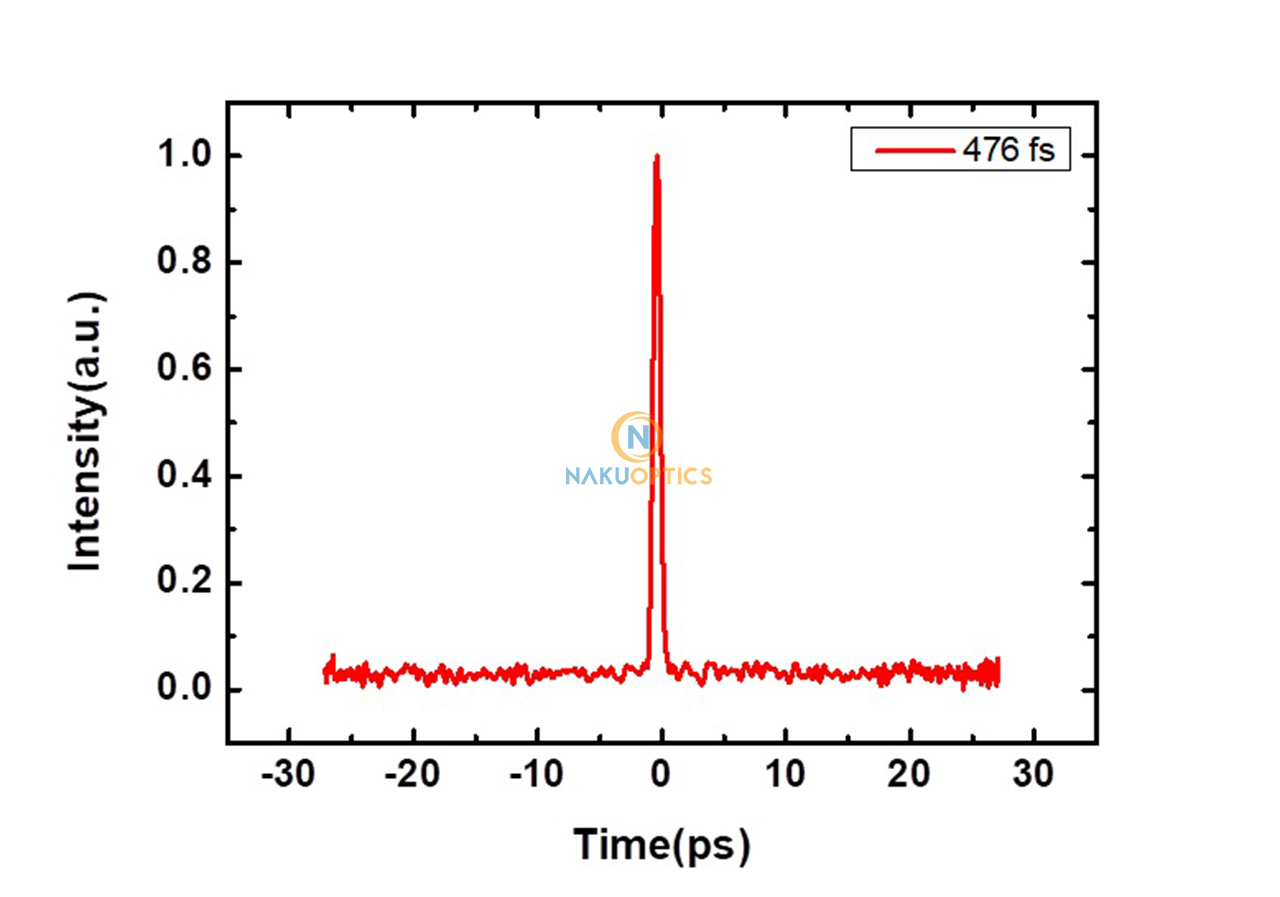

Pulse Width	fs	50	50/100/200 / 500fs customizable
Average Power	mW	100	1~120mW customizable

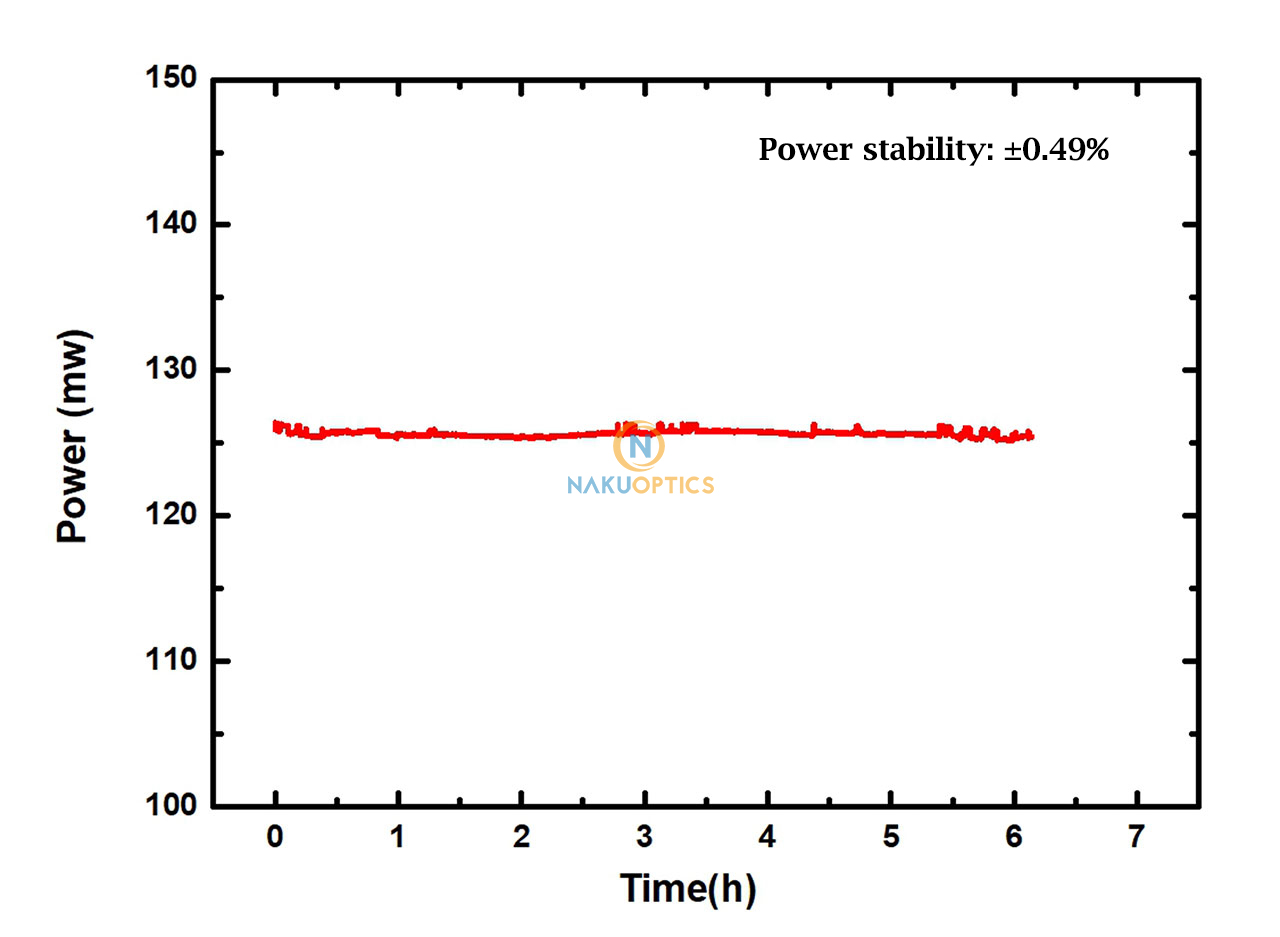

Power Instability		< 1%

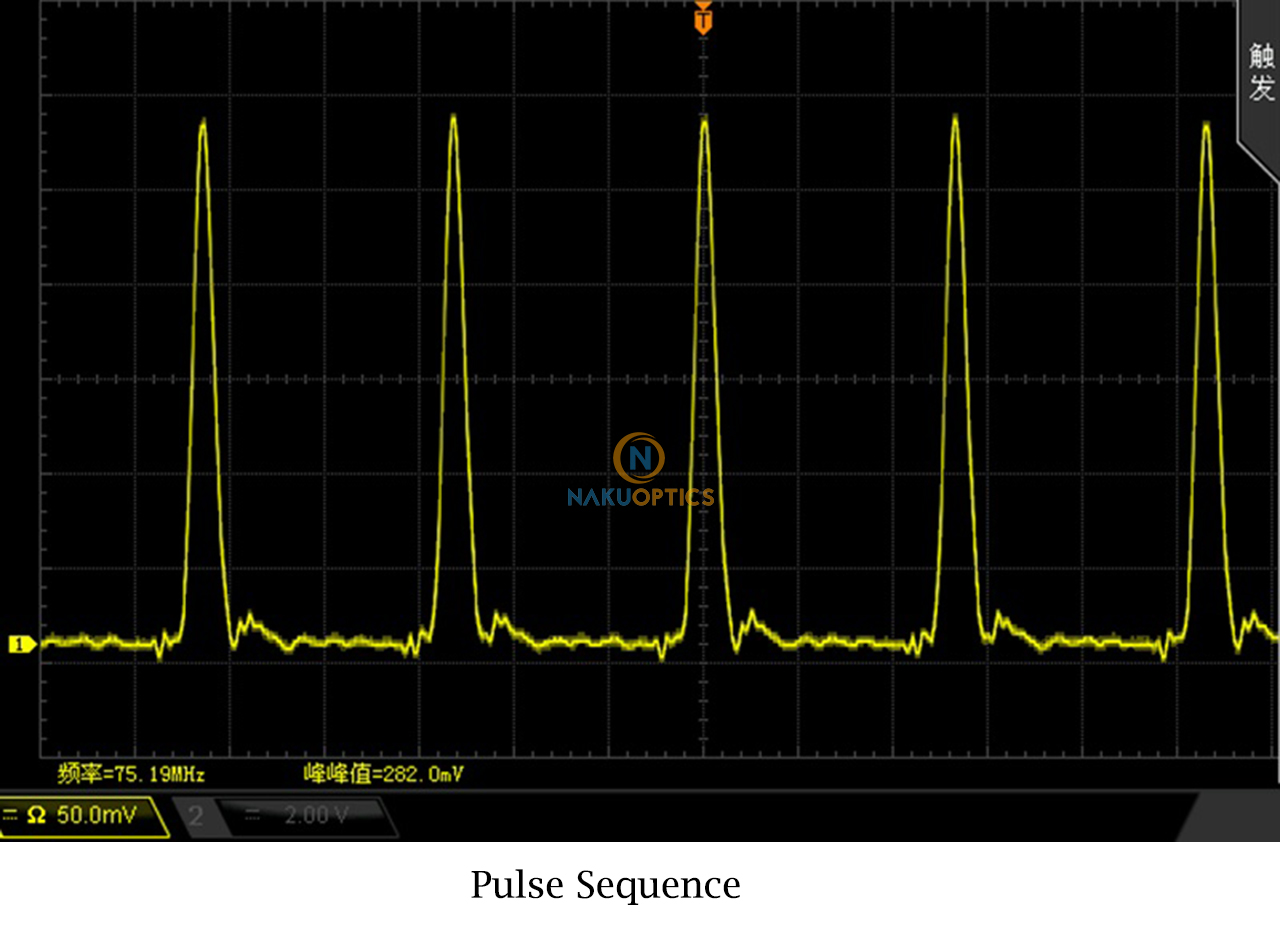

Repeat Frequency	MHz	80	Customizable
Repetition Frequency Instability	Hz	<100
Single Pulse Energy	nJ	>1
Laser polarization state		Linear polarization
Output Coupling Fiber Type		PM1550 polarization-maintaining fiber output
Fiber Interface		FC/APC, Slow axis aligns to the slot
Fiber Length	m	1.5	0.5m/1m/2m Customizable
Preheat Time	min	<1

Electrical and environmental parameters：

Parameter	Module Type
Control Mode	Button
Synchronous Electrical Signal Interface	SMA
Power Supply	5V DC, <20W

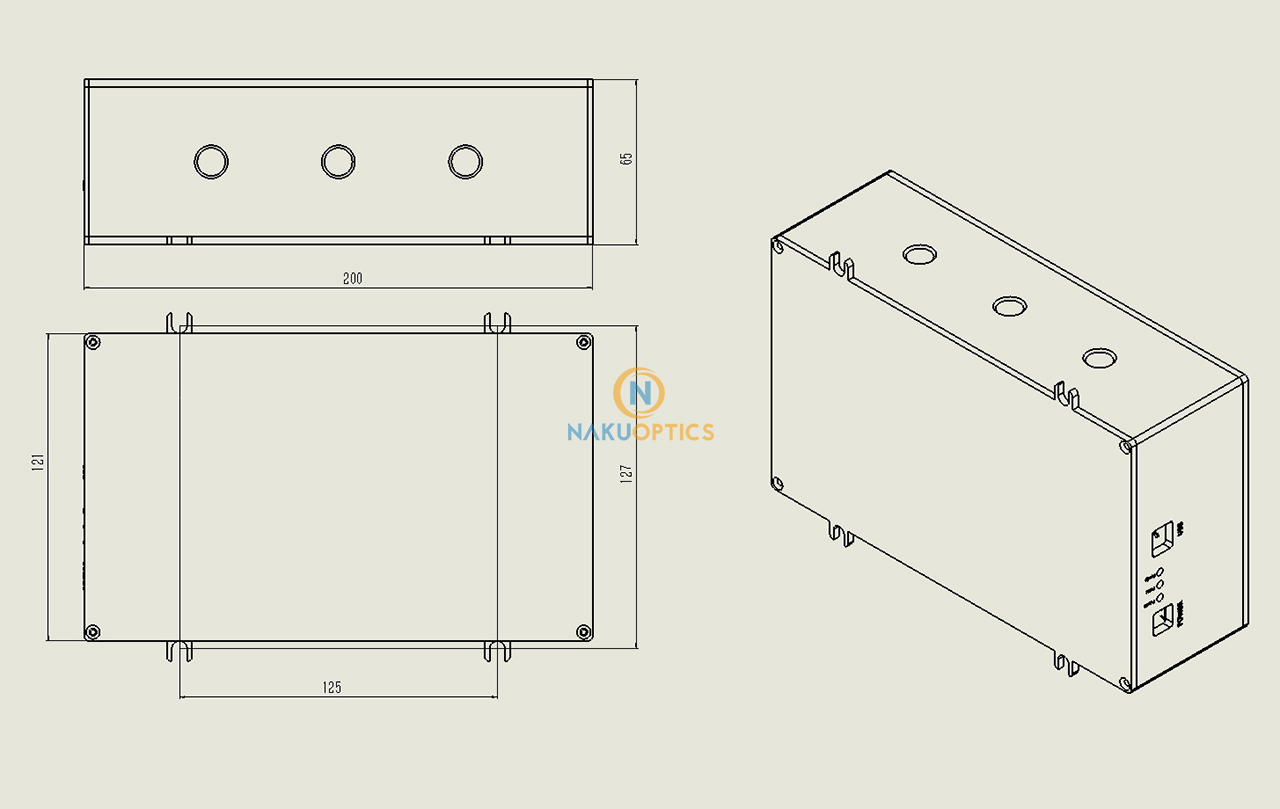

Size	200(W)×121(D)×55(H)mm
Operating Temperature	5 ~ 45°C
Operating Humidity	0~70%
