40~200MHz AOM Radio Frequency Driver Analog/TTL Modulation

Product ID: 799

$446.00

40~200MHz AOM Radio Frequency Driver Analog /TTL Modulation

[Features]
Stable working performance
High frequency stability
Stable power output
Low power consumption

Note:
Lead Time: 1~3 weeks

[Specifications]

Parameter Unit Value
Output Frequency MHz 40,60,80,100,120,150,200
Operating Voltage V +24VDC@380mA
Frequency Stability ppm ±30
RF Power W MAX 2.5W
Output Impedance Ω 50
Modulation Mode TTL  0~5V
200MHz: TTL, AM(0-1V,0-5V), TTL+AM
Interface SMA

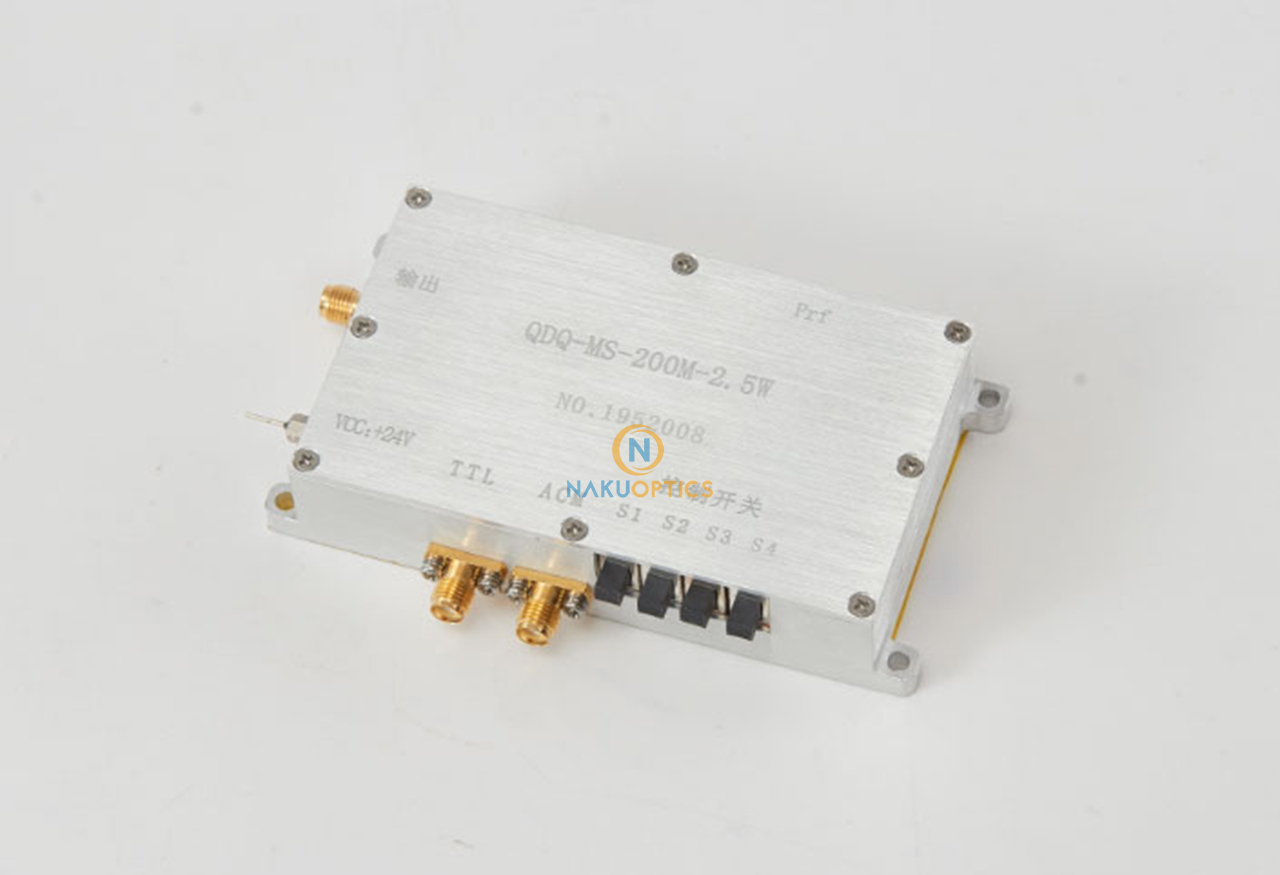

200MHz RF Driver:

Acousto-Optic Modulators AOM

Acousto-Optic Modulators AOM

Acousto-Optic Modulators AOM

Acousto-Optic Modulators AOM

Acousto-Optic Modulators AOM

SKU: P799 Category: Tags: ,
Weight 5.94 kg
