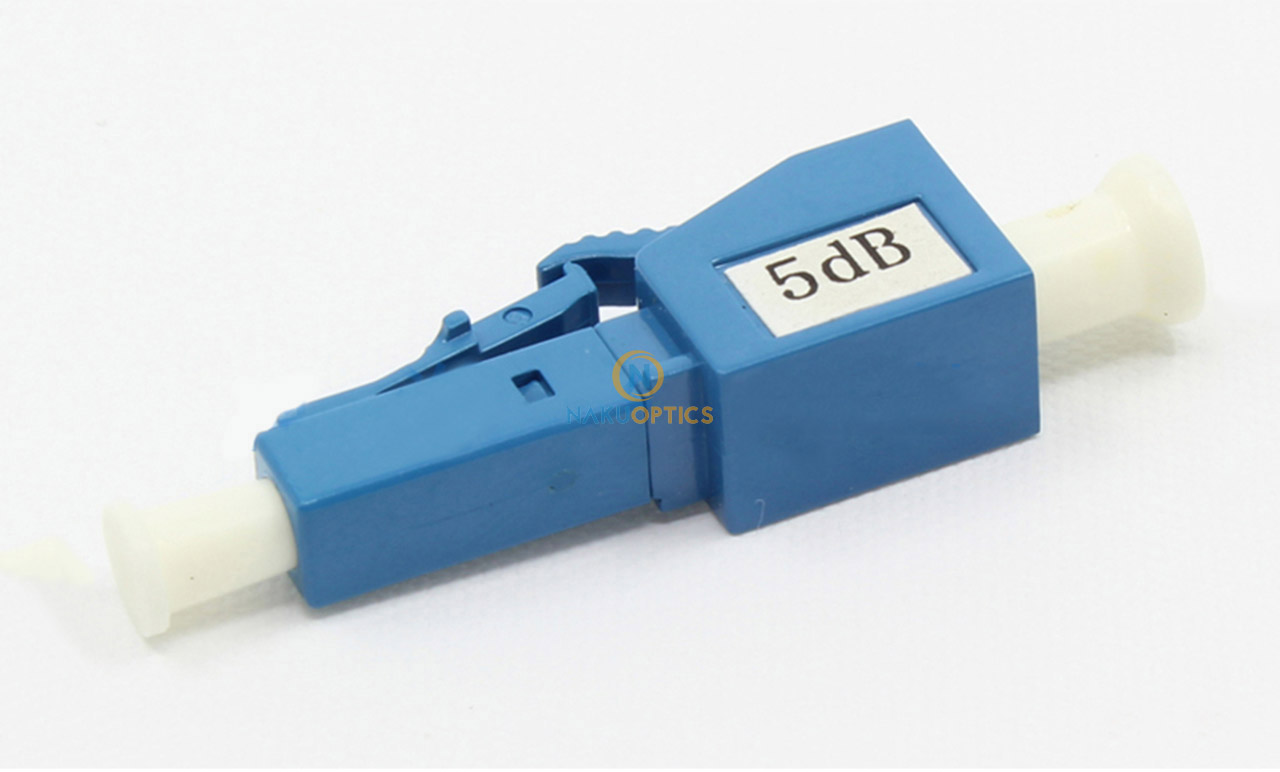

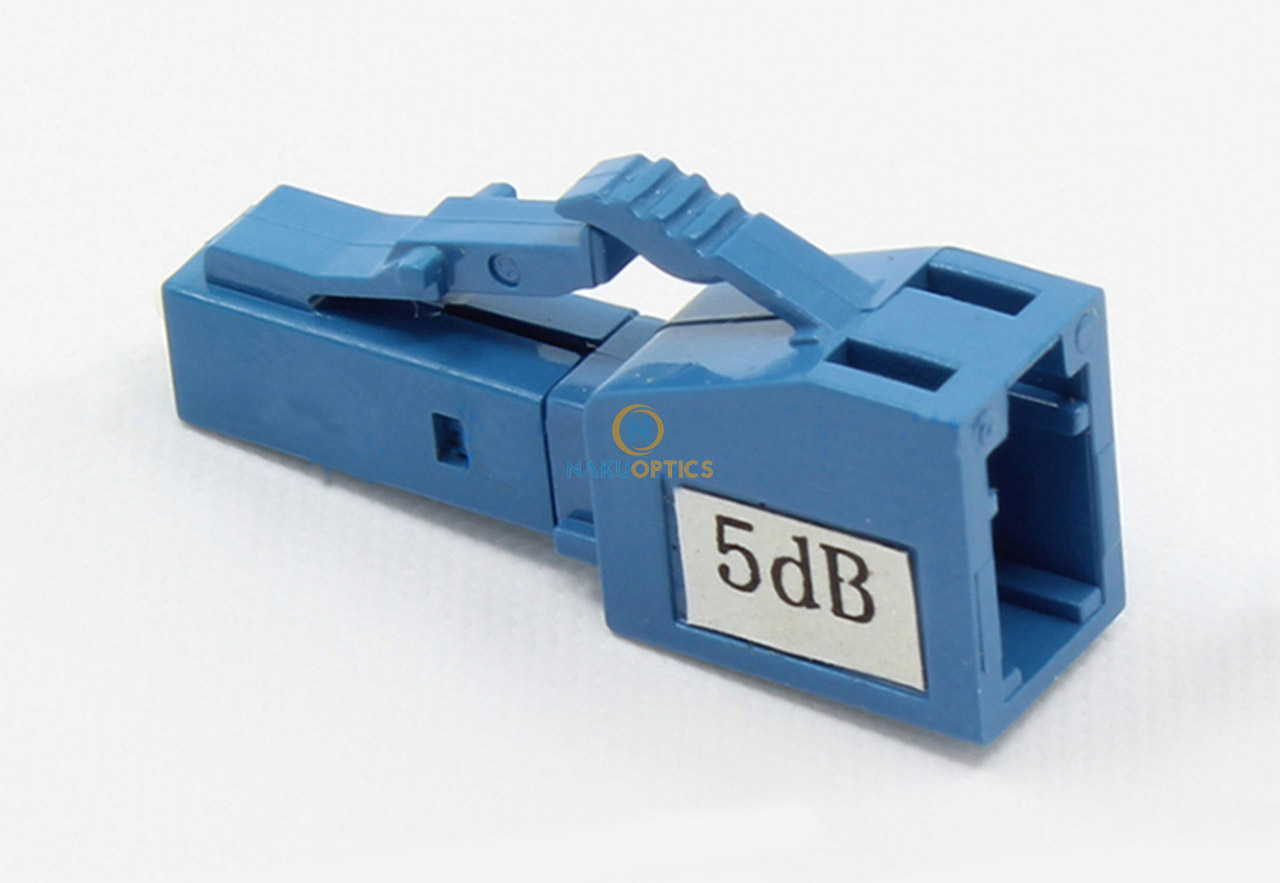

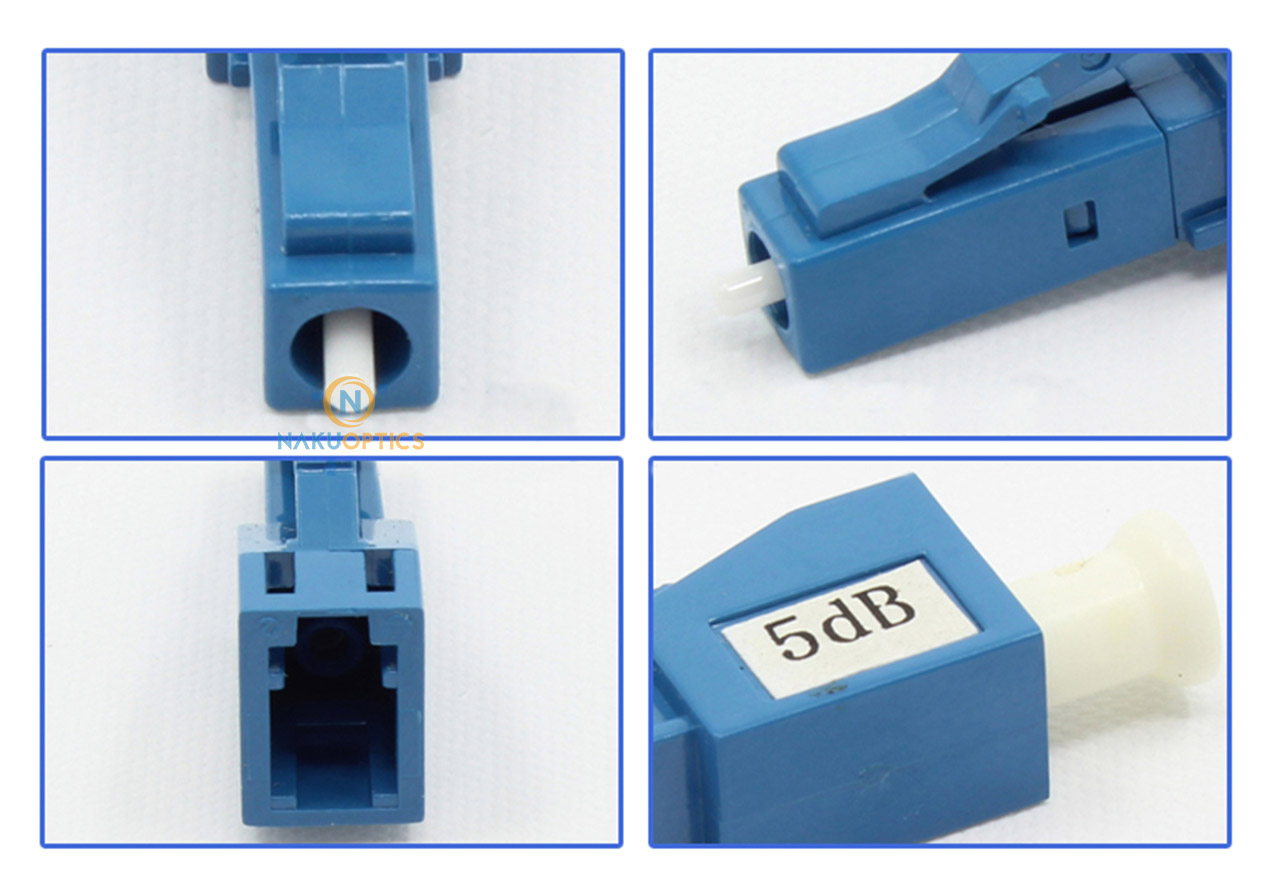

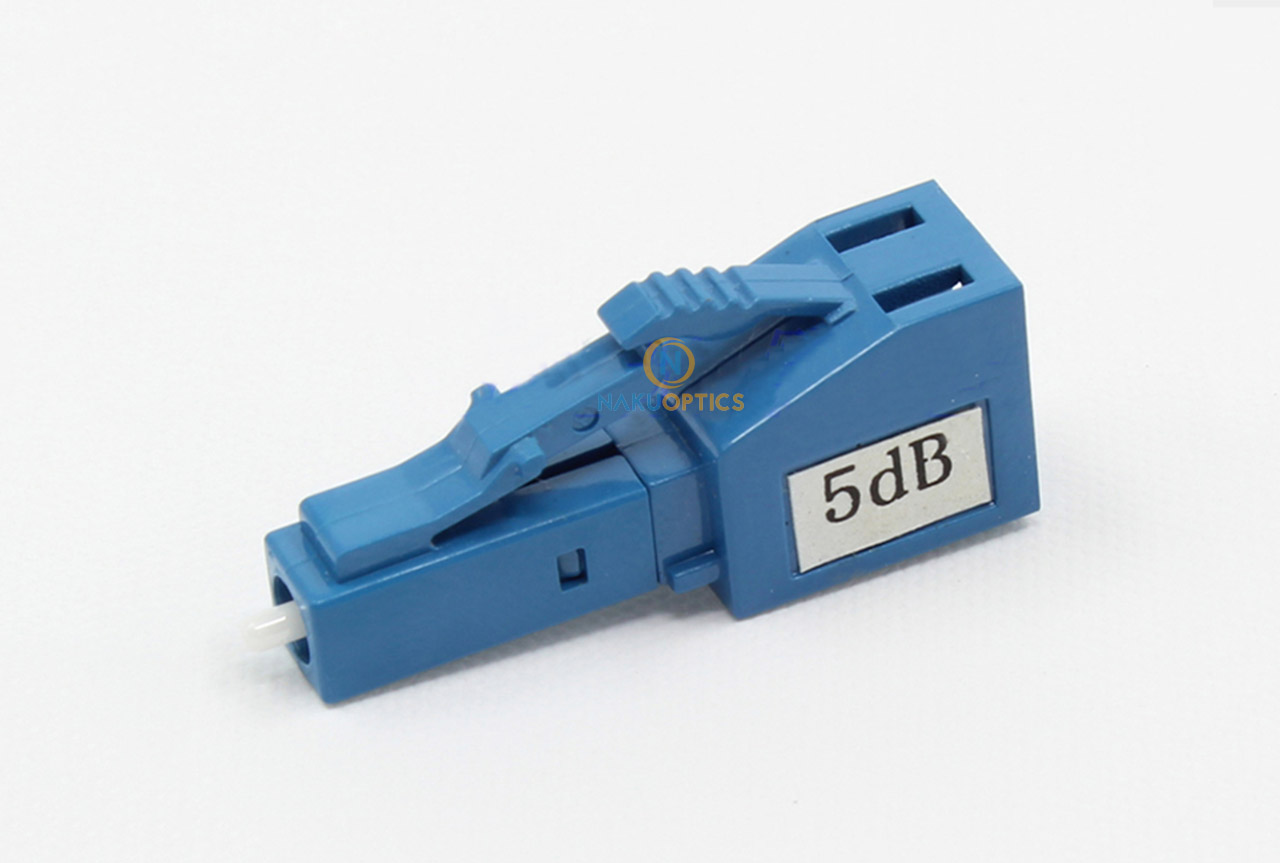

5dB LC PC Single-Mode Yin-Yang Type Optic Attenuator 10pcs/set

Product ID: 776


$60.00

5dB LC PC Single-Mode Yin-Yang Type Optical Attenuator 10pcs/set

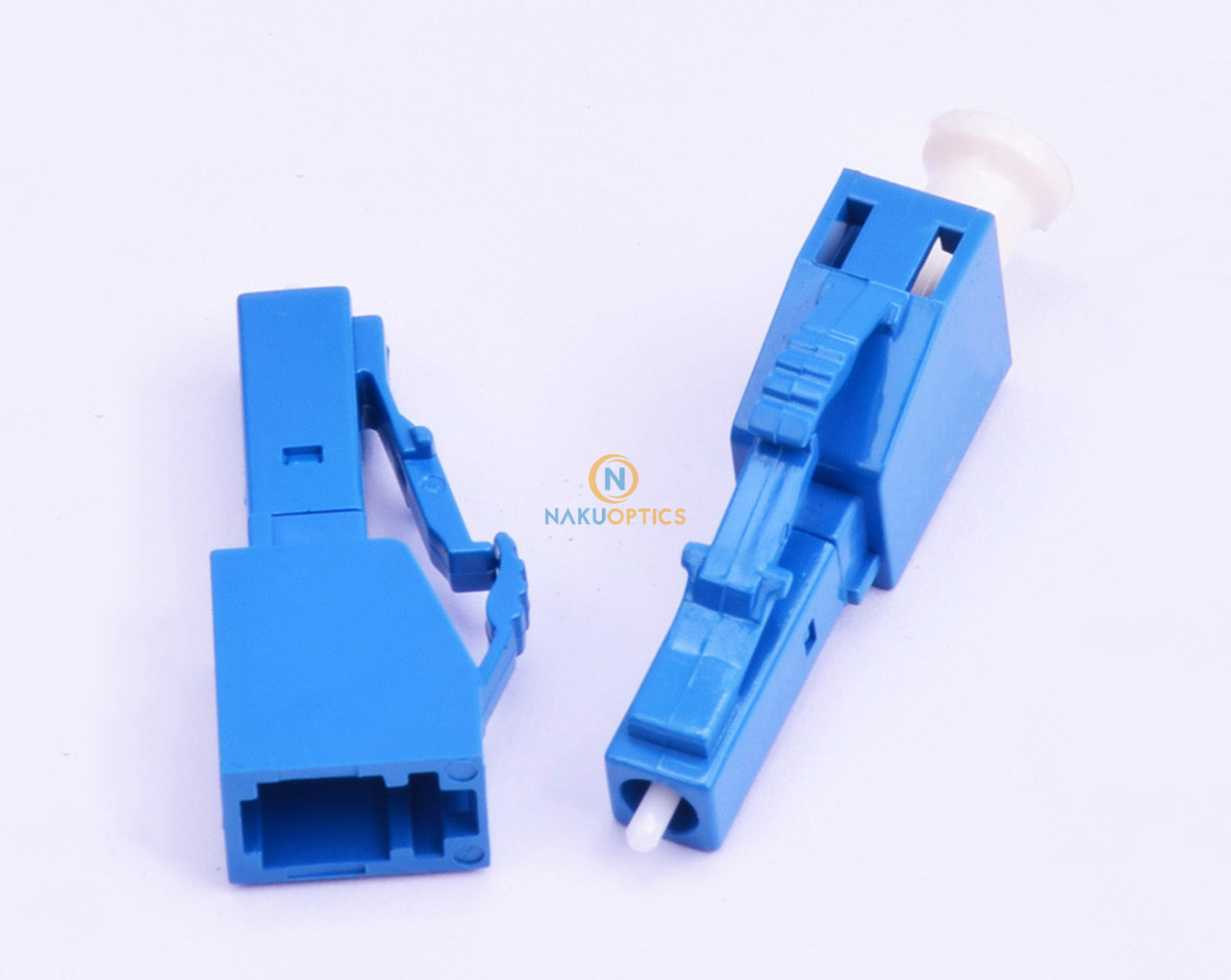

The Yin-Yang Type Fiber Optic Fixed Attenuator is a type of connector that has one end as an adapter and the other end as a connector. The attenuation value is adjustable. This range of fixed attenuator is mainly used to reduce optical power to a target value in optical links.

[Features]
1. Good interchangeability and repeatability
2. Accurate attenuation
3. High reliability
4. Compliant with the IEC and RoHS standards
5. Conforming to Telcordia-GR-910-CORE

[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

[Specification]

Parameter Typical Vlue Unit
Single Mode
Testing Wavelength 1310,1550 nm
Operating Bandwidth Range 1,250~1,650 nm
Retiurn Loss UPC>50.0,APC>60.0 dB
Attenuation Range 0~30 dB
Attenuation Tolerance 0~5,±0.5 dB
5~30dB,±10% /
Repeatability ≤0.10 dB
Exchangeability ≤0.20 dB
Durability 1,000 Mating, loss≤0.20 dB
Maximum Input Power ≤200 mW
Operating Temperature -2 0~ + 70
Storage Temperature -40 ~ + 85



[Package Include]

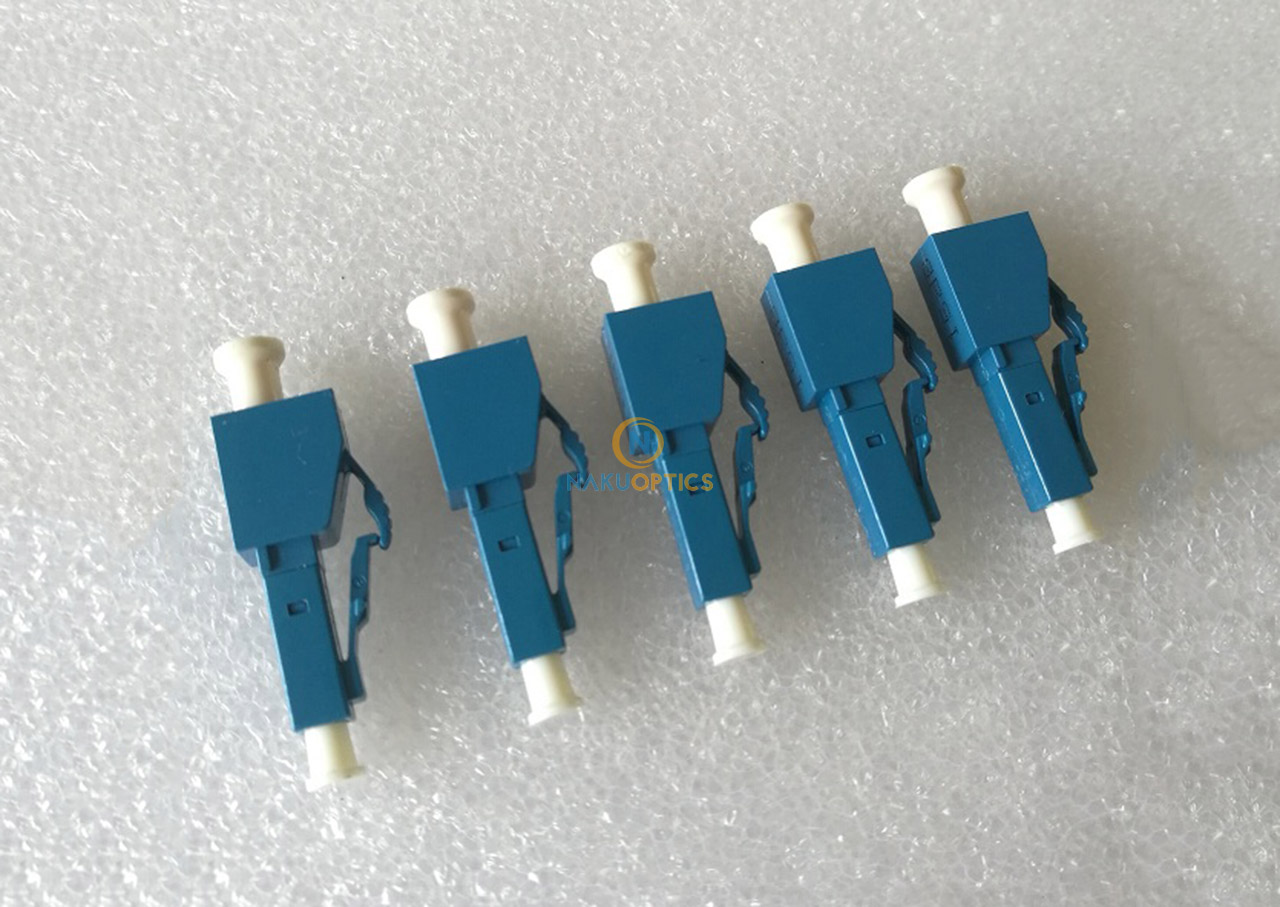

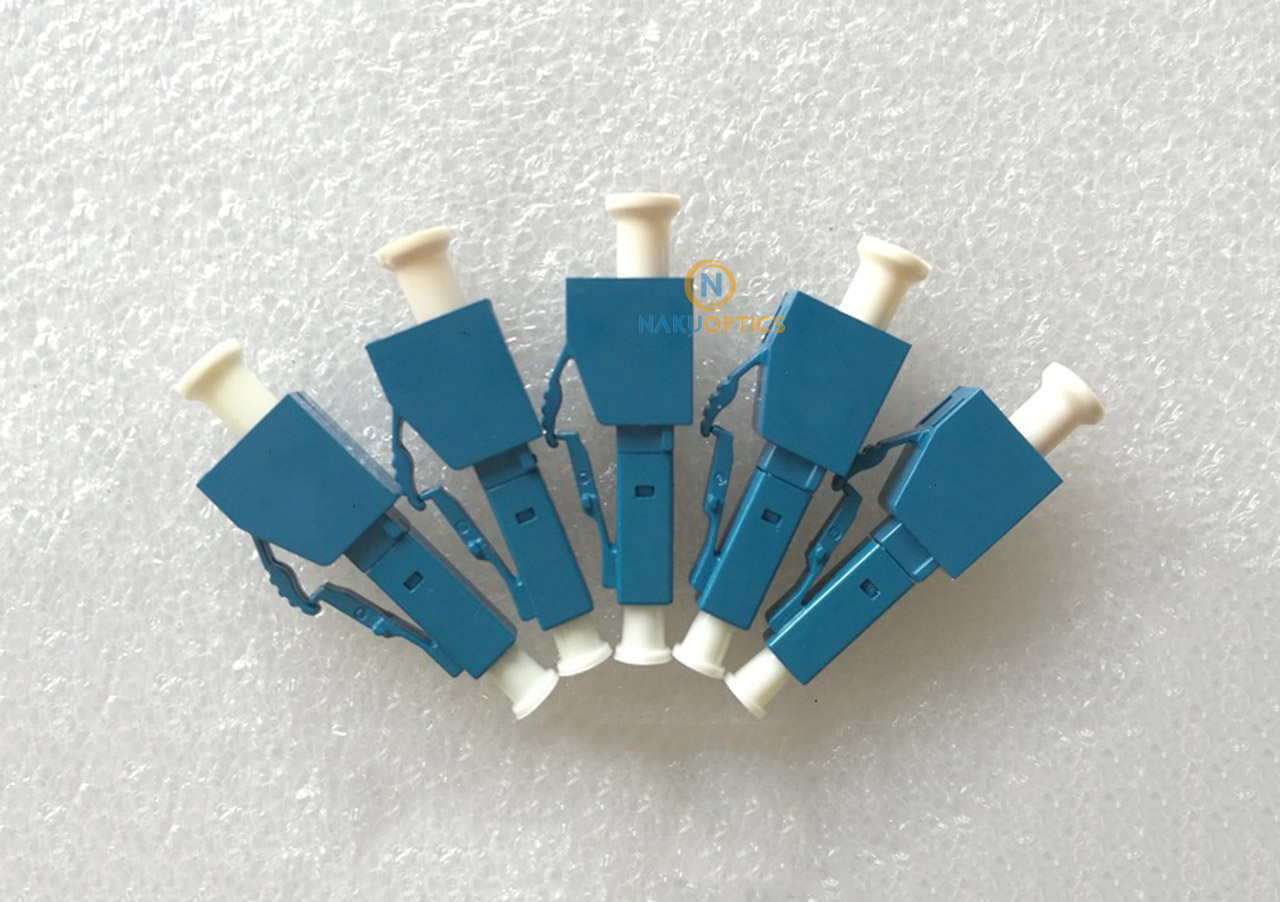

10pcs Yin-yang optical attenuator

optical attenuator

optical attenuator

optical attenuator

optical attenuator

optical attenuator

optical attenuator

optical attenuator

optical attenuator

Weight 2.25 kg
