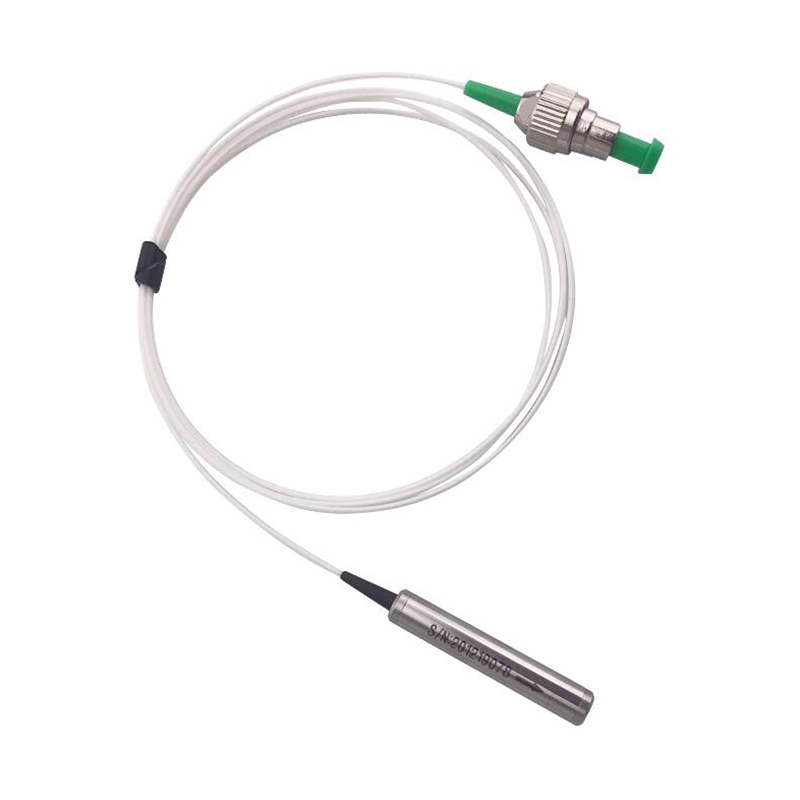

1310nm 1550nm 0.9mm Polarization-maintaining In-line Fiber Optic Reflector Plane Reflector

Product ID: 1655

$166.00

1310nm 1550nm 0.9mm Polarization-maintaining In-line Fiber Optic Reflector Plane Reflector

[Features]
Low insertion loss
High return loss
High stability and reliability
High power can be customized

[Applications]
Fiber laser
Fiber amplifier
Fiber sensor
Optical communication

[Specifications]

Prameter Unit Value
Center Wavelength nm 1310, 1550 (Choose)
Operating Wavelength Range nm ±30
Typical Insertion Loss dB 0.3
Max Insertion Loss dB 0.5
Min Extinction Ratio dB 22
Max. Withstand Power mW 500
Max Tensile Load N 5
Fiber Type PM fiber
Operating Temperature ℃ -5 ~ +70
Storage Temperature ℃ -40 ~ +85

*The above test data does not include connectors.
*If connectors are added, the insertion loss will increase by 0.3dB.


fiber reflector


fiber Ffaraday mirror

fiber Ffaraday mirror

fiber Ffaraday mirror

fiber Ffaraday mirror

fiber Ffaraday mirror

fiber Ffaraday mirror

SKU: P1655 Categories: , Tag:
Weight 3.36 kg
Wavelength

1310nm, 1550nm
