Fiber Switch, PM Optical Switch

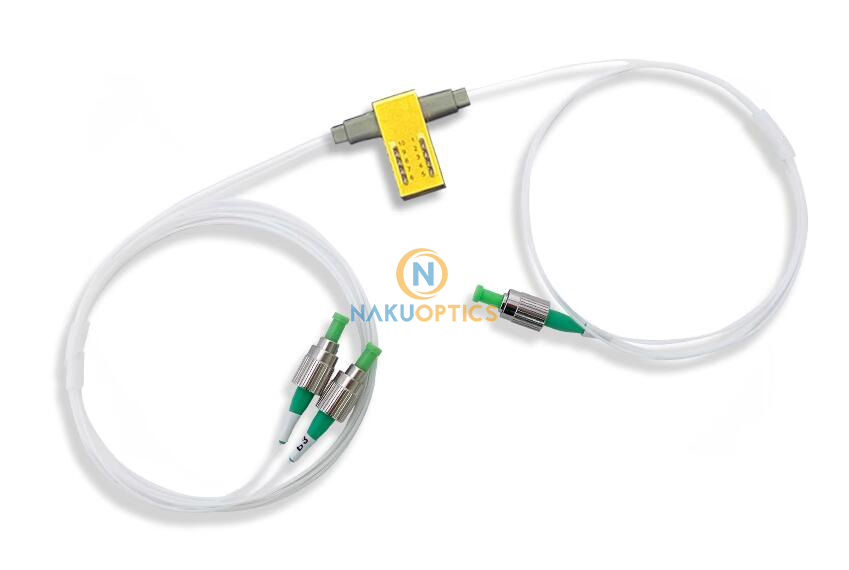

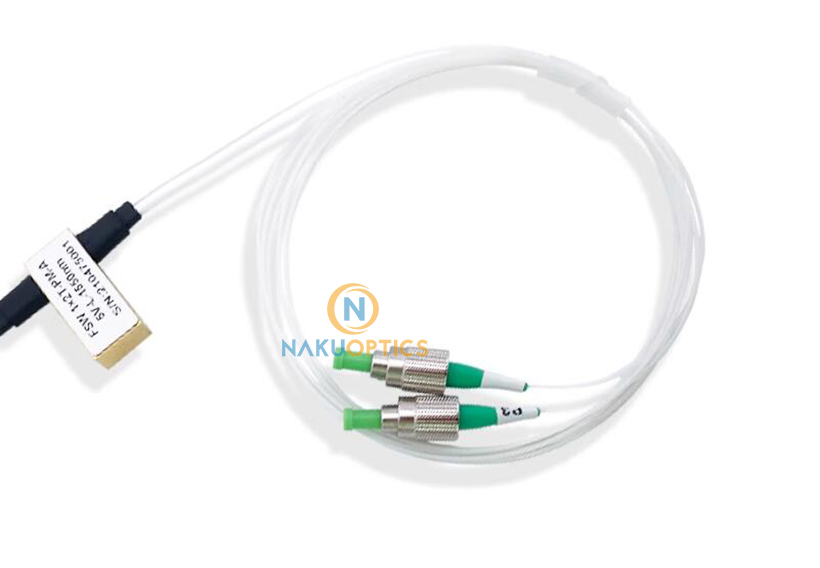

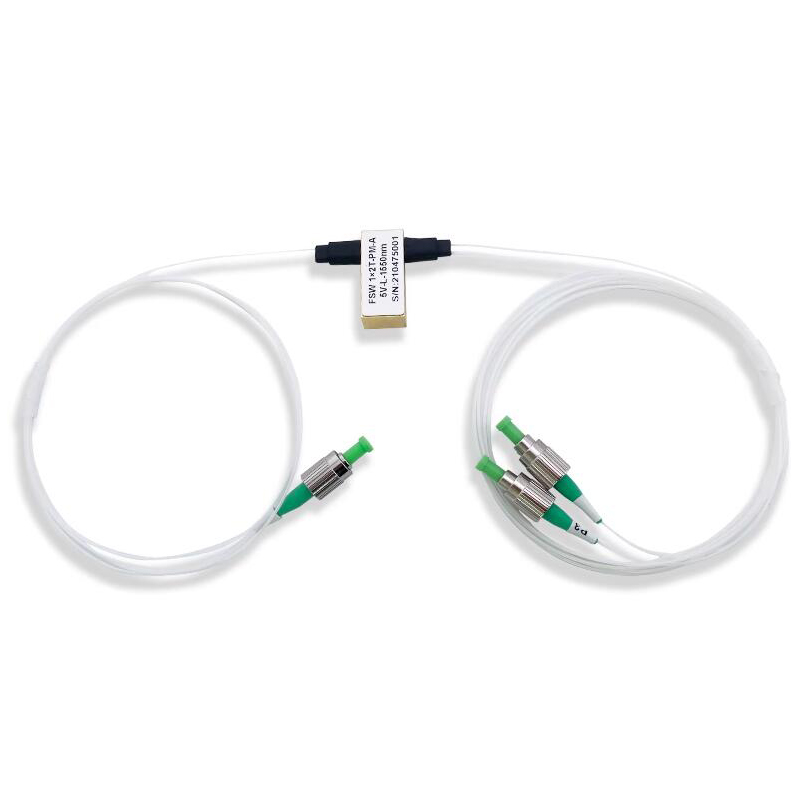

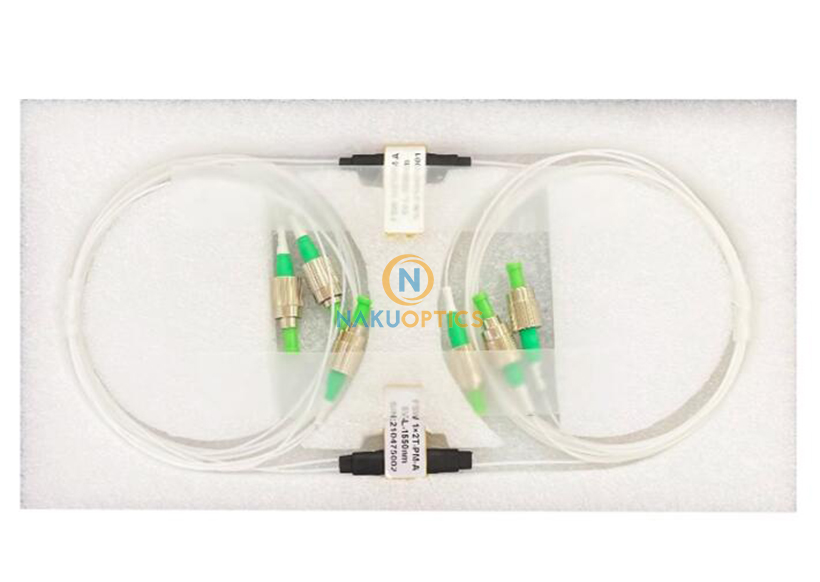

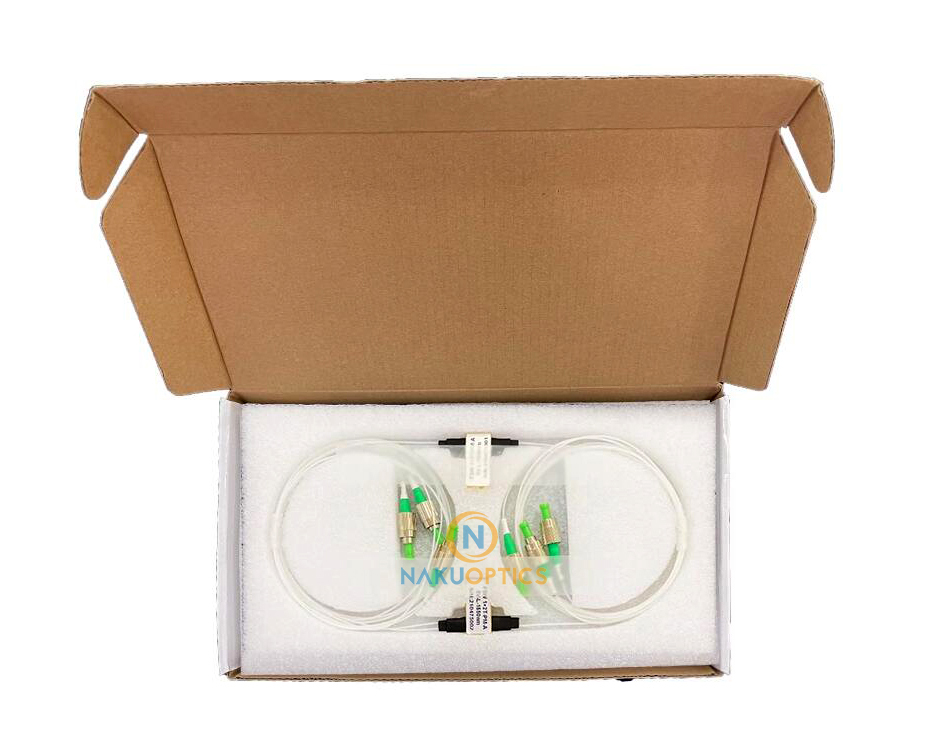

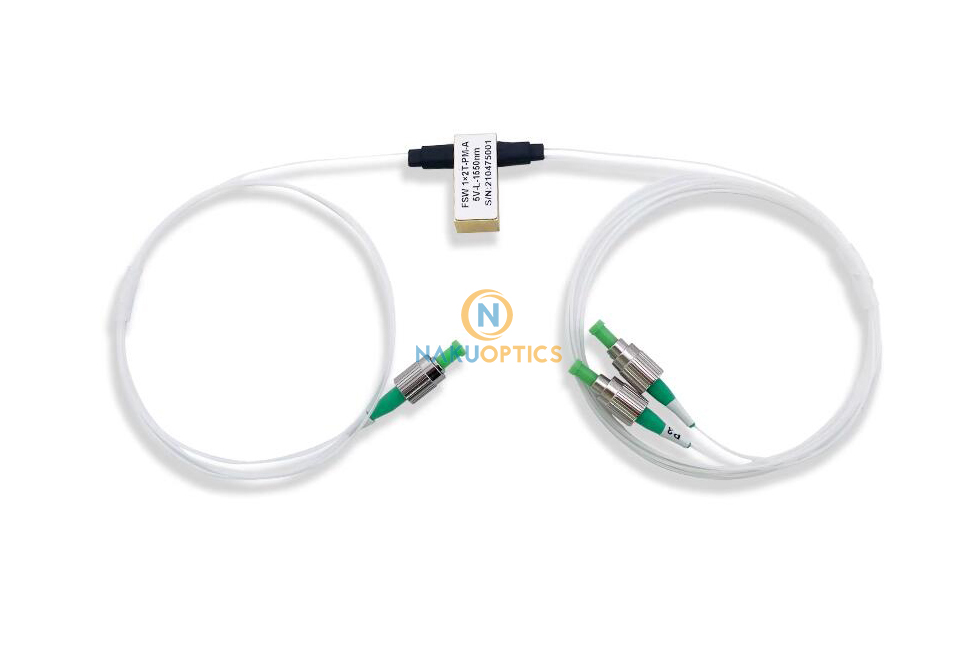

1X2 Polarization Maintaining PM Optical Switch 0.9 Sleeve FC/APC Slow Axis Alignment
Product ID: 1260
$400.00
1X2 Polarization Maintaining PM Optical Switch 0.9 Sleeve FC/APC Slow Axis Alignment
[Features]
Low insertion loss
Wide wavelength range
Fast switching speed
[Specifications]
| Parameters | Unit | Value | |
| Insertion Loss | dB | ≤1.5 | |
| Return Loss | dB | ≥35 (PM) | |
| Repeatability | dB | ≤±0.05 | |
| Cross Talk | dB | ≥55 | |
| Extinction Ratio | dB | ≥13 | |
| Wavelength Dependent Loss | dB | ≤0.3 | |
| Temperature Dependent Loss | dB | ≤0.3 | |
| Connector Type | None | ||
| Switch Time | ms | ≤8 | |
| Service Lifetime | time | ≥10^7 | |
| Voltage | V | 5V DC | |
| Current | mA | 40~50 | |
| Operating Temperature | ℃ | -20 ~ +60 | |
| Storage Temperature | ℃ | -20 ~ +75 | |
| Max. Power Handling | mW | 500 | |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 2.14 kg |
|---|
