275nm UV Experimental LED Light Source 1.5mW Fiber Output

275nm UV Experimental LED Light Source 1.5mW Fiber Output

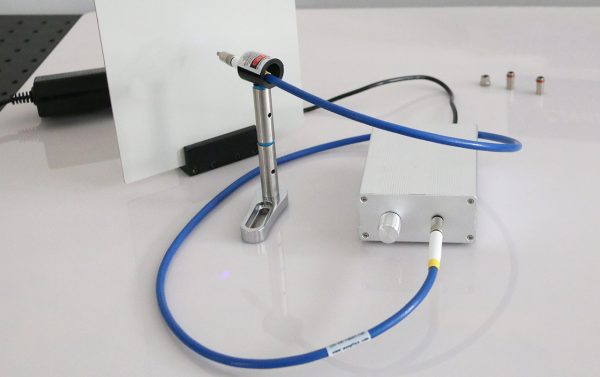

Our LED light source outputs various specifications ranging from ultraviolet to near-infrared (265~1330nm) through SMA905 interfaces. The coupling efficiency of these outputs is high.

The optical power of the fiber-coupled output is about 1~2mw.
It is recommended to use fiber: core diameter ≥ 600um, numerical aperture 0.22NA.

[Features]
1. LED light source coupled to SMA905 interface output, high coupling efficiency
2. The LED emits a cold light source, which has a small heat dissipation
3. Small size and easy to carry
4. High Stability
5. Long service life

[Application]
1. High resolution optics
2. Phosphor reflection
3. Medical application
4. Photolysis reaction
5. UV glue curing
6. Special lighting

[Specification]
Product Name: LED light source
Wavelength: 275nm
Electrical Power: 0.5W
Output Power: 1.5mW
Output Interface: SMA905 / FC
Size: 102*76*40 mm(L*W*H)
Service Life: 100,000 hours
Power Supply:
1. 110~220V AC power supply
2. 5~12V 1A DC power supply

Optical Fiber: 600um/0.22NA/1 meter/ SMA905 interface / Coupling efficiency 50% / — (Choose)
