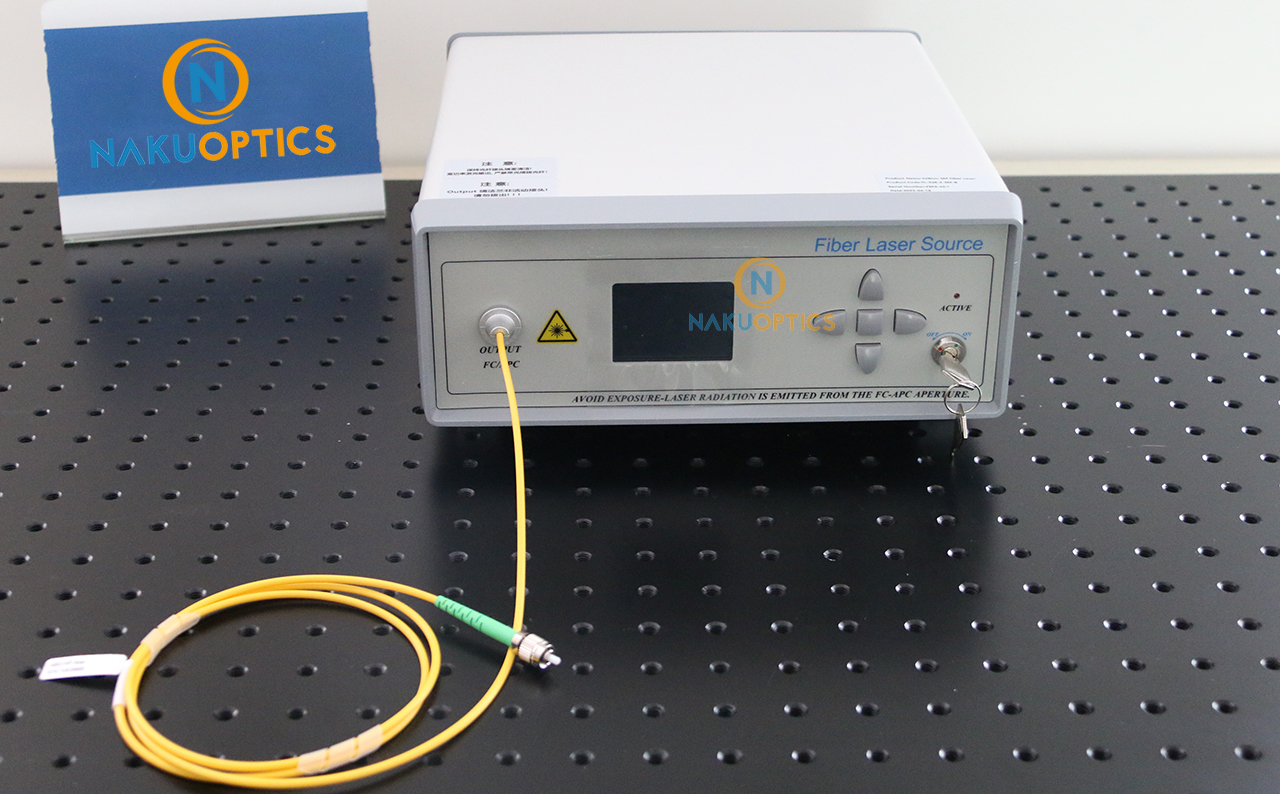

Name: 528nm 1~20mW TEM00 Laser Coupled Single-mode Fiber Output Benchtop
SKU: P433
Availability: InStock

528nm 1~20mW TEM00 Laser Coupled Single-mode Fiber Output Benchtop

This 528nm laser adopts semiconductor laser chip.It coupled a single-mode optical fiber output. It has a professionally designed drive and temperature control circuit that ensures safe operation of the laser, stable output power and spectrum, and excellent spot quality in TEM00 mode.

[Features]
1. Excellent spot quality
2. Spectral and power stability
3. Module or desktop package

[Applications]
1. Light spot indication
2. Imaging
3. Device testing

[Specifications]

Parameters	Unit	Typical value	Remarks

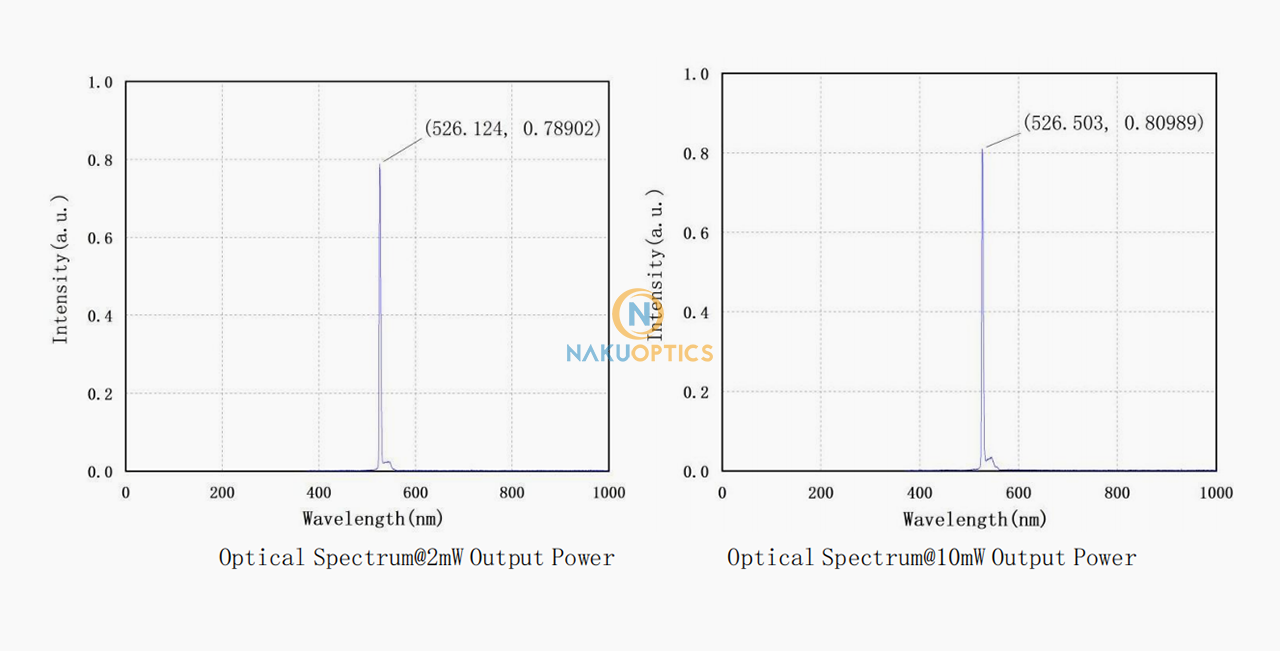

Working Wavelength	nm	528
Wavelength Accuracy	nm	±5
Working Mode	—	CW	Continuous light
Output Power	mW	20	Customizable
Power Adjustment Range	—	10~100%

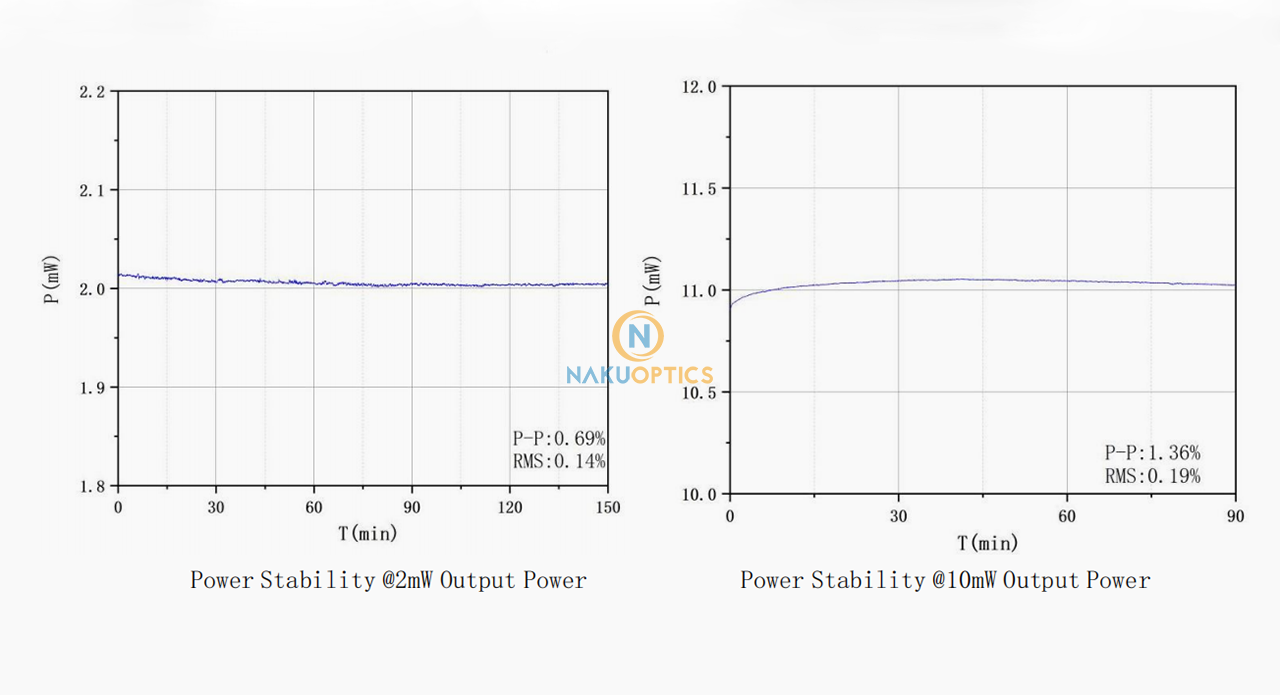

Short-term Stability (15 minutes)	dB	≤ ±0.02	Equivalent≤±0.5%
Long-term Stability (8 hours)	dB	≤ ±0.05	Equivalent≤±1.2%

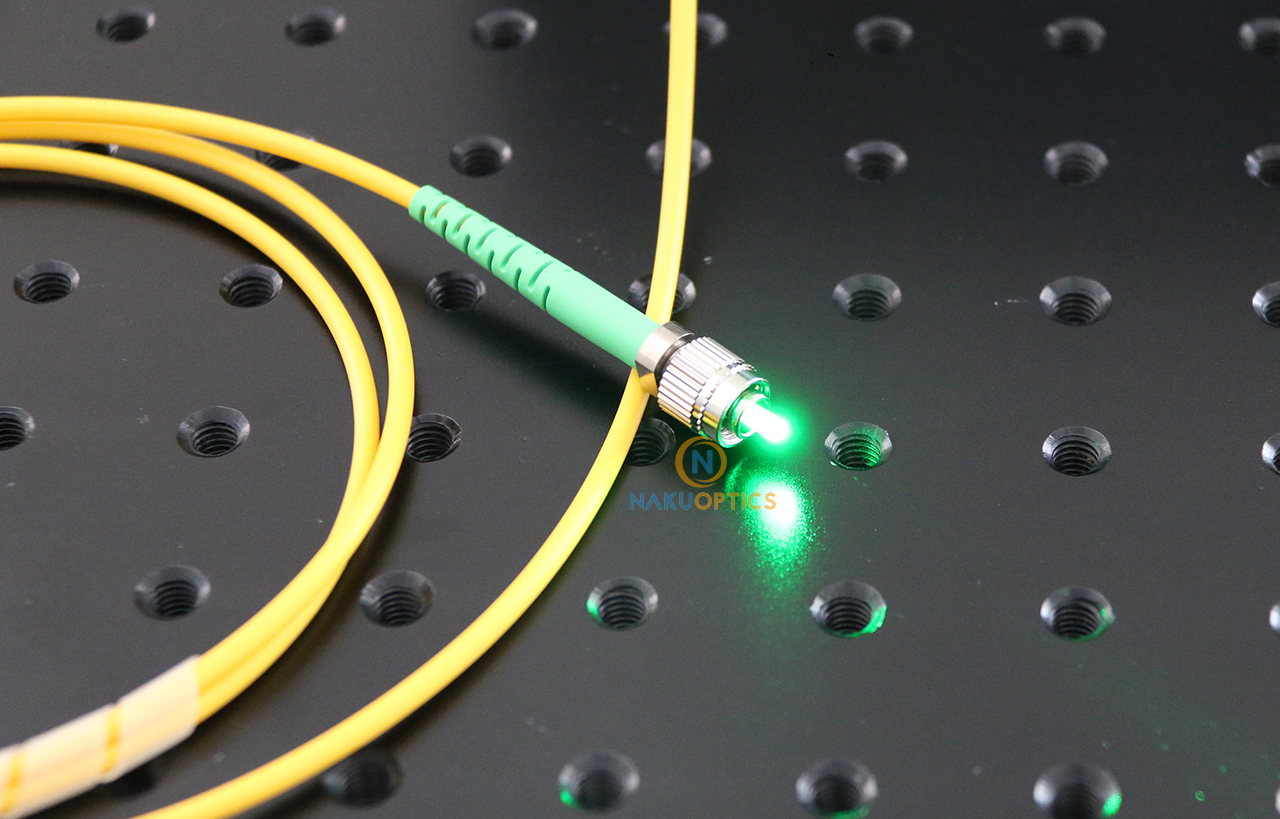

Pigtail Type	—	460HP SM fiber, 5/125 μm Single-mode, NA= 0.28
Pigtail Connector Type	—	FC/APC

Electrical and Environmental Parameters	Desktop Type

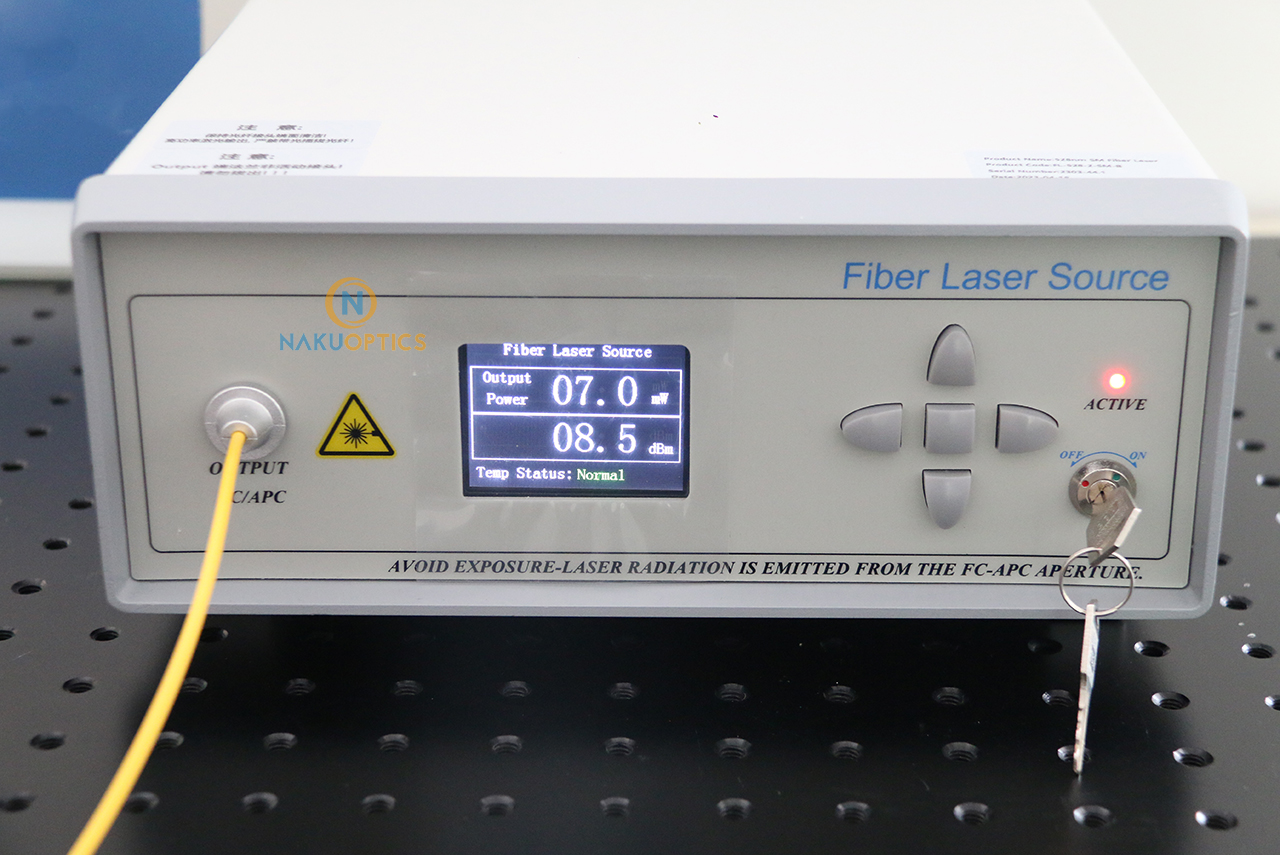

Control Method	Button
Communication Interface	DB9 Female (Default not include)
Power Supply	100~240V AC, <30W
Size	260(W)×280(D)×120(H)mm
Operating Temperature Range	-5~+35°C
Operating Humidity Range	0~70%
