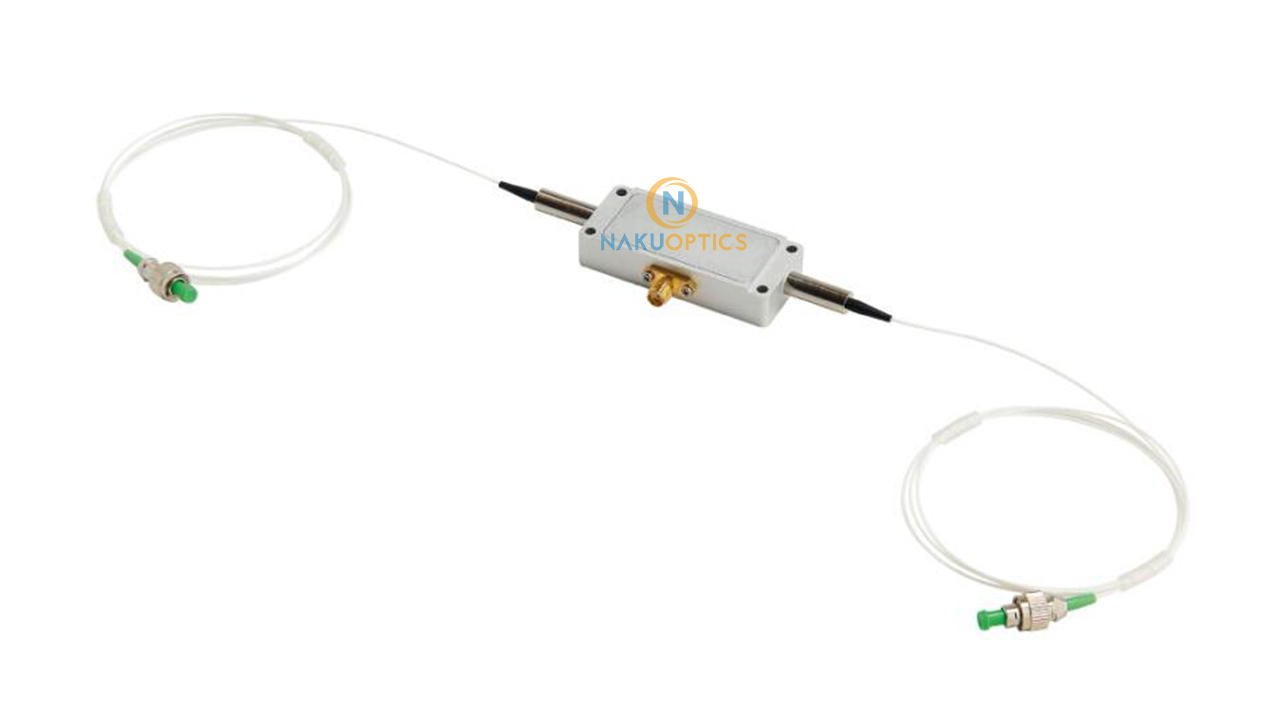

850nm 80MHz Infrared Fiber Coupled Acousto-Optic Modulator

Product ID: 908


$2,001.00$2,447.00

850nm 80MHz Infrared Fiber Coupled Acousto-Optic Modulator

[Applications]
Optical switch
Laser wavelength shift

[Note]
Lead Time: 3~4 weeks

[Specifications]

Parameter Unit Min Max Typical Value Remarks
Material TeO²
Wavelength nm 820 880 850
Average Optical Power Handling W 3
Peak(pulse) Optical Power Handling kW 3
Ultrasonic Velocity m/s 4200
Insertion Loss dB 3
Polarized Extinction Ratio (PER) dB 18
ER(1st order ON/OFF) dB 50
Return Loss (RF ON) dB 40
Rise/Fall-Time ns 50 (10%~90%)
Center Frequency MHz 80
Frequency Shift MHz +80 -80MHz can be customized
Radio Frequency Power W 2
Voltage Standing Wave Ratio (VSWR) 1.2:1
Input Resistance Ω 50
Device Interface SMA
Fiber Type SM/PM Fiber Choose
Fiber Length m 1
Fiber Termination FC/APC
Operating Temperature -20~+60
Storage Temperature -30~+70



Weight 5.45 kg
Fiber Type

,

RF Driver

,
