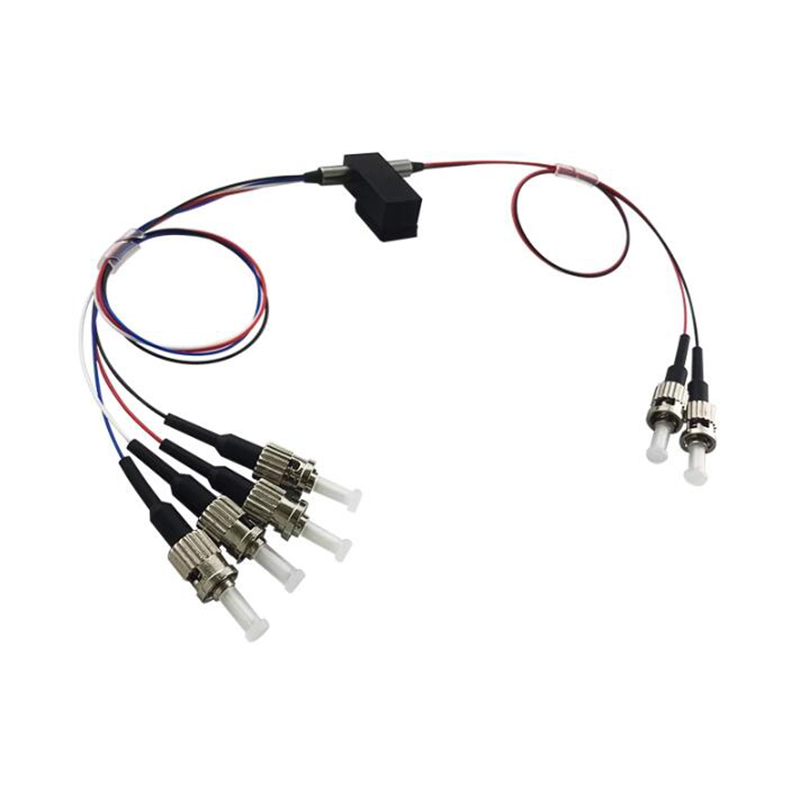

Dual 1X2 9/125um Single-mode Fiber Bypass Optical Switch 800~1600nm 2X4 SM Switch
The dual 1×2 optical switch is a highly integrated single-mode device with 4 fiber optic ports. The switch is activated by a 5v pulse between two states and maintains the selected optical path after the drive signal is removed. The switch integrates a position sensor based on electrical contacts. The proprietary simple design significantly reduces the position sensitivity of moving parts, providing unprecedented high stability at an unparalleled low cost. Electronic drivers are available for this series of switches. This switch is bidirectional and we offer a tight-bend fiber version that reduces the minimum bend radius.
[Features]
Uniform light distribution
Good interchangeability
High repeatability
High stability
[Specifications]

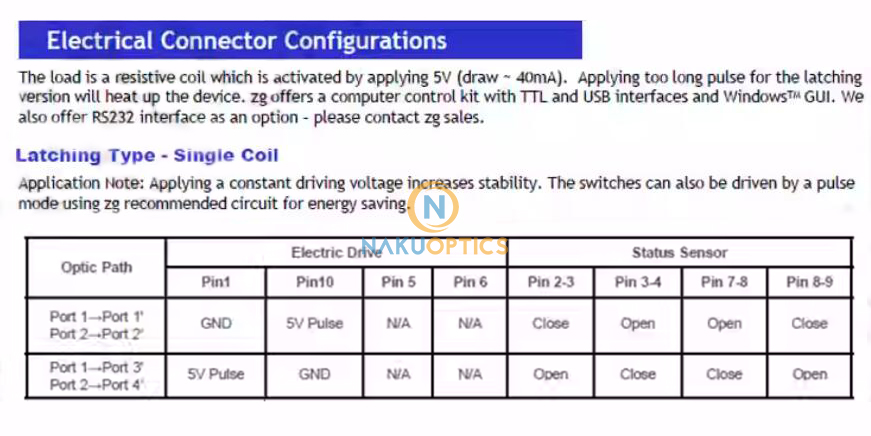

| Prameter | Unit | Value |
| Wavelength | nm | 800~1600 |
| Typical Insertion Loss | dB | 0.9 |
| Max Insertion Loss | dB | 1.2 |
| Max Wavelength Dependent Loss | dB | 0.25 |
| Min Cross Talk | dB | 55 |
| Min Return Loss | dB | 55 |
| Switch Time | ms | <10 (Typical: 3ms ) |
| Max Repeatability | dB | <±0.02 |
| 10Durability | Cycles | >10^7 |
| Operating Optical Power | mW | 300 (Max 500) |
| Operating Voltage | V | 4.5~6 |
| Operating Current | mA | 30~60 |
| Voltage Pulse Width (square) | ms | 20 |
| Switch Type | Latching or Non-latching | |
| Fiber Type | SM-28e | |
| Operating Temperature | ℃ | 0 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |

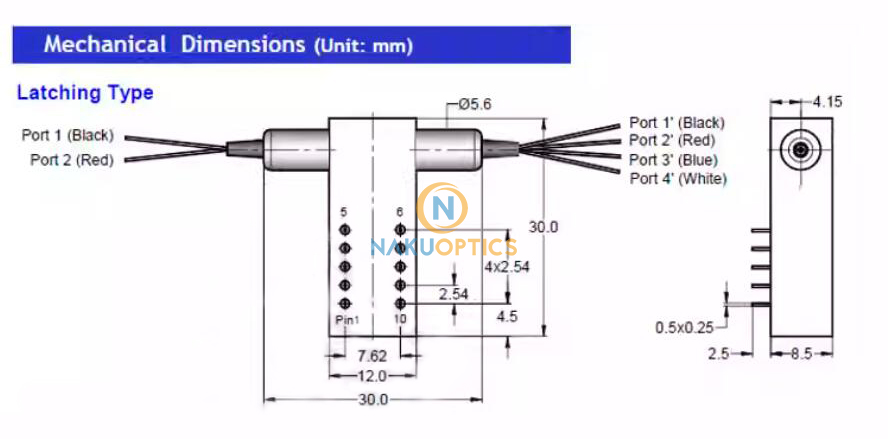

| Package Dimension | mm | 30*30*8.5(L*W*H) |

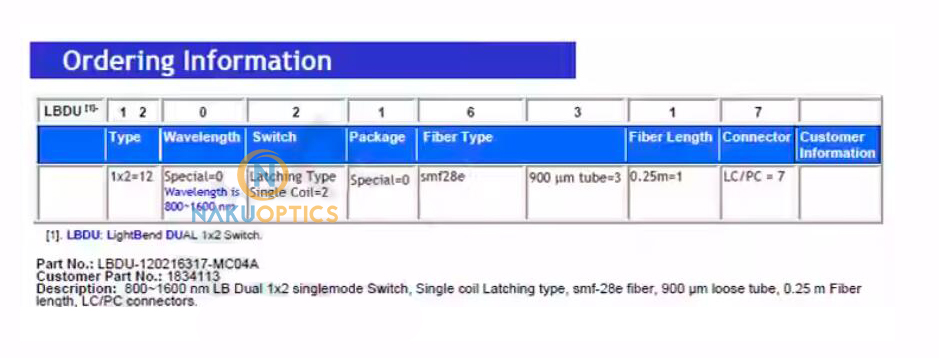

*Excluding connectors.
