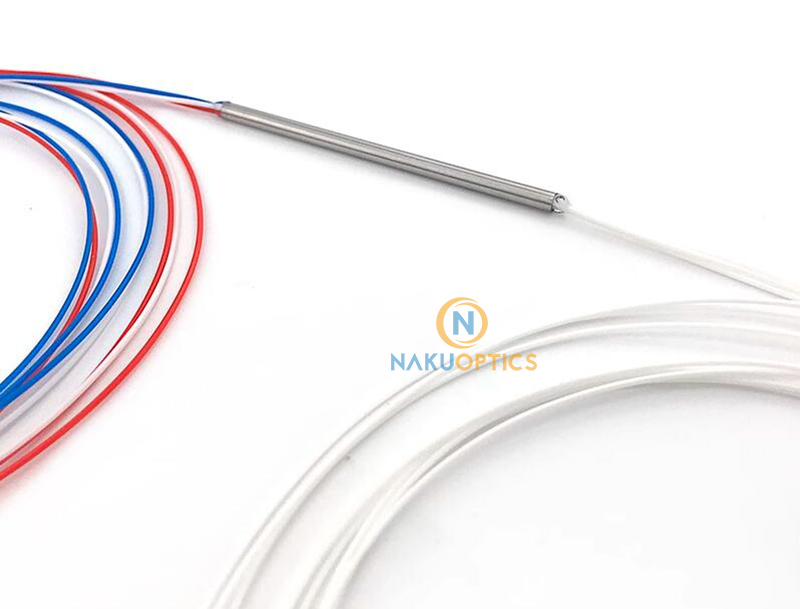

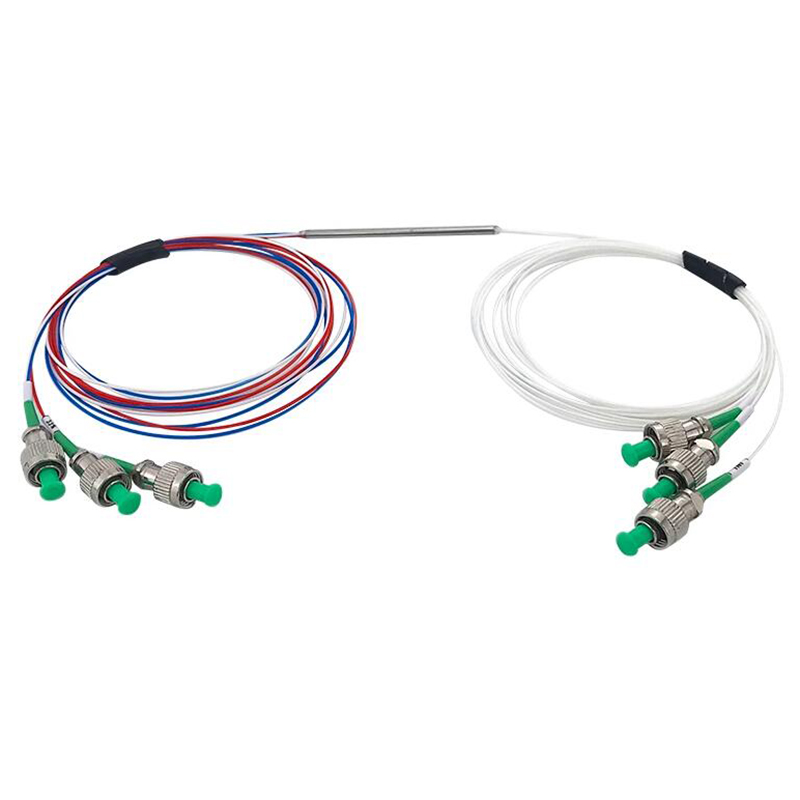

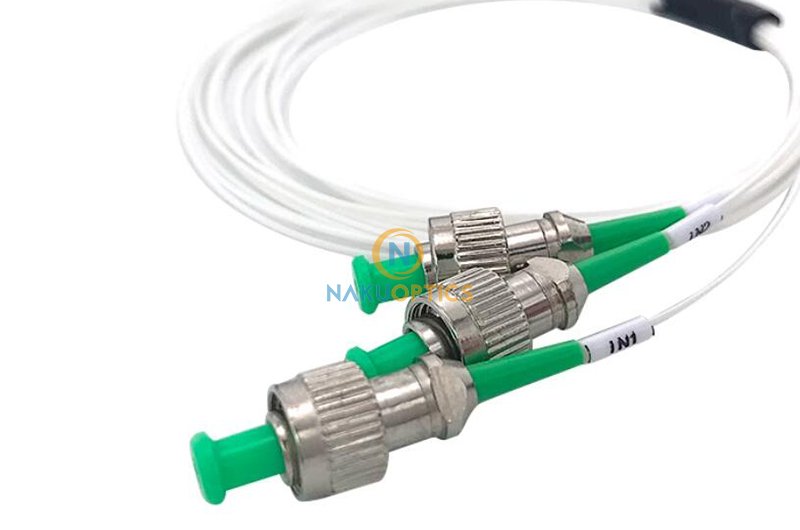

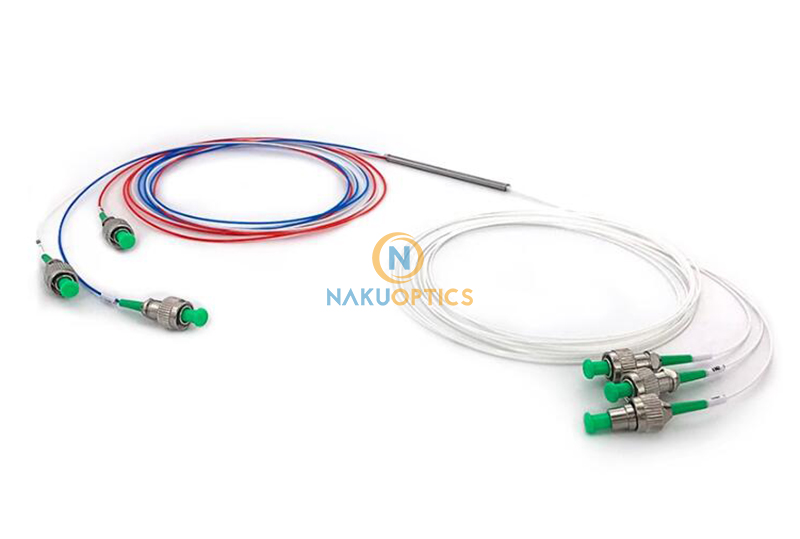

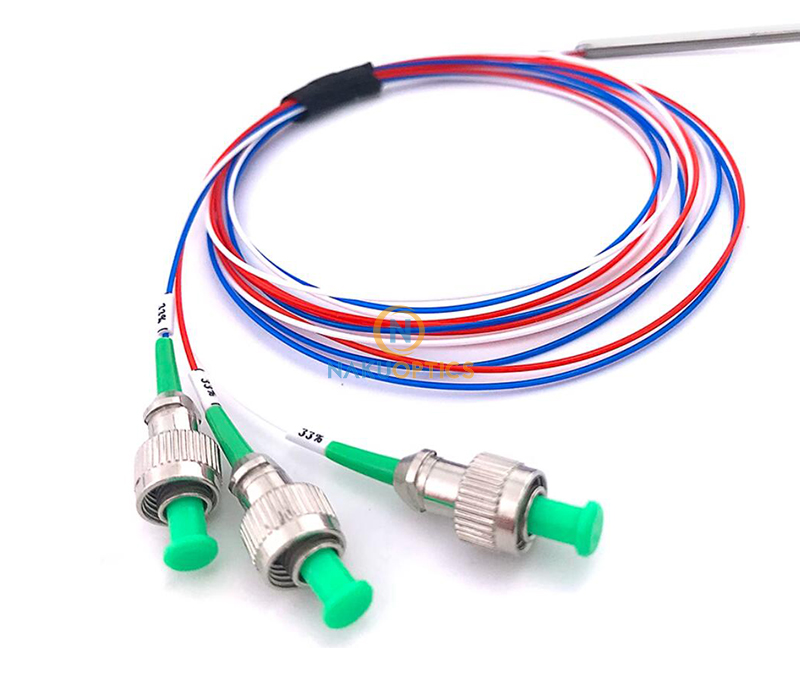

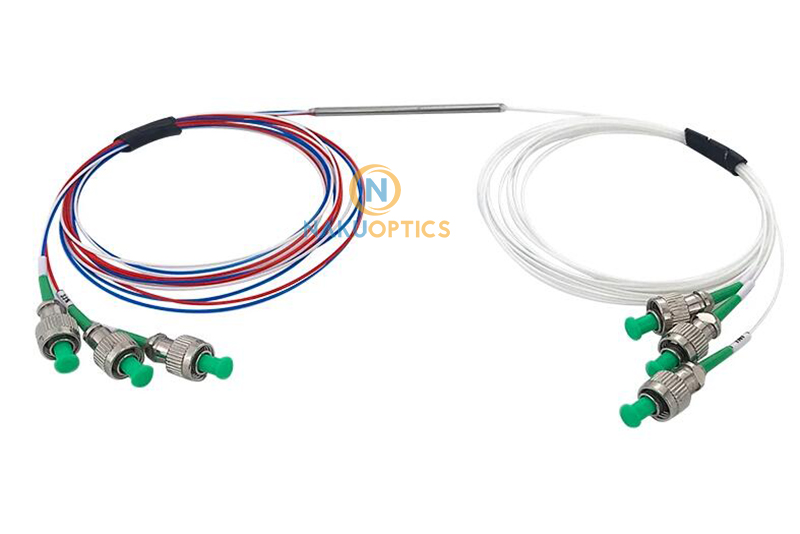

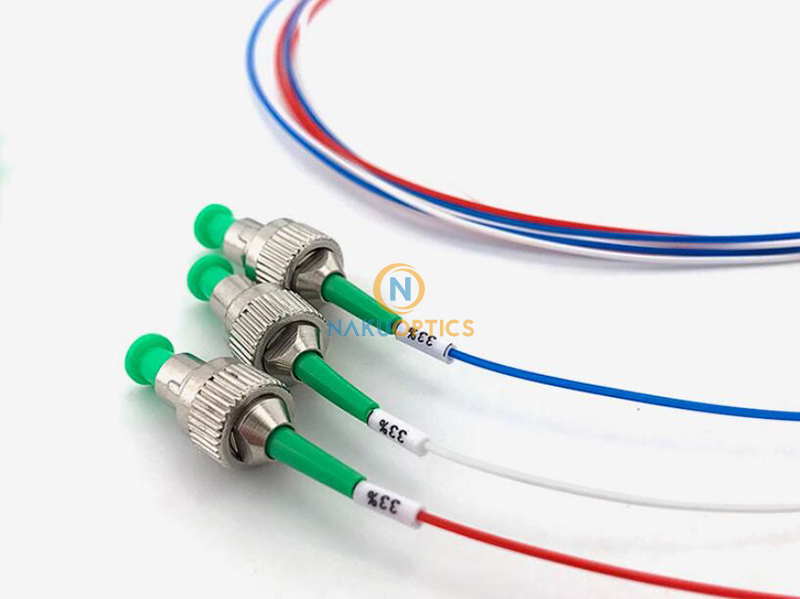

3X3 1310~1550nm Single-mode Single Window Fiber Coupler Φ3*54mm
[Features]
Low insertion loss
High stability and repeatability
[Specifications]
| Paramter | Unit | Value |
| Port Type | 3X3 | |
| Working Wavelength | nm | 1310~1550 |
| Insertion Loss | dB | 6.0 |
| Uniformity | dB | 0.8 |
| Directionality | dB | 55 |
| Reflection Loss | dB | 55 |
| Polarization Dependent Loss | dB | 0.3 |
| Wavelength Dependent Loss | dB | 1.0 |
| Return Loss | dB | ≥50 |
| Connector Type | FC/APC | |
| Package Dimension | mm | Φ3*54mm |
| Operating Temperature | ℃ | 0 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 5.34 kg |
|---|
