GH04580A2G 450nm 80mW Blue Laser Diode Sharp LD TO-18 Φ5.6mm Packaged

GH04580A2G 450nm 80mW Blue Laser Diode Sharp LD TO-18 Φ5.6mm Packaged

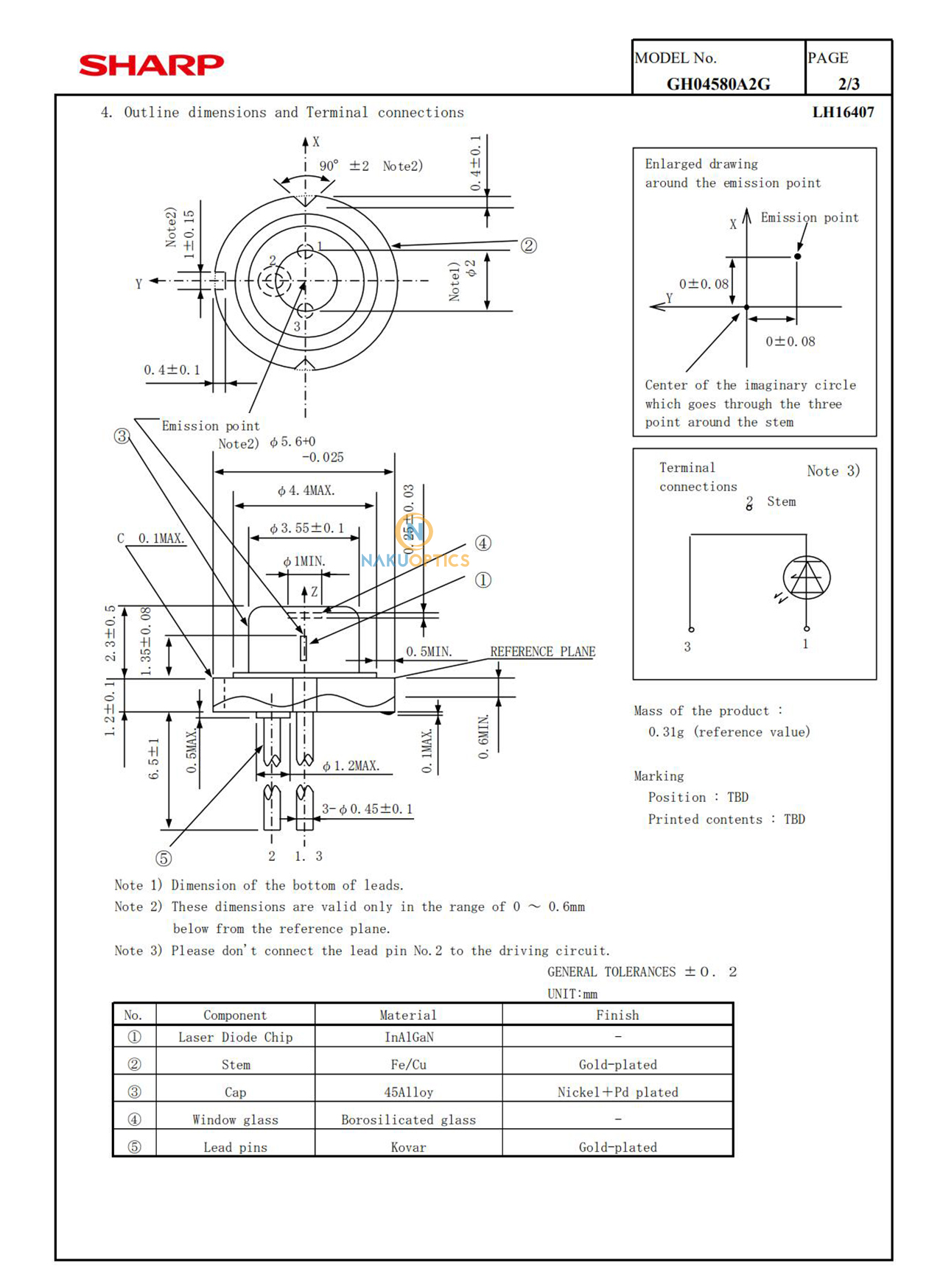

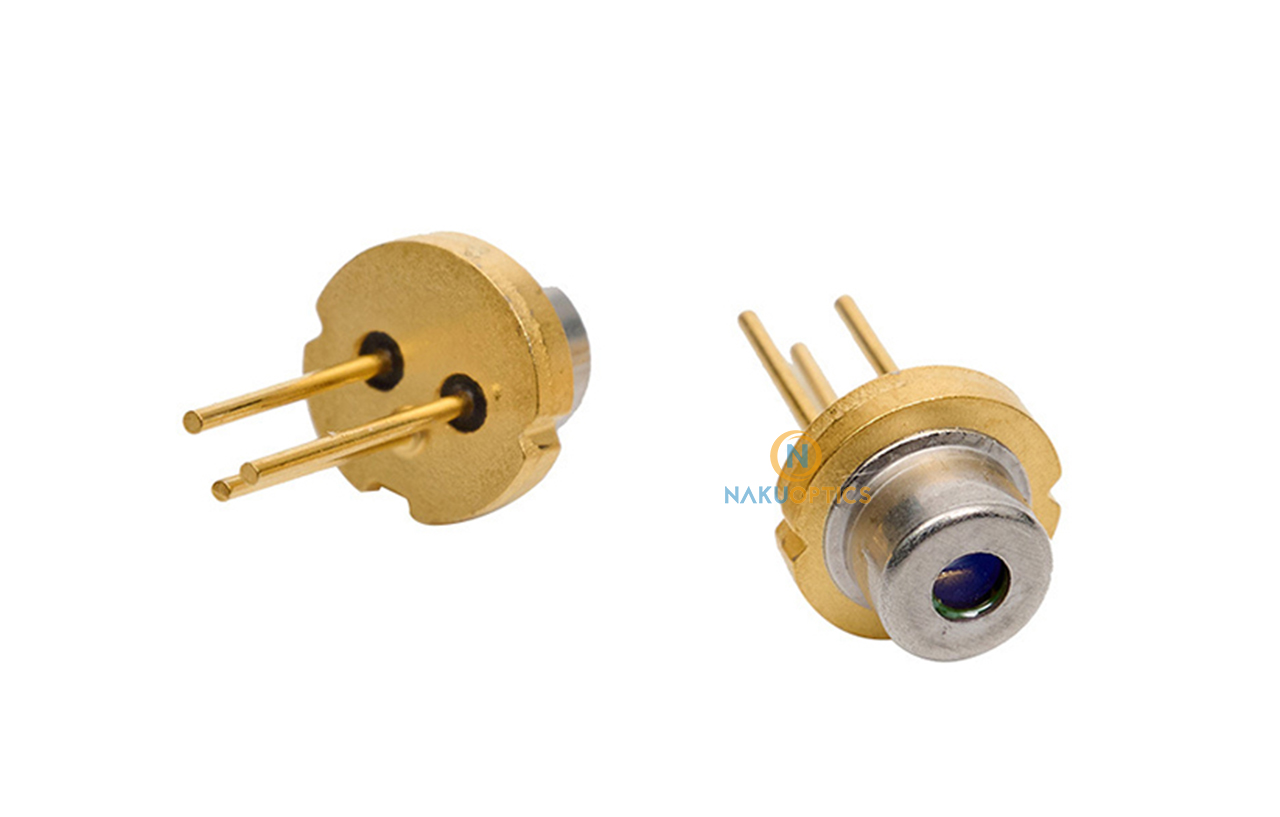

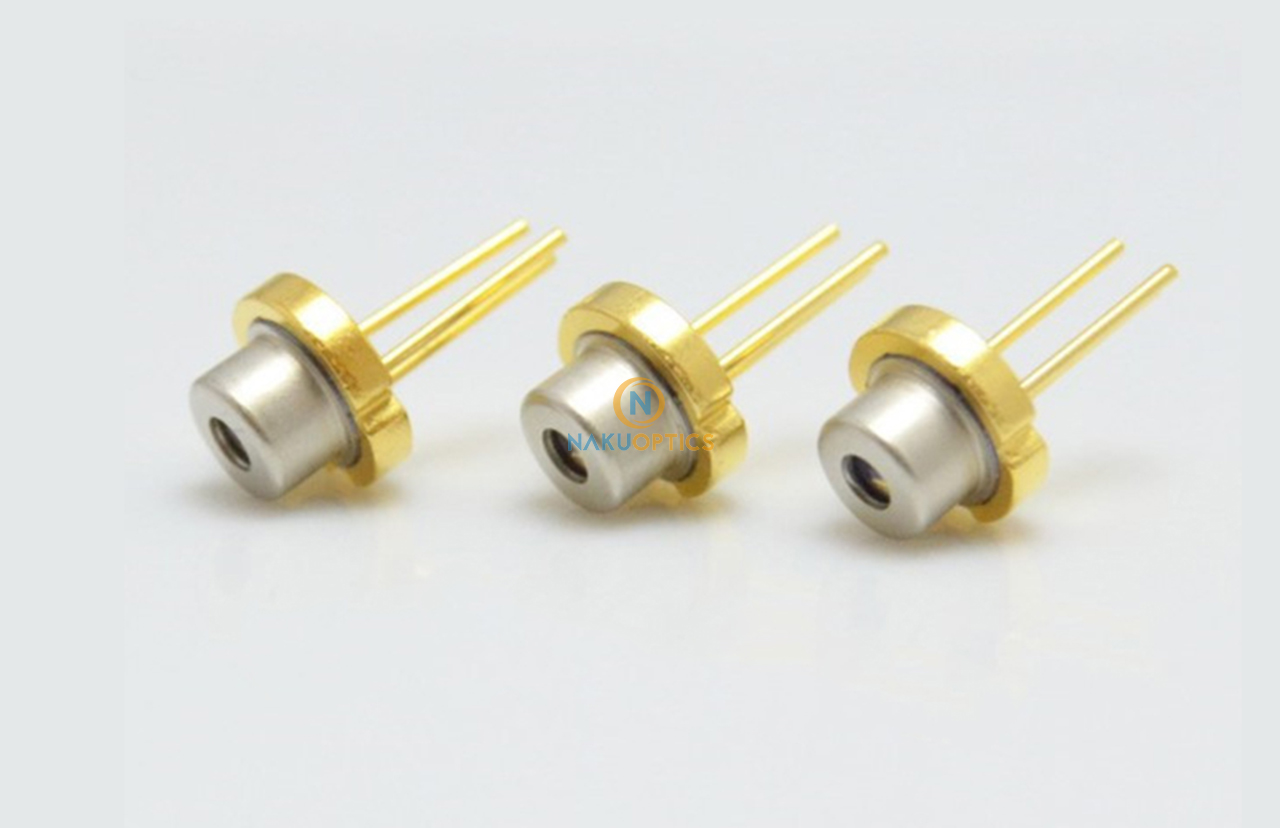

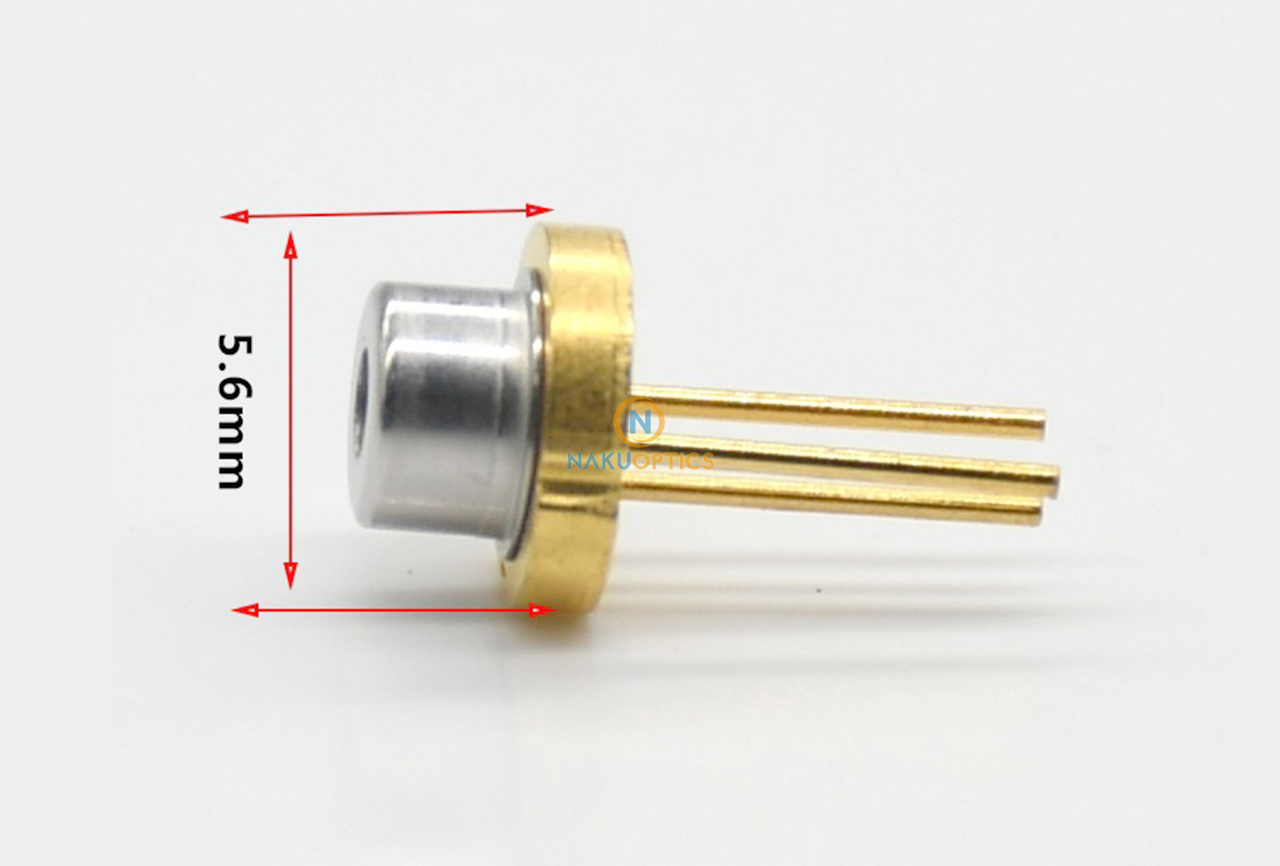

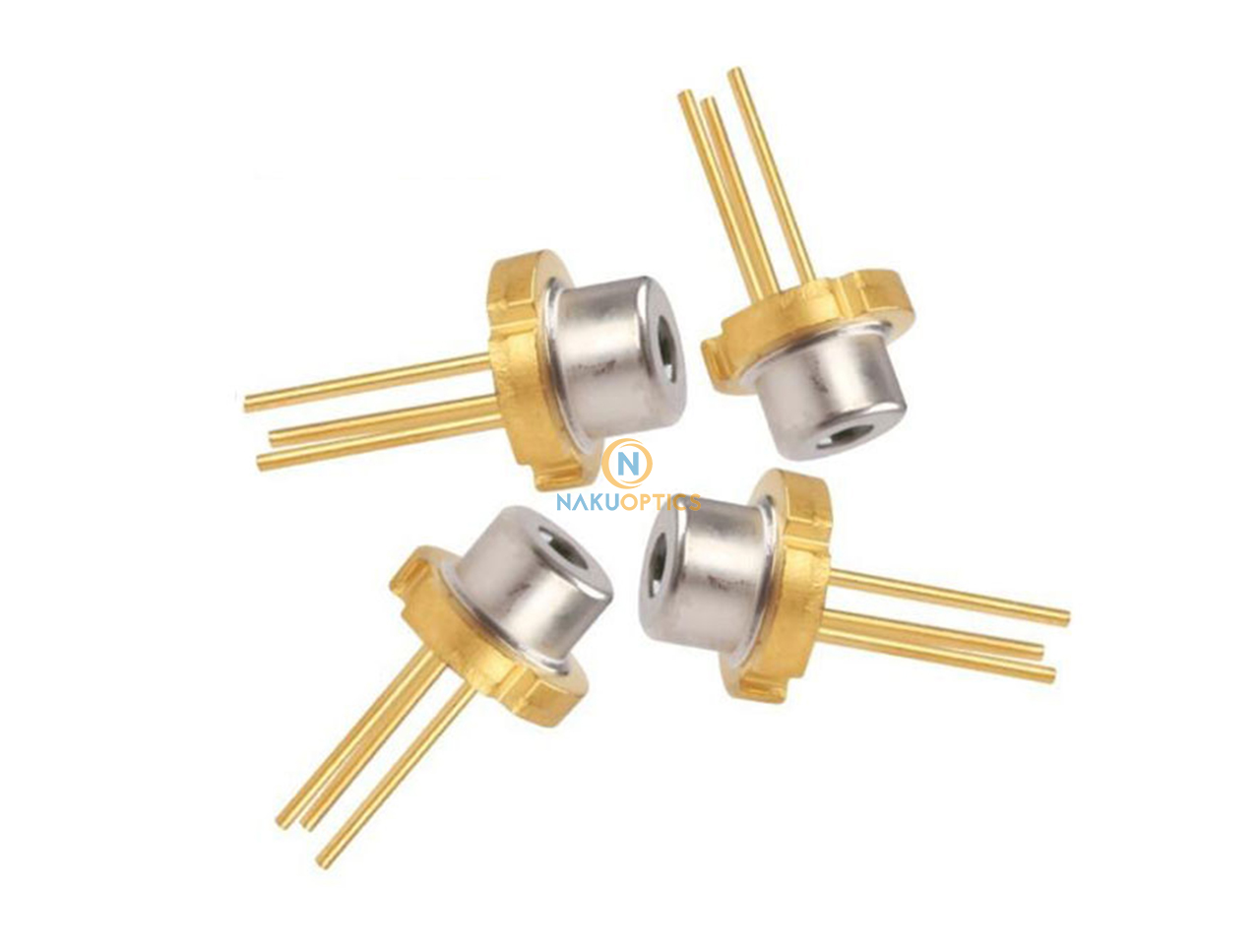

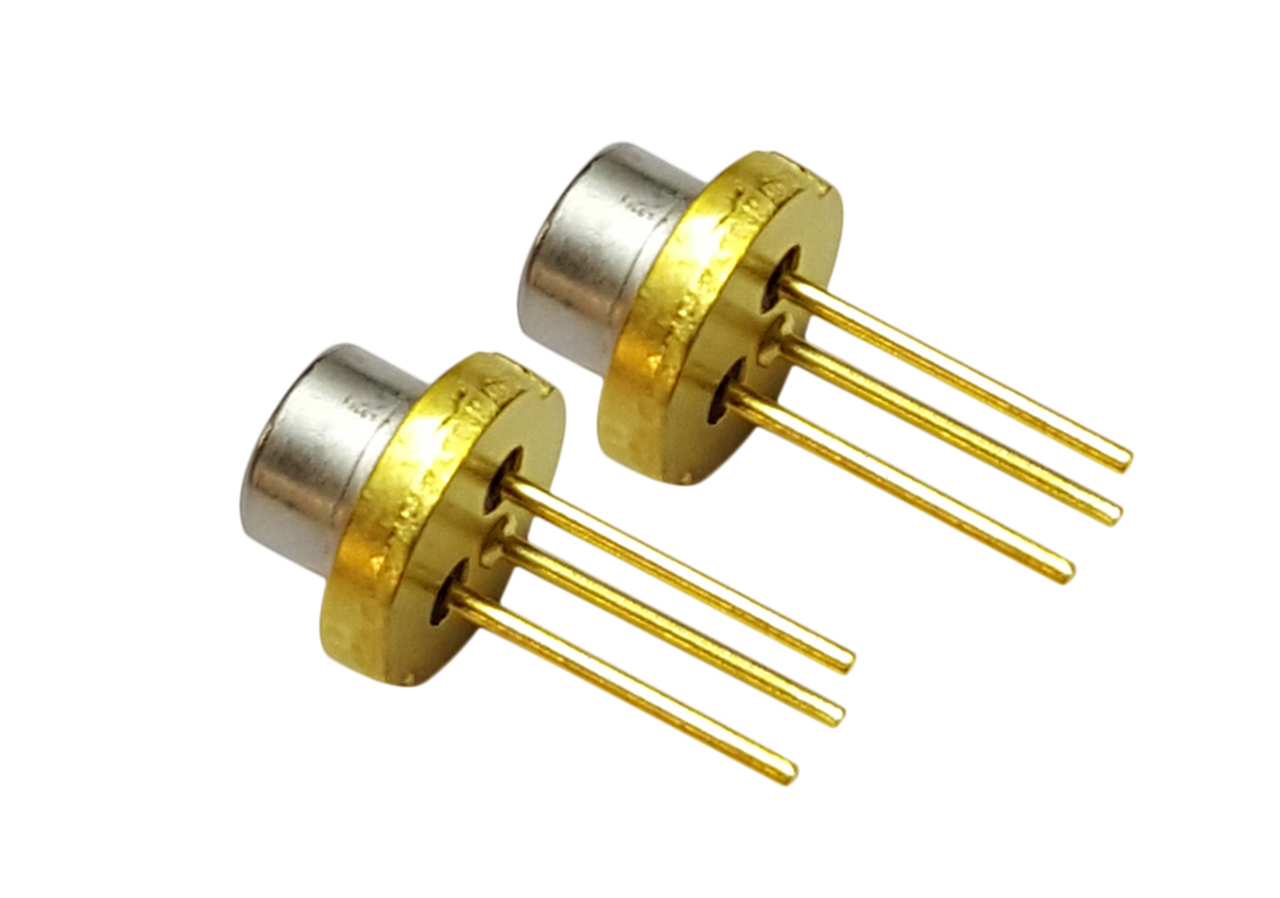

The Sharp GH04580A2G is a 450nm blue laser diode with an optical power of 80mW. It comes in a three-pin TO-can package. The package type is a 5.6mm, hermetically sealed, electrically floating package.

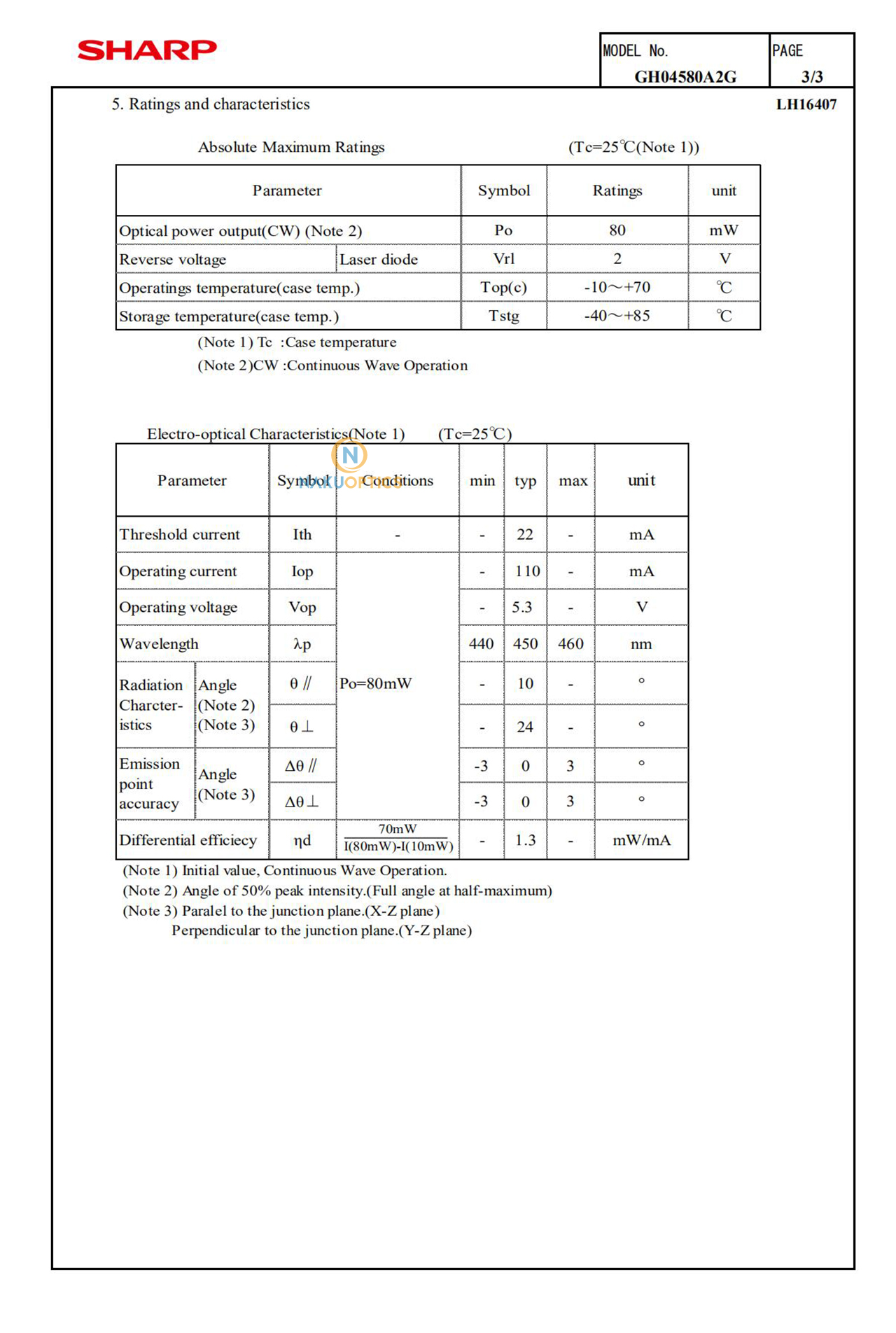

[Specifications]
Product Brand: Sharp
Product Model: GH04580A2G
Wavelength: 450nm
Output Power: 80mW
Reverse Voltage: 2V
Operating Temperature: -10 ~ +70℃
Storage Temperature: -40 ~ +85℃
