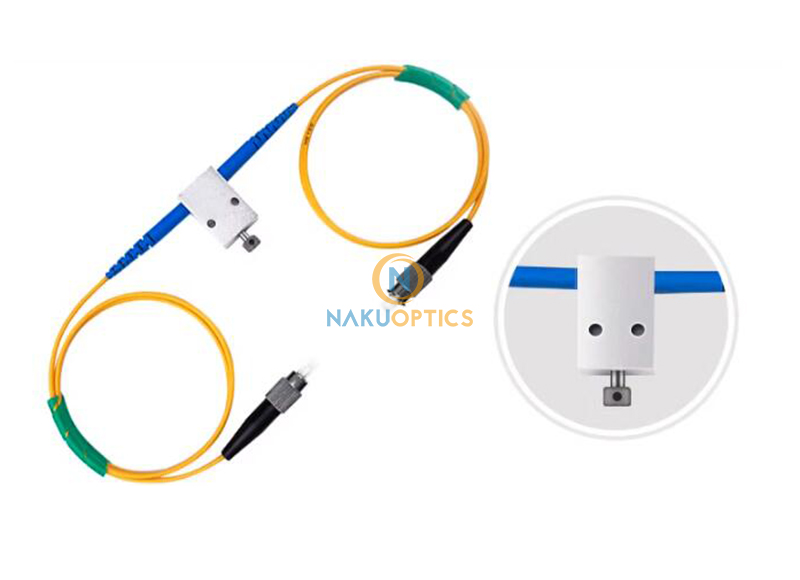

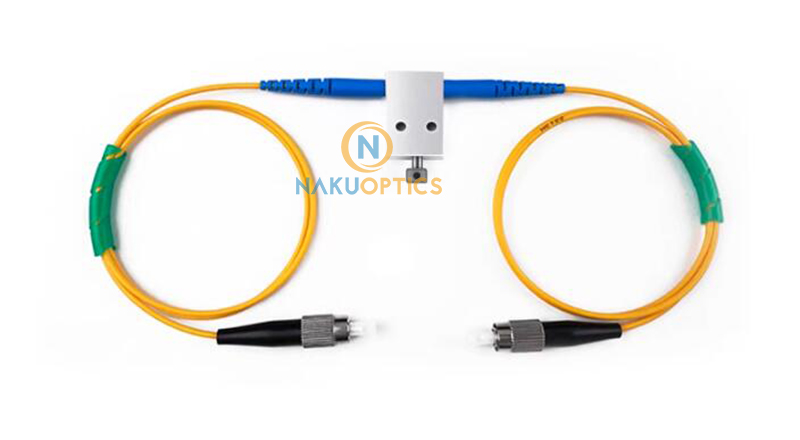

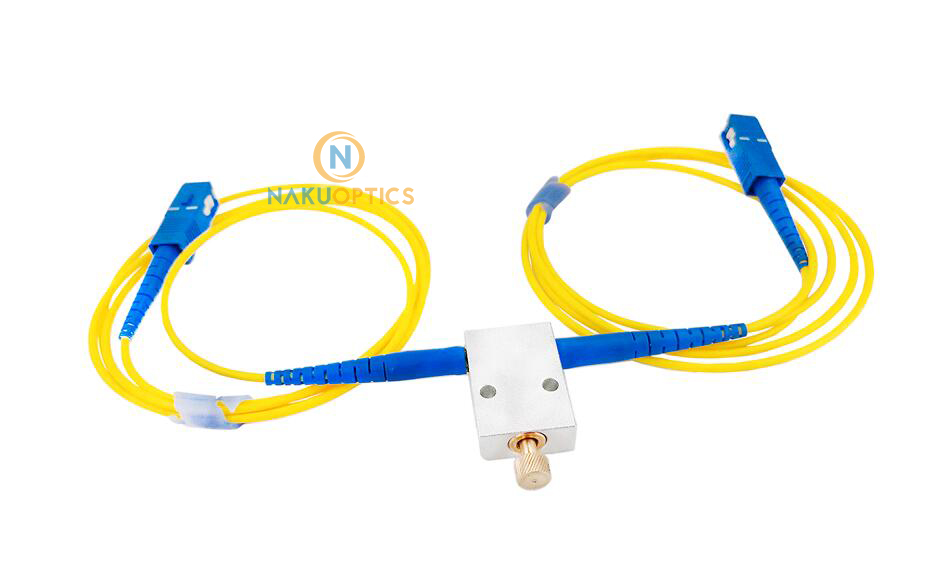

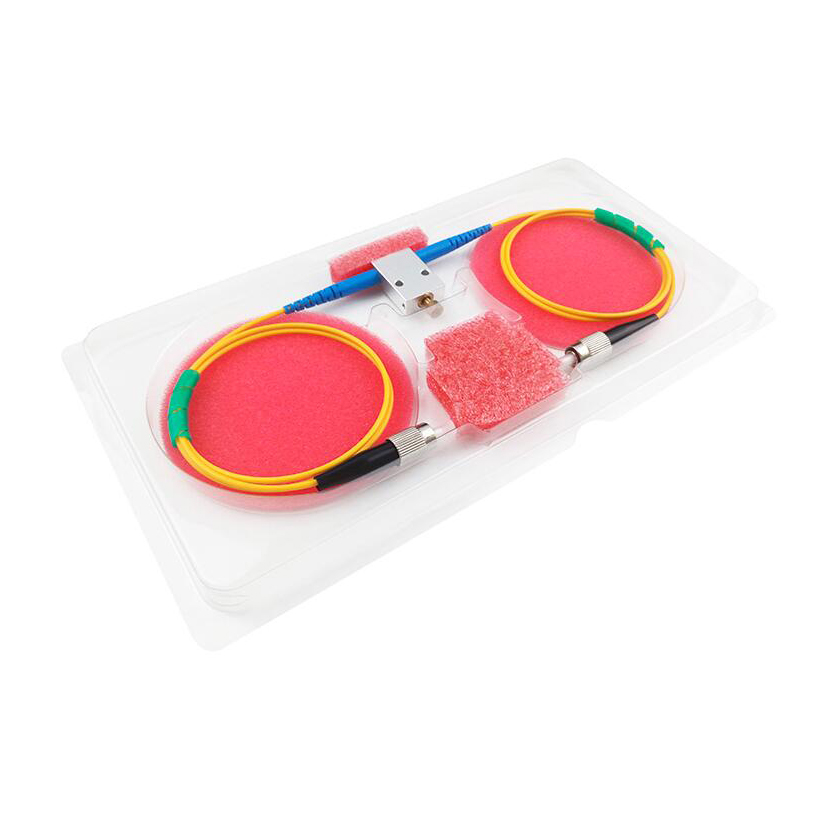

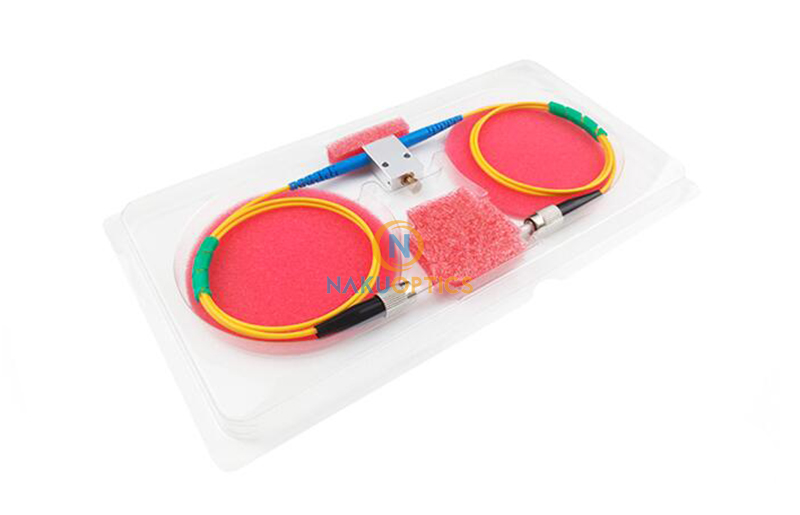

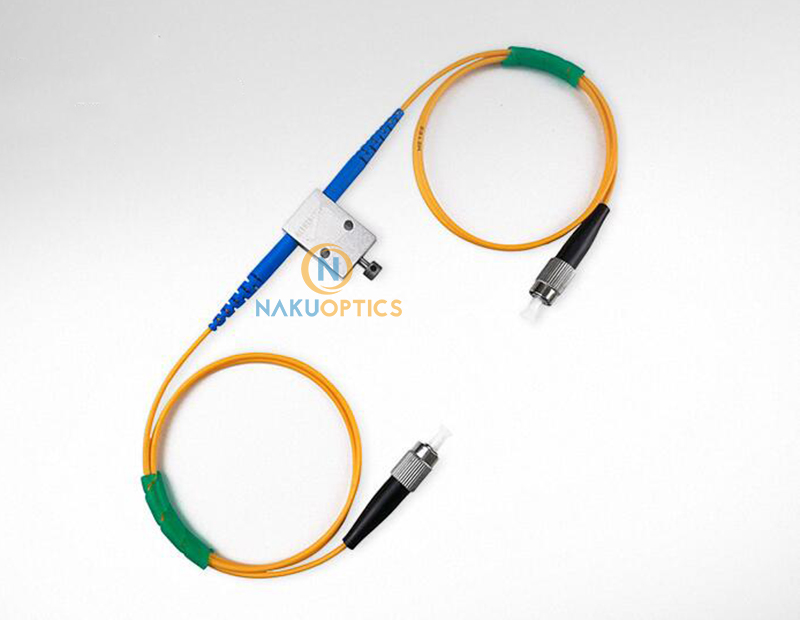

In-Line Adjustable SM Fiber Attenuator Manually Various Optical Attenuator MVOA
Product ID: 1331
$58.00 – $60.00
In-Line Adjustable SM Fiber Attenuator Manually Various Optical Attenuator MVOA
[Features]
Low insertion loss
High return loss
High stability and repeatability
Uniform light distribution
Good interchangeability
[Specifications]
| Paramter | Unit | Value |
| Operating Wavelength Range | nm | 1290~1625 |
| Insertion Loss | dB | ≤1.5 |
| Attenuation Range | dB | ≤60 |
| Attenuation Accuracy @10dB | dB | ≤0.2 |
| Attenuation Accuracy @10-45dB | dB | ≤0.3 |
| Polarization Dependent Loss PDL | dB | ≤0.2@10dB |
| Return Loss | dB | ≥55dB without connector |
| Max. Optical Power | mW | 300 |
| Operating Temperature | ℃ | -5 ~ +75 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Package Dimensions | mm | 26x13x8.5 |
Ordering Information
| Fiber Type | Tail Sleeve Type | Fiber Length | Connector Type |
| A=Single mode fiber S=Specify |
3=3mm fiber 2=2mm fiber 09=900um loose tube S=Specify |
01=1m 02=2m S=Specify |
N=None 1=FC/PC 2=FC/APC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
