1554~1607nm L-Band Interval 0.8nm 64 Multi Wavelengths Tunale Laser

1554~1607nm L-Band Interval 0.8nm 64 Multi Wavelengths Tunale Laser

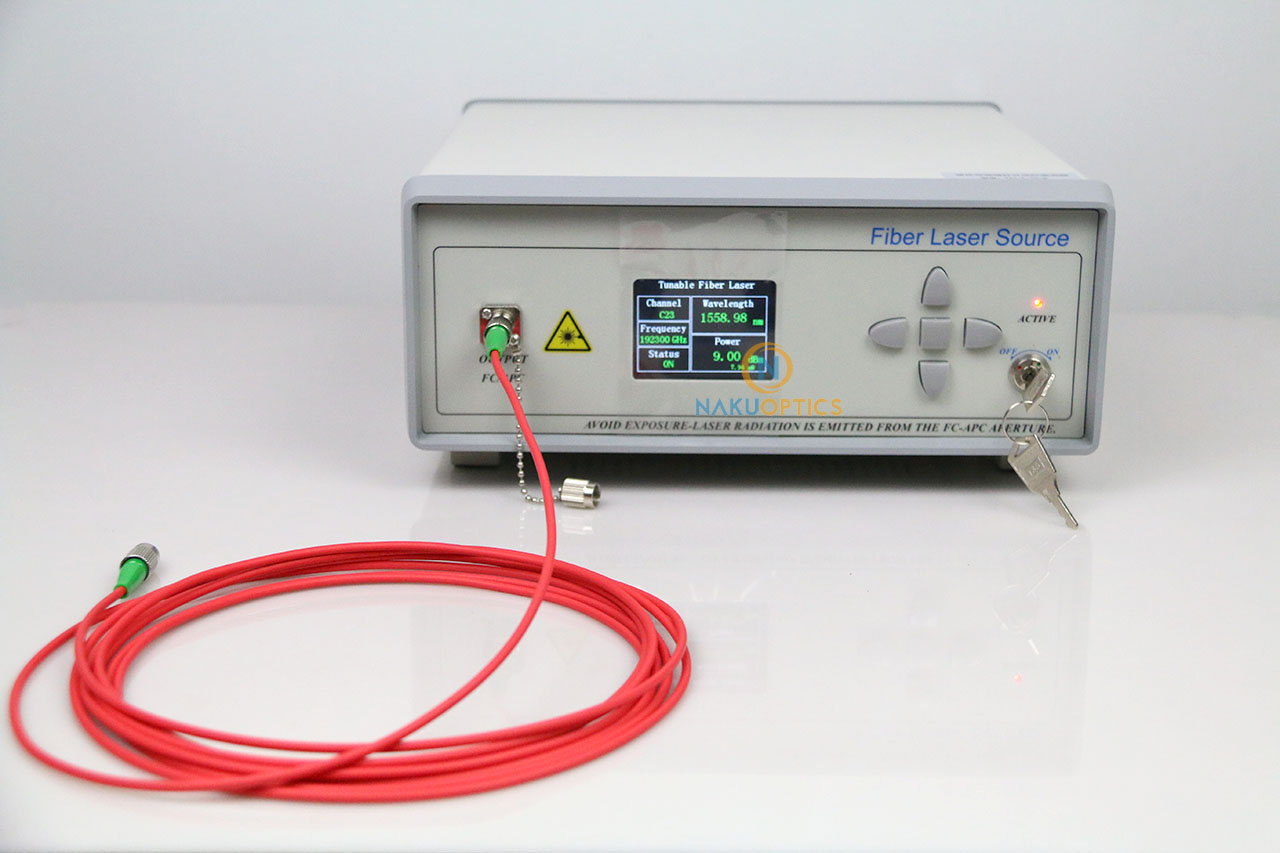

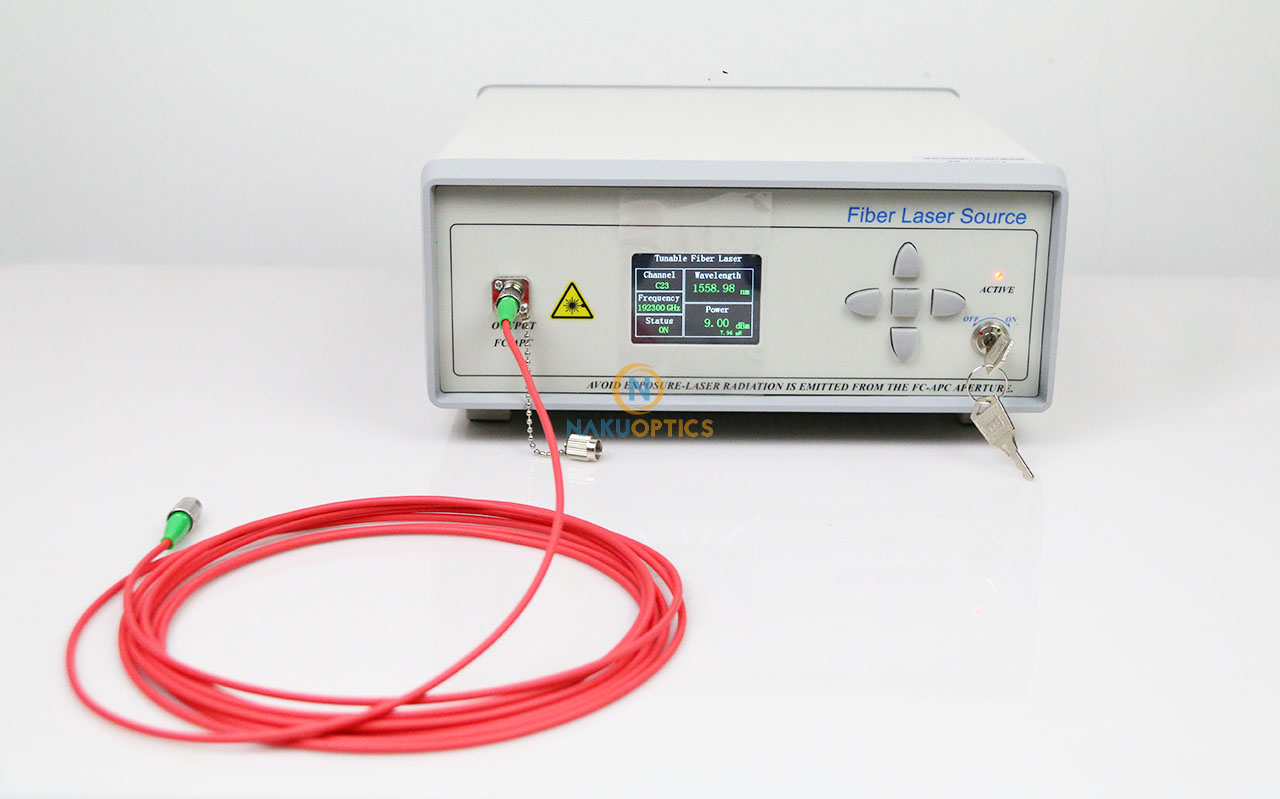

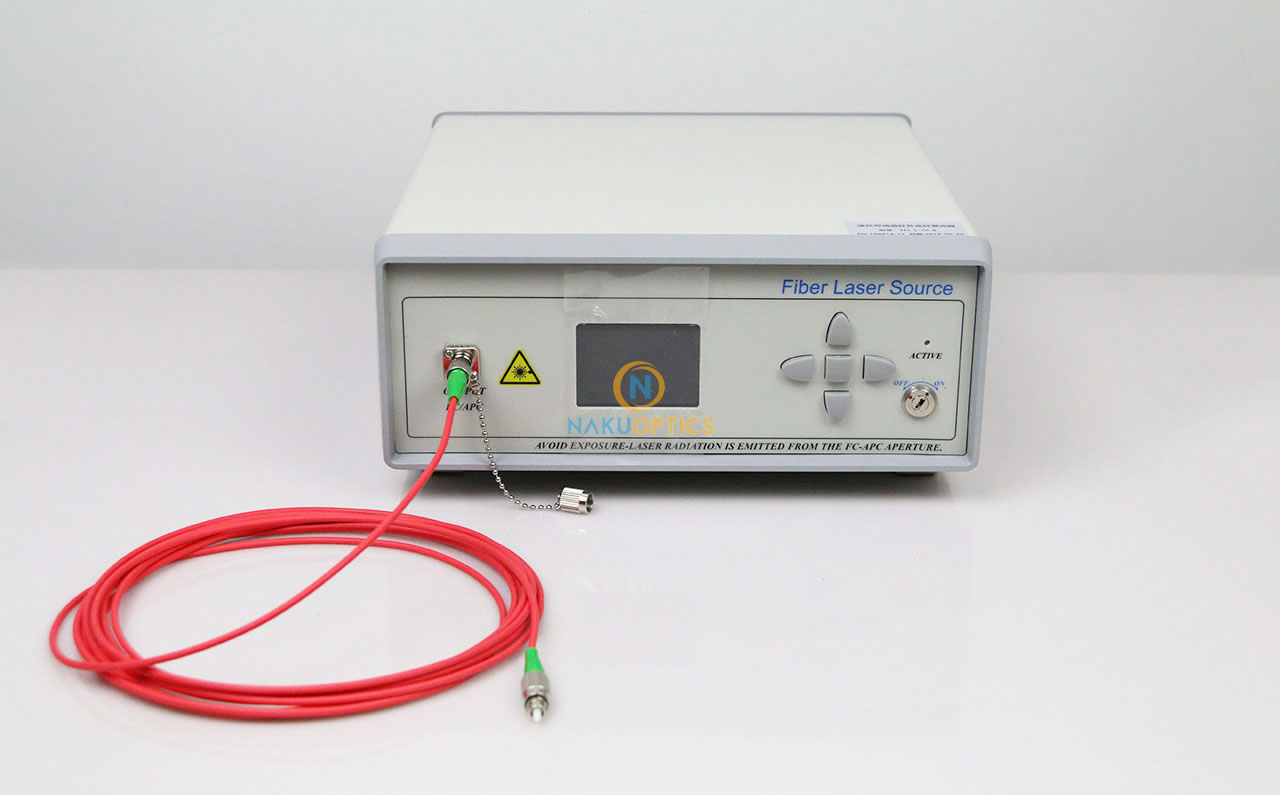

This light source has a wavelength tuning range that covers the L-band and achieves a continuous laser output of up to 64 wavelengths (ITU-T standard wavelength, wavelength interval 100 GHz). It has an integrated dual FP cavity tuning etalon and high-gain chip, with high output optical power (10mW), narrow linewidth, and high wavelength accuracy. It also has a special drive control circuit, high-definition color LCD screen, and optional control keyboard and host computer software.
The user can easily tune the wavelength accurately. This light source can be used for DWDM system development, fiber laser, fiber optic link, optical device testing, and other fields.

[Specification]

Parameters	Unit	Typical Value	Remarks
Wavelength Tuning Range	nm	1554.94~1607.46	ITU Standard C28 ~ L65
Frequency Tuning Range	THz	192.8~186.5
Channel Spacing	GHz	100	Equivalent to 0.8nm
Side Mode Suppression Ratio(SMSR)	dB	>50
Wavelength Channels	—	64
Output Optical Power	mW	10	7~10mW Tunable
Short-term Stability (15 minutes)	dB	≤ 0.02	Single wavelength full temperature
Long-term Stability (8 hours)	dB	≤ 0.05	Single wavelength full temperature
Pigtail Fiber Type	—	SMF-28e / PM1550	Choose
Fiber Interface Type	—	FC/APC



Electrical and environmental parameters	DeskTop Type
Control Method	Button
Communication Interface	DB9 Female(Default not include)
Power Supply	100~240V AC, <30W
Size	260(W)×280(D)×120(H)mm
Operating Temperature Range	-5~+35°C
Operating Humidity Range	0~70%
