5G Fronthaul Passive Wavelength Division Multiplexer 1260-1620nm 18 Channels Chip Type CWDM

Product ID: 1820


$205.00

5G Fronthaul Passive Wavelength Division Multiplexer 1260-1620nm 18 Channels Chip Type CWDM

[Specifications]

Parameters Unit Value
Operating Wavelength nm 1260-1620
Channel Number 18
Center Wavelength  λc nm 1271, 1291, 1311, 1331, 1351, 1371,
1471, 1491, 1511, 1531, 1551, 1571
(wavelength can be customized.)
Channel Spacing nm 20
Channel Pass Band for CWDM Channel nm ITU+/-7.5
CWDM Center Wavelength Accuracy nm +/-3.5
CWDM Channel Insertion Loss dB ≤4.0
CWDM Channel Ripple dB ≤0.5
Adjaccent Channel Isolation dB >30
Non-Adjaccent Channel Isolation dB >40
Insertion Loss Thermal Stability dB/℃ ≤0.005
Wavelength Thermal Stability nm/℃ ≤0.002
Polarization Dependent Loss dB ≤0.2
PMD ps ≤0.2
Return Loss dB ≥45
Dierctivity dB ≥45

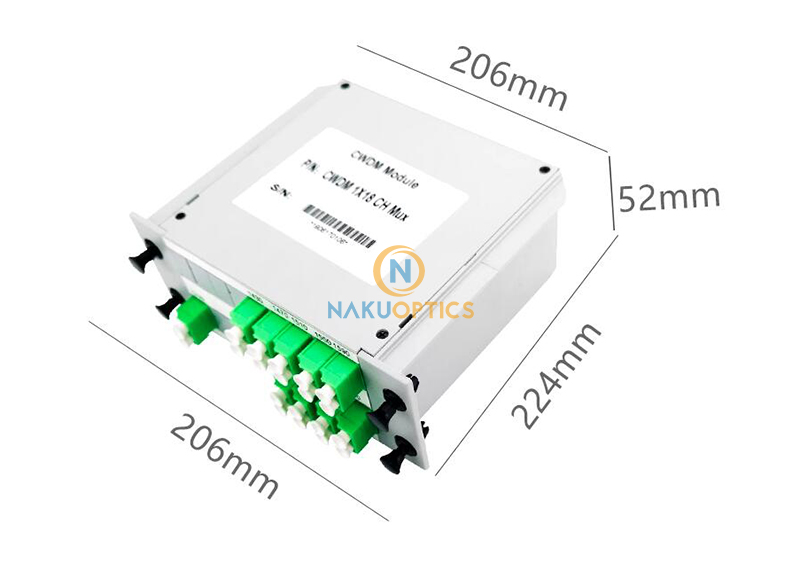

18CH CWDM

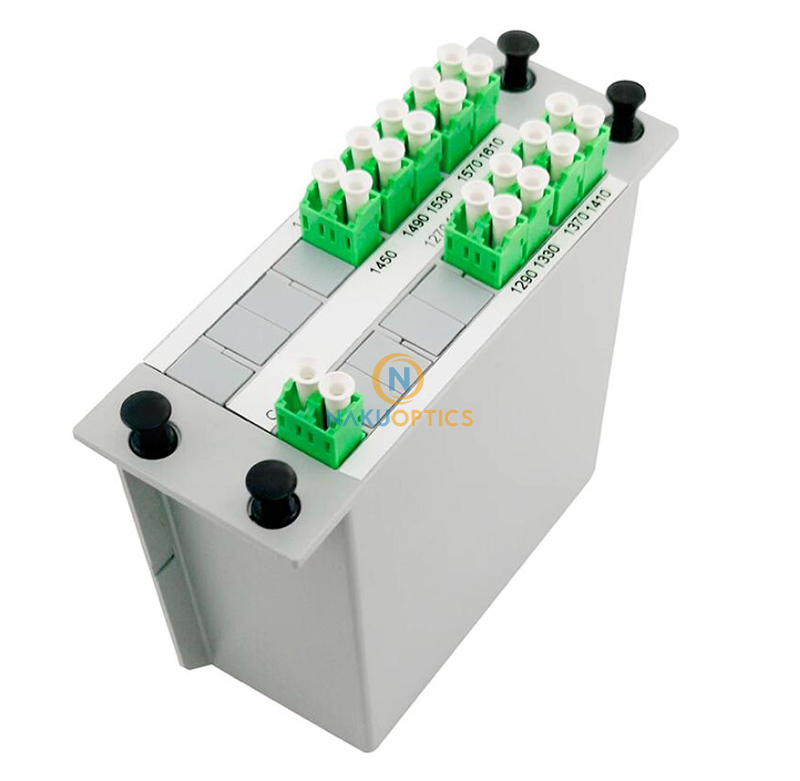

18CH CWDM

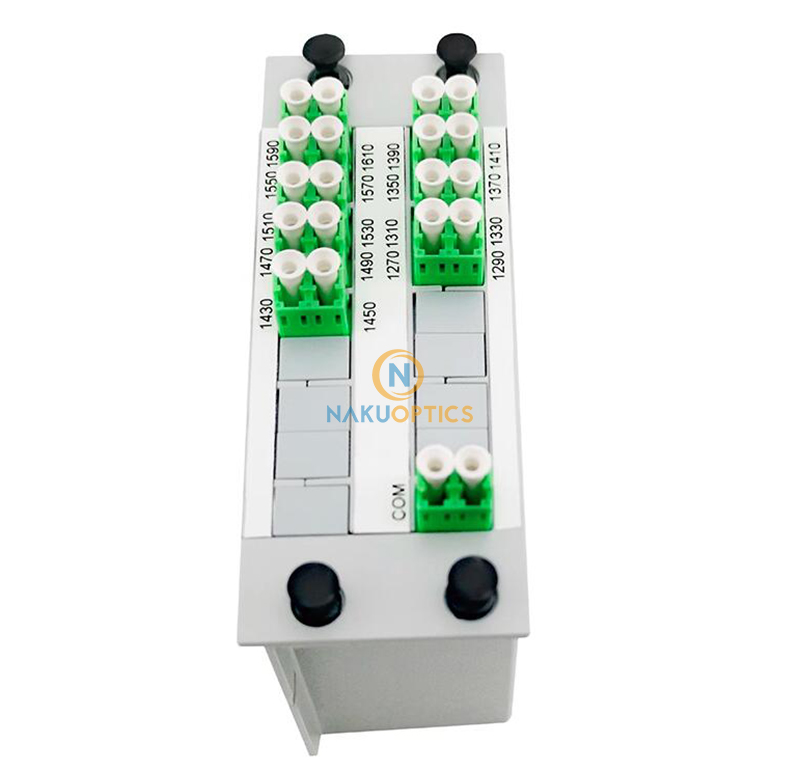

18CH CWDM

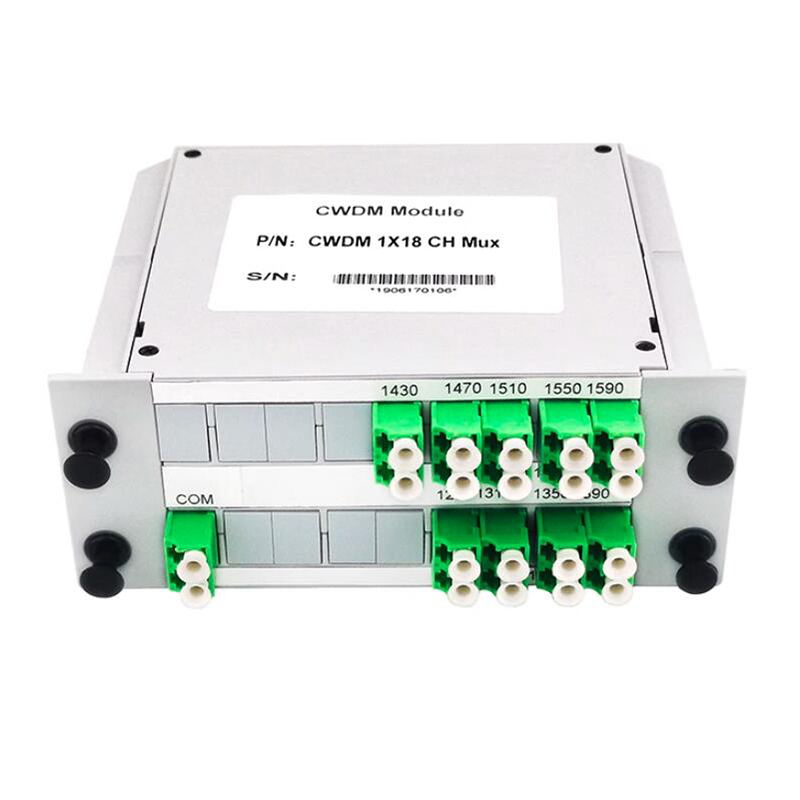

18CH CWDM

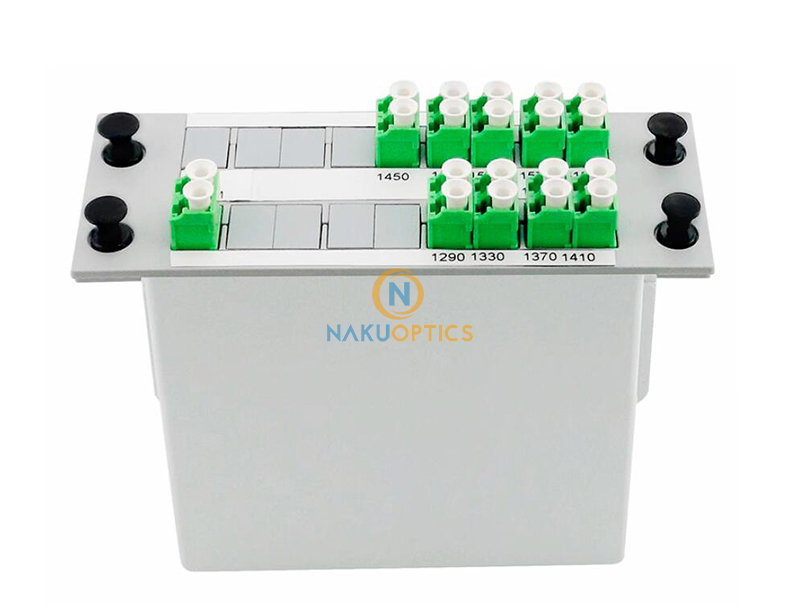

18CH CWDM

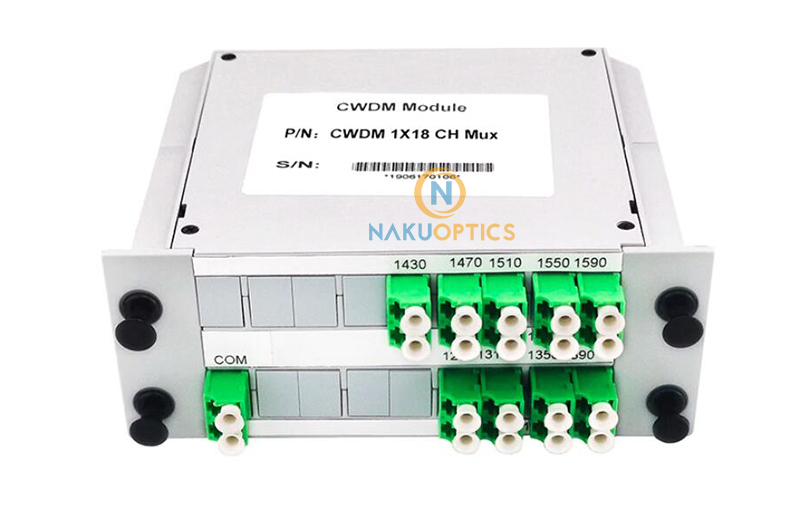

18CH CWDM

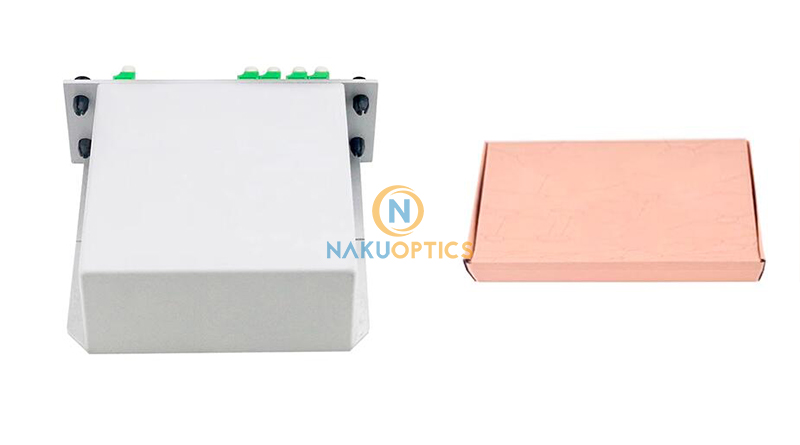

18CH CWDM

SKU: P1820 Category: Tag:
Weight 5.07 kg
