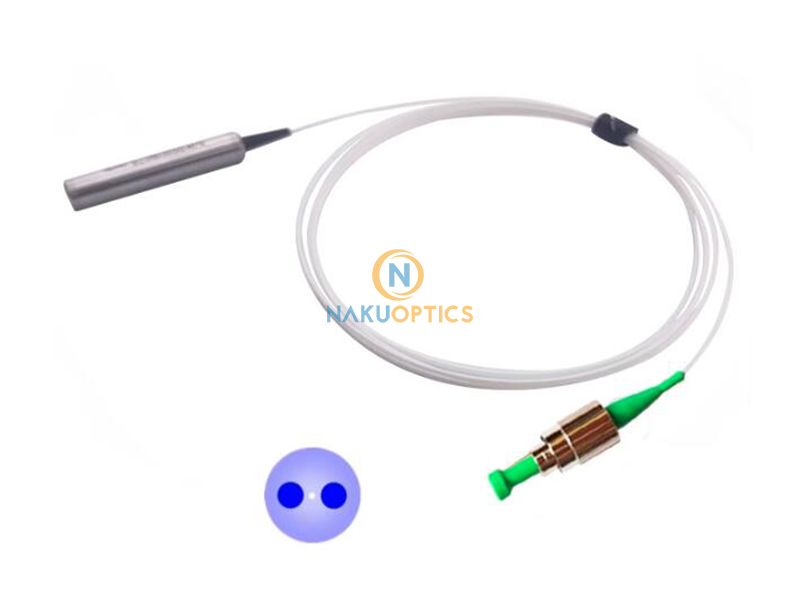

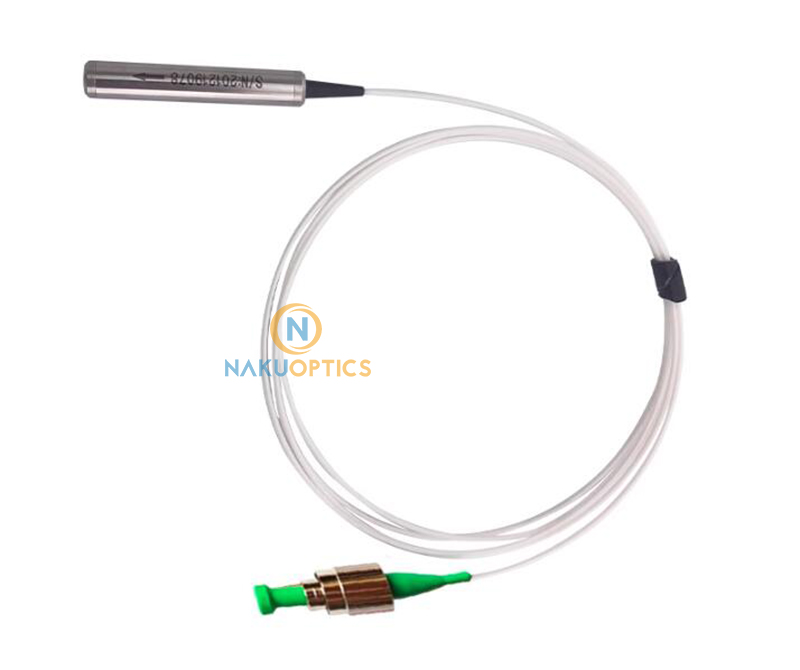

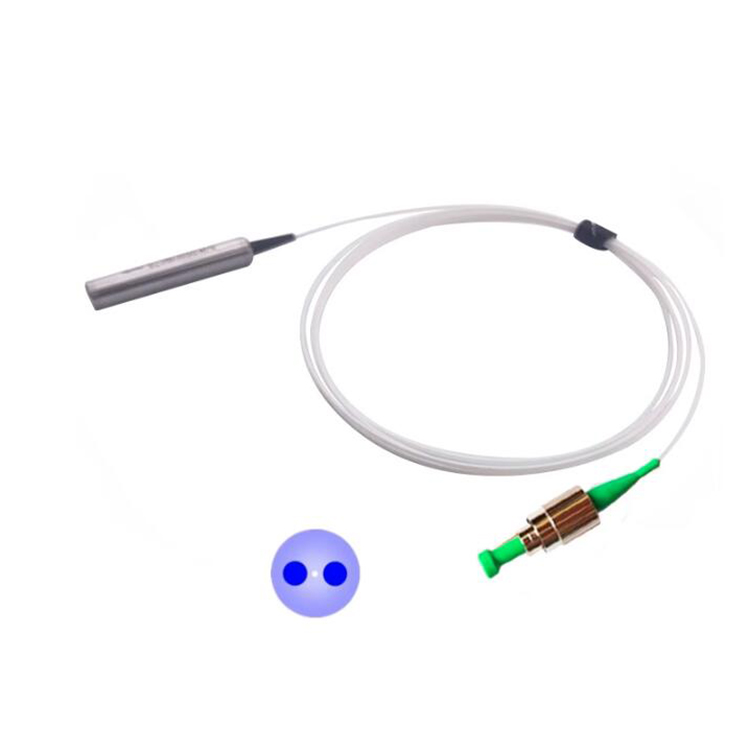

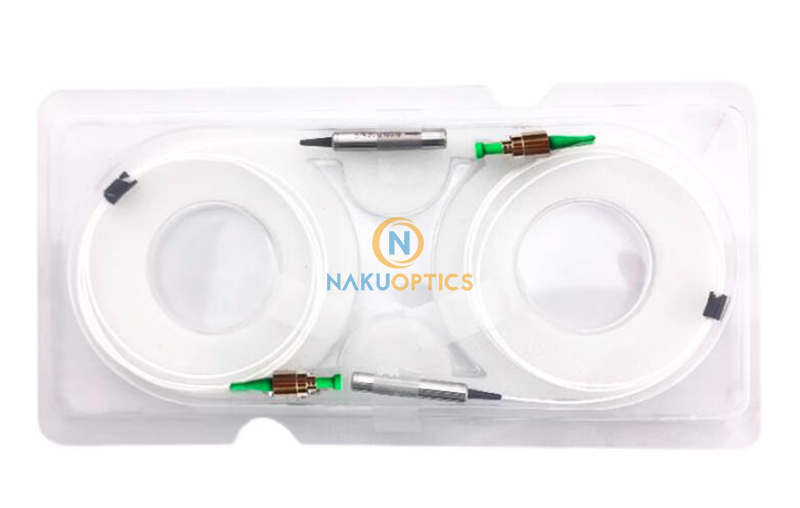

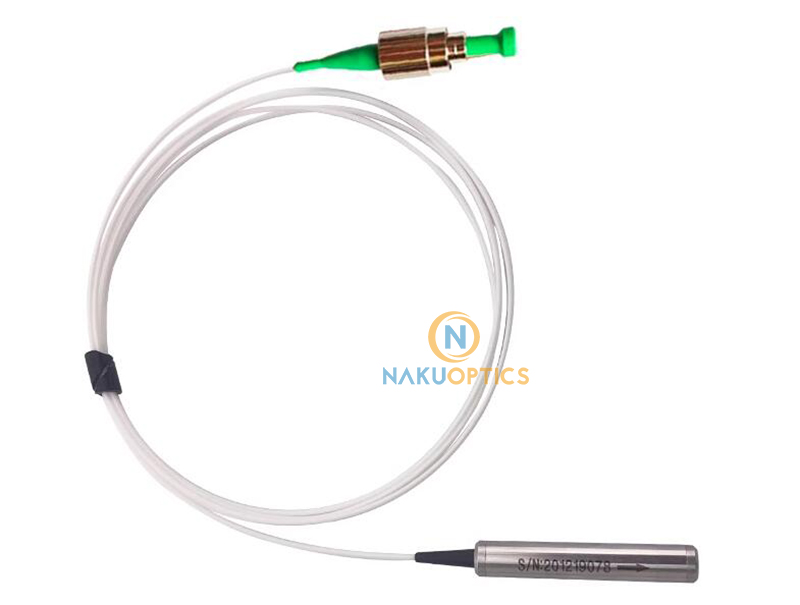

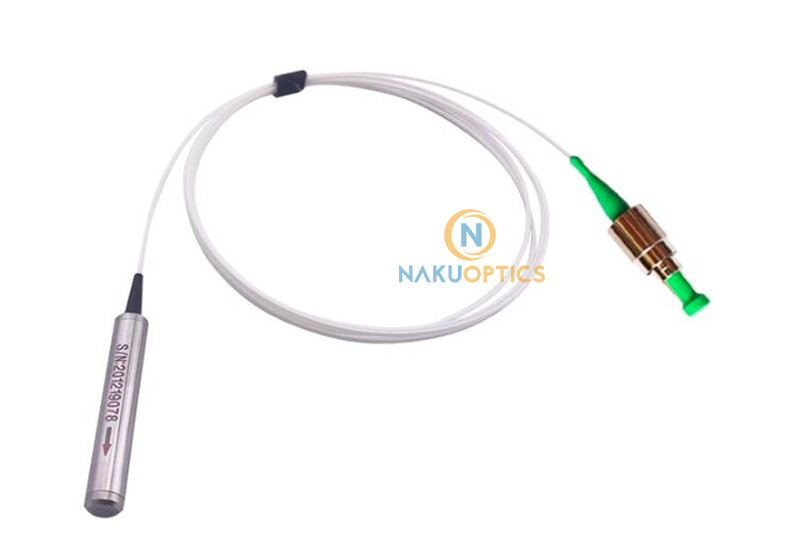

Faraday Rotating Mirror, PM Faraday Mirror
1310nm 1550nm Polarization-maintaining Faraday Rotating Mirror Fiber Faraday Mirror FC/APC
Product ID: 1289
$182.00
1310nm 1550nm Polarization-maintaining Faraday Rotating Mirror Fiber Faraday Mirror FC/APC
[Features]
Low insertion loss
High return loss
Good interchangeability
High stability and reliability
[Specifications]
| Parameter | Unit | Value |
| Center Wavelength | nm | 1550 |
| Working Bandwidth | nm | Ā±15 |
| Typical Insertion Loss | dB | 0.4 |
| Max. Insertion Loss | dB | 0.6 |
| Rotation Angle | degree | 45 |
| Rotation Angle Error | degree | Ā±1 |
| Polarization Dependent Loss | dB | 0.1 |
| Power Handling | mW | 300 |
| Polarization Dependent Loss | dB | 0.1 |
| Fiber Type | Panda type PM fiber | |
| Fiber Length | m | 1 or others |
| Connector Type | FC/APC or others | |
| Max. Tension | N | 5 |
| Package Dimensions | mm | Ī¦5.5*L35 |
| Operating Temperature | ā | -5 ~ +70 |
| Storage Temperature | ā | -40 ~ +85 |
The test environment is 23ā;
If more connectors are added, the insertion loss increases by 0.3dB, the return loss decreases by 5dB, and the extinction ratio of polarization-maintaining products decreases by 2dB.
Ordering Information
| Working Wavelength | Withstand Power CW | Fiber Type | Pigtail Length | Tail Sleeve Type | Connector Type |
| 1310=1310nm 1480=1480nm 1550=1550nm S=Others |
00=300mW 01=1W S=Others |
Panda type PM fiber 2=Others |
08=0.8m 10=1.0m 15=1.5m S=Others |
B=250um bare fiber L=900um loose tube S=others |
N=None FU=FC/PC FA=FC/APC SU=SC/PC S=Others |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Weight | 5.01 kg |
|---|---|
| Wavelength | 1310nm, 1550nm |
