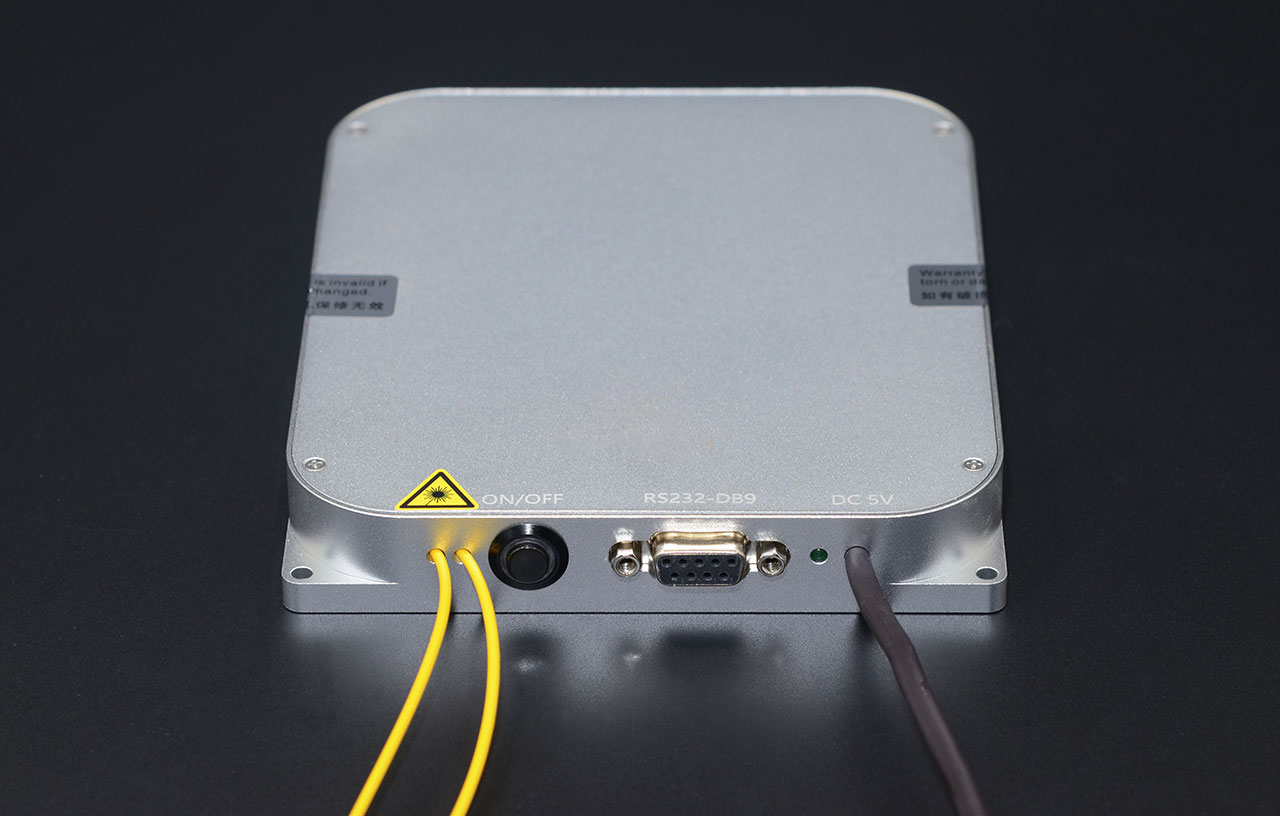

300mW Pump Laser RFA 2nd Order Distributed Fiber Raman Amplifier
Product ID: 737
$3,673.00
300mW Pump Laser RFA 2nd Order Distributed Fiber Raman Amplifier
The second-order fiber Raman amplifier is an extension of the first-order fiber Raman amplifier. It adds a pump laser in the 13xx nm band to provide Raman gain for the first-order Raman 14xx nm laser. This effectively reduces system noise and is suitable for more optical signal amplification for long-distance unrepeatered optical transmission systems. The second-order fiber Raman amplifier needs to be used together with the first-order fiber Raman amplifier.
[Features]
Wide wavelength range
High gain factor
Low noise figure
[Application]
Long distance fiber optic communication
Fiber Distributed Sensing
Fiber laser
[Specifications]
|
Parameters |
Unit |
Typical value |
Remarks |
| Model |
— |
FRA-1450-300 |
|
| Pump Wavelength |
nm |
1340~1360 |
The pump wavelength is customized according to the signal wavelength (1340/1360nm). |
| Signal Wavelength |
nm |
1425~1465 |
Please tell us the actual signal wavelength used before customizing. |
| Raman Gain |
dB |
10/20 |
|
| Gain Flatness |
dB |
<2 |
|
| Pump Power |
mW |
300 |
|
| Pump Light Polarization(DOP) |
— |
5% (Typical)，10%(Max) |
|
| Polarization Dependent Gain(PDG) |
dB |
<0.2 |
|
| Polarization Mode Dispersion(PMD) |
ps |
<0.5 |
|
| Input/Output Isolation |
dB |
>35 |
|
| Noise Figure |
dB |
0 |
|
| Pigtail Fiber Type |
— |
SMF-28 Single Mode fiber |
|
| Pigtail Connector Type |
— |
FC/APC |
|
| Work mode |
— |
Automatic Pump Power Control (APPC) |
|
|
Electrical and Environmental Parameters |
Module Type |
| Control method |
RS232 Serial communication |
| Communication interface |
DB25 Female |
| Power supply |
DC 12V 3A |
| Size |
125(W)×150(D)×30(H)mm |
| Operating temperature range |
-5~+35°C |
| Operating humidity range |
0~70% |
.jpg)
| Weight | 5.71 kg |
|---|
