780nm Single-mode Fiber Optic Collimator G/C-Lens SM/PM Gold-plated Tube Collimator
Product ID: 1672
$91.00 – $112.00
780nm Single-mode Fiber Optic Collimator G/C-Lens SM/PM Gold-plated Tube Collimator
[Features]
Compact structure
Low insertion loss
High stability and reliability
[Specifications]
| Prameter | Unit | Value |
| Center Wavelength | nm | 780 |
| Working Bandwidth | nm | ±20 |
| Working Distance | mm | 5~100 |
| Spot Size(1/e²) | mm | ≤0.6 |
| Typical Insertion Loss @23℃ | dB | 0.4 |
| Max Insertion Loss @23℃ | dB | 0.6 |
| Return Loss | dB | ≥50 |
| Polarization Dependent Loss | dB | ≤0.2 |
| Withstand Power CW | W | 0.3 (1/5/10 … customizable) |
| Fiber Type | 780-HP (Customizable) | |
| Fiber Length | m | 1 (Customizable) |
| Connector | FC/APC (Customizable) | |
| Max Tensile Load | N | 5 |

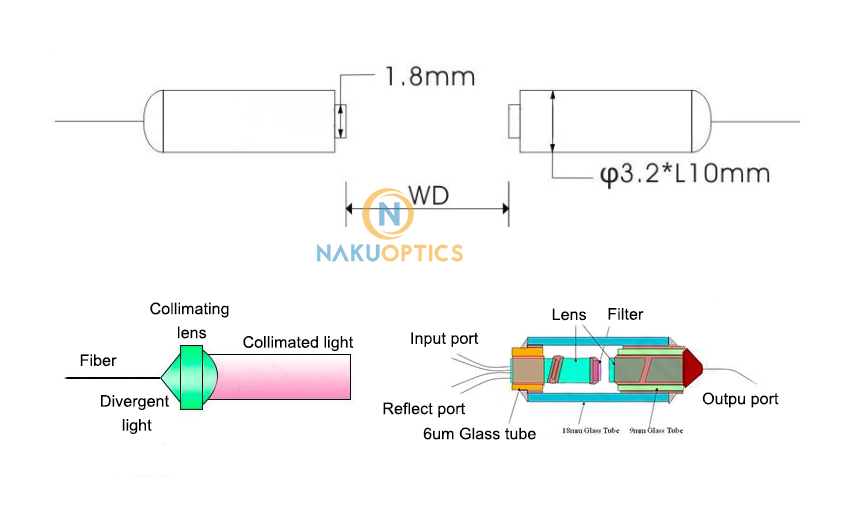

| Package Dimension | mm | Φ3.2*L10 (Glass plated tube package: Φ2.8*L9) |
| Operating Temperature | ℃ | -5 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
*The test environment is 23℃;
*The above test data does not include connectors. If connectors are added, the insertion loss will increase by 0.8dB and the return loss will decrease by 5d8.
Ordering Information
| Wavelength | Working Distance | Package | Withstand Power | Fiber Type | Pigtail Length | Tail Sleeve Type | Connector |
| 780=780nm 808=808nm 850=850nm S=Specify |
05=5mm 50=50mm S=Specify |
1=Glass sleeve 2=Gold plated sleeve |
00=300mW 01=1W S=Specify |
H7=780-HP S=Specify |
08=0.8m 10=1.0m 15=1.5m S=Specify |
B=250um bare fiber L=900um loose tube S=Specify |
N=None FA=FC/APC FP=FC/PC SA=SC/APC SP=SC/PC S=Specify |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
