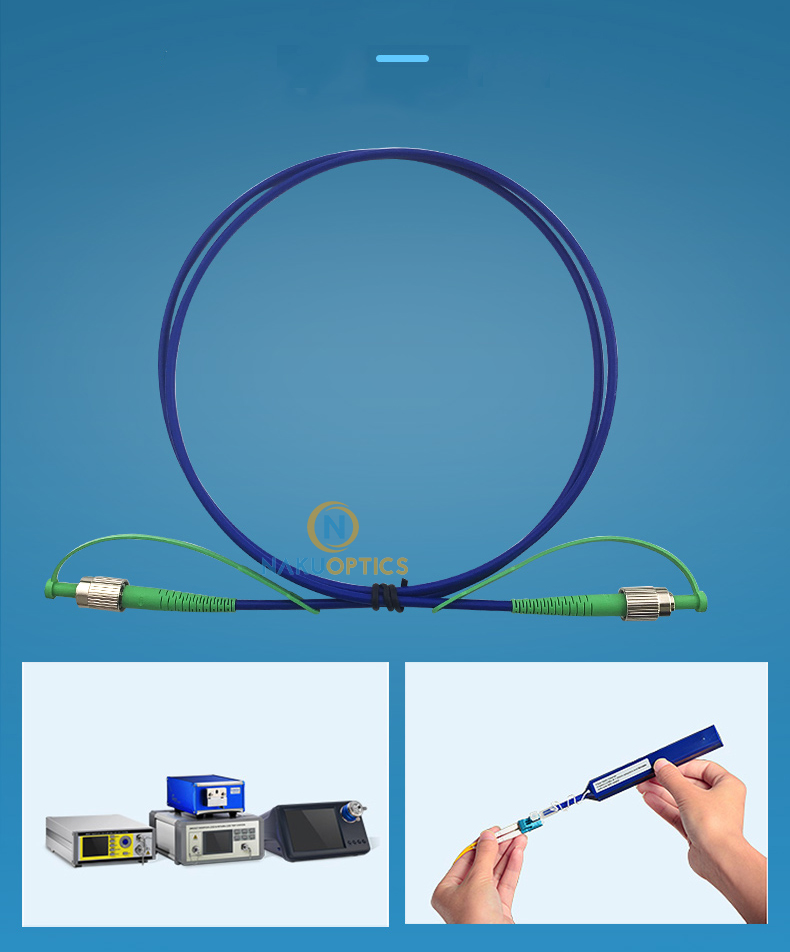

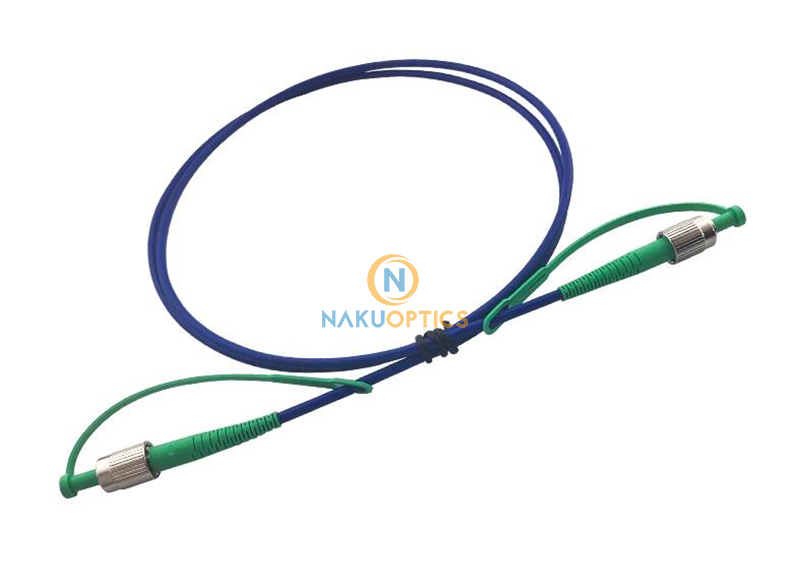

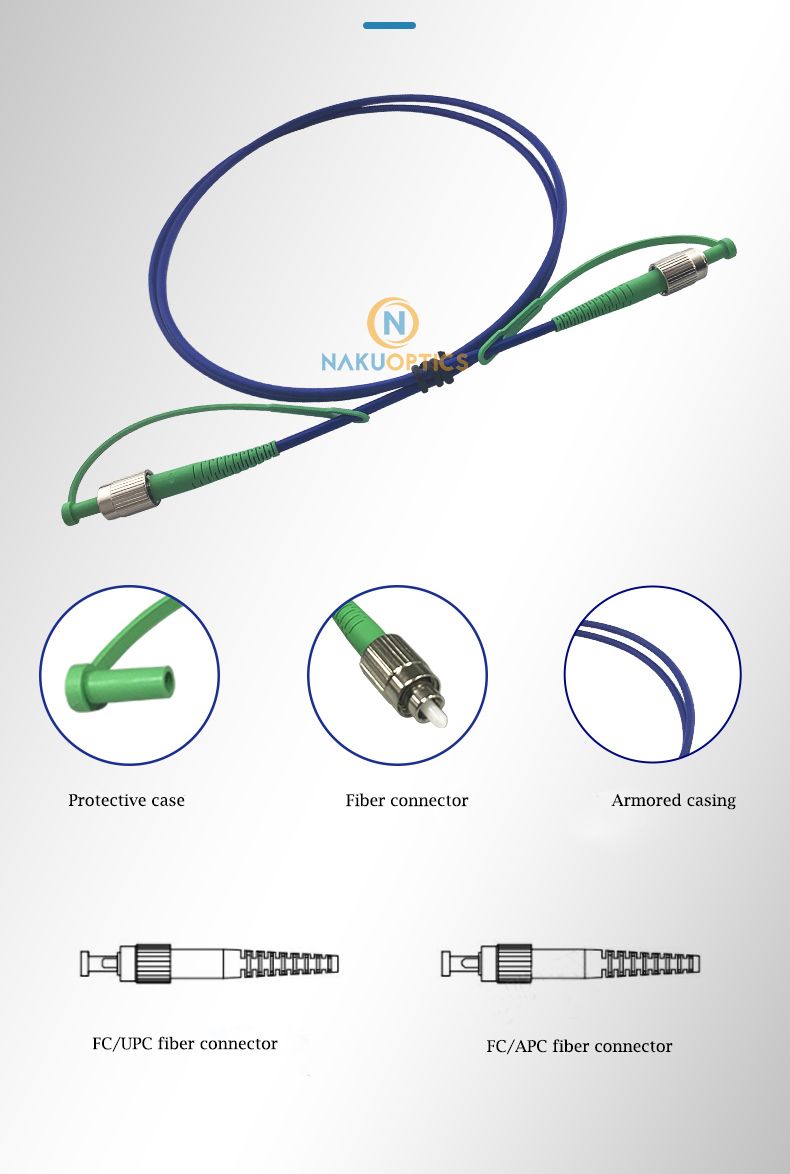

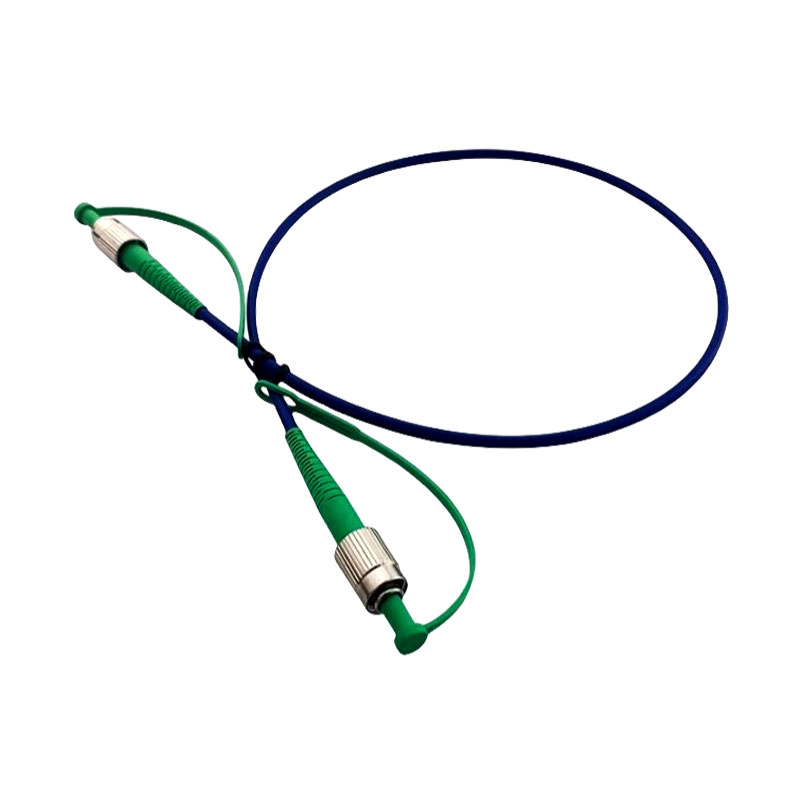

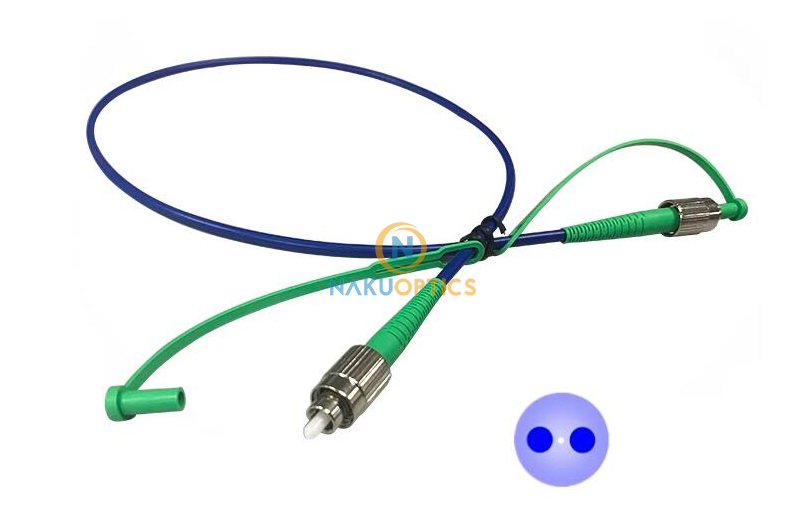

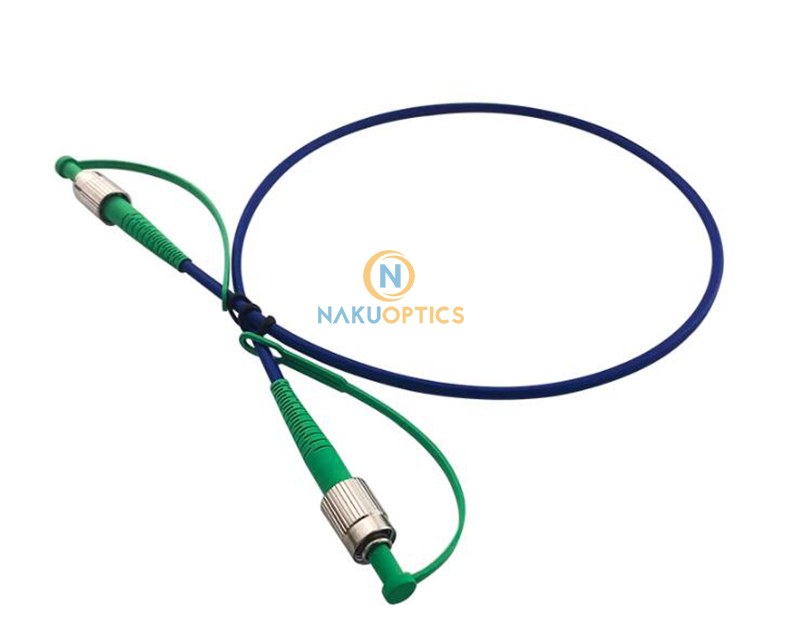

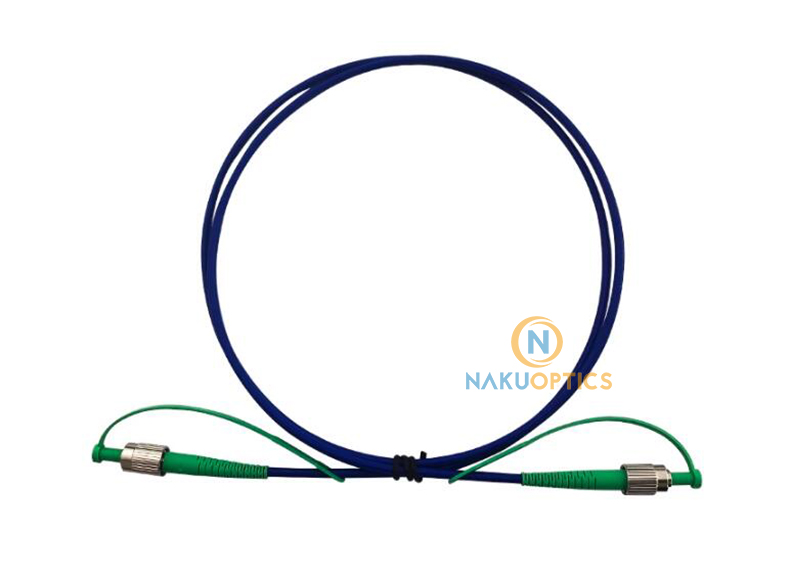

Armored Fujikura PM Fiber Jumper 2.0 Armored Sleeve FC Panda Fiber

Product ID: 1184


$54.00

Armored Fujikura PM Fiber Jumper 2.0 Armored Sleeve FC Panda Fiber

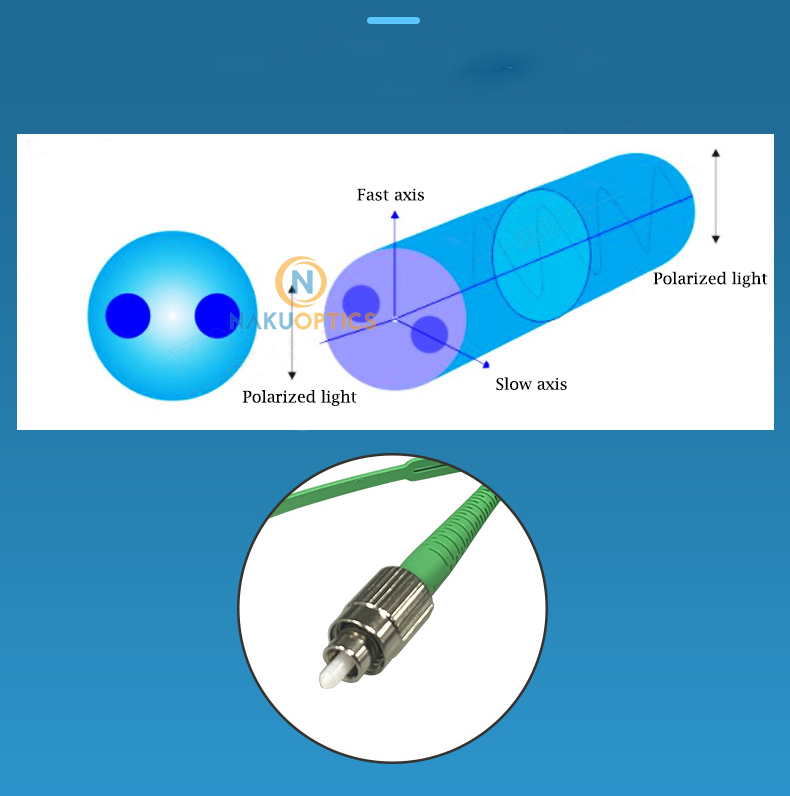

The polarization-maintaining fiber is manufactured using PCVD (plasma chemical vapor deposition) process and has the characteristics of precise refractive index distribution, good cross-sectional geometric symmetry, good longitudinal uniformity, and excellent optical performance. The polarization-maintaining fiber uses a UV-cured double coating structure. The optical fiber has stable environmental performance and can work in the temperature range of -50°C to +80°C. It is widely used in optical fiber communication, optical fiber sensing, optical devices and other fields.

Note:
The length can be customized, please contact us if you need other lengths.

[Features]
Low attenuation
Good polarization maintaining performance
Good interchangeability
Good isolation effect
Good repeatability
High stability

[Specifications]

Fiber Type PM980 125-25/250 PM1310 125-13/250 PM14XX 125-13/250 PM1550 125-13/250 PMF980 125-12/250_C PMF1310 125-13/250_C PMF1550 125-13/250_C
Fiber model PM1015-A PM1016-C PM1018-A PM1017-C PM1015-A+ PM1016-C+ PM1017-C+
Working wavelength (nm) 980 1310 1400-1490 1550 980 1310 1550
Mode field diameter(μm) 6.5±1.0 9.5±1.0 9.8±1.0 10.5±1.0 6.5±1.0 9.0±1.0 10.5±1.0
Attenuation (dB/km) ≤2.5 ≤0.5 ≤0.5 ≤0.5 ≤2.5 ≤0.5 ≤0.5
Beat length (mm) ≤3.0 ≤4.0 ≤4.5 ≤5.0 3.0~5.0 3.0~6.0 4.5~8.0
Crosstalk (dB/4m) ≤-40 ≤-40 ≤-40 ≤-40 ≤-30 ≤-30 ≤-30
Crosstalk (dB/100m) ≤-30 ≤-30 ≤-30 ≤-30 ≤-20 ≤-25 ≤-25
Cladding diameter (μm) 125.0±1.0 125.0±1.0 125.0±1.0 125.0±1.0 125.0±1.0 125.0±1.0 125.0±1.0
Coating diameter (μm) 245.0±7.0 245.0±7.0 245.0±7.0 245.0±7.0 245.0±7.0 245.0±7.0 245.0±7.0
Operating Temperature (℃) -50 ~ +80

PM fiber jumper

PM fiber jumper

PM fiber jumper

PM fiber jumper

PM fiber jumper

PM fiber jumper

PM fiber jumper

SKU: P1184 Category: Tag:
Weight 1.72 kg
