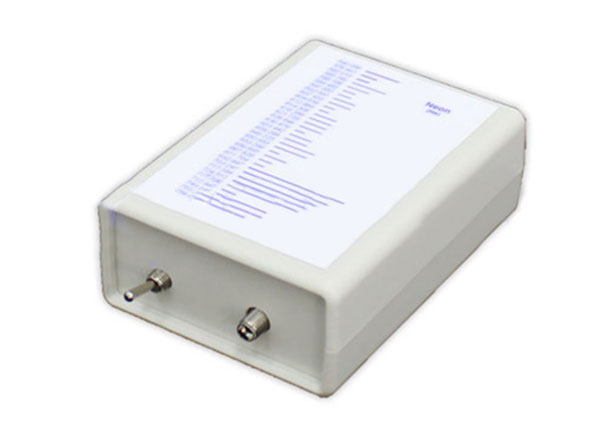

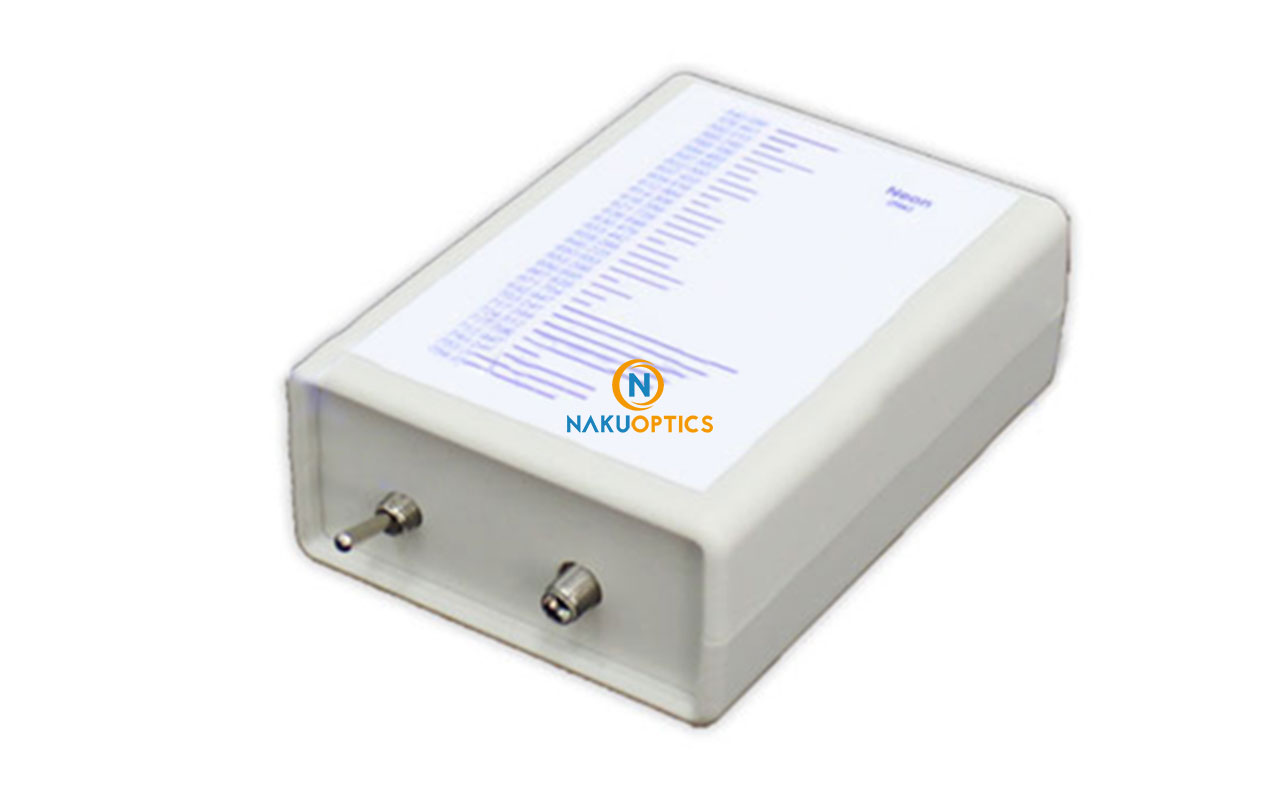

NE-1 Neon Light Fiber Output Wavelength Calibration Light Source

Product ID: 711


NE-1 Neon Fiber Laser Source Wavelength Calibration Light Source

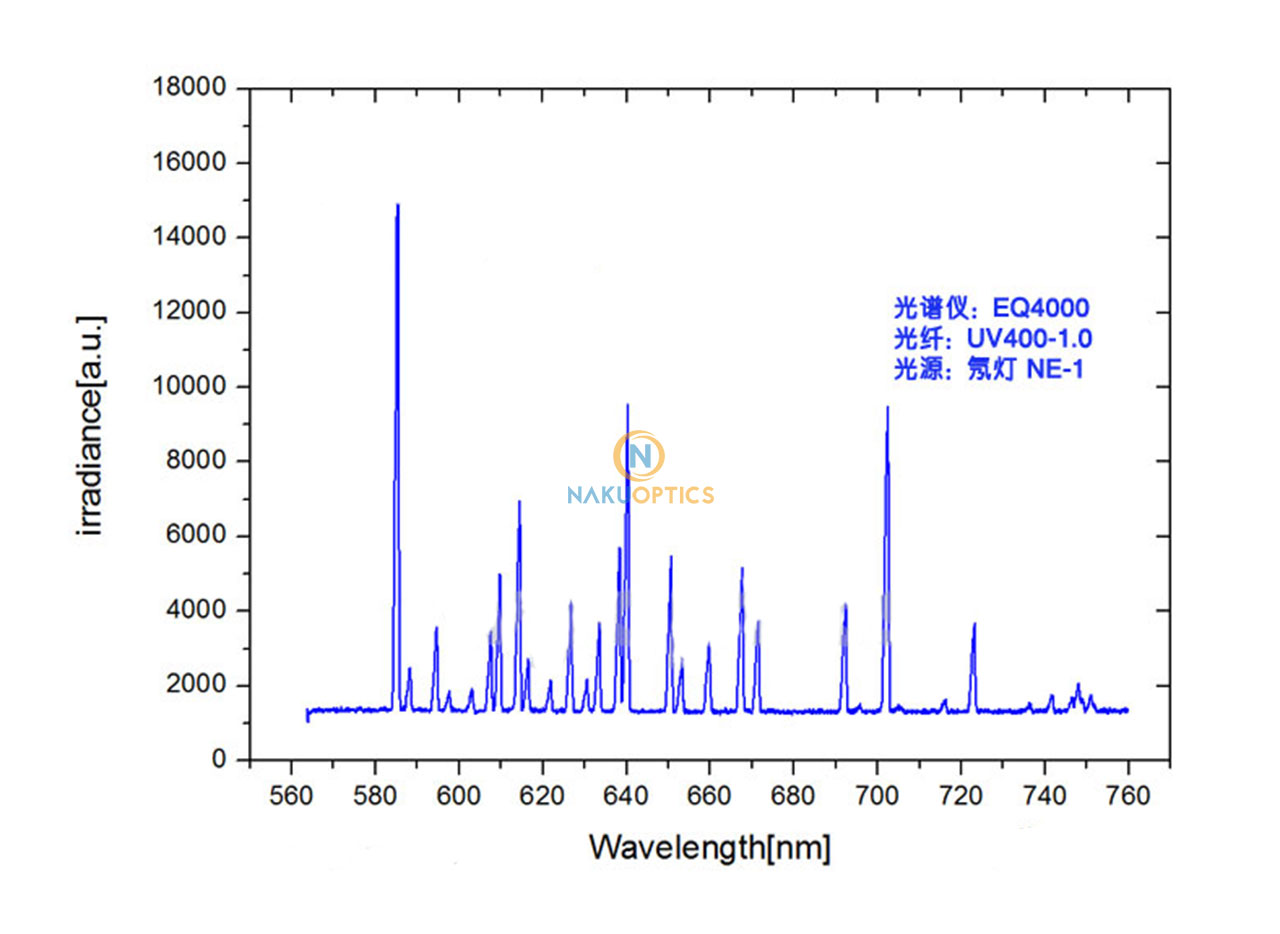

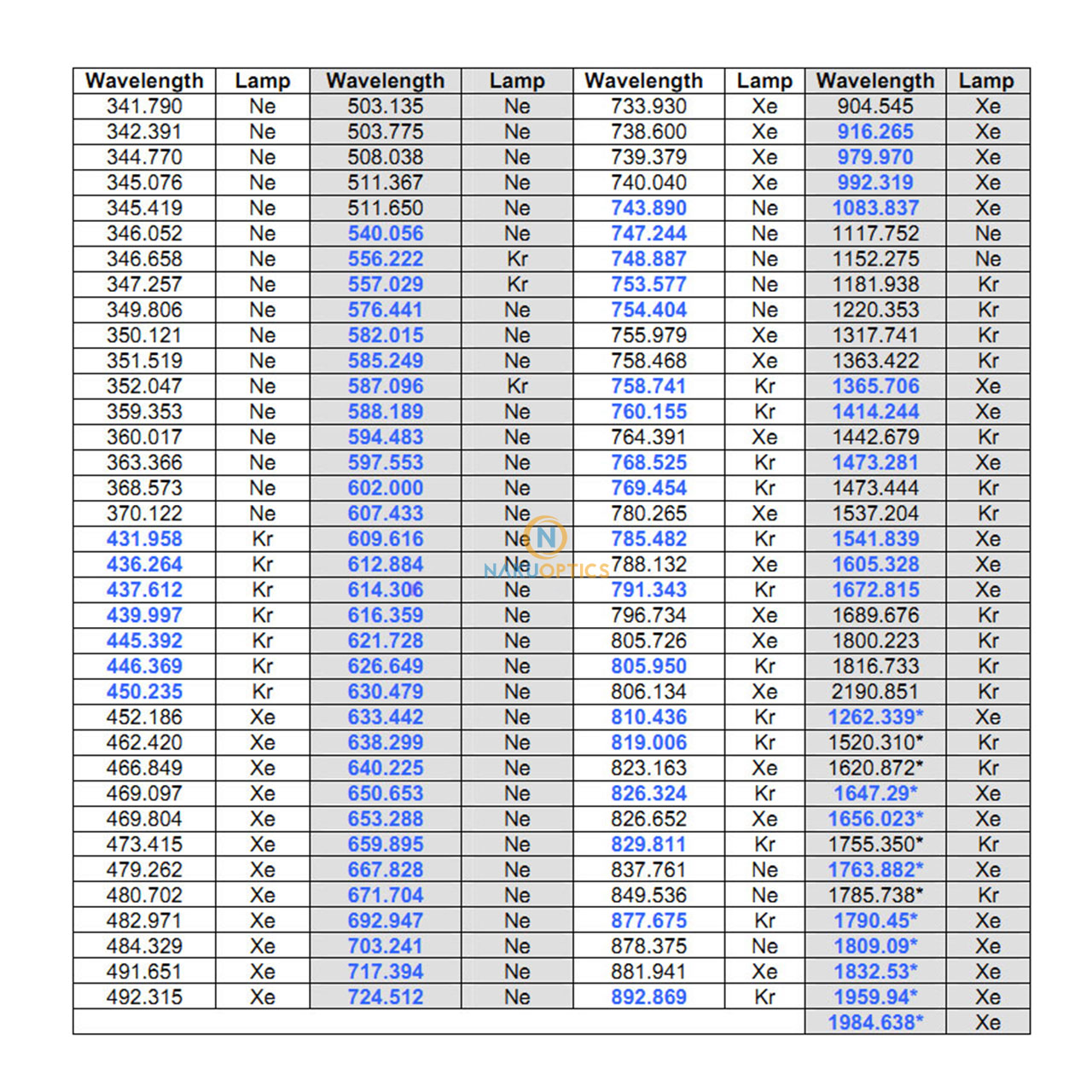

The compact and low-cost NE-1 calibration light source is suitable for wavelength calibration of the visible and near-infrared spectrum. NE-1 can generate transmission lines in the range of 540~754nm, which is suitable for fast and reliable wavelength calibration of spectrometers. The NE-1 case is printed with easy-to-identify transmission lines.

NE-1 can be used to confirm the wavelength accuracy of any spectrometer, and can also be used to recalibrate the spectrometer if necessary.

NE-1 uses a 12 VDC power supply (included in the product) for operation. Any SMA fiber or FC fiber can be used to connect with NE-1.

It is mainly used for visible-near infrared wavelength calibration without intensity calibration.

Product Name: Neon Light Source
Model: NE-1
Light Source: Neon light
Wavelength Range: 540~754nm
Dimensions: 13.5*8.5*4.5 cm
Weight: 40g
Power Requirements: 12 VDC (included in the product)
Lamp Life: about 3000 hours (under 20 mA)
Connector: SMA905 (FC can be customized.)
