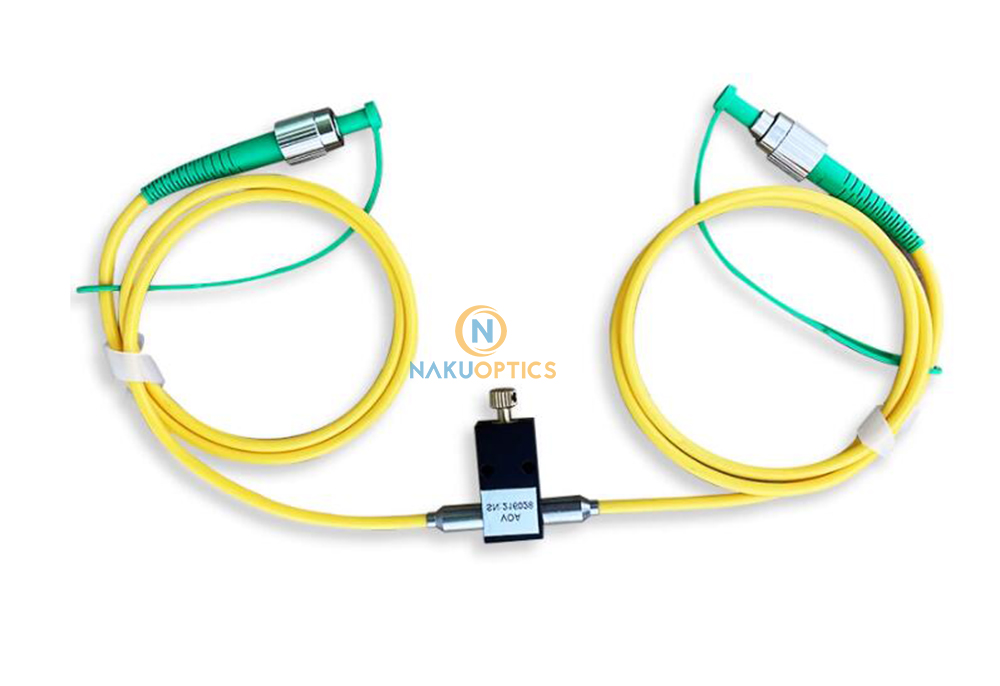

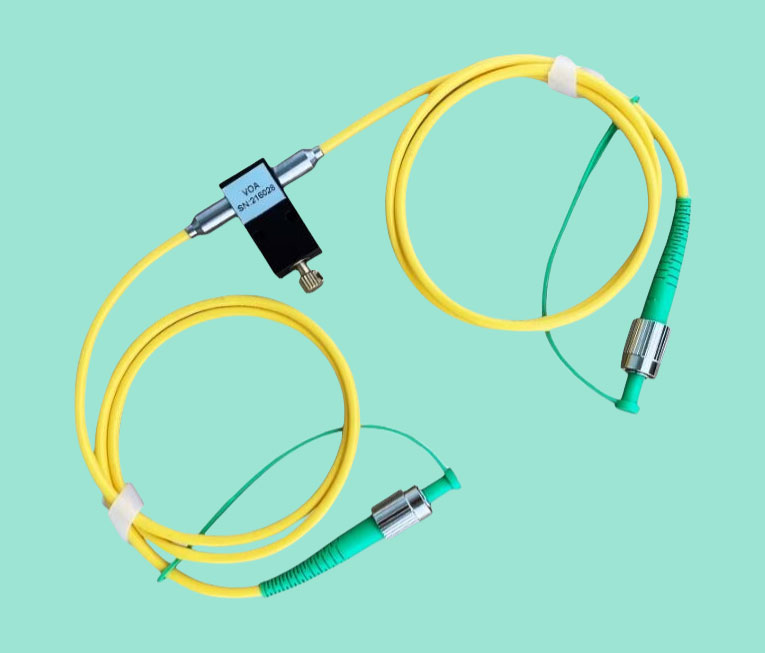

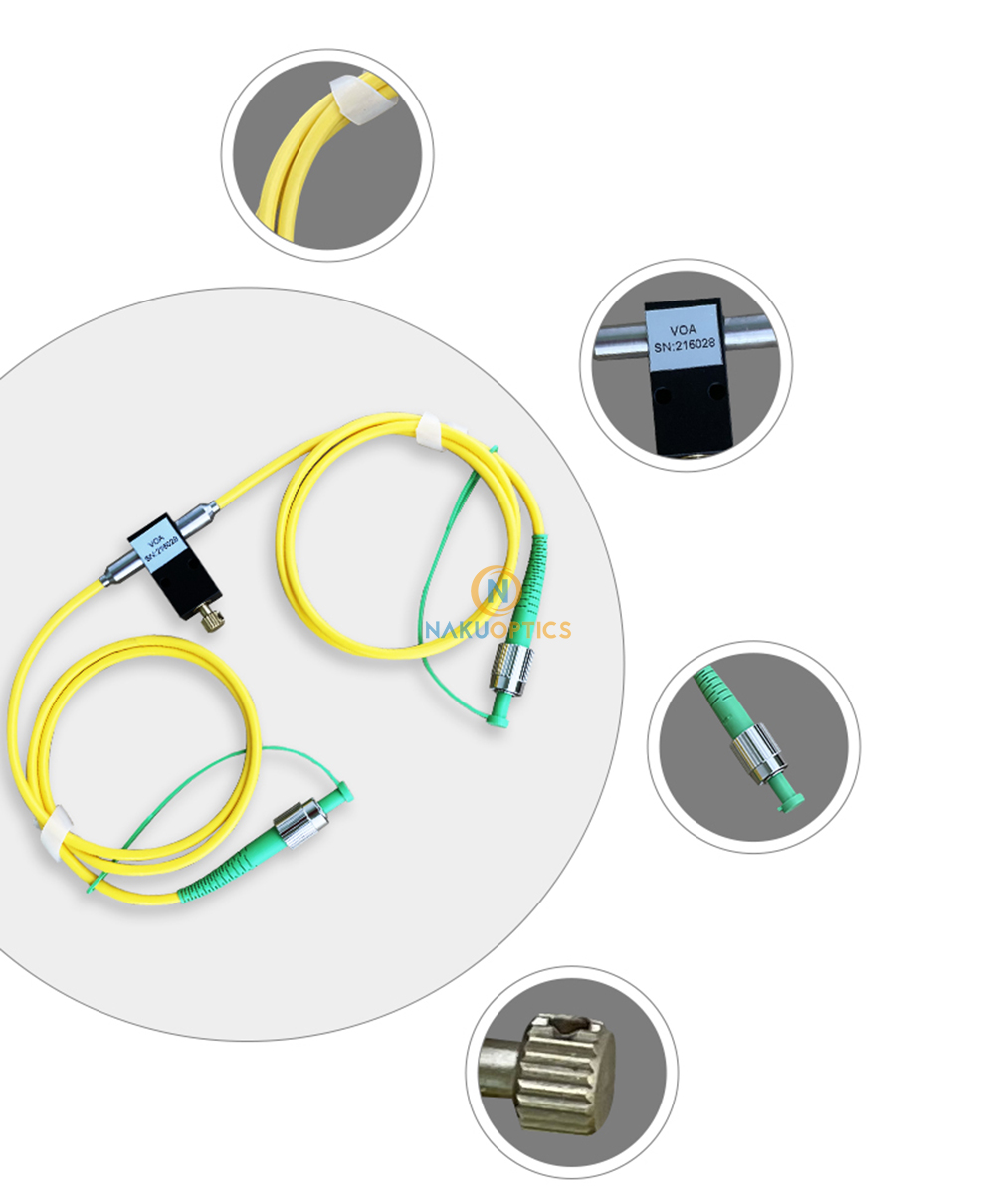

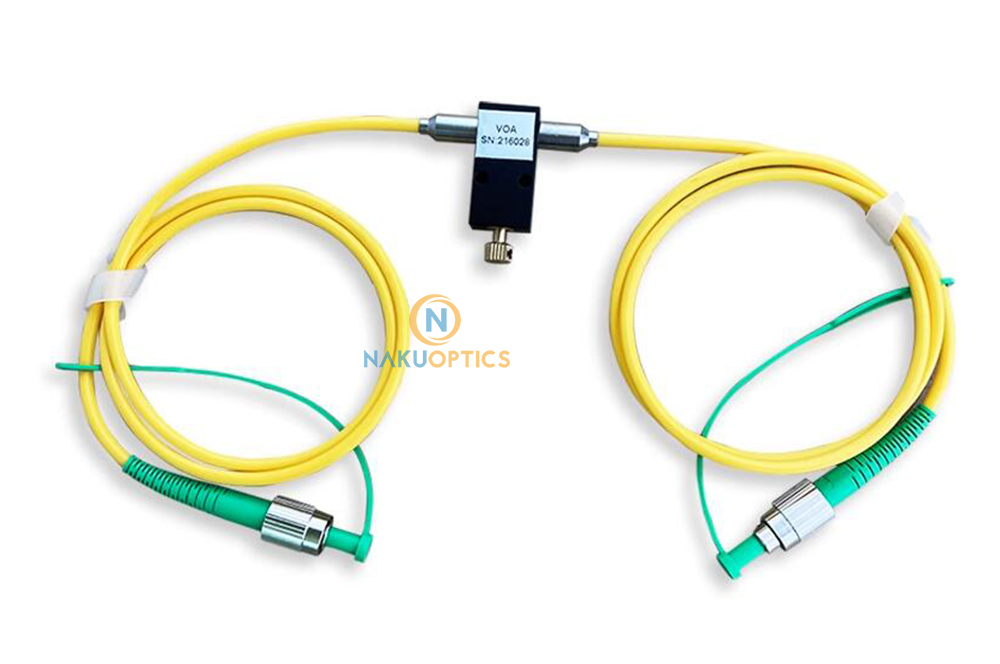

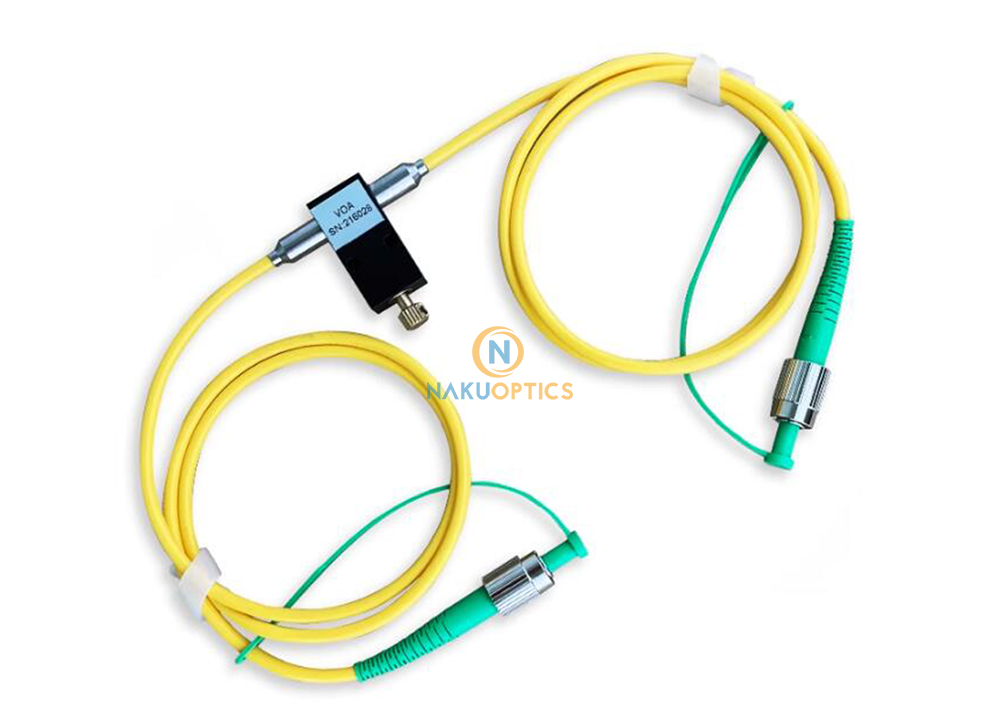

1550nm PM Adjustable Attenuator with PM1550 Fiber Slow Axis Alignment

Product ID: 1163


$204.00

1550nm PM Adjustable Attenuator with PM1550 Fiber Slow Axis Alignment

[Specifications]

Parameters Unit Value
Center Wavelength nm 1550
Operating Bandwidth nm ±30
Max. Additional Loss dB 0.6
Max. Attenuation dB 40
Min. Extinction Ratio dB 20
Wavelength Thermal Stability dB/℃ 0.01
Return Loss dB 55
Withstand Power CW mW 300
Fiber Type PM1550 fiber or others
Fiber Lenth m 1 or others
Connector Type FC/APC or others
Max. Tensile Load N 5

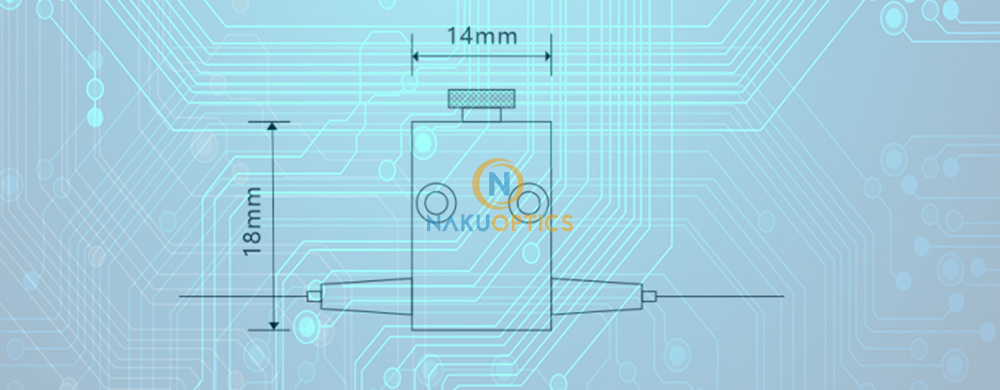

Package Dimensions mm 18x14x7
Operating Temperature 0~70
Storage Temperature -40~85

* Testing environment is 23℃.
* If more connectors are added, the insertion loss increases by 0.3dB, the return loss decreases by 5dB, and the extinction ratio of polarization-maintaining products decreases by 2dB.
* For polarization-maintaining devices, the default slow-axis operation is fast-axis cutoff.

PM attenuatorPM attenuator

PM attenuator

PM attenuator

PM attenuator

Weight 3.04 kg
